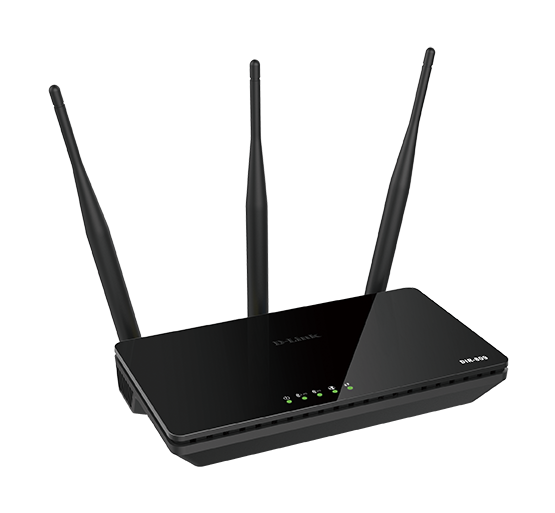

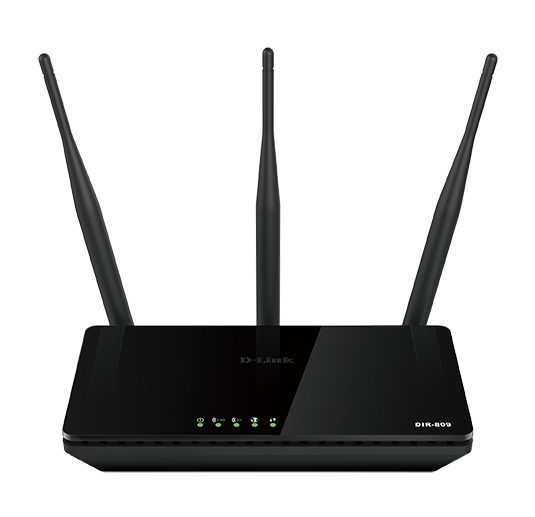

Wireless AC750 Dual Band Router

DIR-809

  • Product Status: Live
  • Dual-band Wireless AC750 (433 Mbps on 5 GHz + 300 Mbps on 2.4 GHz)
  • 802.11ac with MIMO
  • Fast Ethernet WAN and 4 x Fast Ethernet LAN
  • Optional Wi-Fi extender mode

Download the datasheet.

List Retailers

The increased range and reliability of wireless AC technology reaches further into your home, and the DIR-809's advanced security features keep your network and data safe from intruders.

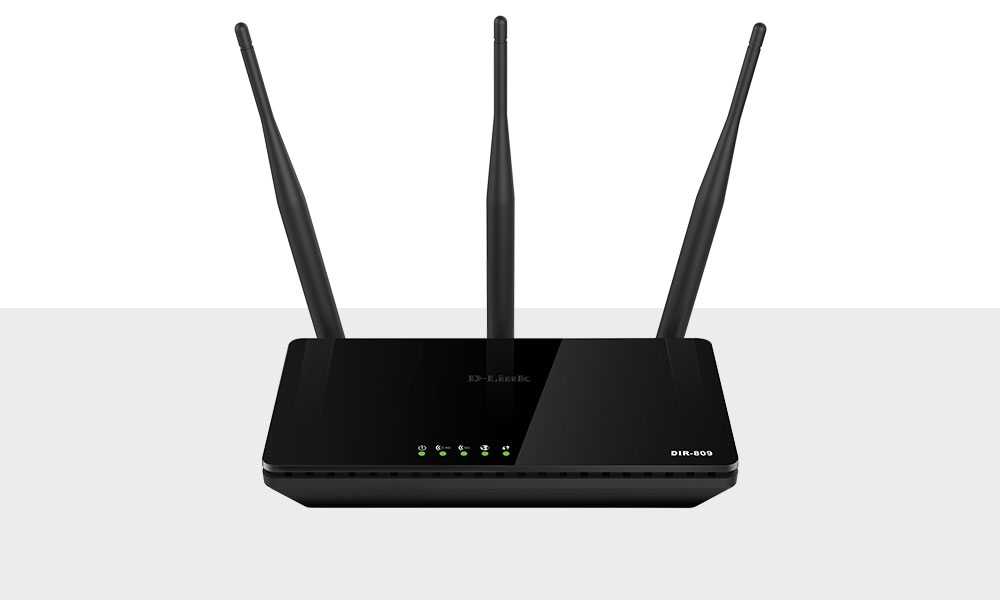

High-Speed Wireless Connectivity

The DIR-809 Wireless AC750 Dual Band Router uses the latest high-speed wireless technology to bring you lightning-fast Wi-Fi speeds of up to 433 Mbps on the 5 GHz frequency band and 300 Mbps on the 2.4 GHz frequency band.

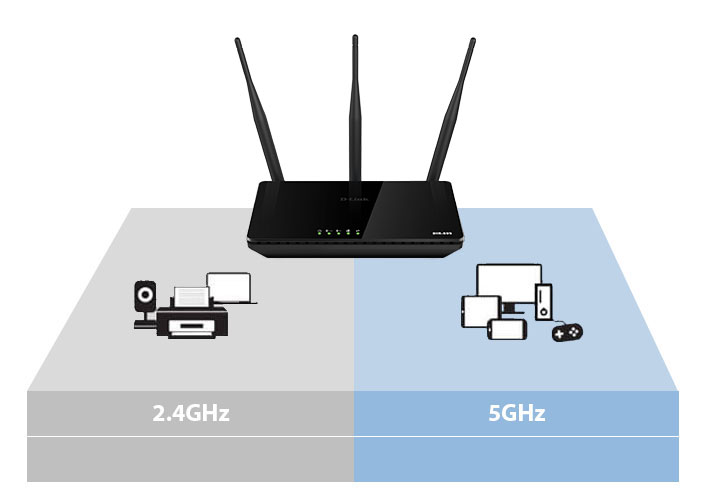

Dual Band Wireless for Seamless Performance

Surf the web, chat and play online games on the 2.4 GHz band with your smartphones and computers, while simultaneously streaming digital media on the 5 GHz band on your streaming media players and tablets.

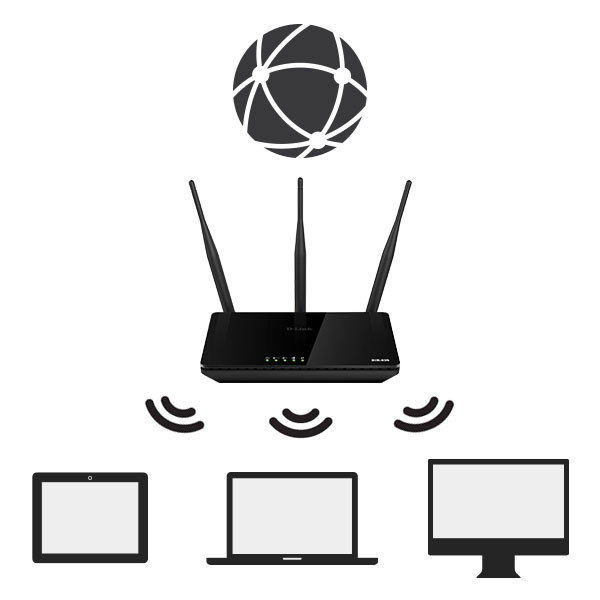

Extend Your Existing Wireless Network

You can also use the Wireless AC750 Dual Band Router to increase the coverage of your existing home Wi-Fi network.

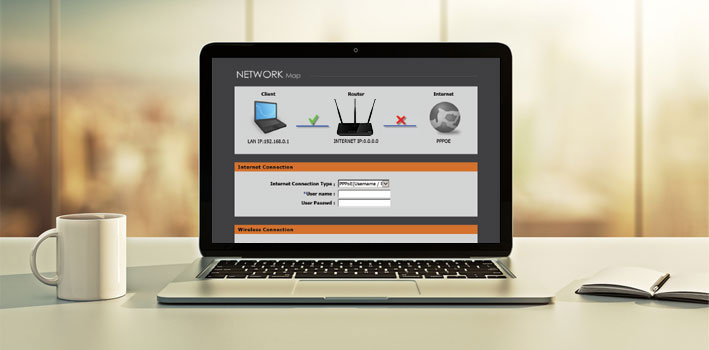

Easy to Set Up, Easy to Secure

Just open a web browser to access the setup wizard and follow the easy step-by-step instructions to get started. You can also use the QRS (Quick Router Setup) Mobile app, available for iOS and Android smartphones and tablets.

1 Maximum wireless signal rate derived from draft IEEE 802.11ac and IEEE 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range. Wireless range and speed rates are D-Link relative performance

Related Products

Wireless AC750 Dual Band Gigabit Cloud Router
DIR-818LW
Find out more
Wireless AC1200 Dual Band Gigabit Router
DIR-842
Find out more
Wireless AC1200 Dual-Band Gigabit Cloud Router
DIR-850L
Find out more
Wireless AC Dual-Band Nano USB Adapter
DWA-171
Find out more
Wireless AC600 Dual Band High Gain USB Adapter
DWA-172
Find out more

Technical Specifications

Technical Specifications

General

Device Interfaces

  • IEEE 802.11ac wireless LAN1
  • IEEE 802.11 a/b/g/n wireless LAN

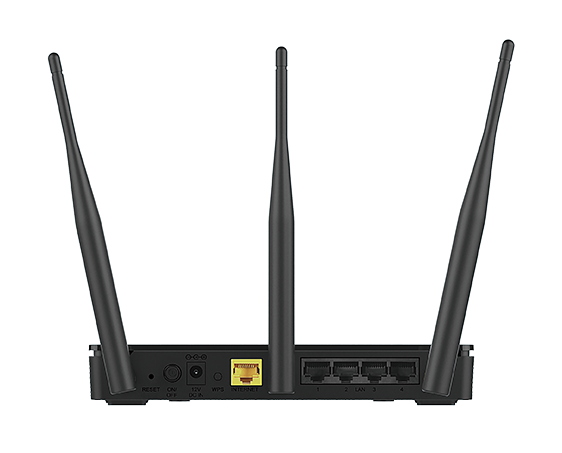

  • 10/100 fast Ethernet Internet port
  • Four 10/100 fast Ethernet LAN ports

LEDs

  • Power
  • Internet
  • WLAN
  • LAN (x4)
  • WPS

Antenna Type

  • Three fixed external antennas

Operating Frequency

  • 2.4 GHz band: 2400 - 2483.5 MHz
  • 5 GHz band: 5150 - 5725 MHz

Standards

  • IEEE 802.11ac
  • IEEE 802.11n
  • IEEE 802.11g
  • IEEE 802.11b
  • IEEE 802.11a
  • IEEE 802.3u

Minimum Requirements

  • Internet Explorer 9, Firefox 12.0, Chrome 20.0, Safari 4.0, or other Java-enabled browser
  • Cable or DSL Modem
  • Subscription with an Internet Service Provider

Functionality

Security

  • WPA & WPA2 (Wi-Fi Protected Access)
  • WPS (Wi-Fi Protected Setup)

Advanced Features

  • Web setup wizard
  • DMZ (Demilitarized Zone)
  • Firewall - Network Address Translation (NAT)
  • Wireless Repeater

Physical

Dimensions

  • 190 x 133 x 83 mm (7.48 x 5.24 x 3.27 inches)

Weight

  • 228.6 grams (8.06 ounces)

Power

  • Input: 100 to 240 V AC, 50/60 Hz

Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 65 °C (-4 to 149 °F)

Humidity

  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing

Certifications

  • ANATEL
  • NCC
  • CCC
  • BSMI

1 Maximum wireless signal rate derived from draft IEEE 802.11ac and IEEE 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building



Version Date Type File Size
Datasheet - PDF 0.32mb Download
Version Description Date Type File Size
Product manual Product manual 22.9.2015. PDF 5.32mb Download
Version Description Date Type File Size
1.00 Quick installation guide 22.9.2015. PDF 0.69mb Download
Version Description Date
1.09b09

Release notes included

20.5.2016. Download
1.09b05

Release notes included

13.4.2016. Download
Firmware 1.07b10 Firmware 6.10.2015. Download
Version Description Date
DEU_Language_pack_PT_1_09 Language pack : Portuguese 20.10.2016. Download
DEU_Language_pack_PT_1_07 Language pack : Portuguese 6.10.2015. Download
DEU_Language_pack_ES_1_07 Language pack : Spanish 6.10.2015. Download
DEU_CE_Doc_RevA3 CE declaration 22.9.2015. Download
