28-Port xStack L2+ Managed Stackable Fast Ethernet Switch
- Product Status: Phased Out
The xStack DES-3552 by D-Link is a high-performance, managed, stackable 28-port Layer 2 Fast Ethernet switch including 2 Gigabit Ethernet and 2 Combo 1000BASET-T/SFP ports that provides an ideal solution for workgroups and edge deployments of a network. The D-Link Single IP Management (SIM) allows administrators to cluster up a virtual stack of up to 32 dispersed switches with fewer distance limitations through a single IP address.
The xStack DES-3528 by D-Link is a high-performance, managed, stackable 28-port Layer 2 Fast Ethernet switch including 2 Gigabit Ethernet and 2 Combo 1000BASET-T/SFP ports that provides an ideal solution for workgroups and edge deployments of a network. The D-Link Single IP Management (SIM) allows administrators to cluster up a virtual stack of up to 32 dispersed switches with fewer distance limitations through a single IP address.
The DES-3528 provides a non-blocking switching solution for 10/100 Fast Ethernet connections. The DES-3528 supports 24 10/100Mbps ports, with 4 gigabit 10/100/1000BASE-T ports. Two of these gigabit copper ports are disabled when the two 1000BASE-X SFP are used, also known as dual personality or combo ports. The DES-3528 has a non-blocking bandwidth of 12.8Gbps; the xStack switch has a redundant power option for mission critical applications.
Advanced Network Security
For edge network security, the DES-3528 supports DHCP server screening, client filtering, and IP-MAC-Port Binding to prevent security breaches such as rogue DHCP server, man-in-the-middle attacks and IP spoofing. For clients with XP SP3, Vista, or servers with Microsoft’s Server 2008, DES-3528 works in conjunction with Microsoft’s Network Access Protection (NAP) as part of an ecosystem that enforces compliance with network health policies. The xStack switch will grant network host access only if it complies with IT security policies such as up-to-date anti-virus signatures and operating system patches. This prevents a virus-infested client or server from gaining access and further contamination.
IP Clustering Stackable
The xStack DES-3528 provides D-Link Single IP Management Technology (SIM), allowing a set of switches to be managed by a single IP, regardless of geographical locations. Traffic running among units in this virtual stack is through the full-duplex Gigabit interfaces and your usual network wires, doing away with the costly and cumbersome stacking cables. Without any stacking cable, cable distance barrier and physical stacking limitations, your stack can comprise units that are located anywhere on the network, minimizing the impact of any single point of failure. Furthermore, multiple xStack switches can be configured, monitored and maintained from any workstation running a web browser through one unique IP address.
Ease of Management
The DES-3528 supports SNMP v1/2/3 so traps can be set on abnormal events and information can be polled to maximize the productivity of the network. Other standard management features are also supported including RMON and IEEE 802.1d/w/s spanning tree, User interface includes intuitive web-based browser graphic interface or industry-standard CLI, either administration traffic can be protected thru SSL or SSH encryptions.
- Virtual Stacking of up to 32 units
- Embedded D-Link SIM for integration all xStack Switches
- Physical Stacking of up to 8 units
- 4K VLANs Support
- Selective Q-in-Q and VLAN Translation
- MAC-based VLAN
- 802.1v Protocol-based VLAN
- L2/L3/L4 Multi-Layer Access Control
- External RADIUS/TACACS+ Authentication Support
- SSH/SSL Support
- Guest VLAN
- Web-Based Access Control (WAC)
- MAC-Based Access Control (MAC)
- IP-MAC-Port Binding
- D-Link Safeguard Engine
- Supports Microsoft NAP
Quality of Service
- 802.1p Priority Queues/Multi-Layer CoS
- IP Multicast Support for Bandwidth-Intensive Applications
Traffic Monitoring/Bandwidth Control
- Port Mirroring
- Traffic Segmentation
- Bandwidth Control Down to 64bps
- Broadcast Storm Control
- Committed Information Rate
- RMON v1/v2 Support
- Web-based GUI
- Command Line Interface (CLI)
- SNMP v1, v2c, v3 Standard
- D-Link Single IP Management (SIM) v1.6
- D-View SNMP Network Management Module Provided
- Telnet Client/Server

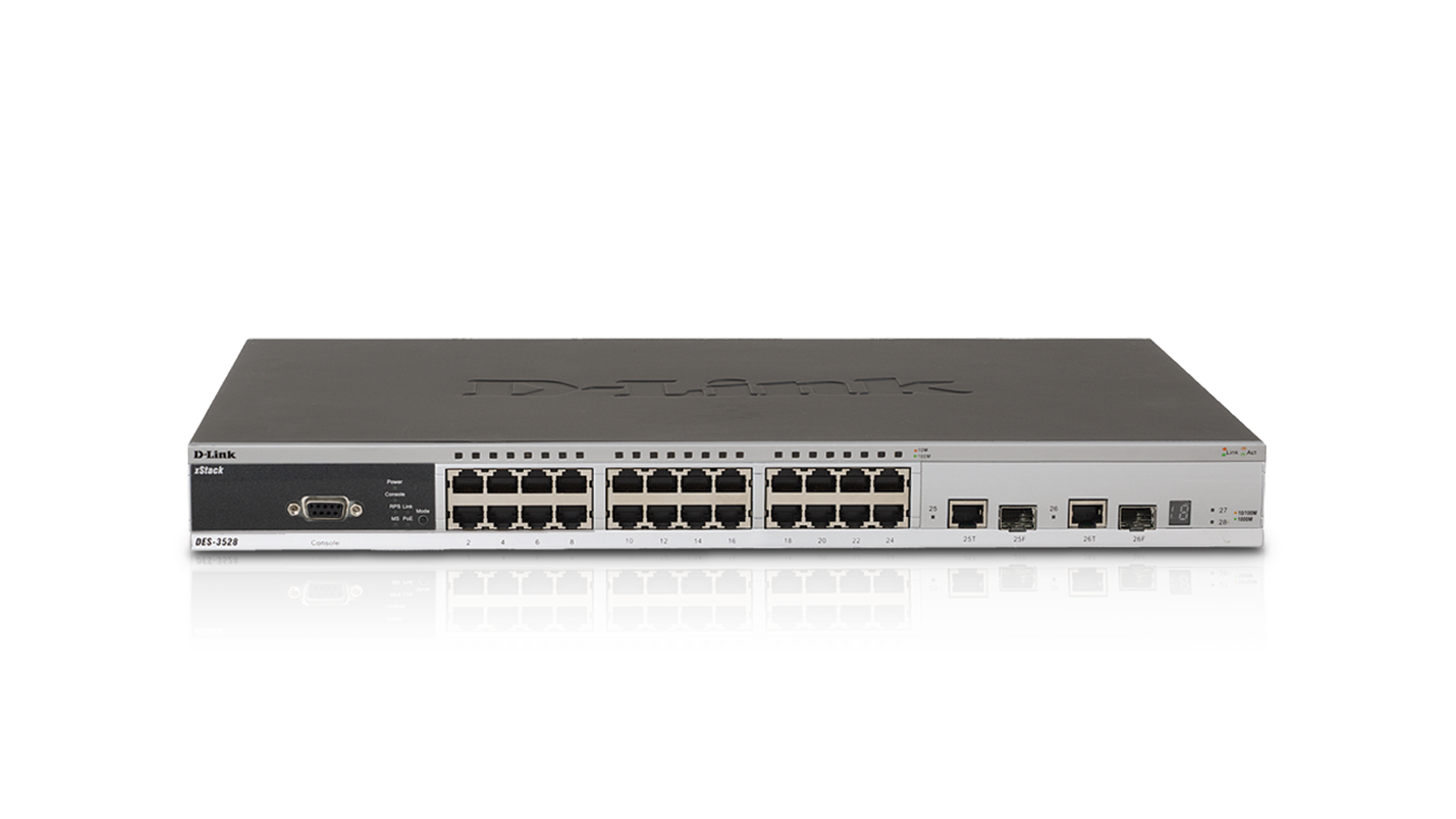

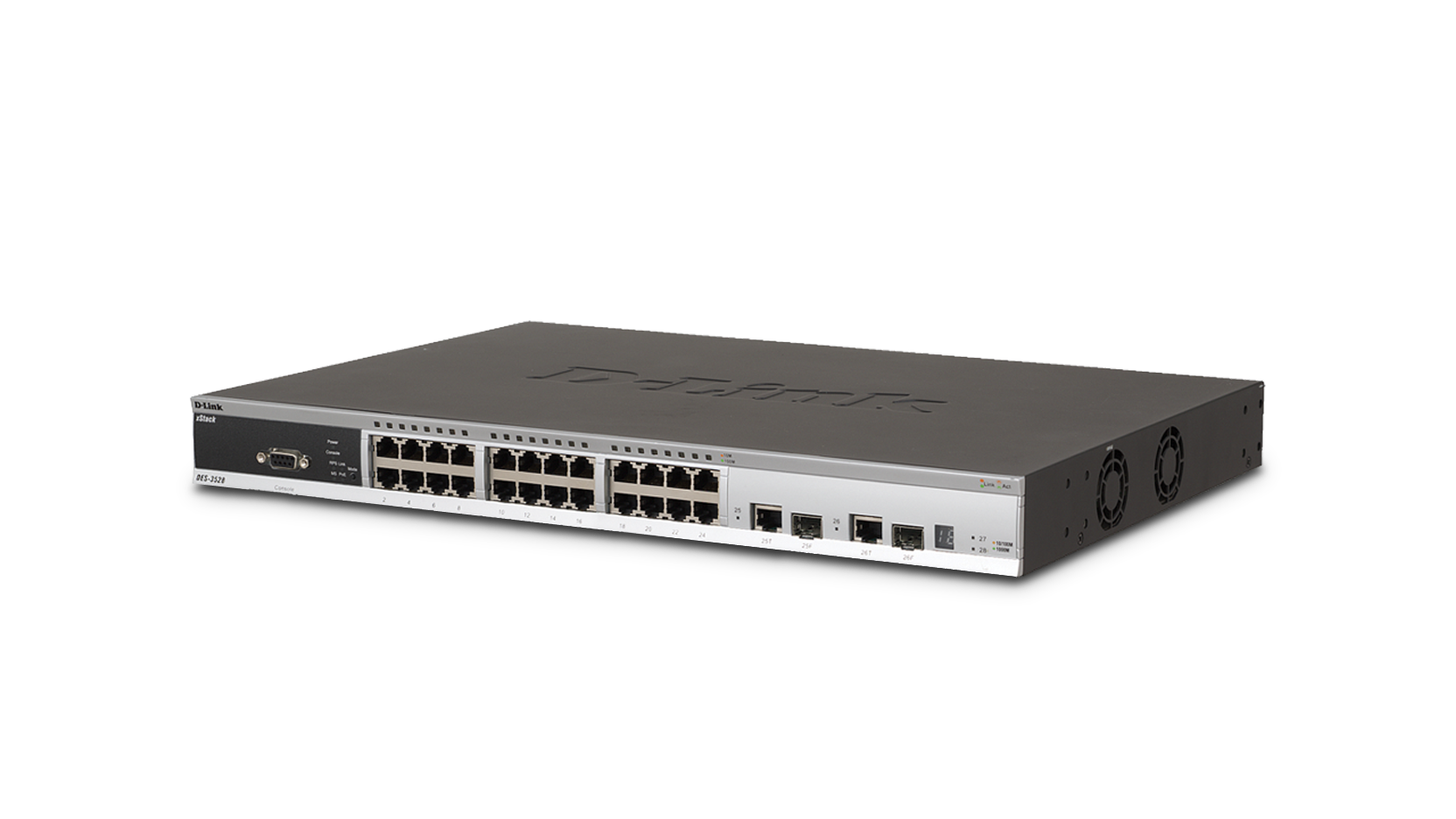

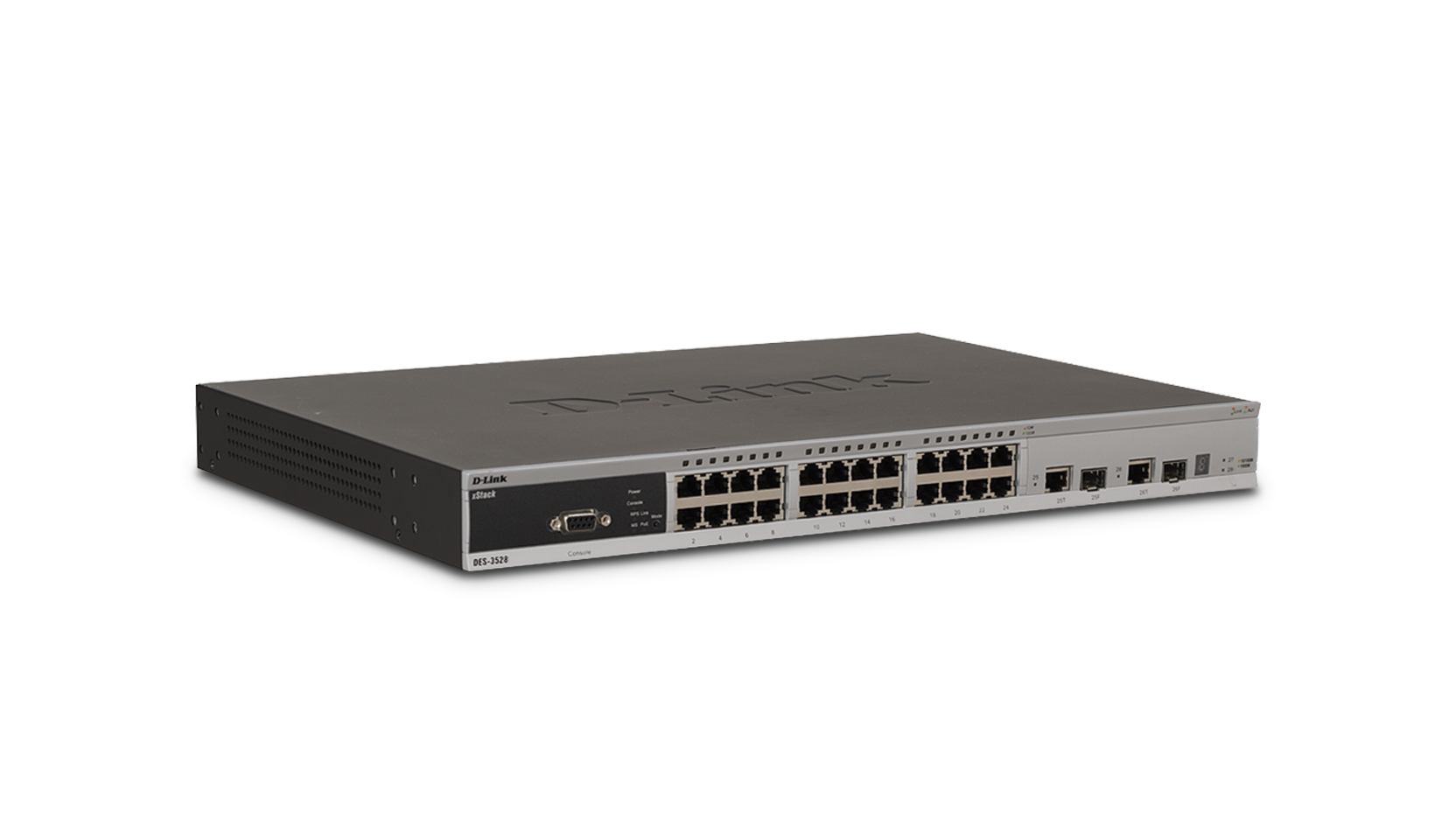

Actual product appearance may differ from the image displayed on this page
