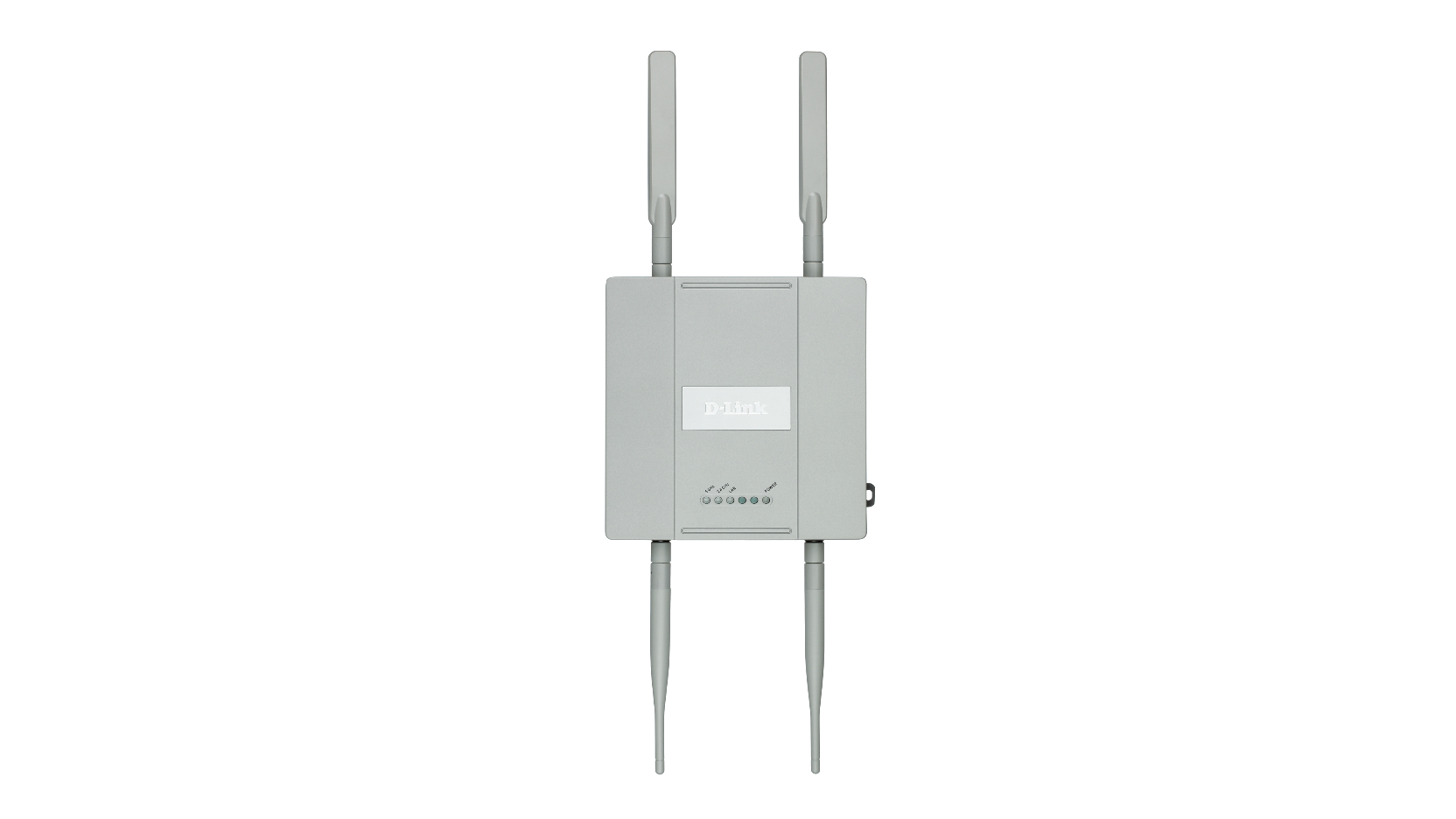

Wireless N Simutaneous Dual-Band PoE Access Point

DAP-2690

  • Product Status: Phased Out

The DAP-2690 is a dual-band wireless access point, designed to enable businesses of any size deploy wireless networks. Enclosed in a rugged, plenum-rated metal chassis, the DAP-2690 adheres to strict fire codes for placement in air passageways.


Download the datasheet.

List Retailers

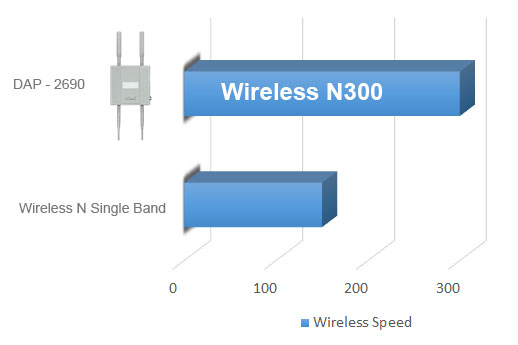

Performance without Compromise

Using the latest generation of Wireless N technology, the DAP-2690 delivers great wireless performance and coverage in a compact design.

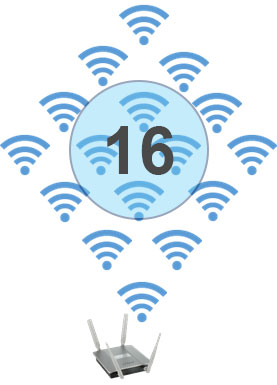

Broadcast 16 independent SSIDs simultaneously

Supports up to 16 SSIDs, 8 per Band, including station isolation

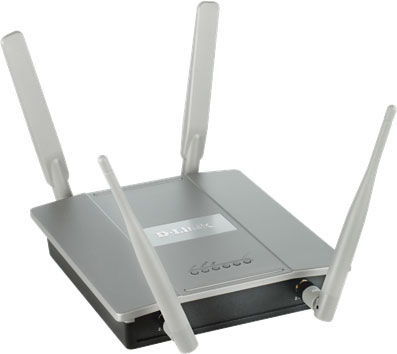

Reliable wireless with maximum wireless signal strength

The DAP-2690 is a dual-band wireless access point, designed to enable businesses of any size to deploy wireless networks. Enclosed in a rugged, plenum-rated metal chassis, the DAP-2690 adheres to strict fire codes for placement in air passageways.

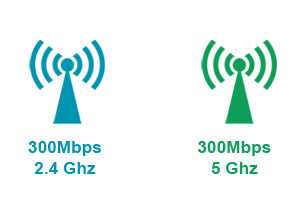

Simultaneous Dual-Band Wireless

Supports up to 300Mbps for the 5Ghz band and up to 300Mbps for the 2.4Ghz band

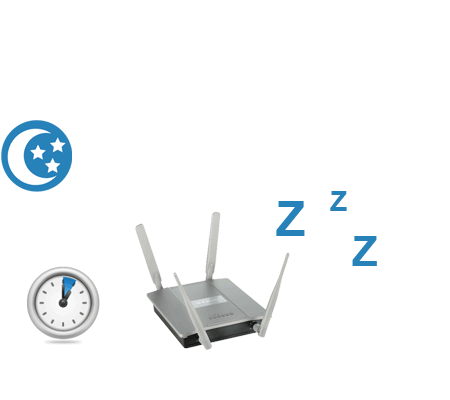

Smart Design

With a wireless scheduler feature which turns off wireless functionality when it isn’t needed, the DAP-2690 provides savings in power and increased network security.

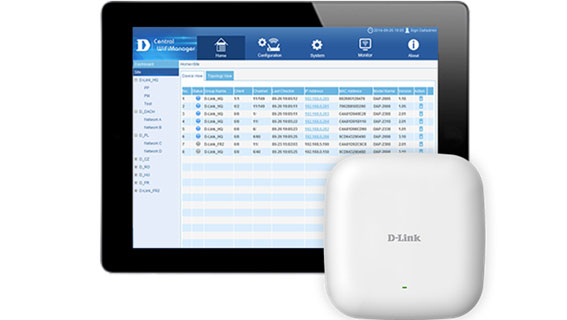

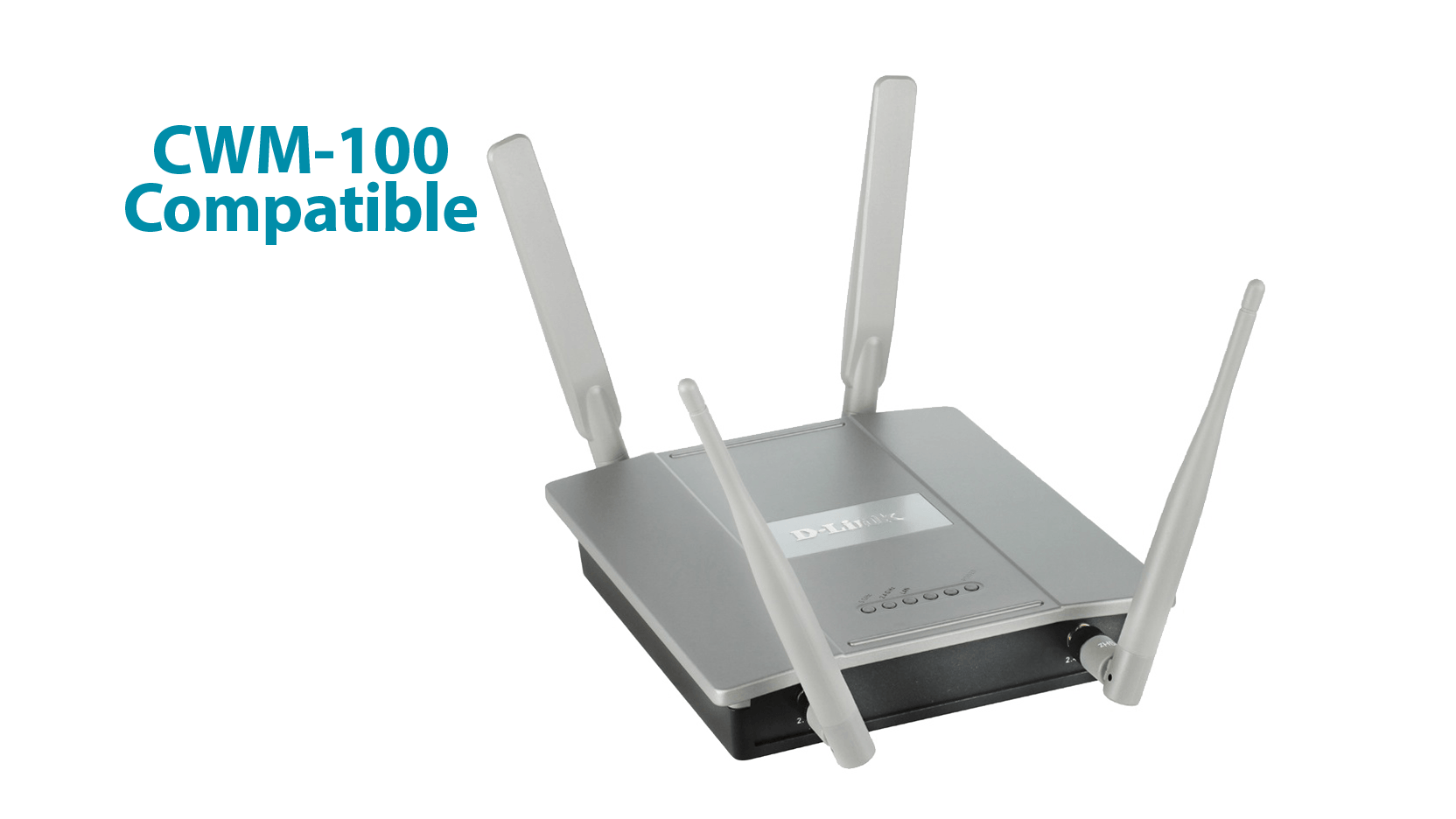

Free Wireless AP Controller software

D-Link’s free Central WiFiManager is a cloud-enabled wireless Access Point management tool, designed to allow you to create and manage multi-site, multi-tenancy wireless networks.

Manage up to 1000 APs

Manage up to 1000 access points located around the world from one virtual controller residing in your network or in the cloud.

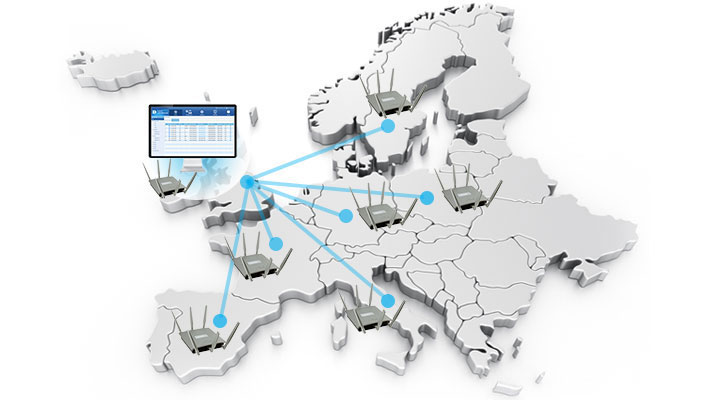

Scalable, flexible, centralised AP management

Manage up to 1000 APs from a central location, regardless of geography.

Product Comparison

<>Wireless N


  DAP-2310 DAP-2360 DAP-2690
Wireless Standard B, G, N B, G, N B, G, N
Frequency 2.4GHz 2.4GHz 2.4GHz, 5GHz
2.4GHz Throughput 300Mbps 300Mbps 300Mbps
5GHz Throughput - - 300Mbps
Aspect Indoor Indoor Indoor
Range* 100m 100m 100m

<>Wireless AC


  DAP-2660 DAP-2695
Wireless Standard B, G, N, AC B, G, N, AC
Frequency 2.4GHz, 5GHz 2.4GHz, 5GHz
2.4GHz Throughput 300Mbps 300Mbps
5GHz Throughput 867Mbps 1300Mbps
Aspect Indoor Indoor
Range* 100m 100m

* Range indicates the maximum distance where the highest throughput can be achieved, anything beyond this distance results in a loss of throughput.

Related Products

Central WiFiManager
CWM-100
Find out more
Wireless N Access Point
DAP-2310
Find out more
Wireless N PoE Access Point
DAP-2360
Find out more
Wireless AC1750 Simultaneous Dual-Band PoE Access Point
DAP-2695
Find out more
Wireless AC1200 Simultaneous Dual Band PoE Access Point
DAP-2660
Find out more

Technical Specifications

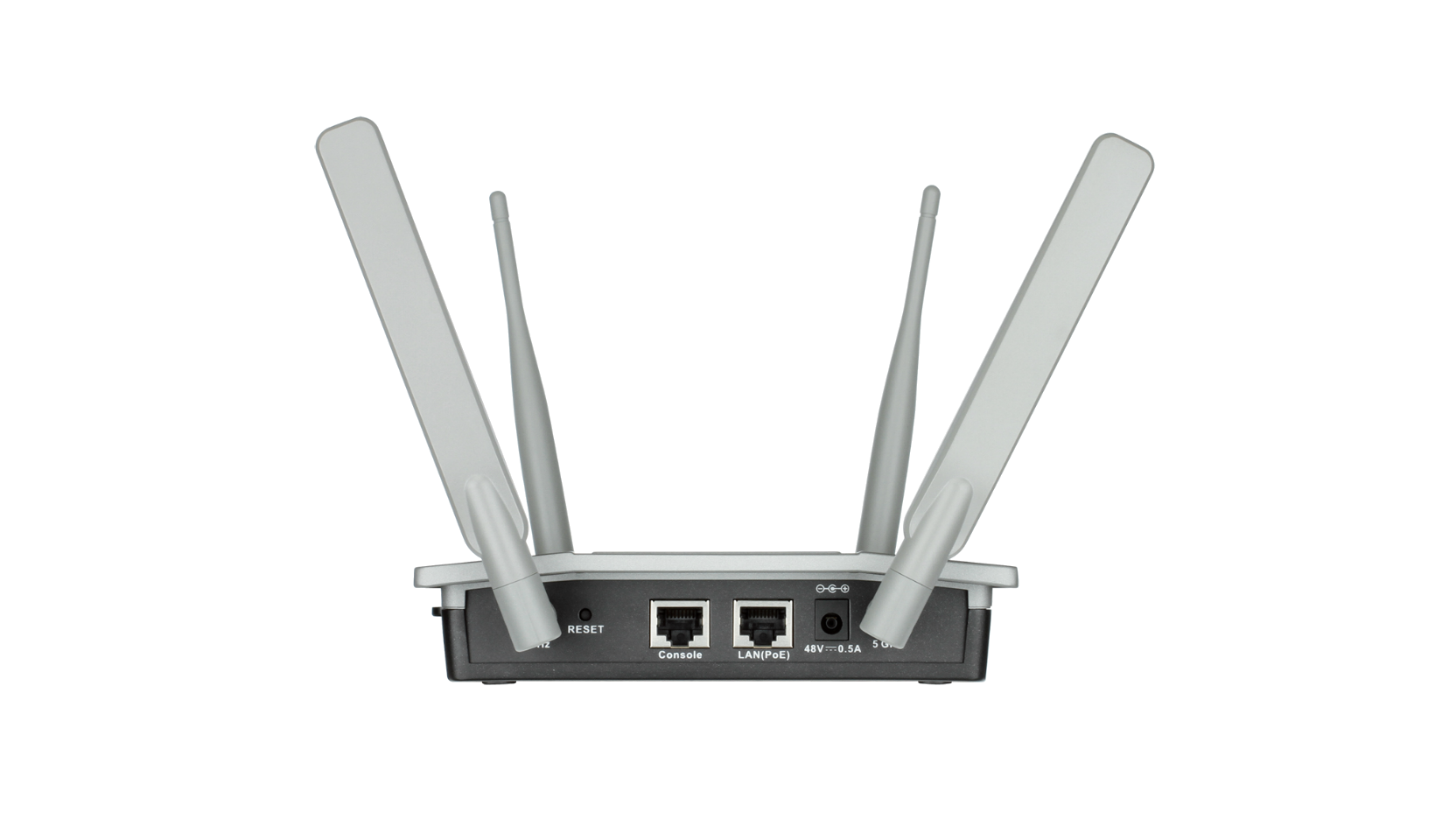

Hardware
  • Sturdy Plenum rated metal chassis
  • One 10/100/1000 Mbps Gigabit LAN port with built-in 802.3af Power over Ethernet (PoE)
  • Four detachable antennae

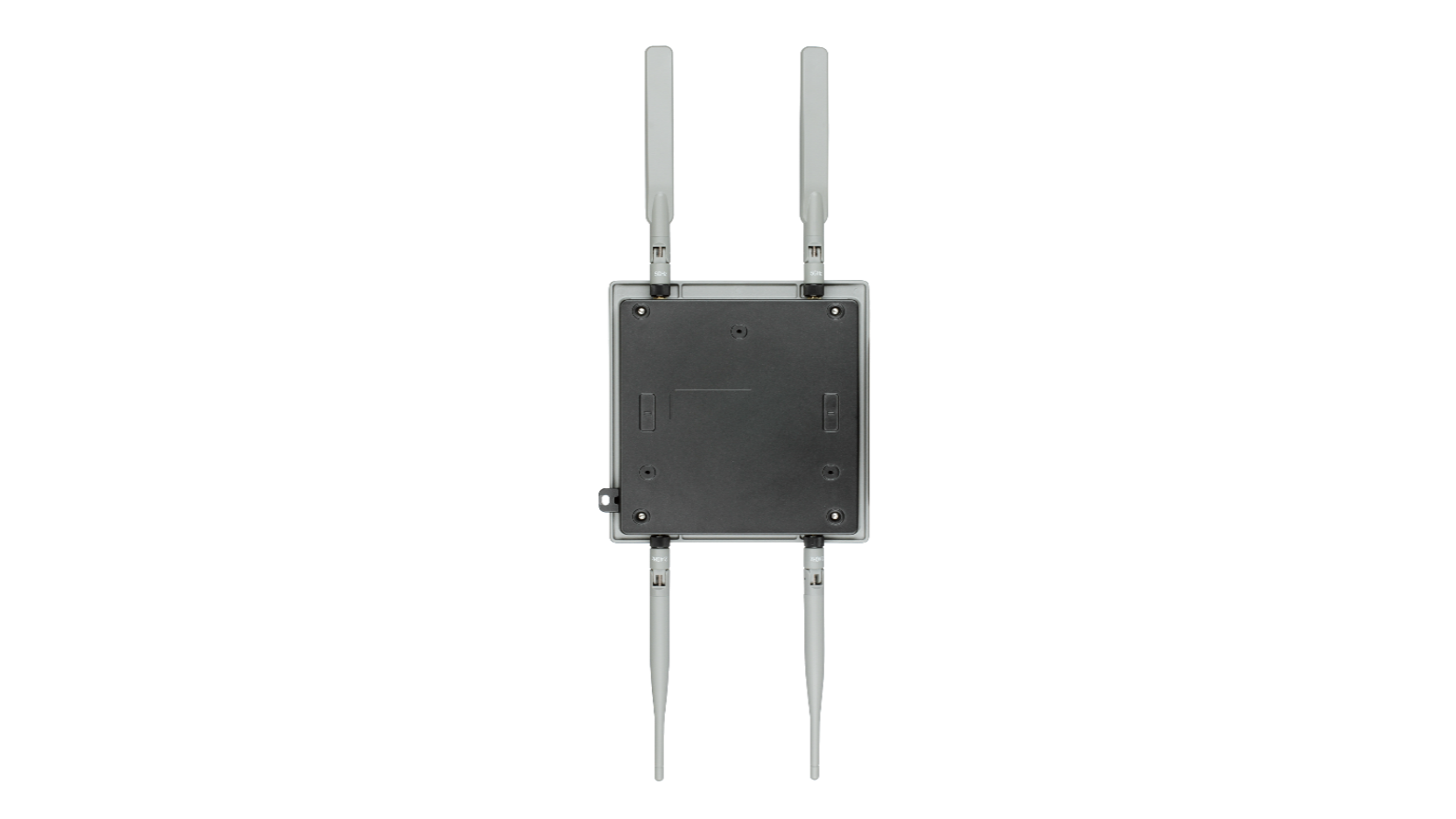

  • Wall-mounting brackets included
  • RJ-45 console port

High performance connectivity

  • IEEE 802.11n Wireless LAN specification
  • Simultaneous operation in both 2.4 and 5 GHz frequency ranges
  • Up to 300 Mbps wireless data transfer rates in each band*

Operation modes
  • Access Point
  • Wireless Distribution System (WDS), for either Point-to-Point or Point-to-Multipoint bridge
  • WDS with AP
  • Wireless client

Security
  • WPA™ Personal/WPA™ Enterprise
  • WPA2™ Personal/WPA2™ Enterprise
  • WPA2-PSK/AES over WDS
  • MAC Address access control
  • Internal RADIUS server: up to 100 accounts

Management
  • AP Manager II
  • Web Browser (HTTP/HTTPS)
  • Telnet
  • SSH
  • SNMP v1, v2c, v3
  • D-View 5.1 and 6.0
  • D-Link AP Array

* Maximum wireless signal rate based on IEEE standard 802.11g, 802.11a and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors may lower actual data throughput rate.

FAQ

Downloads can vary across product revisions. Please select the correct hardware revision.


This product was phased out on: 3/9/2016
