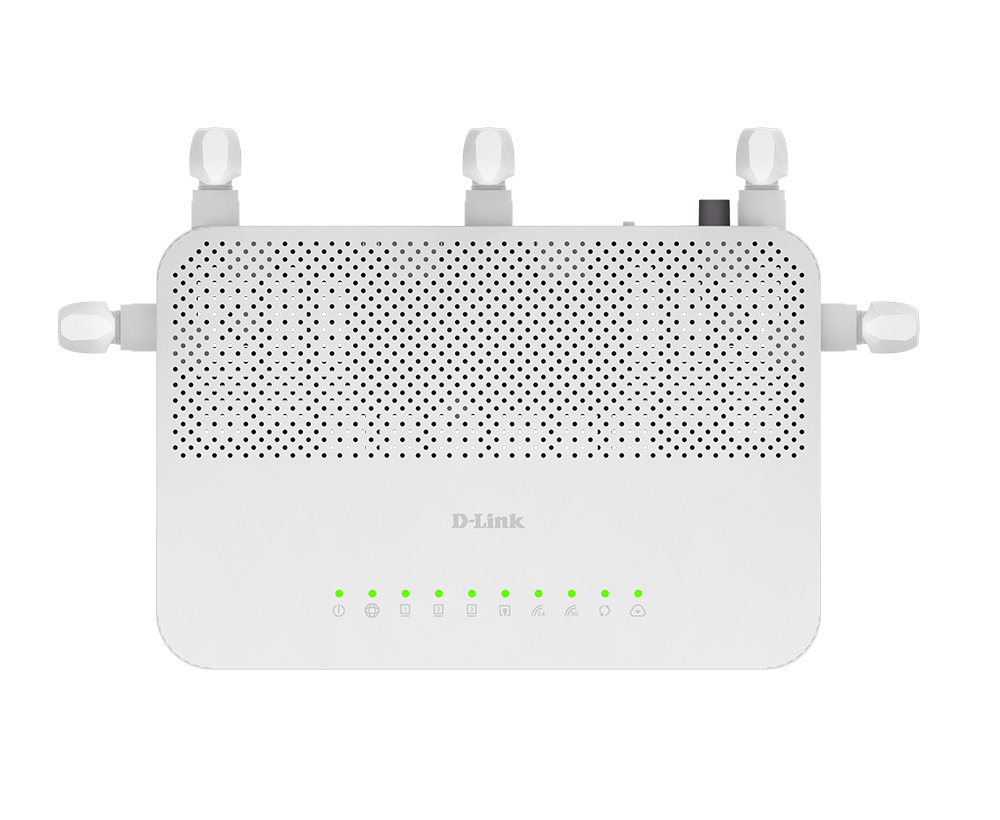

BE3600 Wi-Fi 7 Router

C36

  • Product Status (C36_A1_Datasheet_v1_01WW): Live
  • Wi-Fi 7 Dual-Band: Delivers dual-band speeds up to 3.6 Gbps for 4K streaming, gaming, and video calls1
  • Multi-Link Operation (MLO): Simultaneously transmits data across different bands to minimize congestion
  • Maximized Coverage: Equipped with five external antennas with Beamforming technology, delivering enhanced signal reception and more reliable connections
  • 2.5 Gbps WAN Port: Ensures fast and stable high-speed wired connections
  • Mesh Expandable: Easily create a whole-home Mesh network by adding additional C series units
  • Enhanced Security: Supports WPA3 encryption and cybersecurity certification for stronger data protection
  • Simple Setup: Network setup and management are simplified through the FALCON app2

Download the datasheet.

Where to buy

An essential Wi-Fi 7 upgrade for your broadband home

The C36 BE3600 Wi-Fi 7 Router delivers faster, more stable Wi-Fi for everyday homes, simply and affordably. With speeds up to 3.6 Gbps¹, it ensures smoother streaming, quicker downloads, and reliable coverage, without a complicated setup.

The Essential Upgrade in Wi-Fi Technology

Learn More

Dual-Band Performance

5GHz_2.4GHz

     4K Streaming              Video Calls              Online_Gaming                   Large File Transfers                                 4K Streaming          Video Calls         Online Gaming         Large File Transfers

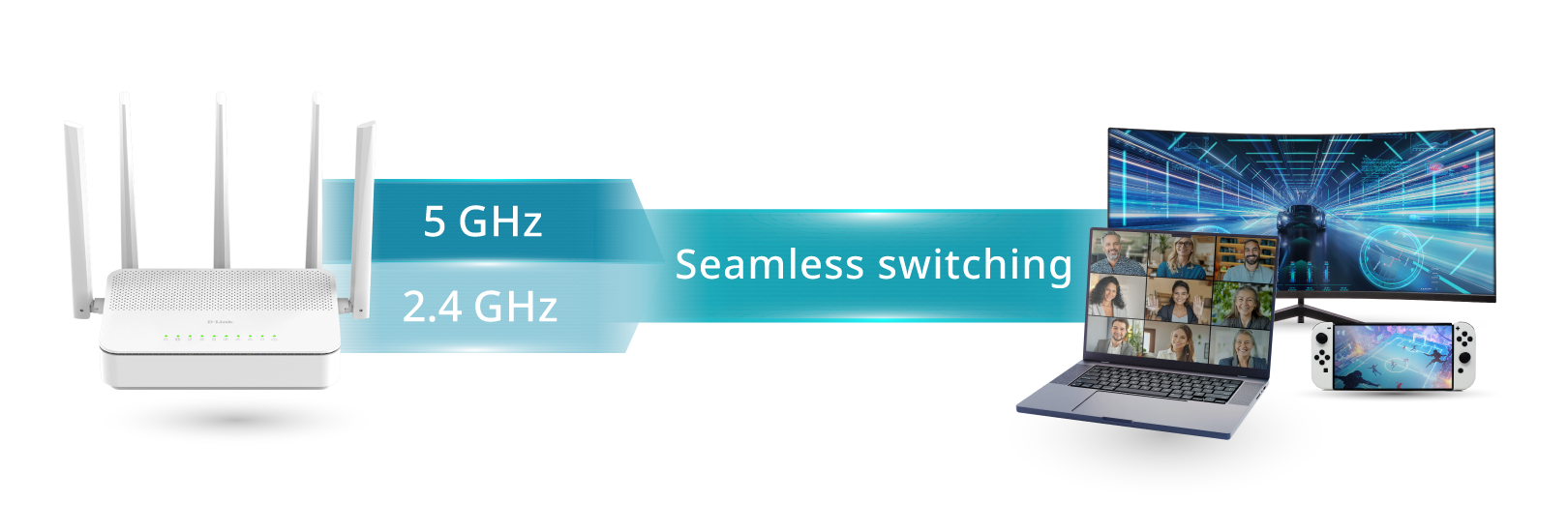

Faster, Smoother, and More Reliable with MLO

The C36 features Multi-Link Operation (MLO) technology, which boosts speed, improves reliability, and reduces latency by transmitting data across multiple bands simultaneously. MLO Mesh applies this technology to Mesh networks, strengthening the connection between the main router and its extenders for consistently reliable whole-home coverage.

Stronger Signal, Wider Coverage

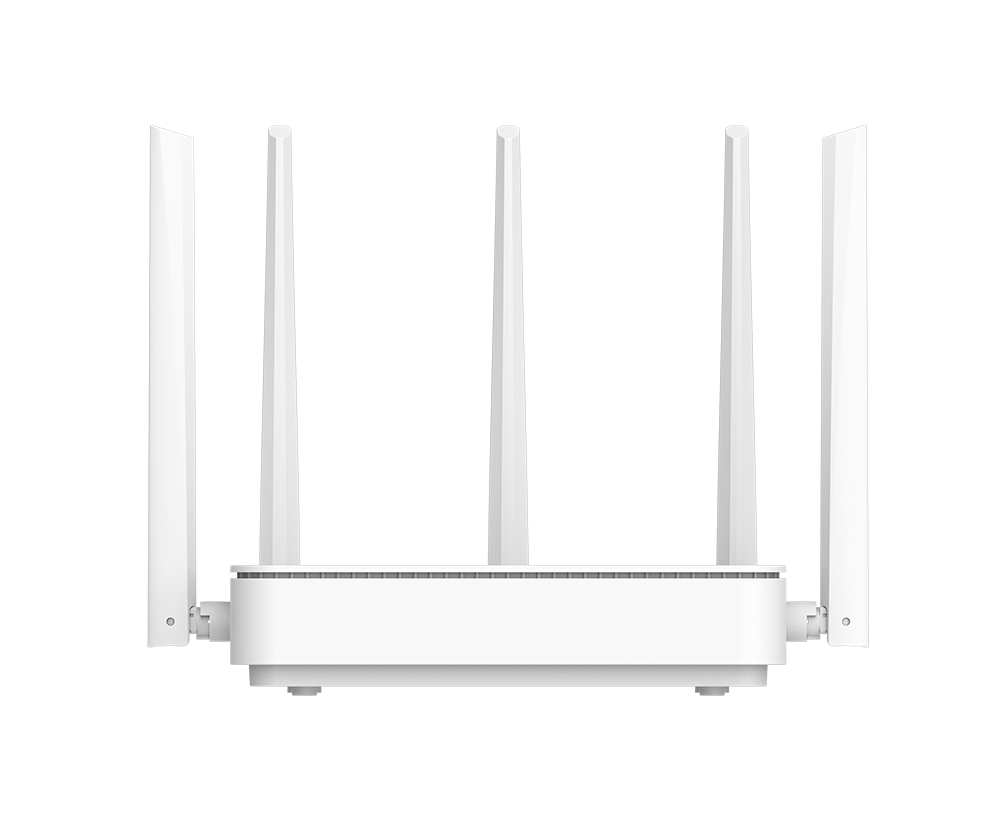

Equipped with five external high-gain antennas, including a dedicated RX antenna, the C36 boosts signal strength, expands coverage, and reduces dead zones. Adjustable angles let you fine-tune reception for optimal performance.

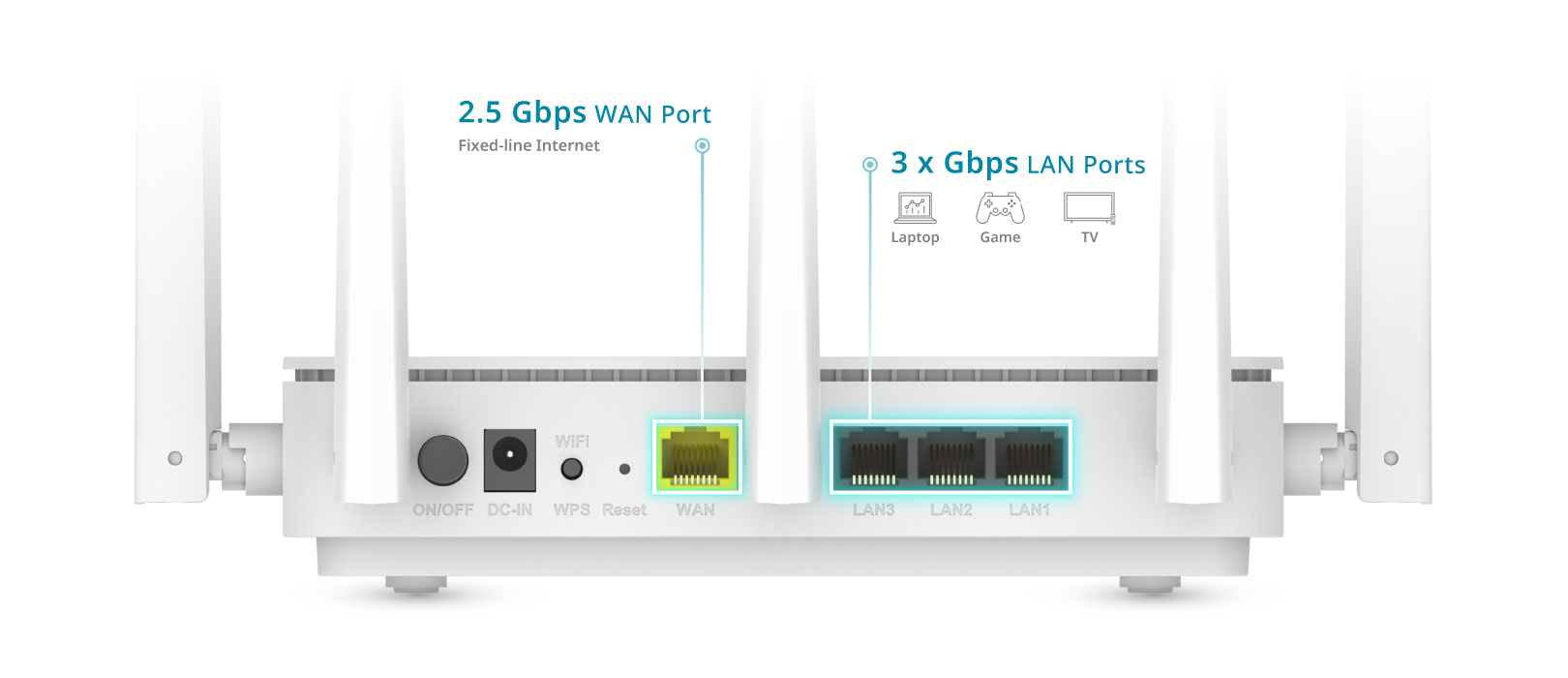

2.5 Gbps High-Speed Wired Connectivity

With a 2.5 Gbps WAN port and 3 x Gbps LAN ports, the C36 delivers fast, stable, high-speed wired connections for PCs, smart TVs, and gaming consoles.

Mesh Expandable

Experience seamless, wall-to-wall connectivity by adding more C series units to create a whole-home Mesh Wi-Fi* for expanded coverage, smooth roaming, elimination of dead zones, and keeping devices connected as you move around your home.

*The C36 currently supports Mesh networking with C36 units and will support other C Series products in the future.

Enhanced Network Security

The C36 provides advanced security to protect your network and personal data, featuring WPA3 encryption, cybersecurity certification, parental controls, and a guest network, all designed to keep your network more secure.

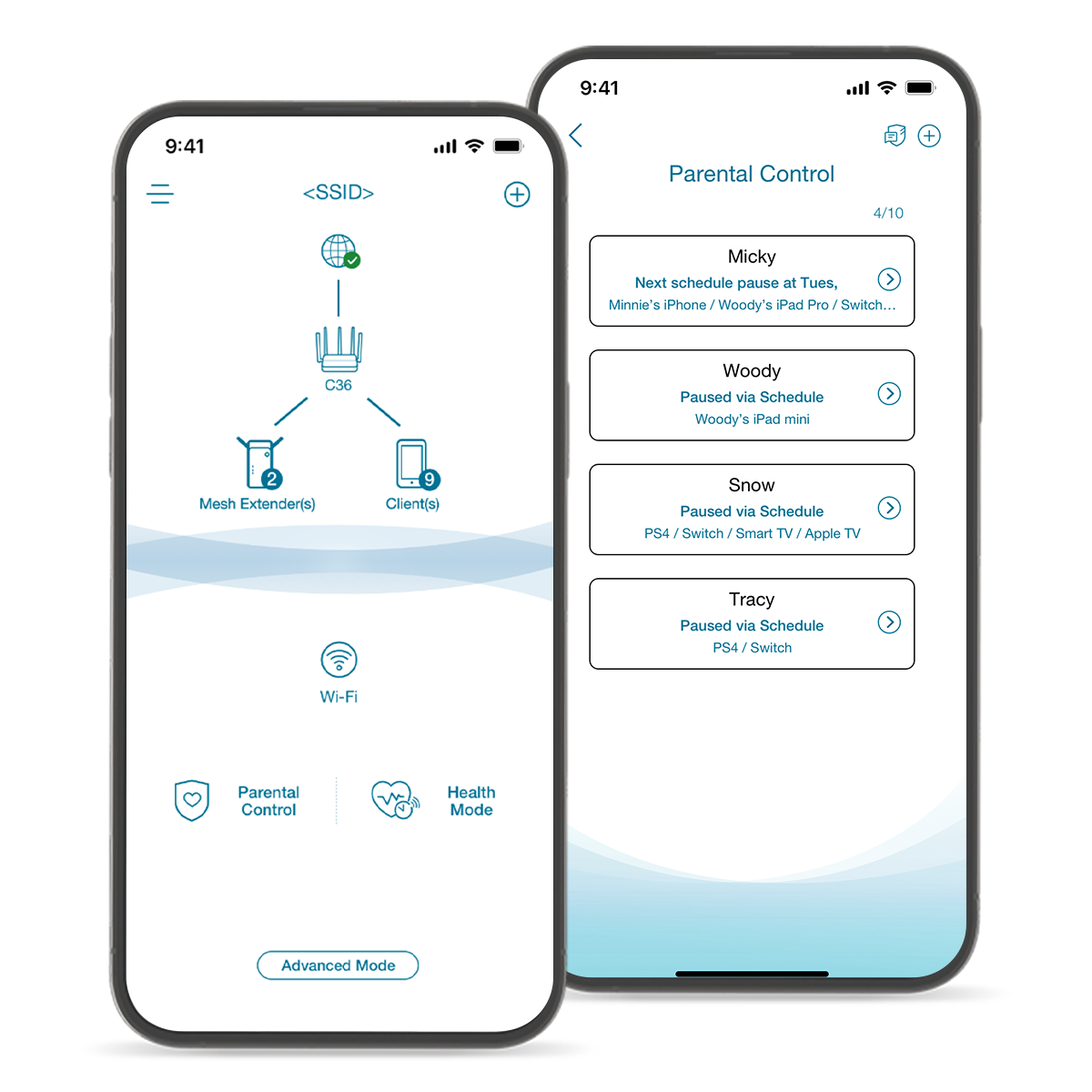

Simple Setup and Management

Set up and manage your network in minutes with the D-Link FALCON app². Configure Wi-Fi, Parental Control, and Health Mode, while automatic Firmware Over-The-Air (FOTA) updates keep your router secure and up to date.



Falcon App Icon    App Store    Google Play

 1. Maximum wireless signal rates are based on IEEE 802.11be standards. Actual data throughput may vary depending on the specific network environment and conditions.                                                                                                                                                                                                           2. All configuration tasks must be performed while connected to the C36’s local network. Remote or external Wi-Fi or internet connections cannot access the router’s admin settings.

Specification

Download the datasheet.

Antenna
2 x 2.4 GHz external antennas
3 x 5 GHz external antennas
Certifications
CE
FCC
IC
Device Management
FALCON app (Local Access and Basic Control)
Web UI (Advanced Management)
Dimensions
180 x 120 x 42.2 mm (7.09 x 4.72 x 1.66 in)
Firewall
DoS
Stateful Packet Inspection
Anti-spoofing Checking
IP address filtering
1 x DMZ
Wi-Fi Data Rate
2.4 GHz up to 688 Mbps
5 GHz up to 2882 Mbps
Wireless Standard
IEEE 802.11be/ax/ac/n/g/b
IEEE 802.3u/ab/bz/k/v/h

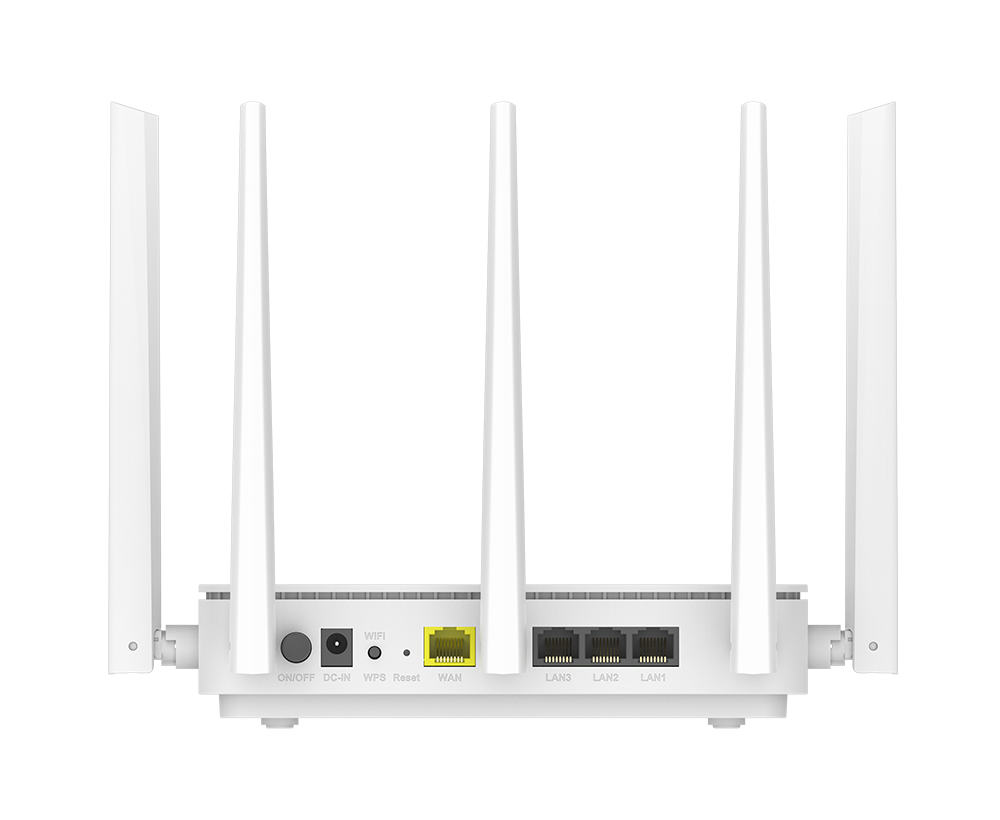

Interfaces
1 x 2.5 Gbps Ethernet WAN port
3 x Gbps Ethernet LAN port
1 x WPS button/Wi-Fi button
1 x reset button
1 x power connector
1 x power on/off button
LED Status Indicators
Power, Internet status, LAN and WAN connection status, Wi-Fi status, WPS, FW upgrade
Maximum Power Consumption
17.1 W
Mesh-Compatible Devices
C36
Operating Humidity
10% to 90% non-condensing
Operating Temperature
0 to 40 °C (32 to 104 °F)
Power Input
12 V / 1.5 A
Security Protocol
WPA - Personal
WPA2 - Personal
WPA3 - Personal
Weight
350 g (12.35 oz)

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.

Download the datasheet.
