Simplifies setup, enhances security, and ensures reliable performance for critical applications.
Gigabit Ethernet PoE LAN port to deliver both data and power to a PD device for M2M various application.
SMS Event Management Facilitate remote management via SMS, minimizing staff exposure to hazardous environments.
Corrosion-resistant zinc-plated steel casing and robust design ensure reliable operation in harsh environments.
Protect sensitive data transmission via secure VPN tunnels to prevent unauthorized network access.
Conveniently manage devices from anywhere via the D-ECS management platform.

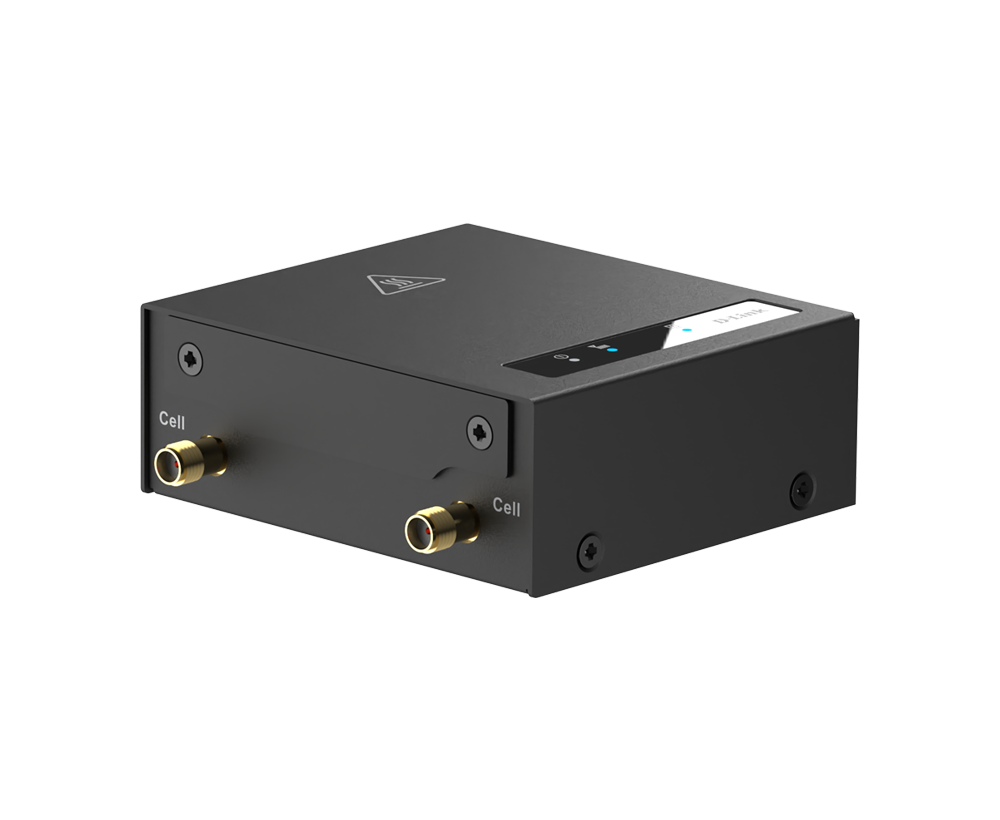

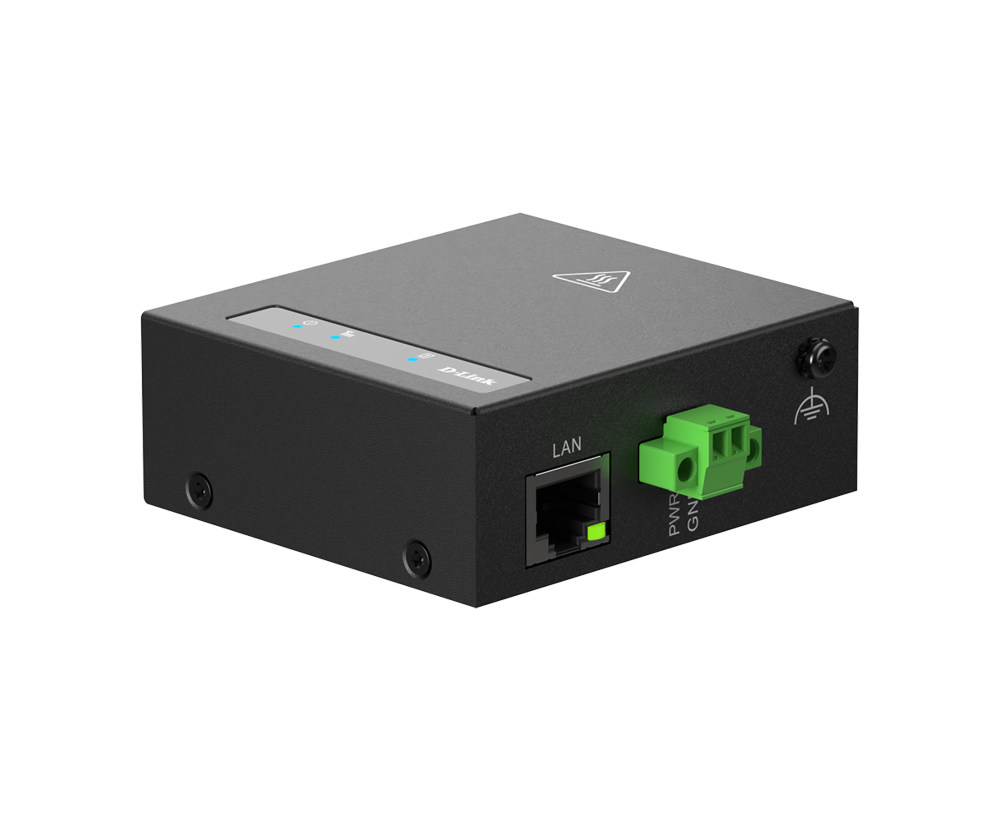

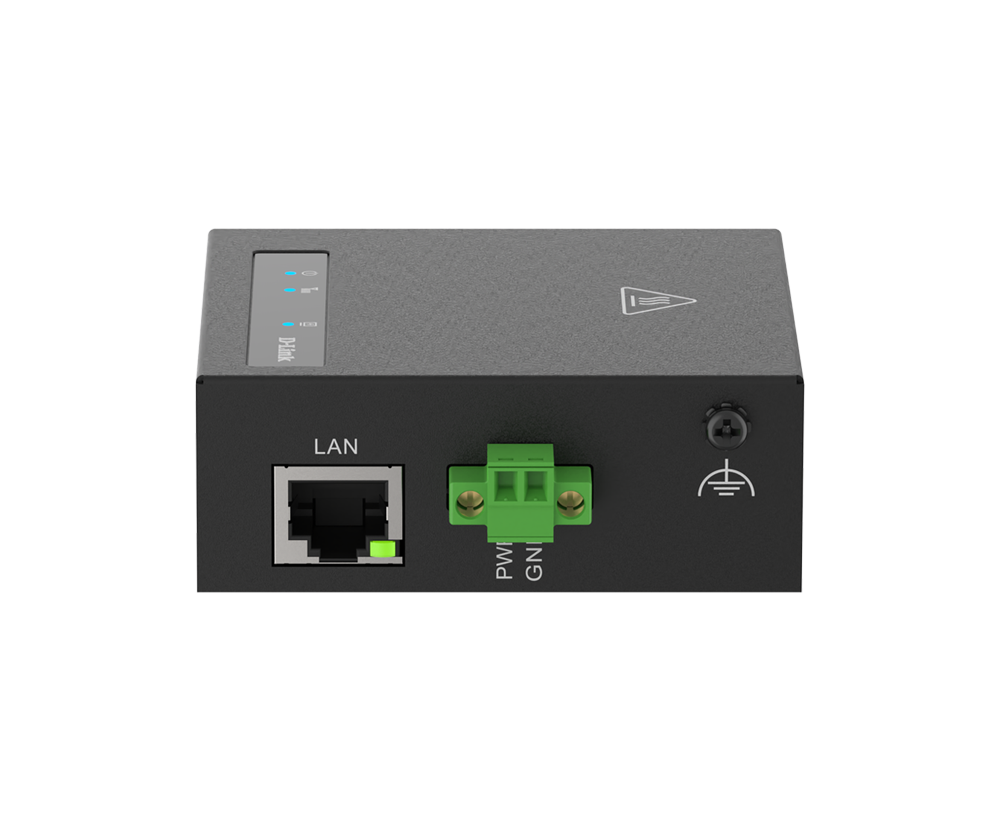

The DWM-301-TP 4G M2M PoE Router harnesses the power of 4G to deliver seamless data transfer, ensuring dependable connectivity. Ideal for environmental sensing in a wide range of application fields, this plug-and-play router simplifies installation for quick deployment. The DWM-301-TP offers reliable connectivity for real-time monitoring of temperature, humidity, and meteorological data.

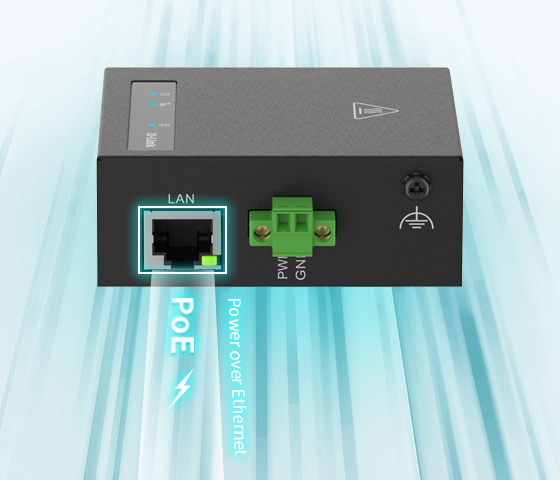

The DWM PoE Router Series, featuring 802.3af/at Power over Ethernet (PoE+) technology, delivers both data and power through a single Ethernet cable. As a true PSE (Power Sourcing Equipment) solution, it streamlines M2M communication for IoT applications, reducing the need for separate electrical infrastructure and lowering installation costs. Ideal for powering surveillance cameras, digital signage, wireless access points, and IoT sensors, it offers flexible device placement without extra wiring. Its PD-Alive feature minimizes downtime, ensuring continuous operation, while PoE scheduling optimizes power use and cuts energy costs.
The industrial-grade casing provides reliable high-speed connectivity in extreme conditions. The corrosion-resistant zinc-plated steel case with wide operating temperature range and humidity tolerance mean that the DWM-301-TP is ready for the most demanding M2M applications in virtually any environment. Convenient DIN-rail mounting options allow the DWM-301-TP to be mounted virtually anywhere to optimize signal quality.

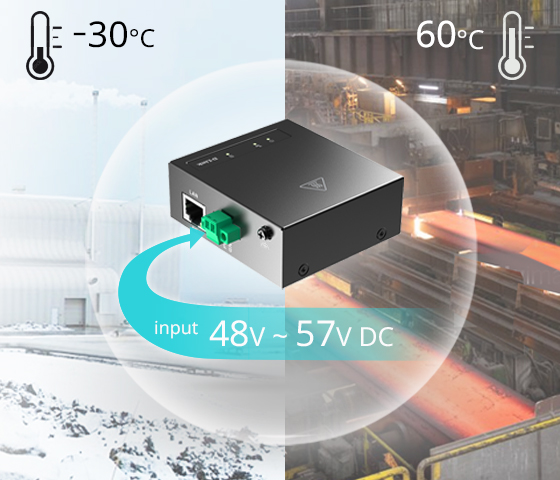

The DWM-301-TP is also engineered to safely accept wide input voltage(VDC 48~57V) fluctuations, providing more flexibility and convenience when selecting a suitable power source, making your M2M installations significantly more reliable and much easier to deploy.
Effortlessly centralise and manage your entire 4G/5G M2M network from anywhere. D-ECS delivers secure, AWS-hosted management that brings all your routers and gateways into a single, intuitive dashboard—no complex technical expertise required.

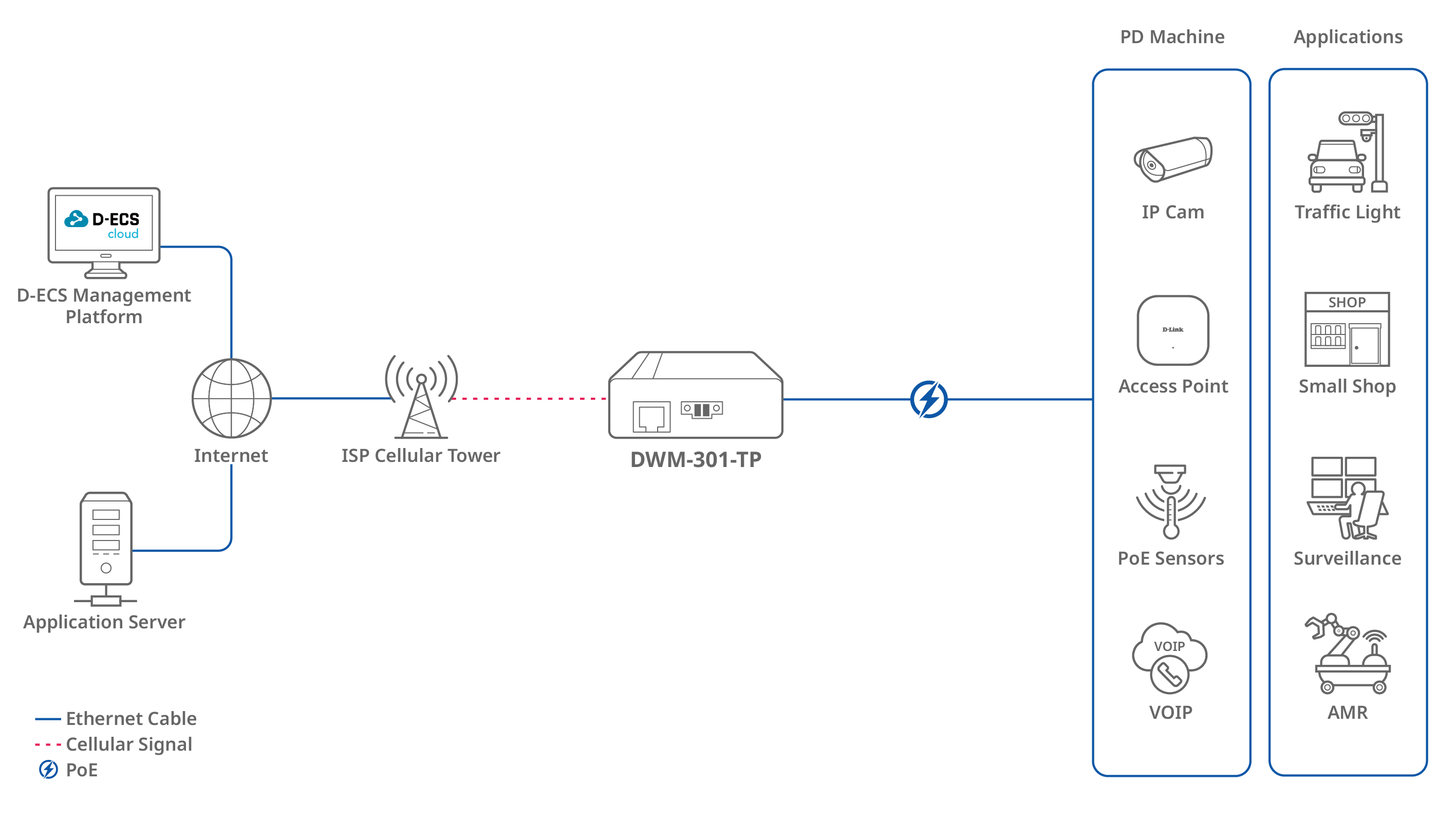

The DWM-301-TP 4G M2M PoE Router delivers reliable 4G LTE and Gigabit Ethernet connectivity for PoE devices, ensuring plug-and-play access. Its 802.3af/at PoE support powers IP cameras, access points, PoE sensors, and VoIP systems through a single Ethernet cable to reduce cabling costs and simplify installation. With scheduled PD detection and auto-recovery, it helps keep connected devices available. Ideal for traffic lights, small shops, surveillance, and AMR use, the DWM-301-TP offers simple, scalable connectivity.
City Surveillance
Čerpací stanice
Dálkové sledování čerpání paliva a platby, což zlepšuje optimalizované operace.
Chytré sloupy
Napájejte PD zařízení pro poskytování aktualizací v reálném čase pomocí PoE. Využití veřejných informací a reklam pro chytřejší městské služby.
|
Cellular
|
4G LTE |
|---|---|
|
SIM
|
1 x SIM |
|
Ethernet Ports
|
1 x LAN |
|
Ethernet Speed
|
10/100/1000 Mbps Ports |
|
Network
|
IPv4/v6 Port Forwarding DHCP Server NAT Bridge |
|
Management
|
Web UI SMS D-ECS |
|
PoE
|
802.3at PoE Out |
|
Number of PoE Ports
|
1 |
|
Power Input
|
DC 48V-57V |
|
VPN
|
OpenVPN |
|
WAN
|
Cellular |
|
Skutečný výkon se může lišit v závislosti na nastavení, kabeláži, teplotě, konfiguraci sítě, rozhraní, kompatibilitě zařízení, podmínkách prostředí a na místě a dalších podobných faktorech. Odkazy na výkon, rychlost signálu nebo zpracování, dosah signálu nebo vzdálenost, šifrování dat, úložnou kapacitu, vlastnosti displeje nebo jiné metriky výkonu jsou založeny na optimálních podmínkách odvozených z průmyslových standardů a jsou poskytovány pouze pro informační účely. Specifikace se mohou změnit bez předchozího upozornění. |
|
