10/100 to 100BaseFX (SC) Multimode Media Converter

DMC-300SC

  • Dostupnost produktu: Live
Description

The DMC-300SC by D-Link® is a media converter designed to connect 10BASE-T/100BASE-TX copper to 100Base-FX fiber media and vice versa. Based on the IEEE 802.3 and 802.3u standards, the DMC-300SC is designed for use with multimode fiber cable utilising the SC-Type connector. The DMC-300SC supports shortwave (SX) laser specifications at a full wire-speed forwarding rate. Other features of this module include the ability to be used as a standalone device (no chassis required), Auto MDI/MDI-X, Auto negotiation of speeds and duplex modes on twisted-pair port, and front panel status LEDs. The DMC-300SC will transmit at extended fiber optic distances utilising multimode fiber up to 2 kilometers.

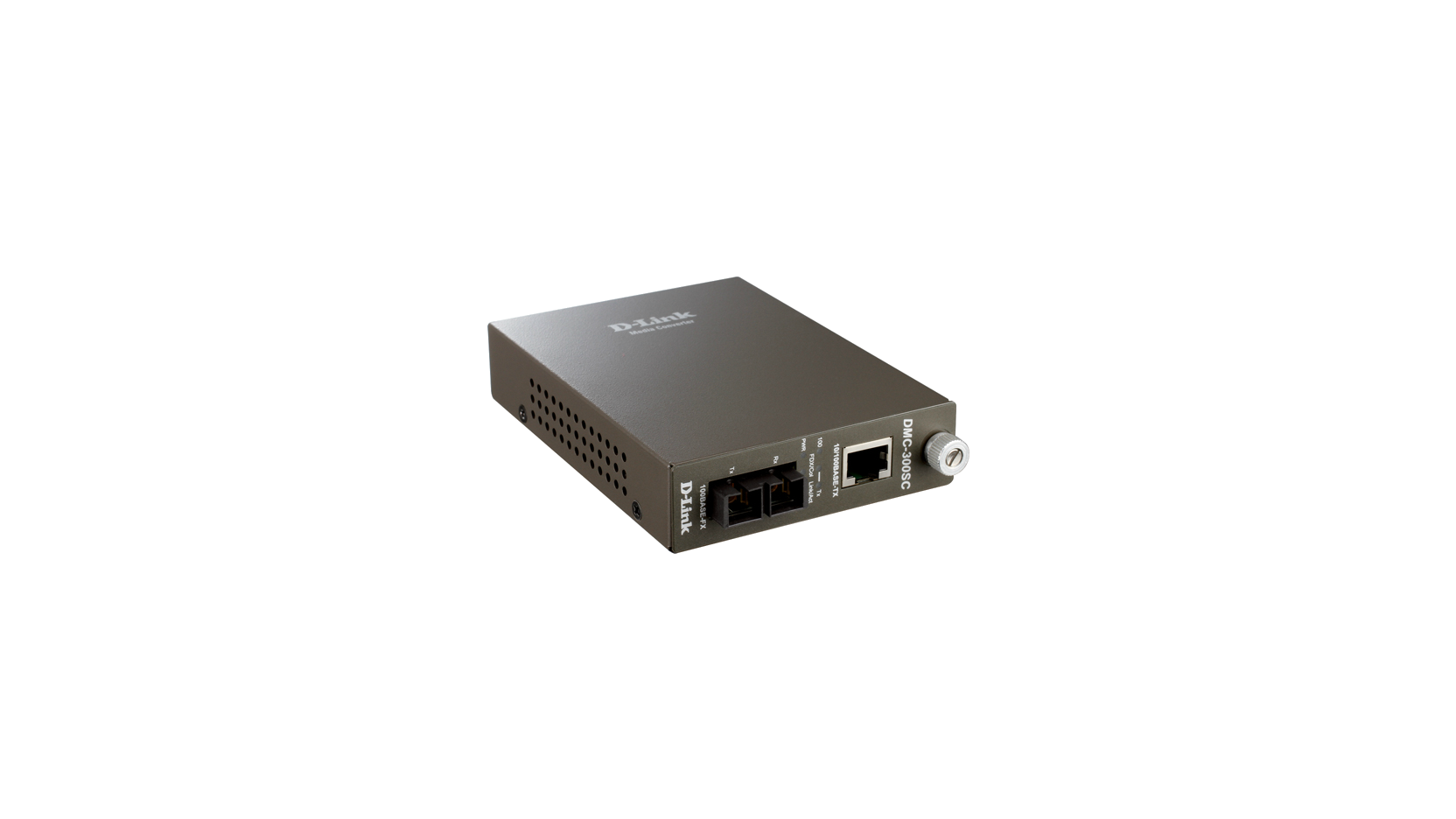

Actual product appearance may differ from the image displayed on this page

Technické specifikace produktu

Technical Specifications

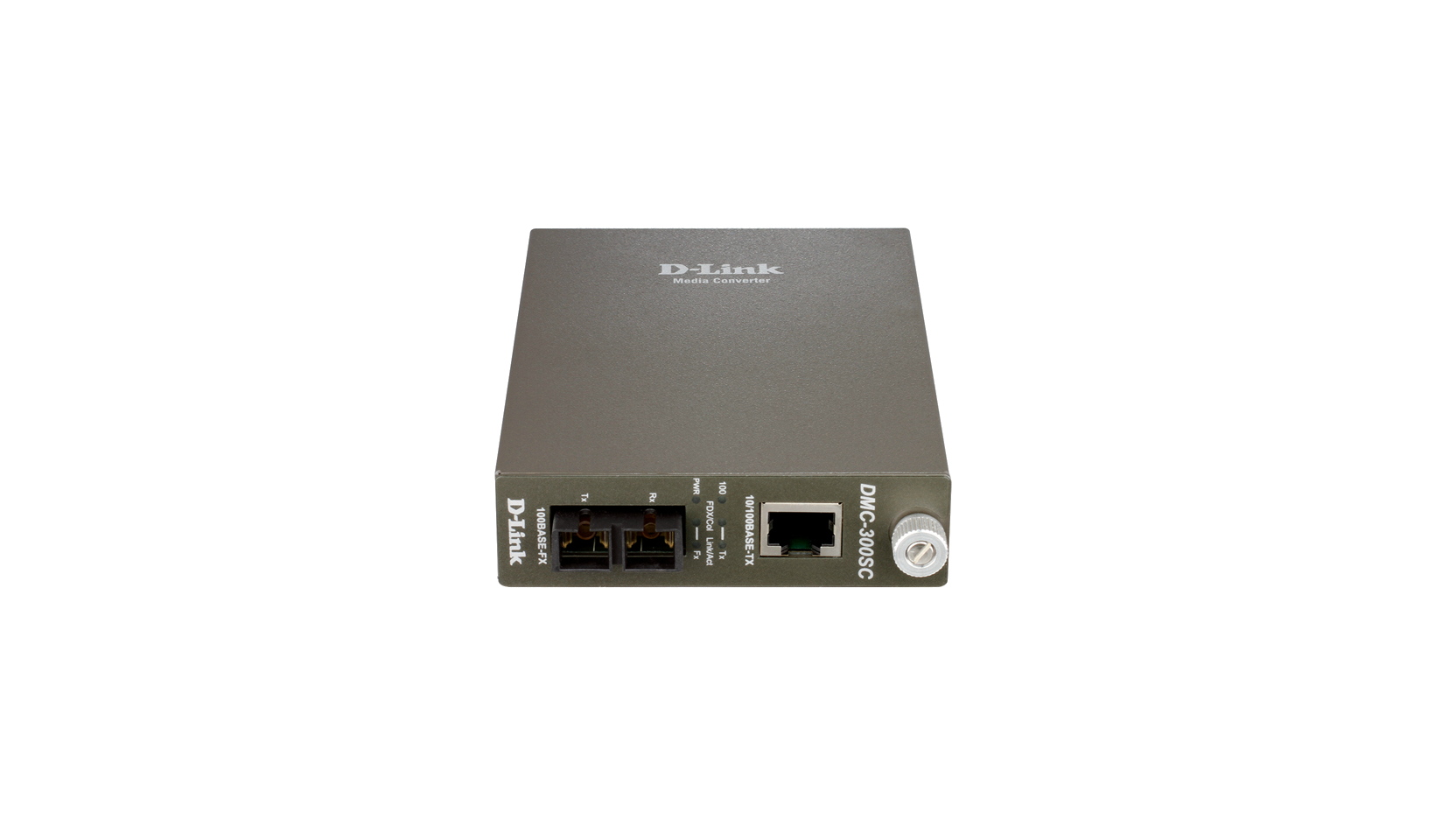

LED Indicators
  • Power
  • 100Mbps Speed (for twisted-pair port)
  • Full Duplex/Collision (for twisted-pair and fiber ports)
  • LINK/ACT (for twisted-pair port)

Dimensions
  • 120 x 88 x 25 mm

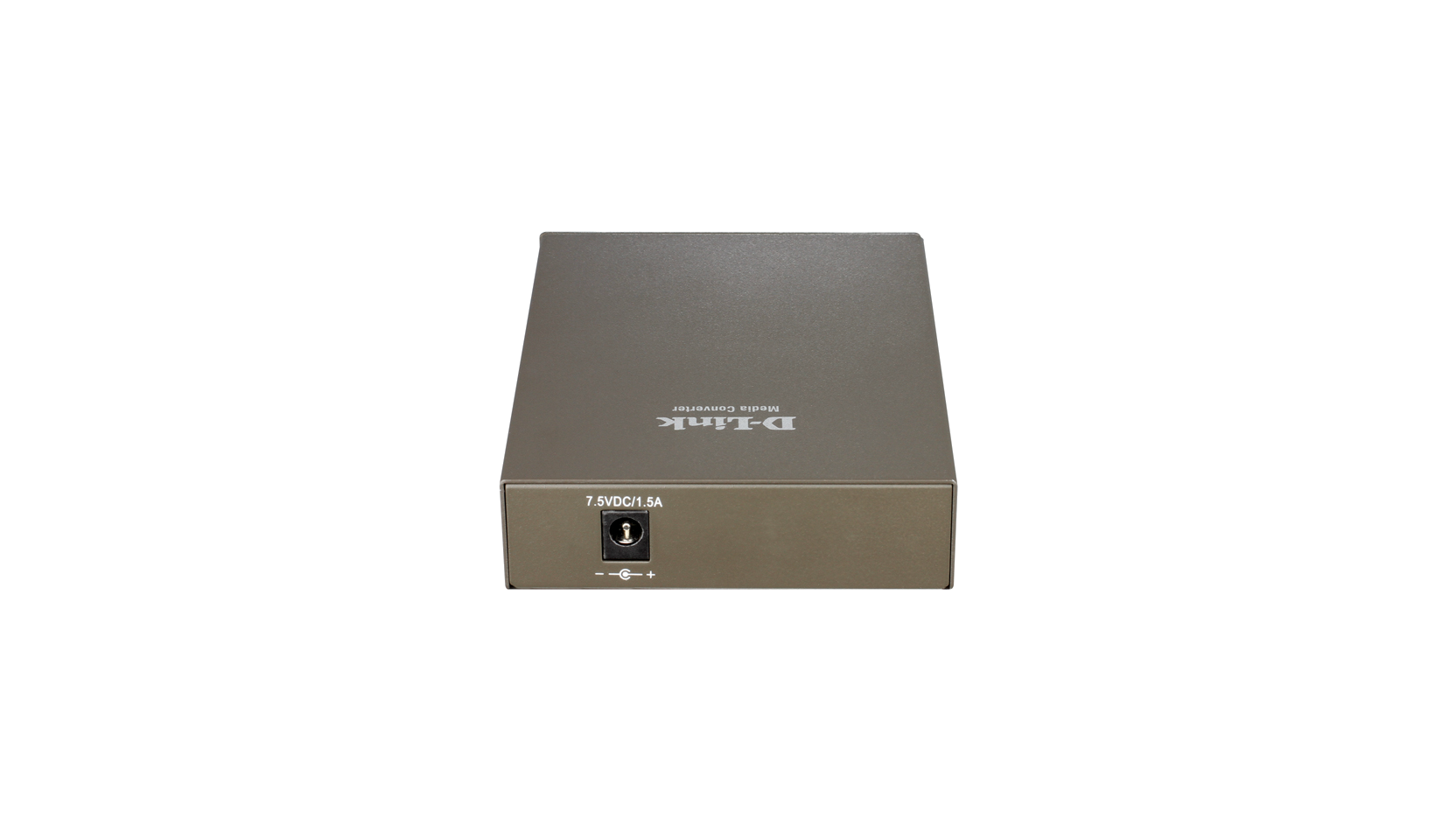

Power Input
  • 7.5V 1.5A
  • Through external AC power adapter

Operation Temperature
  • 0° -  40° C

Storage Temperature
  • -25° -  70° C

Humidity
  • 10  ~  90% non-condensing

Emission (EMI)
  • VCCI Class B
  • CE Class B
  • C-Tick
