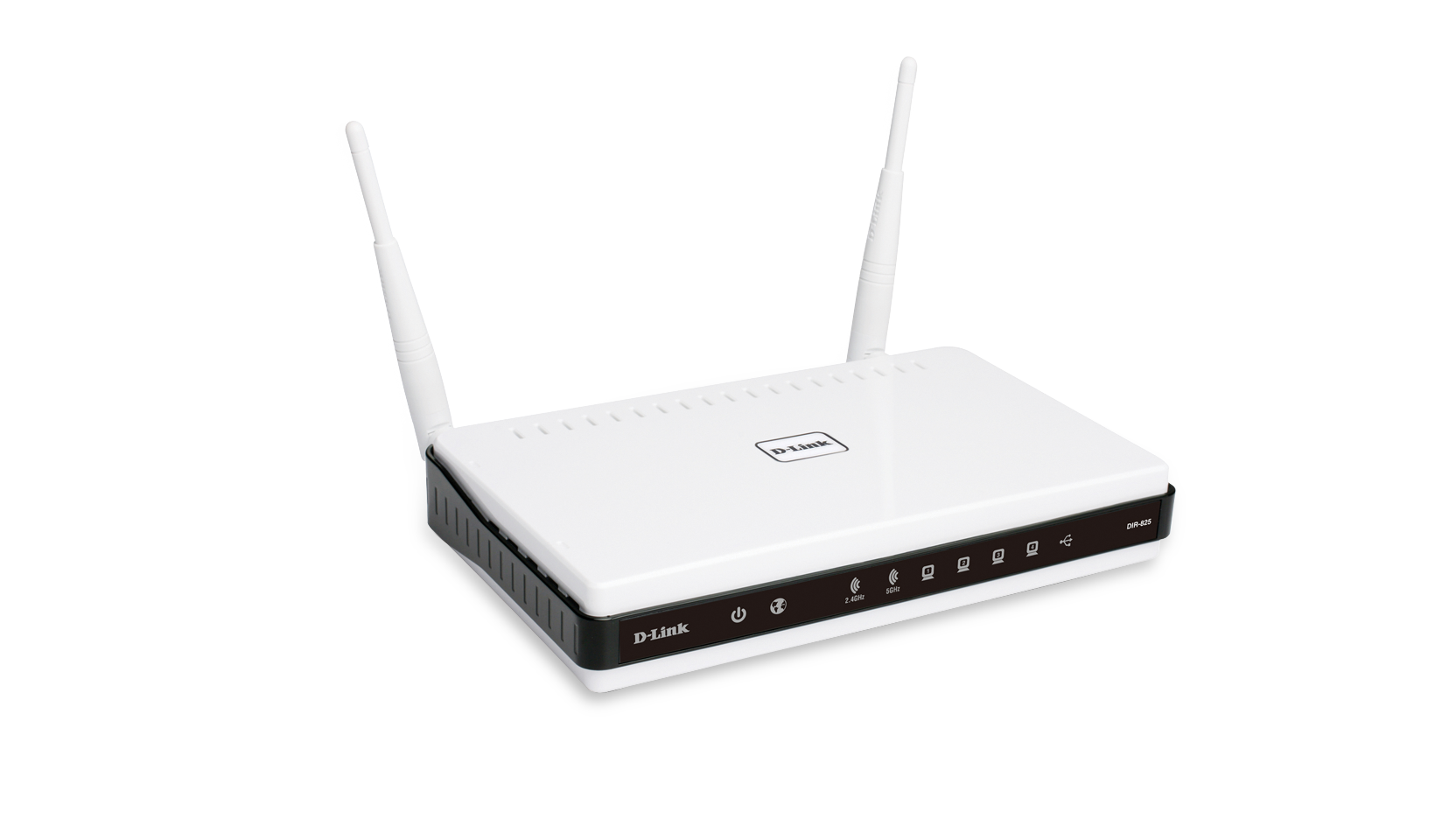

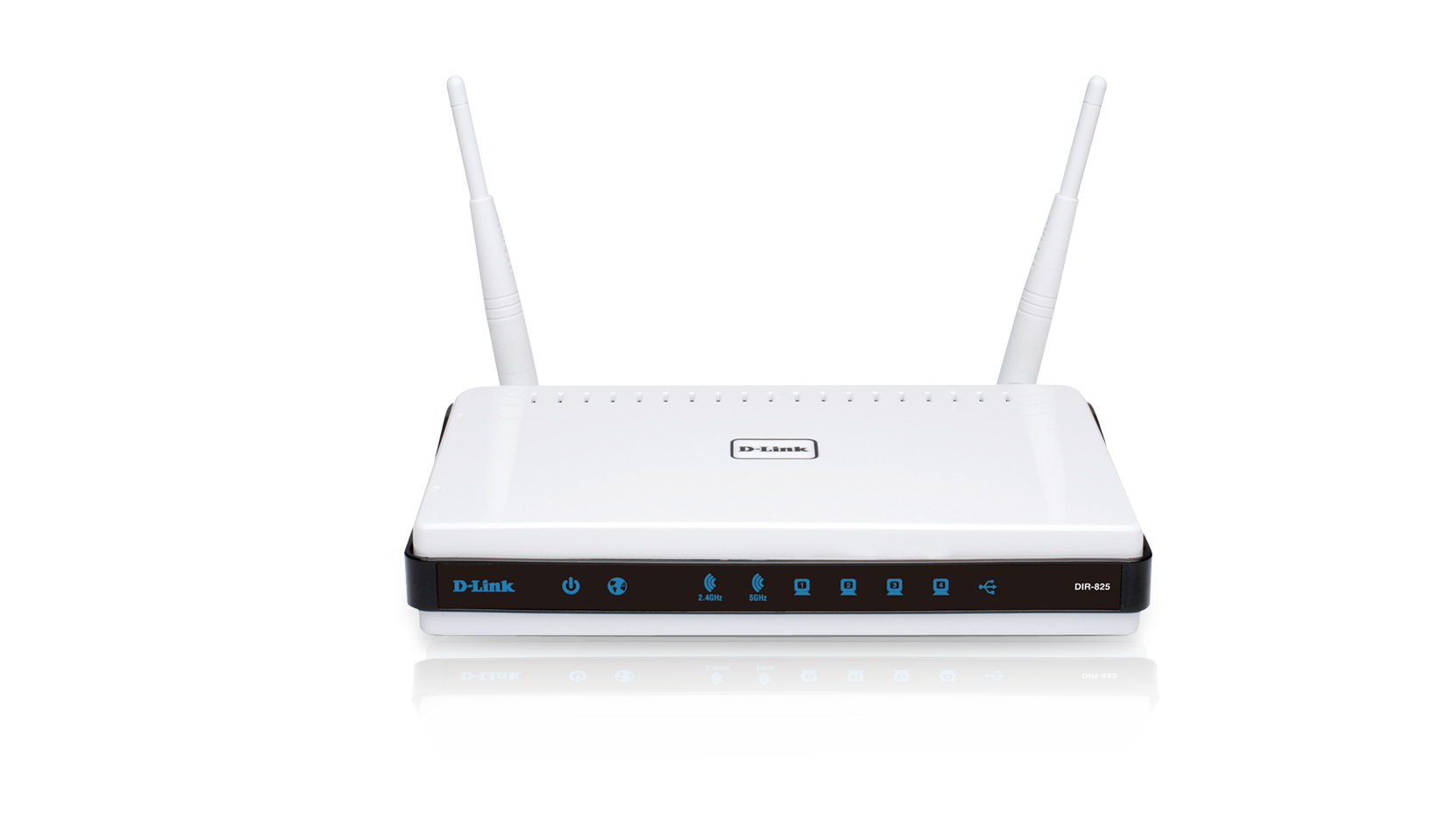

Xtreme N Dual Band Gigabit Router

DIR-825

  • Product Status: Phased Out

The D-Link Wireless N Dual-Band Router (DIR-825) comes with the dual-band advantage and Wireless N Technology to allow for superior home coverage and smooth streaming. The dual band technology in the DIR-825 supports both 2.4GHz & 5GHz wireless signals simultaneously, so that you can check e-mail and browse the Internet using the 2.4GHz band while streaming HD content and play online games on the clearer 5GHz band.


Download the datasheet.

Seznam prodejců
  • Kompatibilní s IEEE 802.11b/802.11g/802.11n(draft)
  • 2.4GHz Draft 802.11n Wireless LAN Access Point
  • 5 GHz Draft 802.11n Wireless LAN Access Point
  • Umožňuje současné vysílání na 2,4Ghz a 5GHz WiFi
  • 4 x 10/100/1000M Auto-Sensing Gigabit LAN Porty
  • 1 x 10/100/1000M Auto-Sensing Gigabit WAN Port
  • WPA2 - WPA a WEP zabezpečení
  • WMM (Wireless Multi-Media) Support
  • Intelligent Automatic QoS Technology
  • Access Control Policies (Parental Controls), MAC Filtering
  • Internal a External System Logging
  • D-Link Click'n Connect Install Utility
  • Microsoft Vista certified


Aktuální vzhled produktu se může lišit od publikovaných obrázků na této stránce.

Product Awards

Related Products

Xtreme N PCI Express Desktop Adapter
DWA-556
Zjistěte více
Xtreme N Dual Band USB Adapter
DWA-160
Zjistěte více

Technical Specifications

Standards

  • IEEE 802.11n
  • IEEE 802.11g
  • IEEE 802.11a
  • IEEE 802.3
  • IEEE 802.3u



Interfaces

  • 4 Gigabit LAN ports
  • 1 Gigabit WAN port



Antenna type

  • 2 external dual band antennas



Security

  • WPA™ & WPA2™ (Wi-Fi Protected Access)
  • Wi-Fi Protected Setup™ (WPS) - PIN & PBC



Device management and monitoring

  • Microsoft Internet Explorer 6 or higher, or Firefox 1.5 or higher
  • Web-based management
  • D-Link Network Monitor Yahoo! Widget
  • D-Link Internet Usage Meter Yahoo! Widget



Advanced firewall features

  • Network Address Translation (NAT )
  • Stateful Packet Inspection (SPI)
  • VPN Pass-through / Multi-sessions PPTP / L2TP / IPSec



Dimensions (W x D x H)

  • 156 x 120 x 31 mm (6.1 x 4.7 x 1.2 inches)



Weight

  • 212 grams (0.5 lbs)



Certifications

  • FCC Part 15 Subpart B, C, and E
  • IC
  • IPv6 Ready Gold
  • Wi-Fi®
  • CE
  • C-Tick
  • Compatible with Windows 7
