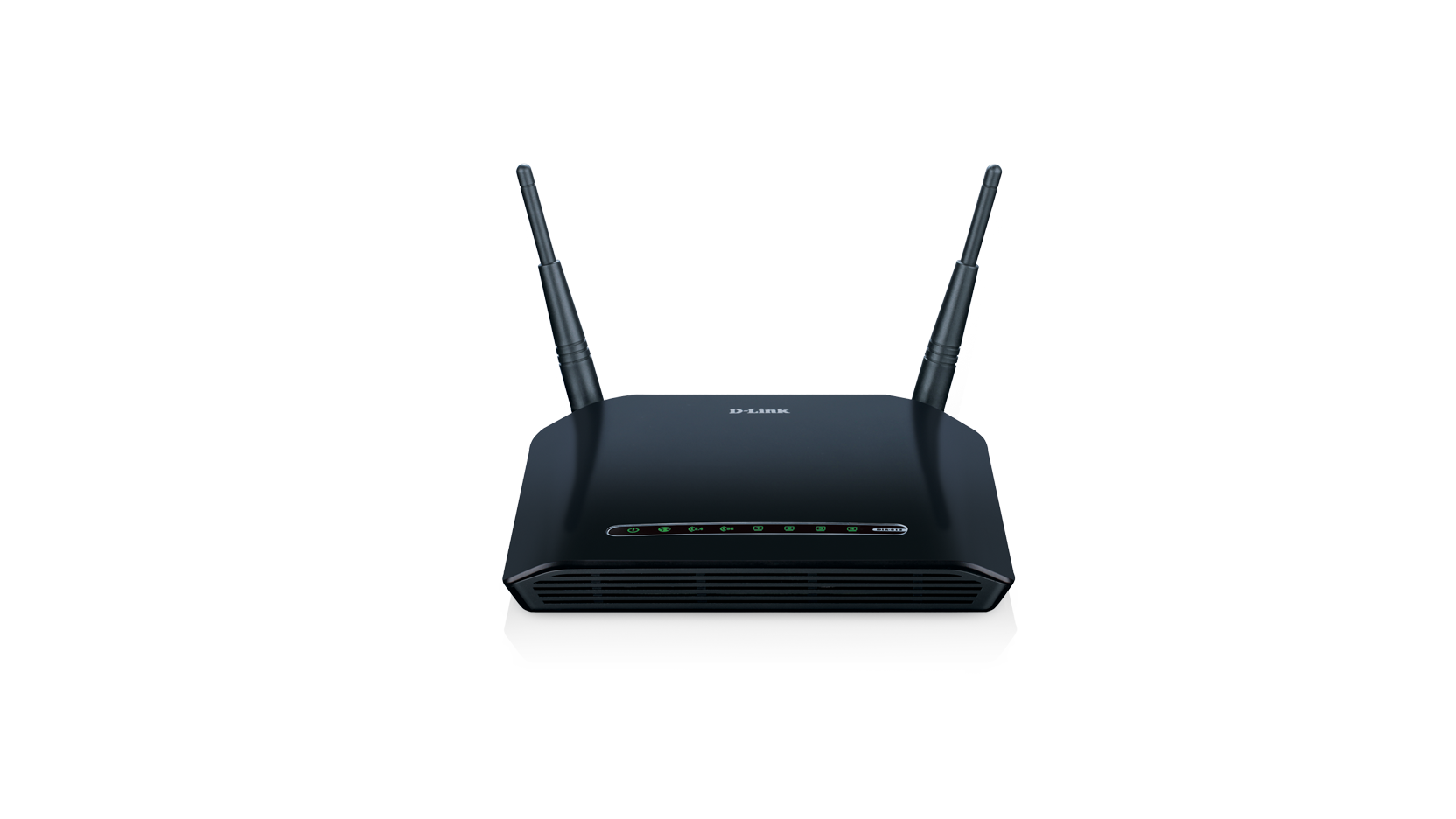

Wireless N Dual Band Router

DIR-815

  • Product Status: Phased Out

The D-Link® Wireless N Dual Band Router (DIR-815) features simultaneous wireless bands with a faster wireless network than previous generation Wireless G devices, enabling you to create a faster Wi-Fi network with superior home coverage. Dual-band routers let you stream videos and make VoIP calls over the clearer 5GHz band, giving you solid performance for these high-bandwidth applications.


  • Easy to use, easy to set up
  • Simultaneous Dual Band (2.4GHz and 5GHz) 802.11n Wireless Networking  - Stream HD videos and enjoy lag free gaming on the 5GHz band, while you chat, email, and surf the web on the 2.4GHz band
  • Create a faster Wi-Fi network with superior home coverage
  • Stream HD videos and enjoy lag-free gaming
  •  D-Link Green™ Technology helps conserve energy while device is not in use

Download the datasheet.

Seznam prodejců
Exceptional Performance
Powered by Wireless N technology, this high-performance router provides superior coverage designed to reduce dead spots for users who demand higher performance networking. Delivering incredible wireless performance, network security, and coverage, the Wireless N Dual Band Router (DIR-815) is ideal for networking in larger homes and offices. The D-Link® Wireless N Dual Band Router (DIR-815) features simultaneous wireless bands with a faster wireless network than previous generation wireless G devices, enabling you to create a faster Wi-Fi network with superior home coverage. Connect the DIR-815 to a cable or DSL modem and provide high-speed Internet access to multiple computers, game consoles, and media players. Create a secure wireless network to share photos, files, music, printers, and more, from greater distances throughout your entire home or office. With D-Link’s award-winning QoS engine that prioritizes time-sensitive online traffic, this router enables smooth Internet phone calls (VoIP) and responsive gaming.

Dual Band Advantage
Dual Band is two Wi-Fi networks in one router. The dual band technology in the DIR-815 supports both 2.4GHz and 5GHz wireless signals simultaneously. You can check e-mail and browse the Internet using the 2.4GHz band while playing games and streaming HD movies on the clearer 5GHz band. This prevents both signals from getting overloaded and avoids interference and lag when you’re watching movies or gaming.

Easy To Secure

The DIR-815 supports the latest wireless security features to help prevent unauthorized access, be it from over a wireless network or from the Internet. Support for WPA™ and WPA2™ standards ensure that you will be able to use the best possible encryption, regardless of your client devices. In addition, the DIR-815 Router utilizes dual active firewalls (SPI and NAT) to prevent potential attacks from across the Internet.

Why Wireless N Is Better

This DIR-815 uses powerful 802.11n technology with multiple intelligent antennas to maximize the speed and range of your wireless signal to significantly outperform previous-generation Wireless G MIMO devices*. The antennas on the DIR-815 make use of your home’s environment by bouncing multiple wireless signals off walls and ceilings to work around obstructions and help eliminate dead spots.

Think Green
D-Link Green™ devices are about providing eco-friendly alternatives without compromising performance. They are designed to help conserve energy, protect our environment from harmful substances, and reduce waste by using recyclable packaging.

Conserves Energy

Automatically powers down ports that have no link
Budgets power output for different Ethernet cable lengths
Includes wireless LAN scheduling, which can shut down your wireless network when not in use for further power savings
Reduces energy consumption by using an Energy Star® qualified power adapter



Protecting The Environment

Complies with the European Union's RoHS directive that restricts the use of certain hazardous materials
Uses recyclable packaging to help reduce waste that goes into the environment



* Maximum wireless signal rate derived from IEEE Standard 802.11 specifications when used with related Wireless N 150 devices. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range. Wireless range and speed rates are D-Link RELATIVE performance measurements based on the wireless range and speed rates of a standard Wireless G product from D-Link. Maximum throughput based on D-Link Wireless N devices.

Related Products

Xtreme N Duo Wireless N Access Point
DAP-1522
Zjistěte více
Xtreme N Dual Band USB Adapter
DWA-160
Zjistěte více
Wireless N 300 Dual Band PCI Express Desktop Adapter
DWA-566
Zjistěte více

Technical Specifications

Standards

  •   IEEE 802.11n
  •   IEEE 802.11g
  •   IEEE 802.11a
  •   IEEE 802.3
  •   IEEE 802.3u

Interfaces
  •   4 Fast Ethernet LAN ports
  •   1 Fast Ethernet WAN port

Antenna type
  •   2 external dual band antennas

Security
  •   WPA™ & WPA2™ (Wi-Fi Protected Access)
  •   Wi-Fi Protected Setup™ (WPS) - PIN & PBC

Device management and monitoring


  •   Microsoft Internet Explorer 6 or higher, or Firefox 1.5 or higher
  •   Web-based management
  •   D-Link Network Monitor Yahoo! Widget
  •   D-Link Internet Usage Meter Yahoo! Widget

Advanced firewall features
  •   Network Address Translation (NAT )
  •   Stateful Packet Inspection (SPI)
  •   VPN Pass-through / Multi-sessions PPTP / L2TP / IPSec

Dimensions (W x D x H)

  •   156 x 120 x 31 mm (6.1 x 4.7 x 1.2 inches)

Weight

  • 212 grams (0.5 lbs)

Certifications
  •   FCC Part 15 Subpart B, C, and E
  •   IC
  •   IPv6 Ready Gold
  •   Wi-Fi®
  •   CE
  •   C-Tick
  •   Compatible with Windows 7

FAQ

  • How do I configure MAC filtering on my DIR/WBR series router? Read Answer
  • Why am I unable to view the contents of my USB drive using the SharePort Mobile app Read Answer
  • How do I open a Microsoft Word Excel or PowerPoint file in another app from the SharePort Mobile app Read Answer
  • How do I find my IP address in Windows Vista or Windows 7 Read Answer
How to connect to wireless in Windows 8
How to connect to wireless in Windows 7
How to connect to wireless using an iPhone
How to remove the Graphical Authentication login on your router
How to configure Parental Controls on your router
How to configure IP reservation on your router
How to open a range of ports on your router
How to change your routers IP address
How to open a single port on your router
How to disable UPnP on your router
Jak nakonfigurovat nastavení bezdrátové sítě na Vašem zařízení?
Jak resetovat router?
Jak upgradovat firmware na Vašem routeru?
Version Date Type File Size
Datasheet (English) - PDF 1.02mb Stáhnout
Version Description Date Type File Size
Manual (English) Manual (English) - PDF 6.33mb Stáhnout
Version Description Date Type File Size
1.00 Quick Installation Guide - PDF 0.46mb Stáhnout
Firmware pro produkt D-Link obsahuje software, který podléhá následující všeobecné veřejné licenci GNU (dále jen „GPL“) nebo všeobecné veřejné licenci GNU Lesser (dále jen „LGPL“). Další informace o podmínkách použití a přístup k použitému GPL či LGPL kodu naleznete zde:

http://tsd.dlink.com.tw/GPL.asp

Ve firmwaru tohoto produktu je použití GPL a LGPL kodu BEZ ZÁRUKY a jejich autorské právo náleží jednomu nebo více autorům. Více informací najdete v sekci GPL a LGPL kody pro tento produkt a v GPL a LGPL podmínkách použití.
Version Description Date
Firmware fixes security vulnerabilities 1.04B02 Firmware fixes security vulnerabilities.
Instructions included.
30. 4. 2013 Stáhnout
Version Description Date
DCC Utility 1.15520 DCC Utility - Stáhnout
GPL Source Code 1.01 GPL Source Code - Stáhnout
Version Description Date
DEU_CE_B1_Doc CE Declaration 22. 5. 2012 Stáhnout
DEU_CE_A1_Doc CE Declaration 29. 6. 2011 Stáhnout
