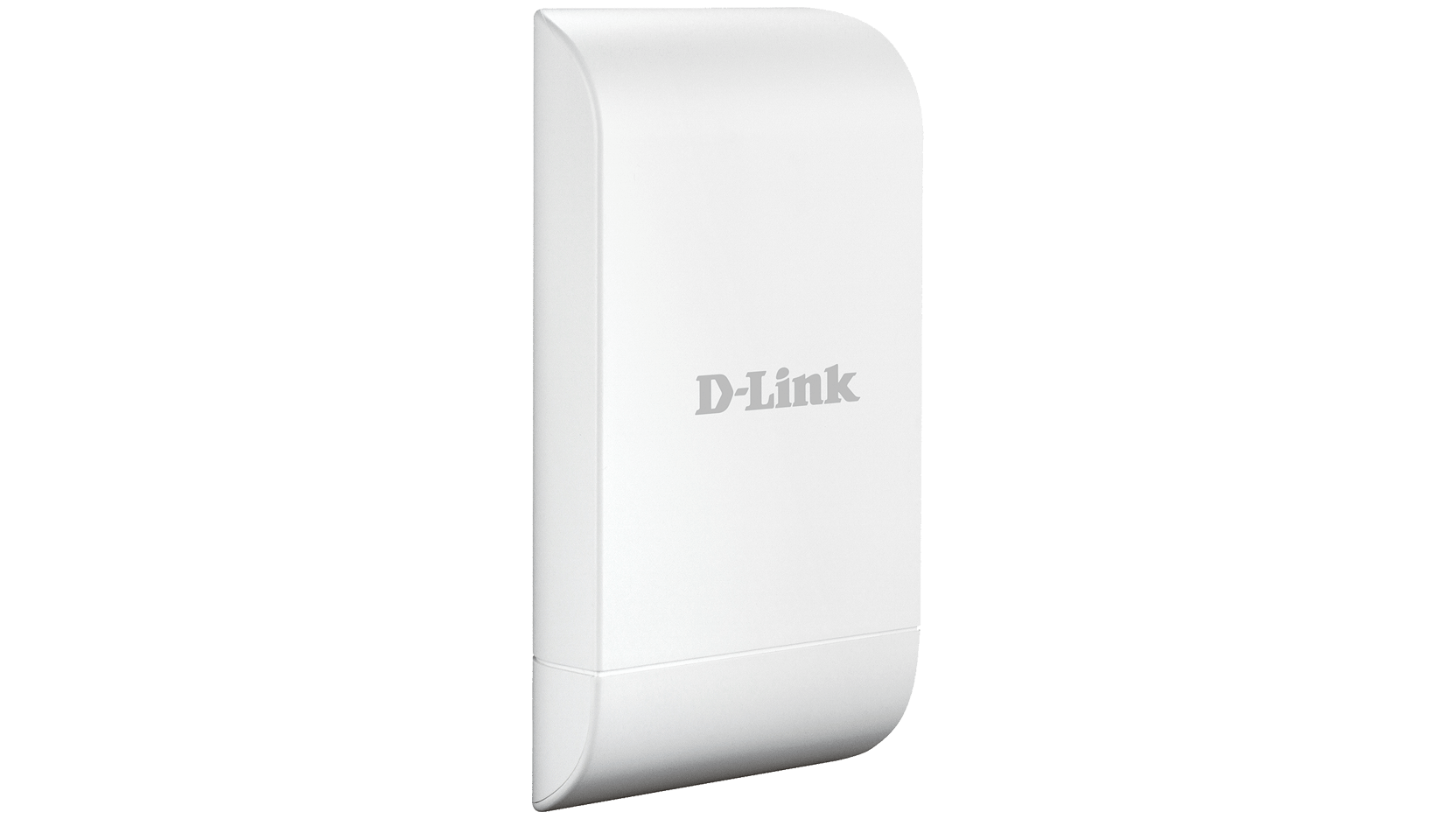

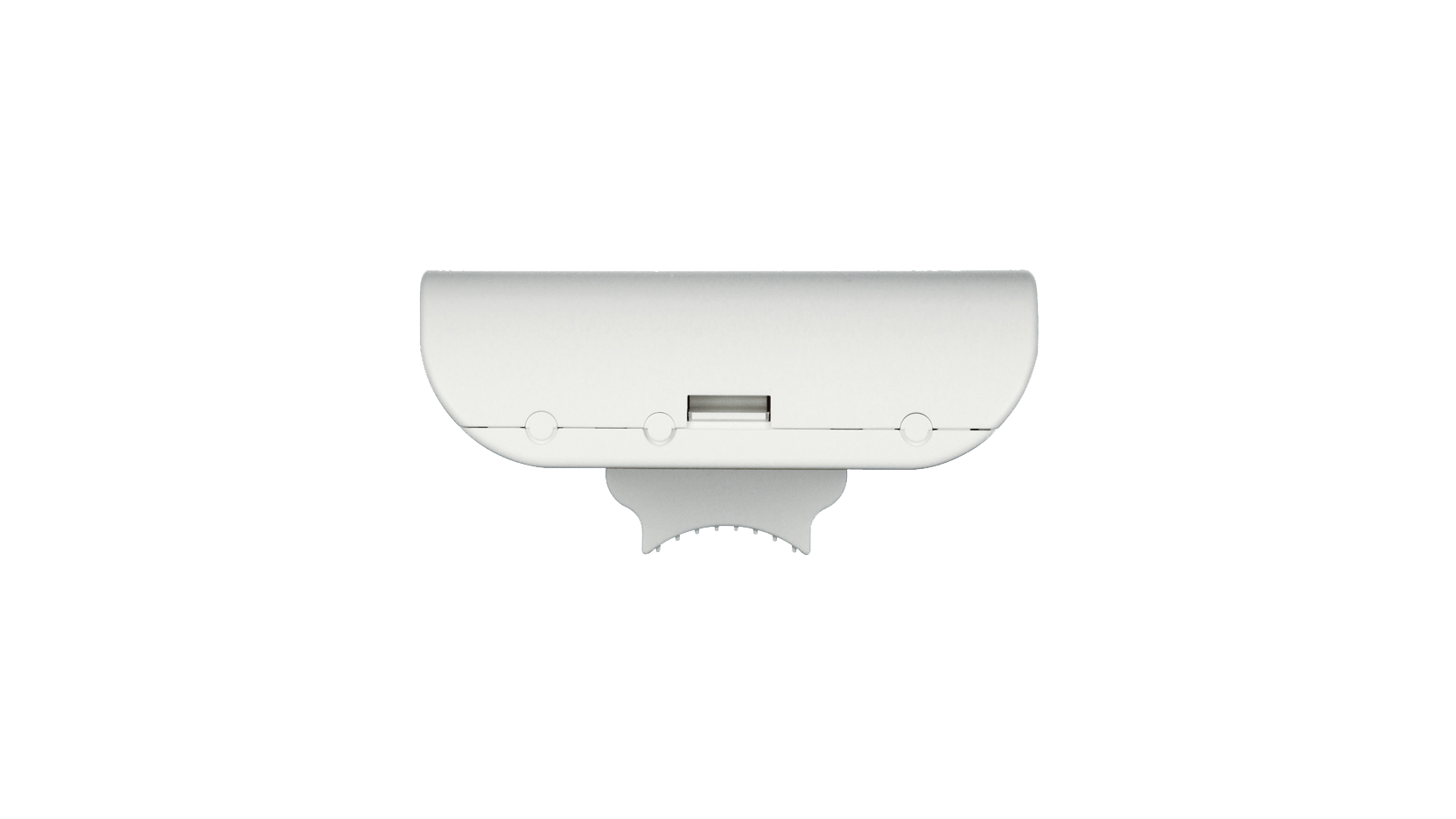

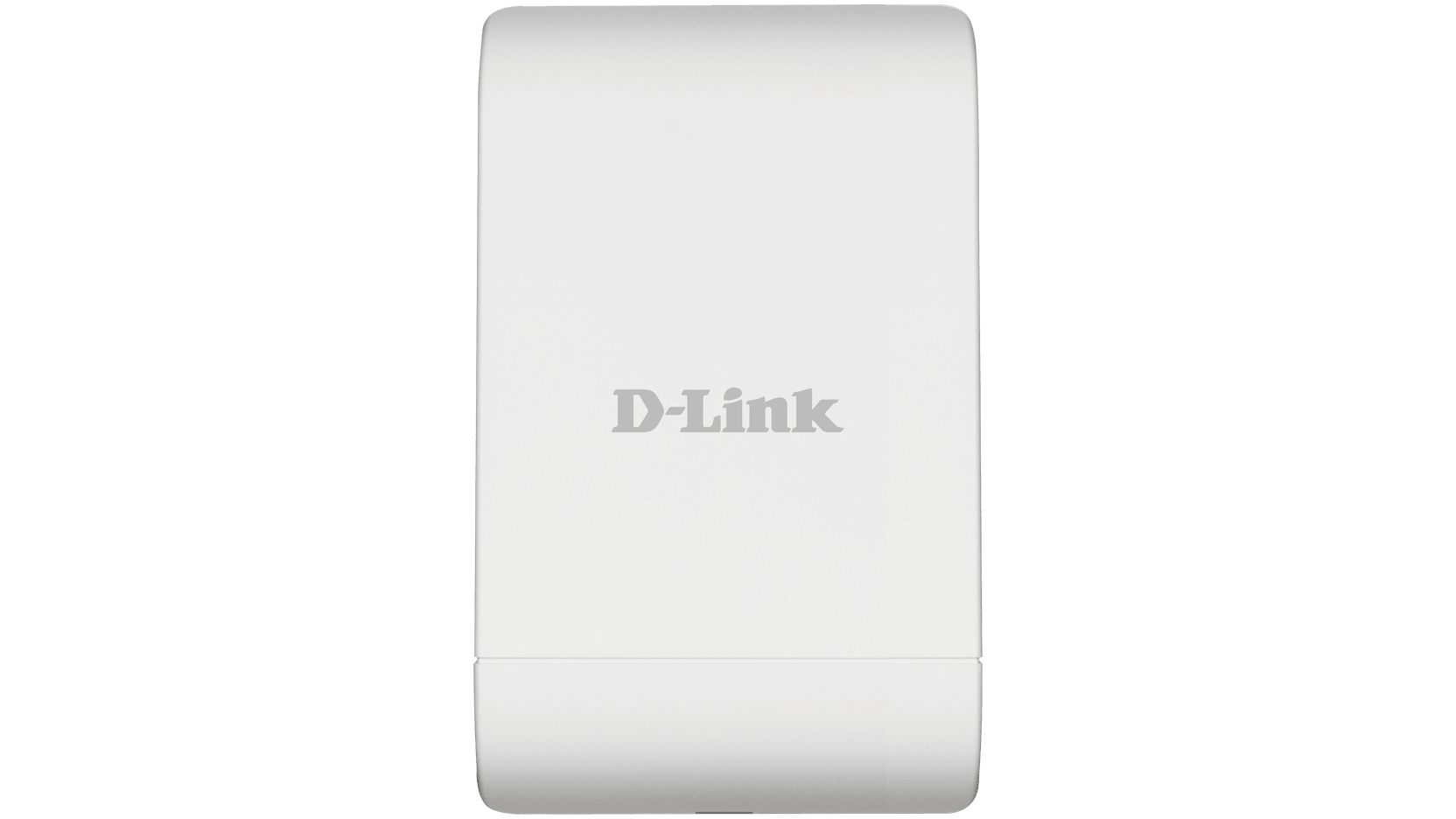

Wireless N 5GHz PoE Outdoor Access Point with PoE Pass-Through

DAP-3410

  • Product Status: Phased Out

The DAP-3410 is a Wireless N 5GHz Outdoor Access Point.  It can be deployed to expand the coverage and signal strength of an existing wireless network or alternatively used as a low cost alternative to connect networks that are not joined physically by an Ethernet or fibre cable.  Within PoE integrated as standard, the DAP-3410 is built to withstand harsh outdoor deployments.


Download the datasheet.

Seznam prodejců

The DAP-3410 Wireless N 5GHz PoE Outdoor Access Point with PoE Pass-Through is the ideal solution for expanding the coverage and signal strength of any wireless network. Built to withstand harsh environments, the DAP-3410 also excels in connecting separate networks that cannot be joined physically using Ethernet cable or fibre. Multiple operating modes, network management tools and security features give network administrators a wide range of choices for deploying the device, allowing for the addition of increased connectivity to wireless network-enabled devices.



Increased Network Connectivity And Throughput

Expand current wireless network capacity with the less congested 5GHz frequency wireless band. In addition, two 10/100 Ethernet ports (one supporting PoE) allow for further network expansion through wired Ethernet connectivity. The built-in 15 dBi sector antenna has high power output, ensuring that wireless coverage will cover even hard to reach locations. Whether trying to connect additional wireless devices such as smartphones or laptops, or bringing connectivity to networks separated by short distances, the DAP-3410 has it covered.



Flexible Deployment Options

The DAP-3410 features seven multiple operation modes, allowing it to adapt to any situation. As a standard wireless access point (AP) the DAP-3410 can connect to a wide range of devices. In wireless distribution system (WDS) mode it can expand current wireless coverage without the need for a wired backbone link5. As a wireless client it can connect to an existing AP, and expand the network physically with the two built-in 10/100 Ethernet ports. Repeater mode will extend current wireless coverage eliminating dead spots and weak signals. WISP mode functionality includes the ability to function as a client or repeater.



Fine-Tuned Control Over Network Resources

The DAP-3410 supports up to 8 SSIDs, allowing the administrators to logically divide the access point into several virtual access points all within a single hardware platform. Rather than having separate networks with several access points, administrators can deploy one single AP to support more than one application, such as public Internet access and internal network control to increase flexibility and keep costs down. The DAP-3410 supports 802.1Q VLAN Tagging, operating with multiple SSIDs to segment traffic to enhance performance and security. The DAP-3410 provides WLAN partitioning, a useful function for deployments such as hot spots. With station-to-station partitioning enabled, security is enhanced, since wireless users cannot peek at each other, and the possibility for data theft is reduced.



Robust Security And Management Tools

The DAP-3410 supports 64/128-bit WEP data encryption and WPA/WPA2 security functions. In addition, it provides MAC Address Filtering to control user access, and the Disable SSID Broadcast function to limit outsiders’ access to the internal network. Network administrators have multiple options for managing the DAP-3410, including HTTP and HTTPS. For advanced network management, administrators can use SNMPv1, v2c, v3 to configure and manage access points.



Power over Ethernet (PoE)

The DAP-3410 is powered by PoE5 which allows for convenient installation, especially in places where a power supply is not reliable or power cables are not available or easily set up. Also, the DAP-3410 can supply power to a connected surveillance camera through PoE, including the DCS-3716, DCS-6113, and DCS-7110 cameras.



1 Maximum power setting will vary according to individual country regulations.

2 IPX6 standard means the device is protected from low pressure jets of water from all directions - limited ingress permitted. It is recommended to place this device under a roof, shelter or in weather-proof box when deployed in severe weather environments.

3 Maximum wireless signal rate derived from IEEE Standard 802.11g, and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.

4 Provides a secondary Ethernet port with POE output for supported D-Link IP cameras. The supported cameras include D-Link DCS-3716, DCS-6113, and DCS-7110.

5 WDS mode only works with other DAP-3410 access points

6 Grounding wire is not includes in package content and we suggest using 16 -18 AWG grounding wire for normal lightening and electricity current.

7 LED Signal Strength Indication only supports in Wireless Client, Repeater, WDS and WISP modes.

Related Products

Wireless N PoE Outdoor Access Point with PoE Pass-Through
DAP-3310
Zjistěte více
Full HD WDR PoE Day/Night Fixed Network Camera
DCS-3716
Zjistěte více
Full HD PoE Day/Night Fixed Dome Network Camera
DCS-6113
Zjistěte více
Outdoor Full HD PoE Day/Night Fixed Bullet Network Camera
DCS-7110
Zjistěte více

Technical Specifications

Functions & Features



Features

For Business-Class Environment
  • 5 GHz 802.11a/n connectivity for increased network capacity
  • High power radio design1
  • Built-in high gain sector antenna
  • Waterproof IPX6 standard2
High Performance Connectivity
  • Up to 300 Mbps3
  • Two 10/100 Ethernet ports
Trusted Security Features
  • WPA/WPA2-Personal/Enterprise
  • 64/128 bit WEP encryption
  • 802.1x
  • MAC address filter
  • Client isolation
  • User limit
Convenient Installation
  • Proprietary PoE design
  • PoE pass-through4

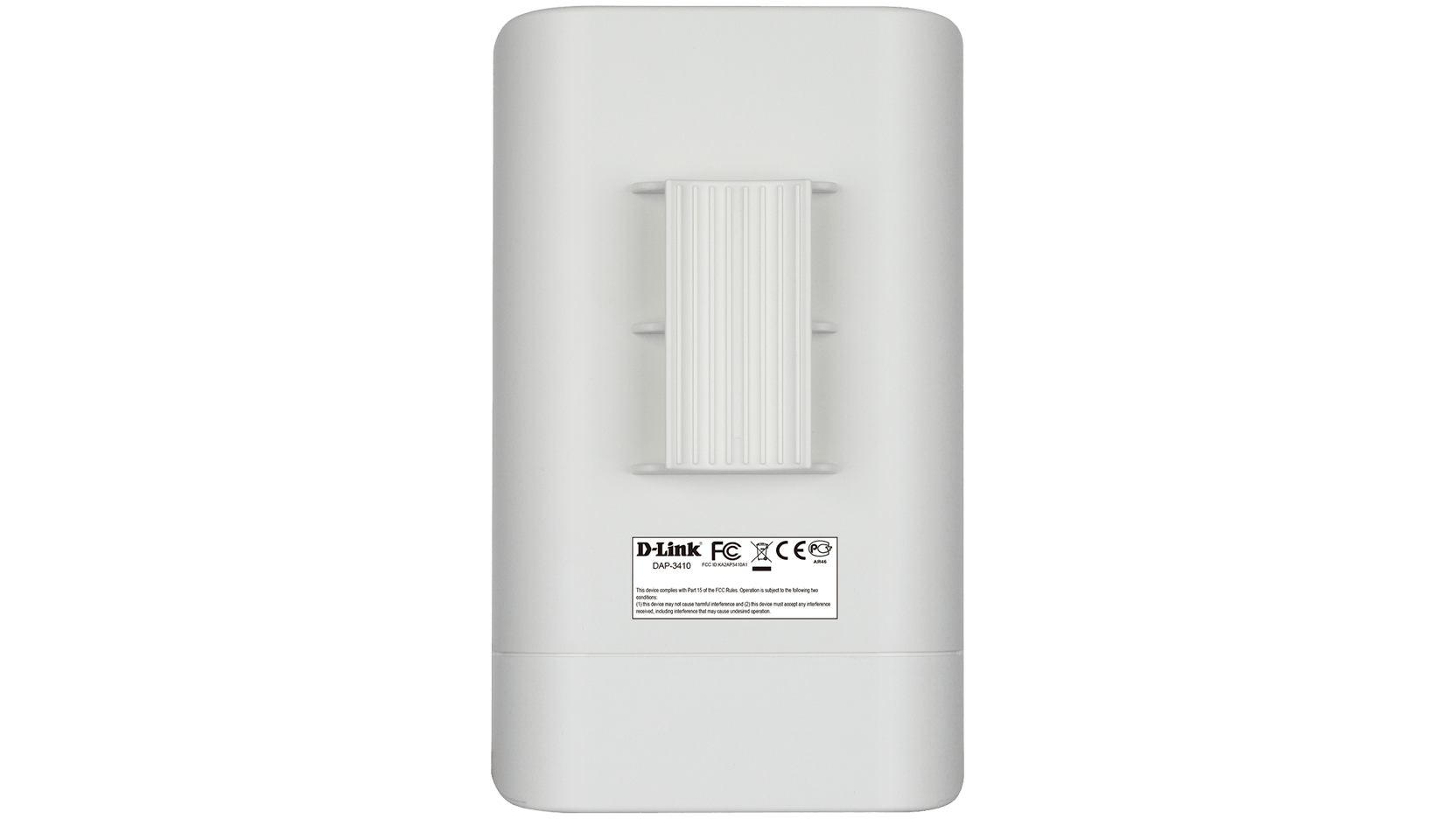

  • Wall/pole mount included

Technical Specifications



General

Device Interfaces
  • 802.11a/n wireless
  • Reset button
  • Two 10/100 Ethernet port (one supports PoE)
  • Grounding wire connector6
LED
  • Power
  • LAN
  • Wireless Signal Strength7
Antenna
  • 15 dBi Sector Antenna
Wireless Frequency
  • 5 GHz
Standards
  • IEEE 802.11 a/n
  • IEEE 802.3u
  • IEEE 802.3
Functionality

Operation Mode
  • AP
  • WDS5
  • WDS with AP5
  • Wireless Client
  • Repeater
  • WISP Repeater
  • WISP Client Router
Network Management
  • Web Browser Interface
  • HTTP – Secure HTTP (HTTPS)
  • SNMP v1, v2c and v3
Security
  • WPA2-Personal/Enterprise
  • WPA-Personal/Enterprise
  • WEP 64/128 bit Encryption
  • 802.1X
SSID/VLAN
  • Support for up to 8 SSIDs/VLANs
Physical

Dimensions
  • 48 x 96 x 165 mm (1.88 x 3.77 x 6.49 inches)
Weight
  • 350 grams (0.77 lbs)
Power
  • Input: 48 V 0.5 A
Temperature
  • Operating: -20 to 60 °C (-4 to 140 °F)
  • Storage: -20 to 85 °C (-4 to 185 °F)
Humidity
  • Operating: 0% to 90% non-condensing
  • Storage: 5% to 95% non-condensing
ESD Protection
  • 15 kV
Certifications
  • CE
  • FCC

1 Maximum power setting will vary according to individual country regulations.
2 IPX6 standard means the device is protected from low pressure jets of water from all directions - limited ingress permitted. It is recommended to place this device under a roof, shelter or in weather-proof box when deployed in severe weather environments.
3 Maximum wireless signal rate derived from IEEE Standard 802.11g, and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range.
4 Provides a secondary Ethernet port with POE output for supported D-Link IP cameras. The supported cameras include D-Link DCS-3716, DCS-6113, and DCS-7110.
5 WDS mode only works with other DAP-3410 access points
6 Grounding wire is not includes in package content and we suggest using 16 -18 AWG grounding wire for normal lightening and electricity current.
7 LED Signal Strength Indication only supports in Wireless Client, Repeater, WDS and WISP modes.
8 Although compatible with  DD-WRT, please be advised that if DD-WRT is used this will void your warranty and D-Link will not accept responsibility or support any products that may  adversely be affected as a result of using  DD-WRT.
