4G LTE Cat.4 M2M VPN Modem

DWM-311

  • Product Status (Revision B1): Live
  • Quick and reliable download speeds of up to 150 Mbps1

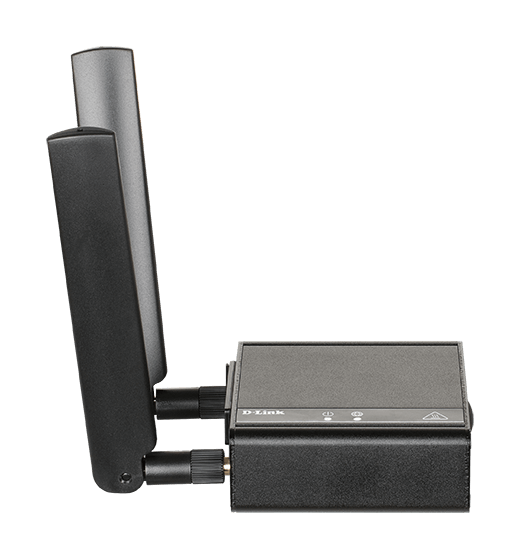

  • x2 External Antennas with SMA connectors
  • 4G/3G LTE download speeds of up to 150 Mbps

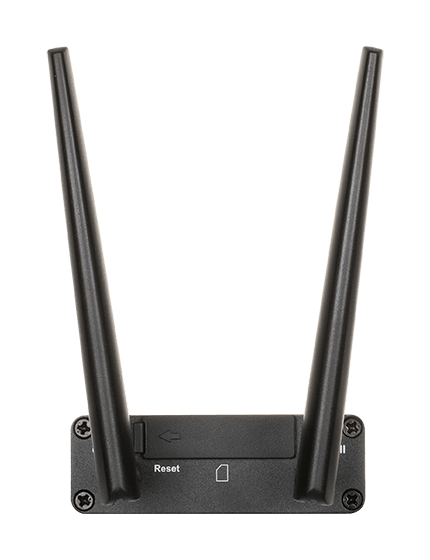

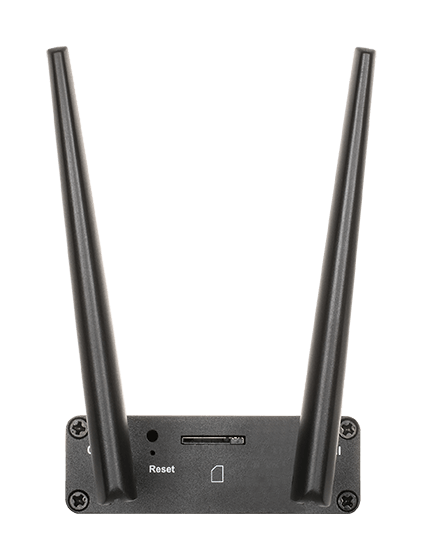

  • x1 Unlocked Micro SIM slot, x1 Gigabit Ethernet LAN Port, x1 MicroUSB port
  • Integrated OpenVPN support
  • Zinc-plated rugged steel housing

Download the datasheet.

Where to buy

Robust and easy-to-deploy 4G Mobile Router

A high-performance, industrial-grade mobile router for Machine-to-Machine applications, with OpenVPN support and remote-management — ideal for large-scale and individual deployments.

Highspeed 4G Internet

Quick and reliable 4G/3G LTE download speeds of up to 150 Mbps1

Dedicated Gigabit Ethernet port

Supports Machine-to-Machine (M2M) applications with hard-wired connectivity

Small form factor

Low profile design measuring 77.4 x 68.5 x 26 mm

Plug-and-Play, with remote management

Utilise the easy-to-use web UI, or manage remotely via the D-Link Edge Cloud System software with real-time monitoring, reporting & more

Secure VPN

Provides a reliable, secure connection with integrated OpenVPN support

Rugged housing

Tough zinc-plated steel case and wide operating temperature of -30 to 60°c and humidity tolerance

MicroUSB port

Conveniently powered through the MicroUSB port

Purpose-built to keep your M2M equipment continuously operating, even in harsh environments

Remotely monitor and manage your M2M (Machine to Machine) equipment and devices with the industrial-grade DWM-311. It features integrated OpenVPN for a secure connection, advanced remote management via our D-Link Edge Cloud System software, and a dedicated Ethernet port for high-speed applications. The DWM-3111 was made to provide your business with an always-on 3G/4G mobile Internet connection.

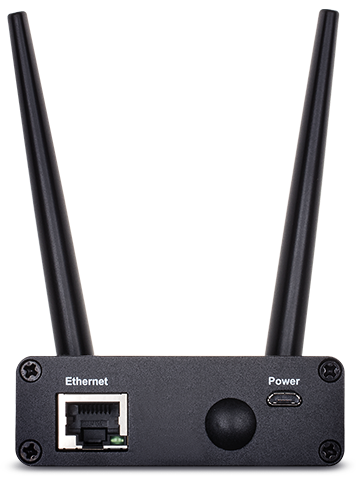

Connectivity where you need it most

Easily connect to your high-speed 4G/3G LTE mobile connection and enjoy downlink speeds of up to 150 Mbps1 and uplink speeds up to 50 Mbps1 - providing fast, reliable and responsive Internet access that enables you to deploy the router in a remote location, and still access your devices from anywhere.

The DWM-311 offers flexibility to power your Machine-to-Machine (M2M) applications with a dedicated Gigabit Ethernet for reliable wired connectivity.



Easy installation in extreme conditions

The corrosion-resistant zinc-plated steel case and wide operating temperature of -30 to 60°c and humidity tolerance make the DWM-311 an industrial-grade device, ready for the most demanding M2M applications, in virtually any environment.

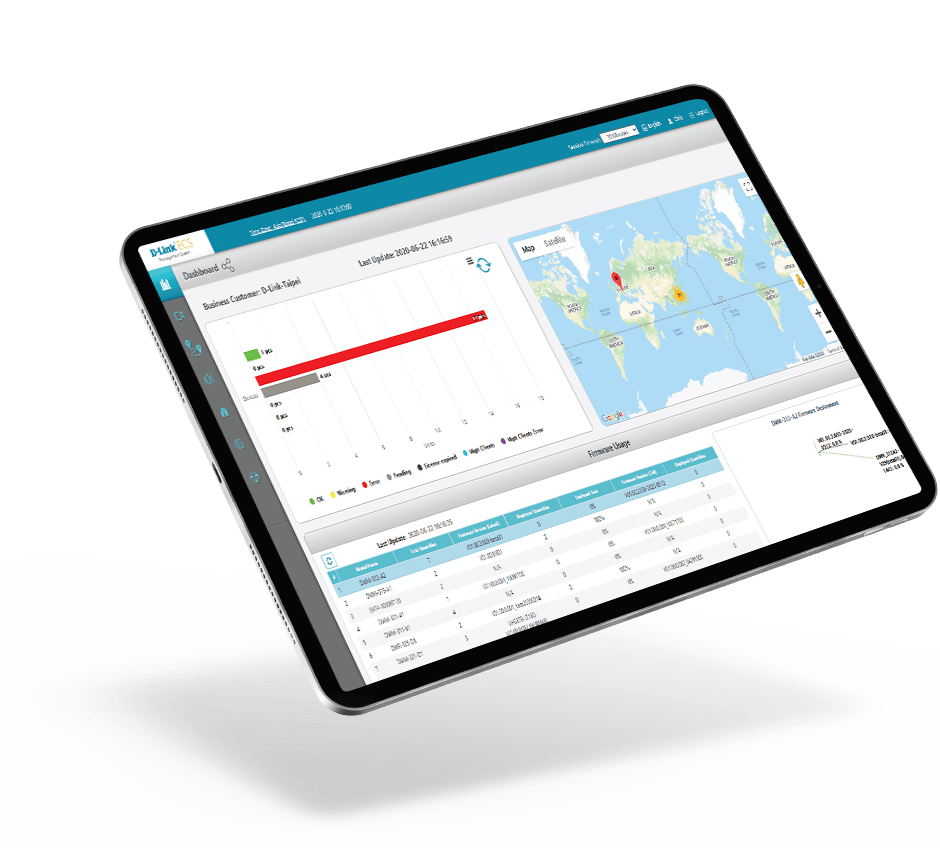

Network agility for Enterprise IoT Management

D-Link offers the latest advanced EaaS (Edge as a Service) cloud computing platform to enable flexible, secure and low latency networks for mission critical operations.

With full control and visibility over your network and a fast, flexible deployment, the D-ECS D-Link Edge Cloud Solution platform offers extensive functionality enabling remote device management, traffic analytics, security, cost-management and more.

Related Products

Industrial AC1200 Wave 2 Access Point
DIS-2650AP
Find out more
Industrial Gigabit Smart Managed PoE Switch
DIS-200G-12PS
Find out more
Industrial Gigabit Smart Managed Switch
DIS-200G-12S
Find out more

1 Data rates are theoretical. Data transfer rate depends on network capacity, signal strength, and environmental factors.

Specification

Download the datasheet.

Type
VPN security router
Antenna type
2 detachable omni-directional antennas
Wired interface
1 x Gigabit Ethernet LAN
3G/4G LTE support
3G/4G LTE via SIM
Type of housing
Metal
DHCP server
Supported
WEB
Supported
VPN features
OpenVPN

Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice.

Download the datasheet.

Support

Version Date Type File Size
Datasheet EN - PDF 0.30mb Download
Version Description Date Type File Size
Manual 1.10 RevB1 Product Manual 9/08/2021 - - Download
Version Description Date Type File Size
QIG 1.00 RevB1 Quick Install Guide 31/08/2021 - - Download
Version Description Date
CE doc UKCA 1.00 RevB1 CE document 2/11/2021 Download
