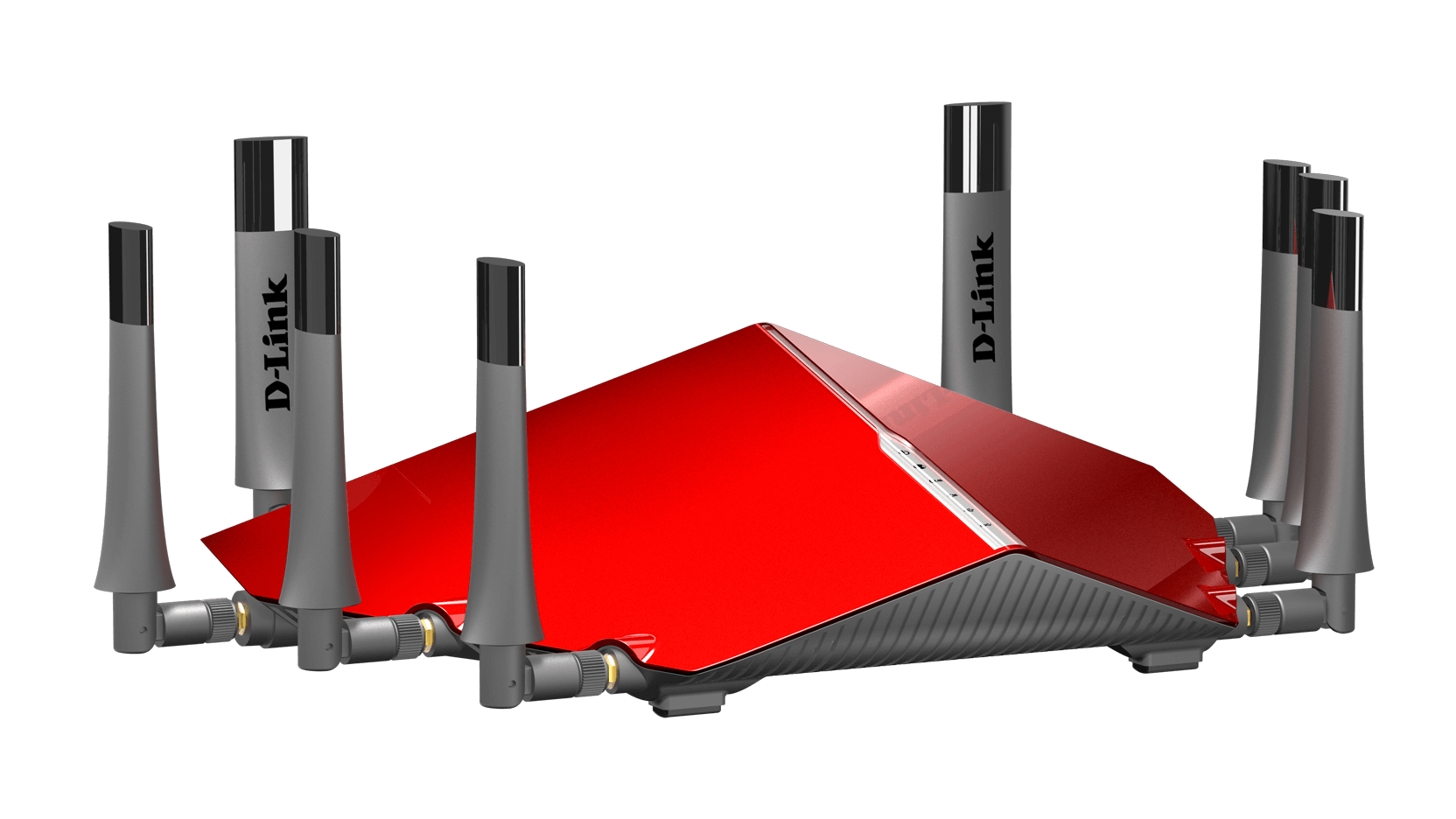

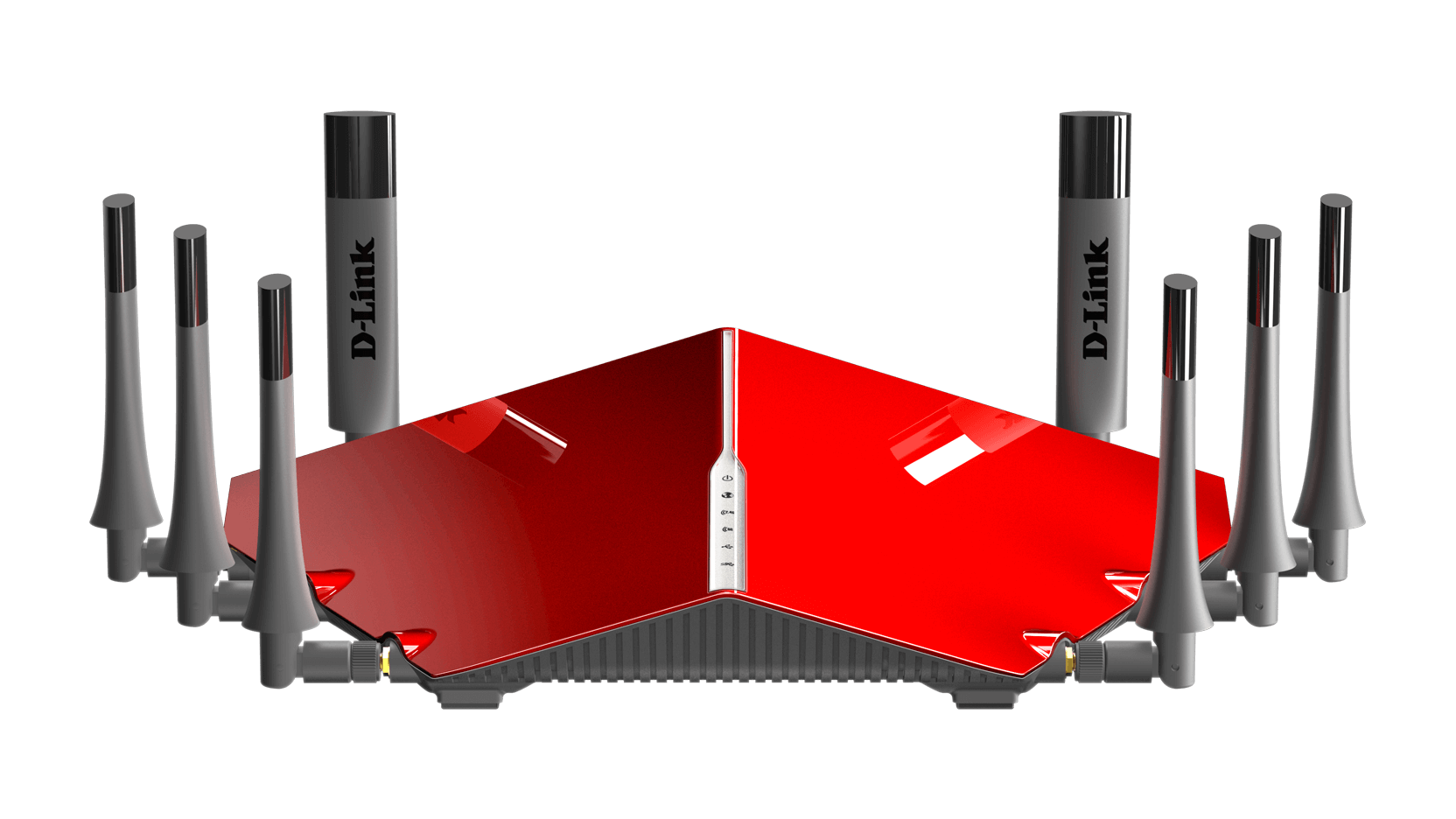

AC5300 MU-MIMO Ultra Wi-Fi Router
DIR-895L
- Product Status: End of Life
HD Streaming and Gaming
Key Features
-
1.4GHz Dual Core Processor
Faster processing powerfor supporting apps
-
4x4 Data Streams
Supports 4 simultaneous data streams for increased throughput.
-
MU-MIMO Technology
High-bandwidth Wi-Fi signal to multiple devices at the same time.
-
SmartConnect
Allocates the best possible band for optimal performance.
-
Advanced AC SmartBeam
Focused Wi-Fi signals for faster more reliable connections.
-
Tri-Band
Two 5GHz and one 2.4GHz bands.
Smart Connect Technology
The DIR-895L delivers tri-band Wi-Fi AC technology with combined wireless speeds of up to 5332Mbps thanks to 4x4 data streams.
Combined smart beam forming and MU-MIMO technology increase reliability and range.
With Smart Connect Technology, the ULTRA Wi-Fi Router chooses from the three Wi-Fi bands and automatically connects each device on your network to the best, clearest band available for the best connection.
2.4GHz
Network 1
5GHz
Network 2
5GHz
Network 3
MU-MIMO technology allows multiple devices to get high‑bandwidth Wi-Fi signal at the same time. Data can be distributed more efficiently, giving you the fastest Wi-Fi speeds possible. You can stream HD media faster, transfer large files really fast and enjoy lag-free gaming.
Read more >
Want a high-performance router that can handle multiple tasks at incredible speeds?
A dual-core processor boosts multitasking computing power and improves throughput speeds for all of your applications.
HD Streaming and Gaming
-

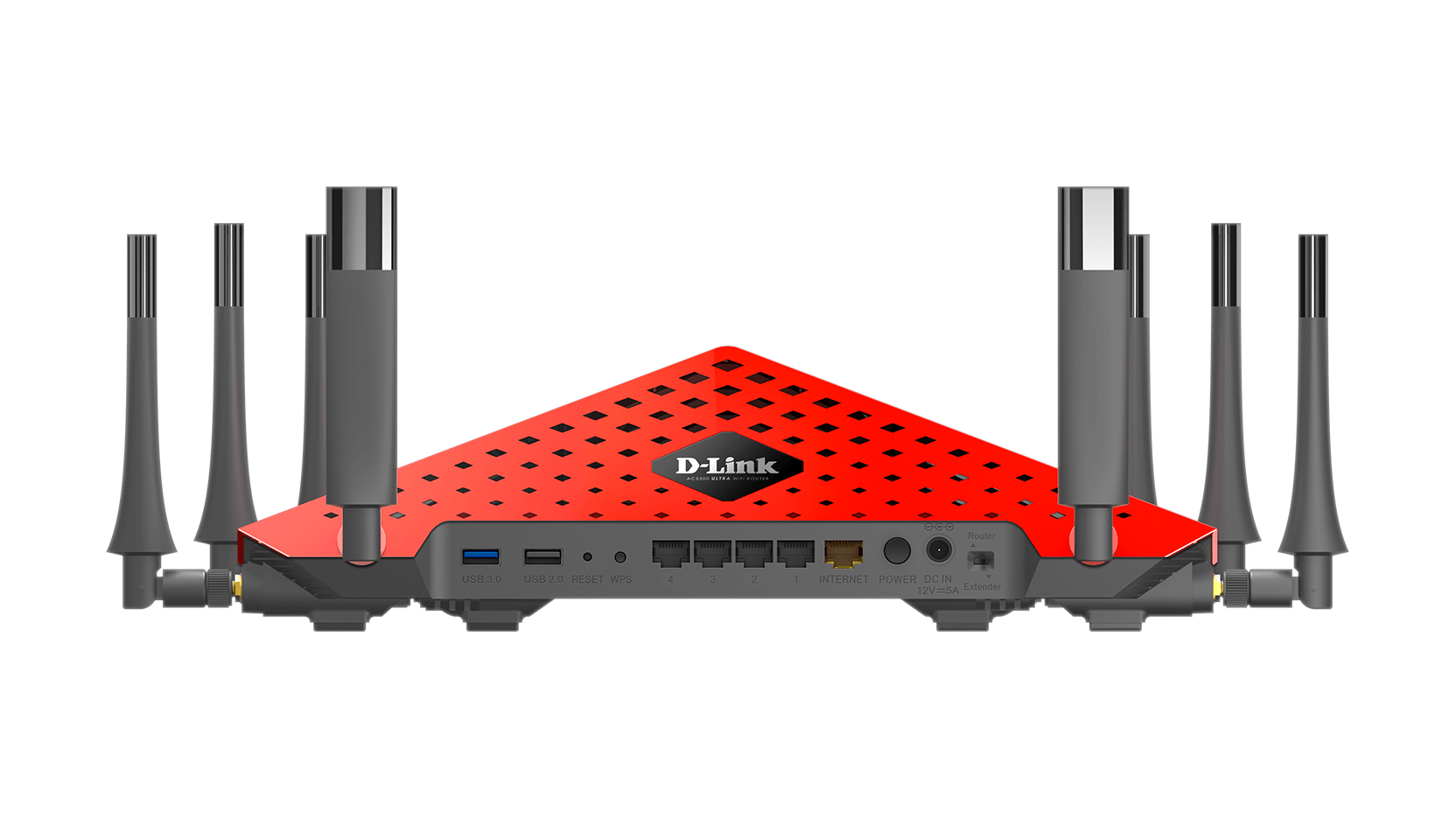

USB 3.0 Port
Share media
from a USB
storage device -
USB 2.0 Port
Share
a printer -
WPS Button
One button
setup -
4 Gigabit
LAN portsConnects up to 4
wired devices -
Internet Port
Plug your
internet cable
in here -
Router/
Extender
ButtonSelect between
router or
extender mode
Open Source
The DIR-895L Ultra Wi-Fi Router provides a responsive graphical user interface for an exceptional experience right out of the box. Advanced users have the option to utilise Open Source firmware to modify their router further with DD-WRT*. For more information visit – www.dd-wrt.com .
* Please note that installing custom firmware will void the product warranty and is done so at your own risk.
|
Additional Features
|
||||
Speed
|
11AC Wi-Fi - Fast Wi-Fi speeds of up to 5332Mbps (1,000Mbps on 2.4GHz + 2,167Mbps on 5Ghz + 2,167Mbps on 5Ghz). 1.4 GHz Processor - Fast and reliable wireless, Ethernet and USB performance. Gigabit Ethernet Ports - Ensures the best wired online experience for HD streaming and gaming.
|
|||
Range
|
Improved Home Coverage - Eight high-performance external antennas extend wireless range further than with Wireless N.
|
|||
Performance
|
Traffic Prioritisation - Advanced QoS engine guarantees the best performance for high priority programs, games and video streaming.
Tri-Band Technology - Decreases wireless interference and congestion, allowing you to connect more devices. Band Steering - Automatically assigns devices to the less crowded 5 GHz network to increase bandwidth efficiency and availability. Advanced AC SmartBeam - Unique beamforming technology dramatically enhances wireless signal strength and range. Airtime Fairness - Automatically adjusts data rates to avoid network buffering when slower devices connect.
|
|||
Access
|
DLNA Enabled (Compatible) - Play and share your media on any DLNA devices, such as TVs, gaming consoles, smartphones and more.
3.0 USB Ports - One USB 3.0 port with speeds up to 10x faster than 2.0. mydlink SharePort App - Remotely stream and share movies, music, pictures and more from your connected USB hard drive. SharePort Utility - Access and share a USB printer, scanner or storage device over your home network.
|
|||
Management
|
Easy To Install - Installation wizard manually walks you through setup in minutes.
Quick Router Setup (QRS) App - Easy setup app for smartphones and tablets. mydlink Lite App - Free mobile app with ability to monitor, control & troubleshoot your home network. WPS Push Button Setup - Quickest method of connecting devices with the push of a button. Zero Configuration - Once router is setup, other D-Link Zero Configuration devices can easily and instantly connect.
|
|||
Security
|
L2TP Over IPSec VPN Server Support - Transmit data securely when connected remotely.
Parental Controls - Create online access schedules and block/allow specific websites and/or devices. Guest Wi-Fi Network - Enable a public or encrypted wireless guest network to secure and control access to local network devices. Secure Wi-Fi Encryption - WPA/WPA2 provides highest level of wireless security.
|
|||
Related Products
Specs
|
Wireless standard
|
Wireless AC Wave 2 |
|---|---|
|
Frequency band mode
|
Tri-band simultaneous |
|
Wireless speed
|
1000 Mbps 2.4 GHz 2 x 2167 Mbps 5 GHz |
|
Antenna type
|
8 detachable omni-directional antennas |
|
Wired interface
|
1 x Gigabit Ethernet WAN 4 x Gigabit Ethernet LAN |
|
USB ports
|
1 x USB 2.0 1 x USB 3.0 |
|
Wireless modes
|
Wireless extender |
|
Advanced features
|
MU-MIMO mydlink-enabled SmartBeam |
|
DLNA
|
Supported
|
Support
| Version | Date | Type | File Size | |
|---|---|---|---|---|
| Datasheet | - | 0.56mb | Download |
| Version | Description | Date | Type | File Size | |
|---|---|---|---|---|---|
| 1.00 | Quick Installation Guide | - | 1.85mb | Download |
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
| Version | Description | Date | Type | |
|---|---|---|---|---|
| 1.21 | Firmware | 1.2.2018 | - | Download |
| 1.20b02 | To upgrade the firmware to v1.20b02, you must first upgrade to the transitional firmware v1.15b02. Both firmwares are included in the download file and follow the instructions included. | 3.10.2017 | - | Download |
| Frimware Release notes included 1.13 | Frimware |
13.1.2017 | - | Download |
