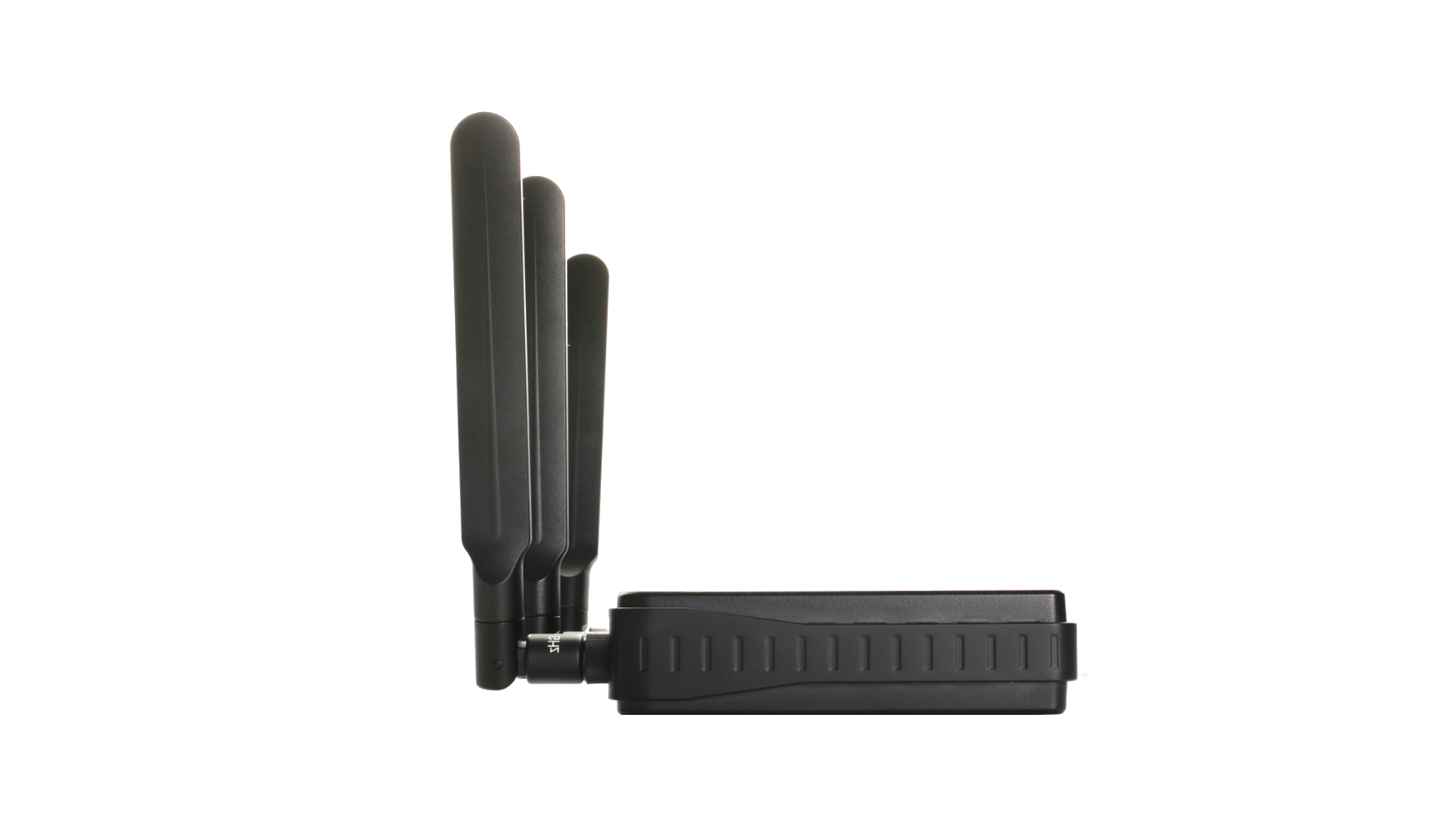

Wireless N300 Dual-Band PoE Access Point

DAP-2553

  • Product Status: Phased Out

The DAP-22553 is an low cost dual band business grade access point, ideal for creating or extending wireless networks.


Download the datasheet.

List Retailers

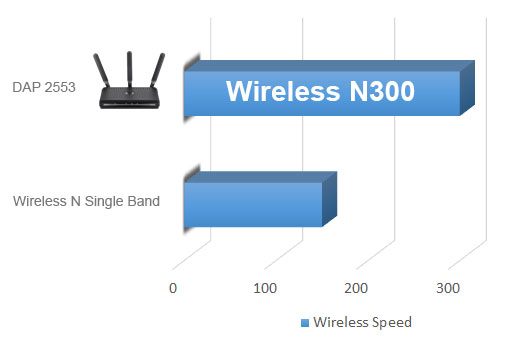

Performance without Compromise

Using the latest generation of Wireless N technology, the DAP-2553 delivers great wireless performance and coverage in a compact design.

Broadcast 8 independent SSIDs simultaneously

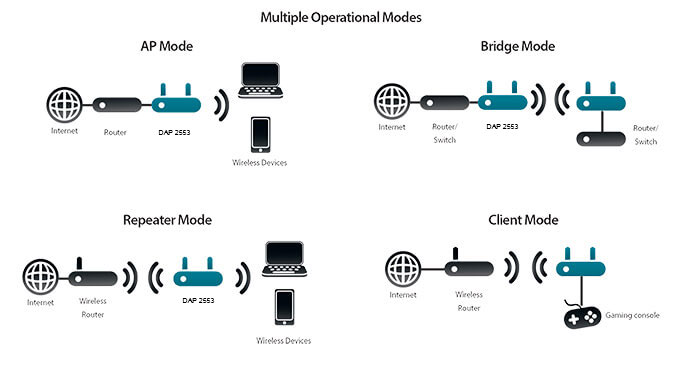

Flexibile Deployment Scenarios

Supporting up to 4 different operating modes, the DAP-2553 is one of the most flexible access points on the market.

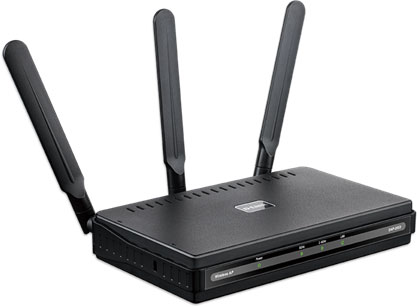

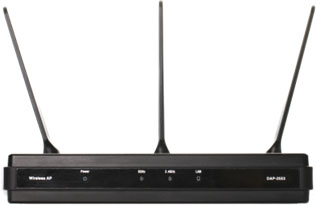

Small but mighty

With it’s deceptively small and simple design, the DAP-2553 is a robust and versatile access point. Multiple operational modes mean it can be deployed quickly and efficiently in any environment.


Selectable Dual-Band Wireless

Supports up to 300Mbps for the 5Ghz band or up to 300Mbps for the 2.4Ghz band

Smart Design

The DAP-2553 has a wireless scheduler feature, which turns off wireless functionality when it isn’t needed, saving power and increasing network security.

Technical Specifications

Hardware
  • Selectable dual-band connectivity
  • One 10/100/1000 Mbps Gigabit LAN port with built-in 802.3af Power over Ethernet (PoE)
  • Three detachable dual-band antennae

Operation Modes
  • Access Point
  • Wireless Distribution System (WDS), for either Point-to-Point or Point-to-Multipoint bridge
  • WDS with AP
  • Wireless client

High Performance Connectivity
  • IEEE 802.11n specification
  • Up to 300 Mbps wireless data transfer rates

Security
  • WPA™ Personal/WPA™ Enterprise
  • WPA2™ Personal/WPA2™ Enterprise
  • WPA2-PSK/AES over WDS
  • MAC Address Filtering
  • Multiple SSIDs
  • Wireless scheduler

Management
  • AP Manager II
  • Web Browser (HTTP/HTTPS)
  • Telnet
  • SSH
  • SNMP v1, v2c, v3
  • D-View 5.1 and 6.0


* Maximum wireless signal rate based on IEEE standard 802.11g, 802.11a and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors may lower actual data throughput rate.

FAQ

  • How can I chance the username and password on my DAP access point? Read Answer
  • How do I change the IP address on my DAP access point? Read Answer
How to change wireless channel on the DAP-2553
How to change wireless channel on the DAP-2553

Downloads can vary across product revisions. Please select the correct hardware revision.


This product was phased out on: 20.12.2016
