PLC PowerLine AV1000 Extensor WiFi AC 1200 Internet rede elétrica

DHP-W611AV

Share



WiFi sem barreiras, Internet pela rede elétrica

Este Kit PLC Powerline com Extensor WiFi é a solução perfeita se tem problemas com o WiFi, já que a ligação à Internet vai do router a um Access Point emissor WiFi utilizando a rede elétrica da sua casa graças à tecnologia PLC Powerline, evitando assim obstáculos como tetos ou paredes.



Fácil de instalar

Este Kit PLC Powerline com Extensor WiFi vem com as duas unidades necessárias, simplesmente ligue uma das unidades numa tomada e conecte-a com o seu router através do cabo de rede LAN incluído e ligue a outra unidade (o extensor WiFi) na zona onde deseja ter uma nova área WiFi, como os pisos superiores ou a garagem. E é assim tão simples.







Não perca nem um mega da sua ligação

Graças à velocidade PLC a 1000 Mbps* e ao extensor WiFi AC 1200 Mbps*** poderá disfrutar de Streaming 4K e de um uso intensivo da rede e da ligação à Internet. A tecnologia WiFi de dual band (2.4/5GHz) e o suporte de Quality of Service (QoS) permite a melhor otimização da largura de banda e a priorização avançada.







Internet sem limites

O uso da rede eléctrica para transmitir a ligação à rede e Internet convertem este produto na melhor solução nas casas com vários pisos ou com divisões muito afastadas do router. A tomada eléctrica integrada na unidade que vai ligar ao router aumenta a flexibilidade da instalação não perdendo uma tomada, já que se recomenda que a sua instalação seja nas tomadas de parede, sem réguas ou blocos de múltiplas tomadas.






* Power outlets and electrical wiring must all be part of the same electrical system. Certain electrical conditions in your home, such as wiring condition and configuration, may affect the performance of this product. Additional units may be required to cover your entire home. Connecting this product to a power strip with a surge protector may adversely affect the performance of this product. For best results, plug the adapter directly into a wall outlet.
** Maximum throughput is based on theoretical transmission PHY rate. Actual data throughput will vary. Network conditions and environmental factors, including volume of traffic and network overhead, may lower actual data throughput rate. Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers, may adversely affect the performance of this product. This product may interfere with devices such as lighting systems that have a dimmer switch or a touch-sensitive on/off feature, short wave radios, or other Powerline devices that do not follow the HomePlug AV2 standard.
*** Maximum wireless signal rate derived from IEEE Standard 802.11 specifications when used with related Wireless AC devices. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range. Wireless range and speed rates are D-Link relative performance measurements based on the wireless range and speed rates of a standard Wireless G product from D-Link.

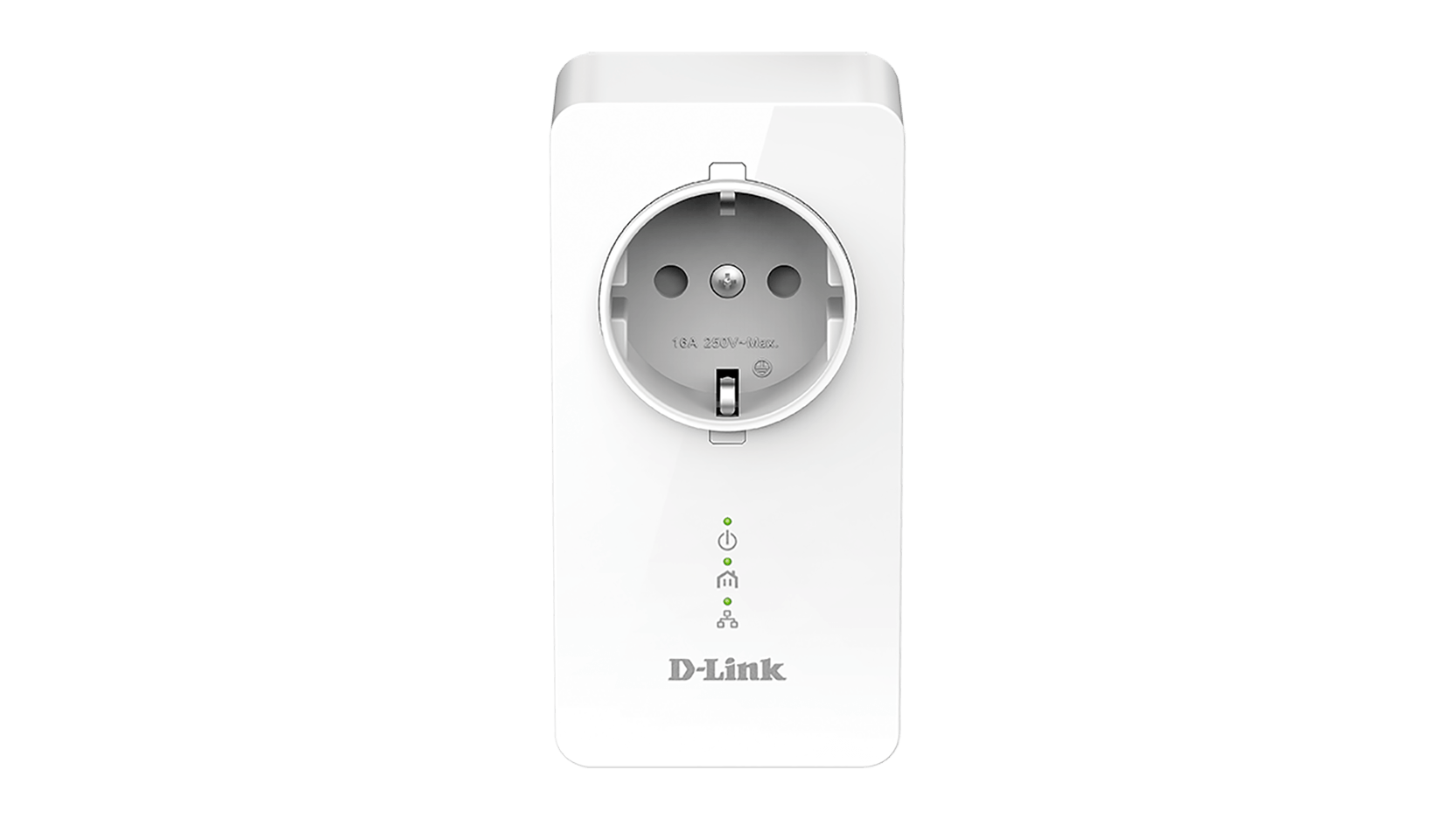

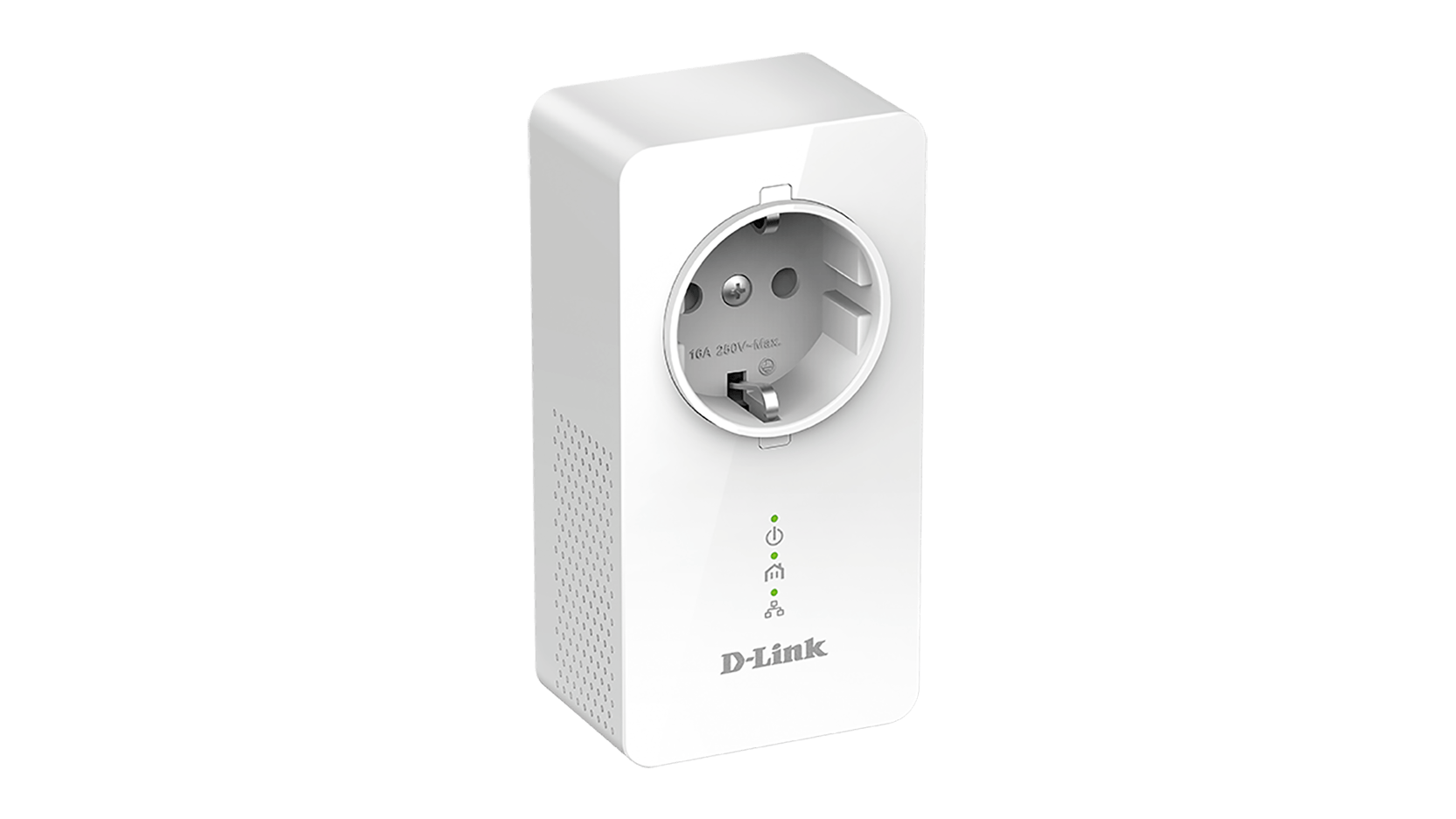

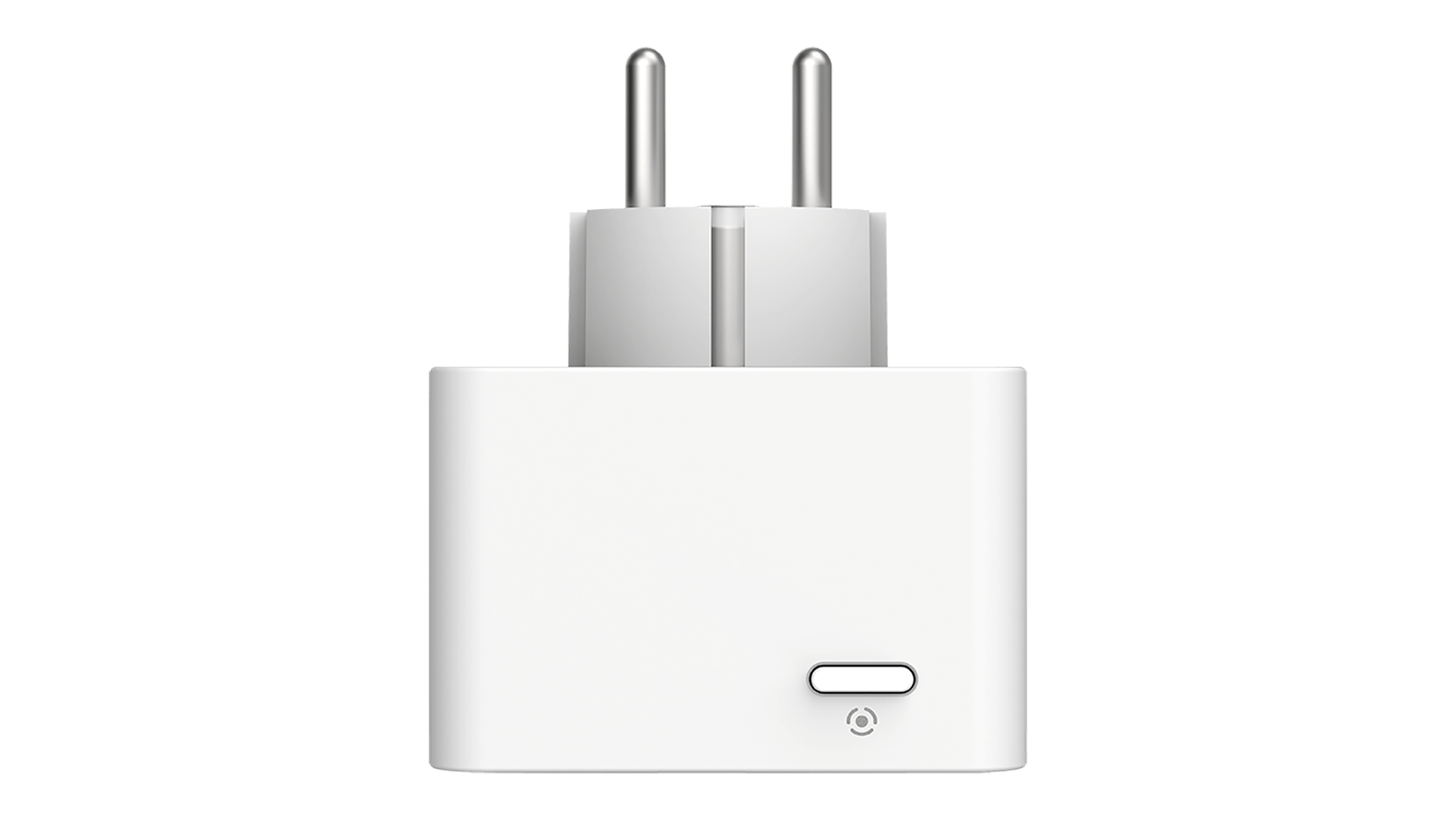

Technical Specifications (DHP-P610AV PowerLine AV1000 Gigabit Passthrough Adapter)

General

Powerline Interface

  • One PLC interface compatible with HomePlug AV2.1 specification up to 1000 Mbps

Network Interface

  • 10/100/1000 Ethernet port with auto MDI/MDIX

Other Interface

  • Simple Connect Button
  • Reset Button

Functionality

Standards

  • IEEE 802.3
  • IEEE 802.3x
  • HomePlug AV2.1
  • IEEE 1901

Security

  • 128-bit AES encryption

LEDs

  • Power
  • Ethernet
  • Powerline

Advanced Features

  • Power-saving mode
  • Compliant with European Energy Using Product Directive

Powerline Modulation Scheme

  • OFDM Symbol Modulation

Powerline Frequency Band

  • 2 to 86 MHz

Data Rate

  • Powerline: Up to 1000 Mbps (PHY rate)2
  • Ethernet: 10/100/1000 Mbps (auto negotiation)

Physical

Dimensions

  • 114 x 59 x 38 mm (4.49 x 2.32 x 1.50 inches)

Weight

  • EU Type: 188 g (6.63 ounces)

Passthrough Power Socket

  • EU Type: 250 V/16 A Maximum

Power Input

  • EU Type: 100 to 250 V AC, 50/60 Hz, 16 A

Power

  • Input: 100 to 240 V AC, 50/60 Hz

Power Consumption

  • Normal: 2.62 W
  • Network Standby: 2.23 W

Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 65 °C (-4 to 149 °F)

Humidity

  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing

Certifications

  • CE/LVD
  • FCC/IC
  • UL

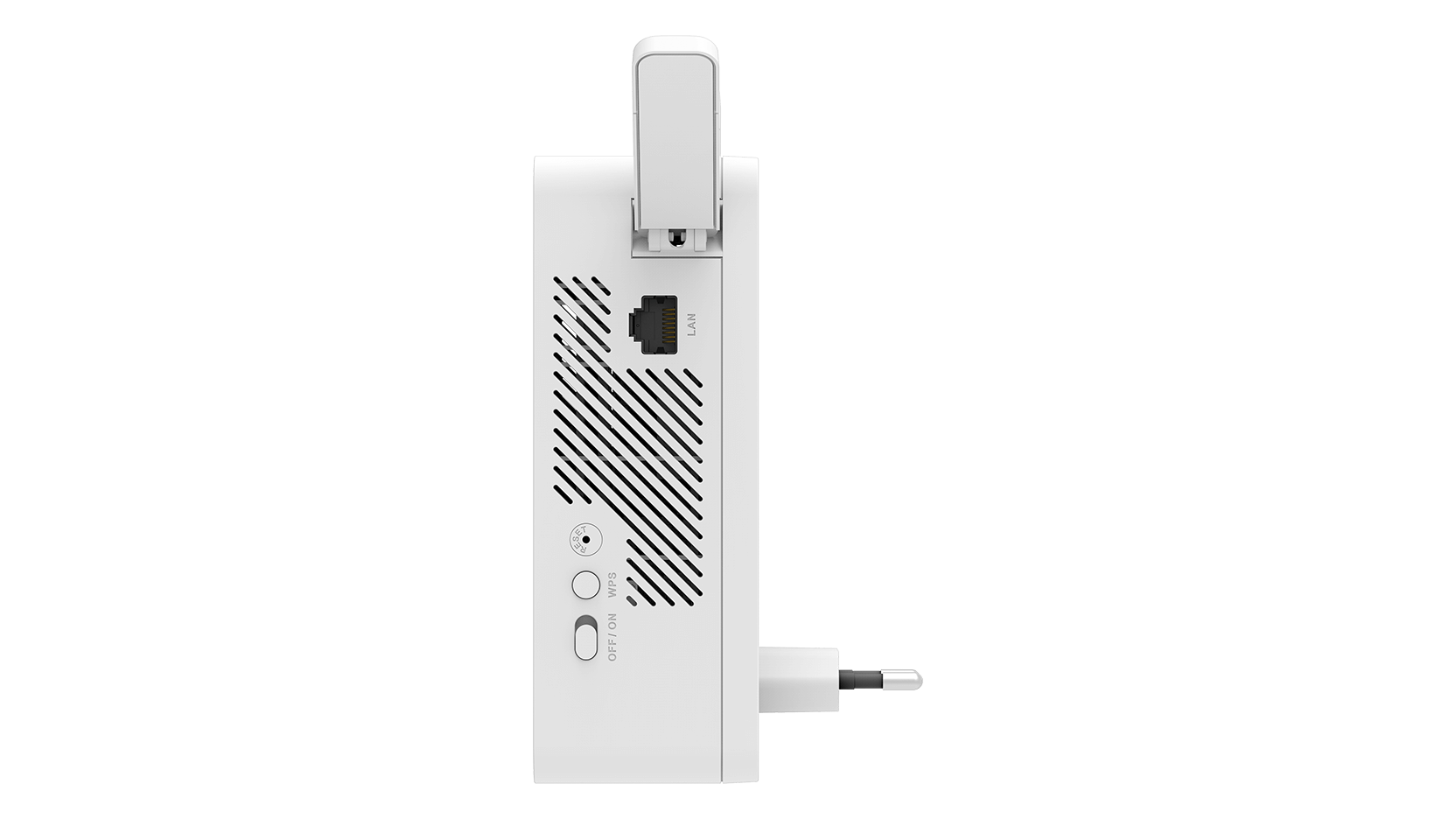

Technical Specifications (DHP-W610AV PowerLine AV1000 Wi-Fi AC Adapter)

General

Powerline Interface

  • One PLC interface compatible with HomePlug AV2.1 specification up to 1000 Mbps2

Network Interfaces

  • 10/100/1000 Ethernet LAN port with auto MDI/MDIX
  • 802.11ac WLAN

Other Interface

  • Simple Connect button
  • WPS
  • Reset button

Wireless LAN

  • 802.11ac/n/g/a standards
  • Wireless speed3:
    • 5 GHz - up to 867 Mbps
    • 2.4 GHz - up to 300 Mbps
  • WPA/WPA2 (Wi-Fi Protected Access)

Functionality

Standards

  • IEEE 802.3
  • IEEE 802.3x
  • HomePlug AV2.1
  • IEEE 1901
  • IEEE 802.11ac/n/g/a

Security

  • Powerline: 128-bit AES Encryption
  • Wireless: Wi-Fi Protected Access (WPA/WPA2)

LEDs

  • Power
  • Ethernet
  • Powerline
  • Wi-Fi

Advanced Features

  • IPv6 support
  • Power-saving mode
  • PLC Quality of Service (QoS)

Physical

Dimensions

  • 140 x 68 x 50 mm (5.51 x 2.68 x 1.97 inches)

Weight

  • EU Type: 315.2 g

Power

  • Input: 100 V to 240 V AC, 50/60 Hz

Power Consumption

  • Normal: 9.22 W
  • Network Standby: 6.15 W
  • Off: 0.1 W

Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 65 °C (-4 to 149 °F)

Humidity

  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing

Certifications

  • CE/LVD
  • FCC/IC
  • UL
  • RoHS
1. Power outlets and electrical wiring must all be part of the same electrical system. Certain electrical conditions in your home, such as wiring condition and configuration, may affect the performance of this product. Additional D-Link Powerline AV series products are required to add new devices to the network. A minimum of two D-Link Powerline AV series products are required to create a network. Connecting this product to a power strip with a surge protector may adversely affect the performance of this product. For best results, plug the adapter directly into a wall outlet.
2. Maximum throughput is based on theoretical transmission PHY rate. Actual data throughput will vary. Network conditions and environmental factors, including volume of traffic and network overhead, may lower actual data throughput rate. Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers, may adversely affect the performance of this product. This product may interfere with devices such as lighting systems that have a dimmer switch or a touch-sensitive on/off feature, short wave radios, or other Powerline devices that do not follow the HomePlug AV2 standard.
3. Maximum wireless signal rate derived from IEEE Standard 802.11 specifications when used with related Wireless AC devices. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors may adversely affect wireless signal range. Wireless range and speed rates are D-Link relative performance measurements based on the wireless range and speed rates of a standard Wireless G product from D-Link.

Warranty Document
Datasheets
Description Type File Size
Download PDF 0.36mb
Manuals
Description Type File Size
Download PDF 2.82mb
Quick Installation Guides
Version Description Date Type File Size
Download 1.00
Quick Installation Guide
Show moreShow less
27/02/2017 00:00:00 PDF 0.96mb
