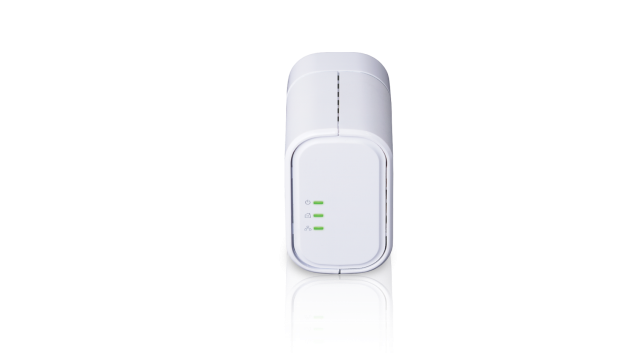

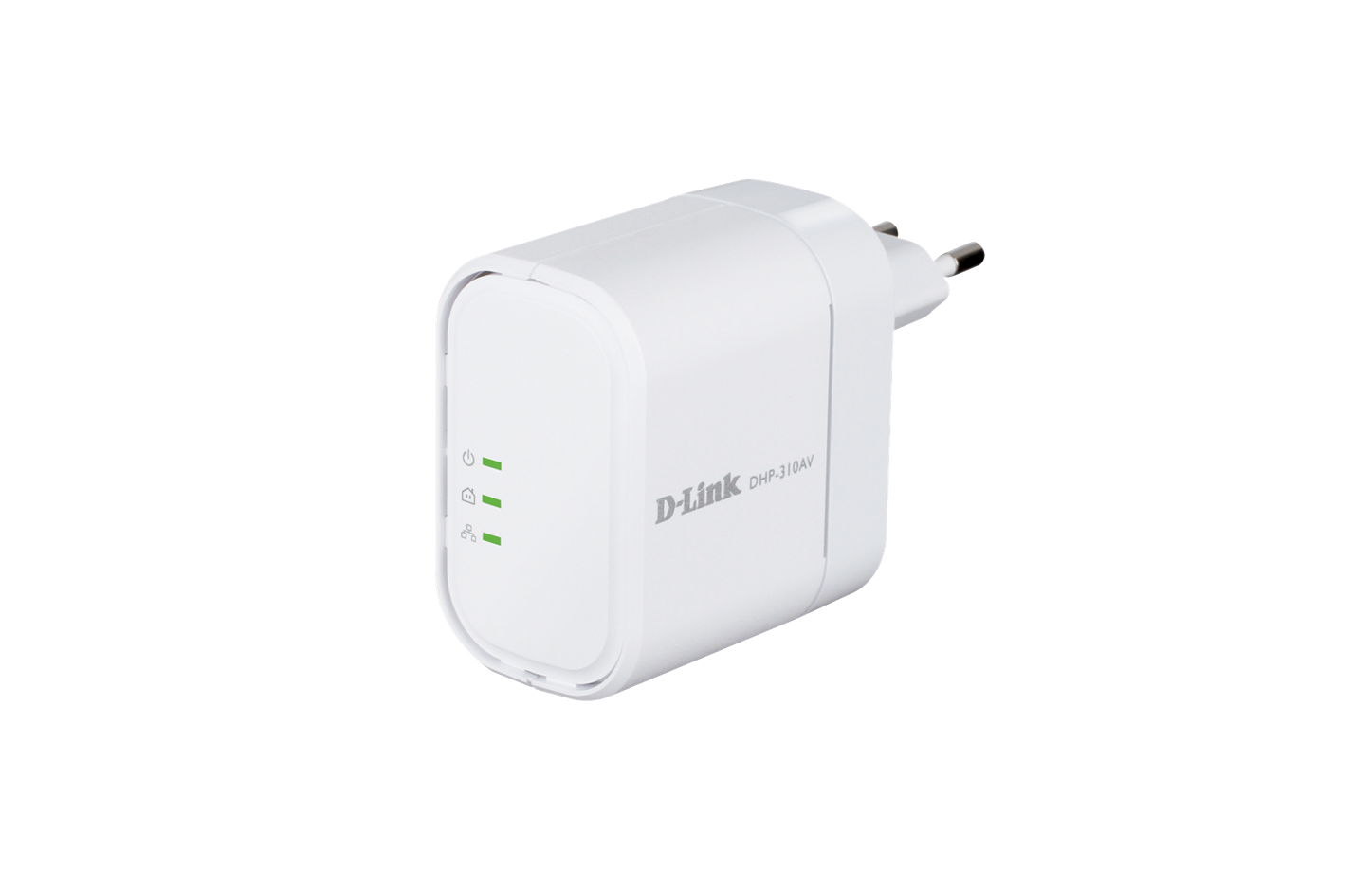

Adapter PowerLine AV 500 Wi-Fi N300

DHP-310AV

  • Status produktu: Wycofany ze sprzedaży
  • Domowa sieć bez plątaniny kabli
  • Kompaktowe rozmiary
  • Zwiększona odporność na zakłócenia elektryczne.
  • Technologia D-Link Green™: inteligentne oszczędzanie energii.

Pobierz kartę produktu.

Lista sklepów

Convenient Setup and Secure Operation
The PowerLine Homeplug AV Mini Adapter plugs directly into a power outlet1, so you can extend your home network by plugging one adapter into your router, and another adapter2 into the room you want to extend your connection to. For convenient setup, security can be quickly configured at the push of a button on the device, to protect your network from any intruders. With plug and play installation, the DHP-310AV is an ideal solution for creating a wall-to-wall home network when combined with another PowerLine Adapter.

Compact Design, Award Winning Design
Small and discreet, this adapter does not block access to neighbouring power outlets, allowing it to be plugged in anywhere alongside other devices. Designed to blend into any home environment while still providing the stable and reliable connection you need, this Mini Adapter has already been granted the prestigious Reddot Design Award.

Ideal for Bandwidth-Intensive Applications
The DHP-310AV is capable of delivering wired data transfer rates of up to 200 Mbps. Advanced technology built into this device makes it more resistant to electrical interference from other household appliances, so users can fully benefit from the maximum transmission speeds.This makes it ideal for bandwidth-intensive applications, guaranteeing smooth video streaming, VoIP calls, and lag-free online gaming experiences.

Compatibility
Based on the industry-leading PowerLine Alliance technology, the DHP-310AV is compatible with products implementing the PowerLine AV 500 standard, such as D-Link’s DHP-500AV/-501AV, and DHP-P500AV/P501AV. It is furthermore compatible with other brands’ devices based on the PowerLine AV standard.

D-Link Green™
The DHP-310AV is part of D-Link Green, D-Link’s program for providing eco-friendly alternatives without compromising performance: if data transmission does not occur over a certain period of time, the adapter will automatically go into sleep mode to save power.

1Power outlets and electrical wiring must all be part of the same electrical system. At least one additional PowerLine Homeplug AV Adapter is required to create a network.
2 Sold separately

Product Awards

For DNS-320L Network Storage, DCS-6010L Fisheye Camera, DHP-W310AV Wireless Powerline Adapter and DWR-910 Petit Router
Four of D-Link’s latest products, the DNS‑320L Network Storage, DCS‑6010L Fisheye Camera, DHP‑W310AV Wireless Powerline Adapter, and DWR‑910 Petit Router have been awarded the 2012 red dot product design award. The red dot design award is the largest and most renowned international accolade for industrial design. Each year, prominent designers and experts from all over the world evaluate products based on criteria such as degree of innovation, functionality, and overall quality. This year, over 4500 products vied for this coveted distinction.

Sugerowane urządzenia

Adapter PowerLine AV
DHP-306AV
Dowiedz się więcej
Zestaw startowy PowerLine AV
DHP-307AV
Dowiedz się więcej
Adapter Powerline AV Wireless N
DHP-W306AV
Dowiedz się więcej
Adapter PowerLine AV 500
DHP-500AV
Dowiedz się więcej
Zestaw startowy PowerLine AV 500
DHP-501AV
Dowiedz się więcej

Technical Specifications

Standardy
  • IEEE 802.3
  • IEEE 802.3u
  • HomePlug AV
  • IEEE 1901

Interfejs PowerLine

  • Podłączany do gniazda sieciowego (standard zależny od kraju).

Interfejs Ethernet

  • 2 porty Ethernet 10/100BASE-TX z funkcją Auto MDI/MDIX
  • Złącze RJ-45

Napięcie wejściowe

  • Od 100V do 240V, 50/60 Hz, 0.1A
  • Maksymalnie 3.01 W

Schemat modulacji PowerLine

  • Modulacja OFDM

Zakres częstotliwości PowerLine

  • Od 2 MHz do 30 MHz

Szybkość przesyłania danych

  • PowerLine: do 500 Mb/s
  • Ethernet: 10/100 Mb/s

Zabezpieczenia

  • Szyfrowanie łącza AES (128-bitowe)

Minimalne wymagania systemowe (dla narzędzi na komputery PC)

  • Windows 7/Vista/XP SP3
  • Interfejs Ethernet (100 Mb/s)

Kontrolki LED

  • Zasilanie
  • PowerLine
  • Ethernet 1
  • Ethernet 2

Wymiary (H x L x W)

  • 61 x 42.4 x 68 mm

Waga

  • 125.6 g

Dozwolony zakres temperatur podczas pracy

  • Od 0 do 40 ºC

Wilgotność podczas pracy

  • Od 10% do 90% bez kondensacji

Certyfikaty

  • FCC
  • CE EMC Class B
  • UL
  • CE LVD
