DGE-660TD Copper Gigabit CardBus Adapter

DGE-660TD

  • Status produktu: wycofany ze sprzedaży

The DGE-660TD CardBus Adapter is designed to bring high-performance Gigabit network speed to you laptop computer. This PC card simply plugs to a 32-bit PCMCIA slot of your computer and connects an Ethernet network through an RJ-45 copper twisted-pair connector. This card turns your laptop computer into a high-bandwidth Gigabit workstation for high-speed network connection

High-performance Gigabit Speed

The DGE-660TD adapter gives your laptop computer Gigabit transmission on your existing Cat. 5 twisted-pair network cable. As an inexpensive alternative solution to fiber-optic, this card allows you to instantly upgrade to Gigabit without requiring you to install new, expensive fiber cables. The card supports 10/100/1000Mbps network speed auto-sensing and full/half duplex auto-negotiation

Powerful Performance

To take full advantage of the Gigabit network bandwidth, this adapter uses 32-bit high-speed CardBus design to transfer network data with the computer host. This ensures that no bottlenecks take place between your computer's CPU and your network wireless frequency. A transmit 8KByte/receive 64KByte RAM data buffer is built into the card to enhance the adapter's performance.

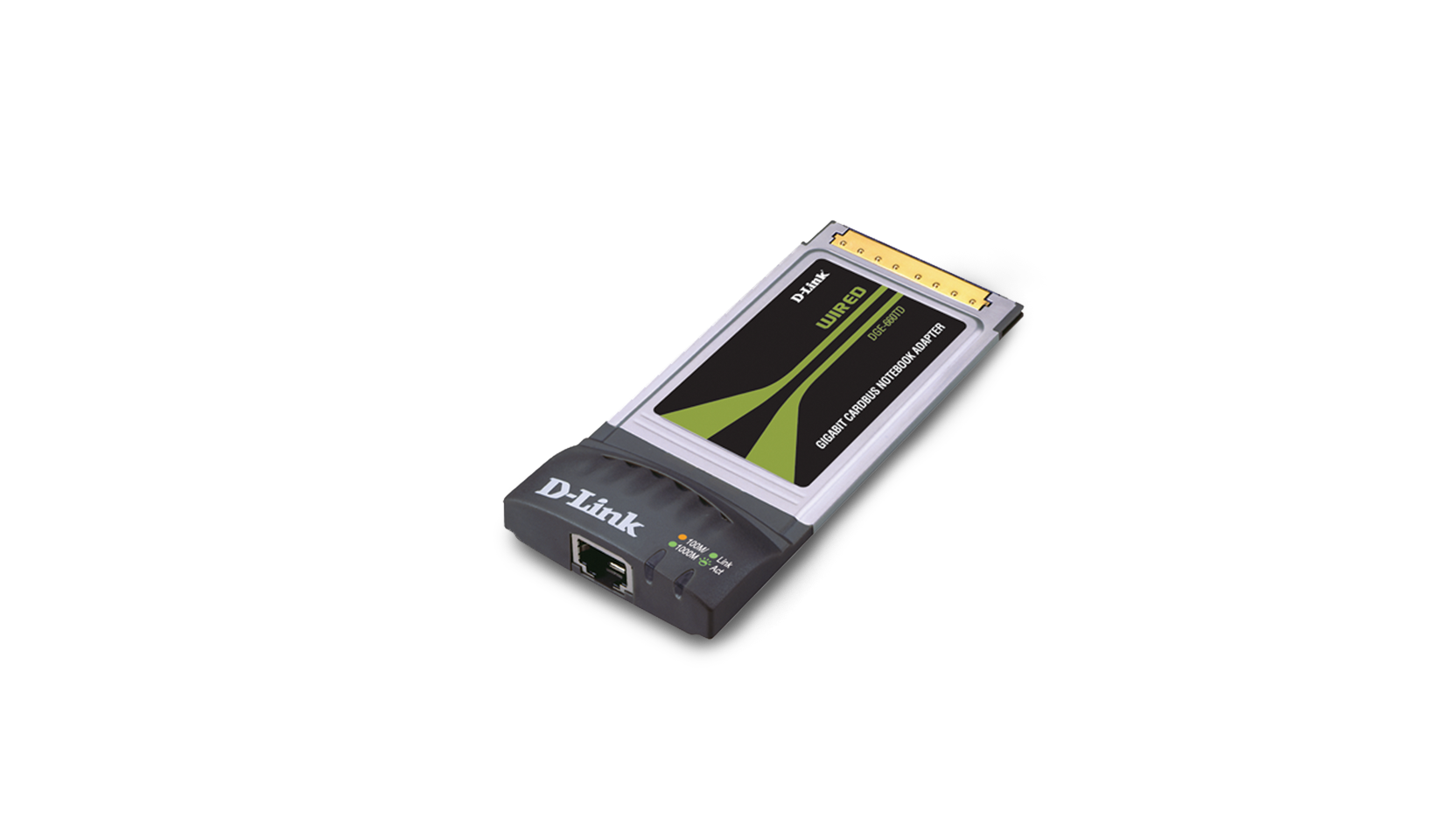

Actual product appearance may differ from the image displayed on this page

Technical Specifications

  • PCMCIA CardBus standard compliant
  • 32-bit bus-mastering data transfer
  • 68-pin connector to PC's CardBus Type II slot
  • 10/100/1000Mbps auto-negotiation operation
  • Full-duplex rates to 20/200/2000Mbps
  • Built-in transmit 8K/receive 64KBytes RAM data buffer
  • Single shielded RJ-45 connector
  • UTP/STP cabling support
  • 32-bit high-speed data transfer to computer host
  • Minimal power consumption
  • PCMCIA hot swappable
  • Extensive diagnostic LEDs
  • Operates in Windows, NetWare environments

FAQ

  • Why won’t my Gigabit connection get a link? Read Answer
  • What is the sequence for auto-negotiation when connecting to different speed hubs or switches? Read Answer
Wersja Data Typ Rozmiar pliku
Datasheet (English) - PDF 0.17mb Pobierz
Wersja Opis Data Typ Rozmiar pliku
Manual v1.10 (English) Manual v1.10 (English) 2012-01-10 PDF 2.78mb Pobierz
Wersja Opis Data Typ Rozmiar pliku
Quick Installation Guide (English) - PDF 0.50mb Pobierz
Wersja Opis Data
DEU_Drivers_v5_00_RevA DGE-660TD Drivers v5.00 2010-02-25 Pobierz
DEU_Drivers_revAll_v4_00_RevA DGE-660TD Drivers v4.00 2007-04-05 Pobierz
DEU_Drivers_revAx_v5_61_54_RevA DGE-660TD Drivers v5.61.54 2004-10-18 Pobierz
Wersja Opis Data
DEU_CE_A2_EN_FR_RevA Certificate of Declaration A2 2009-05-27 Pobierz
DEU_CE_A1_RevA Certificate of Declaration A1 2005-10-13 Pobierz
