PoE Day/Night Fixed Network Camera

DCS-3411

  • Status produktu: wycofany ze sprzedaży
D-Link’s DCS-3411 is a versatile Day and Night Network Camera, ideal for small-to-medium business applications and remote monitoring capabilities over the Internet.

Pobierz kartę produktu.

Lista sklepów
*requires connection to an external speaker

D-Link’s DCS-3411 is a versatile Day and Night Network Camera, ideal for small-to-medium business applications and remote monitoring capabilities over the Internet.

The DCS-3411 can be placed anywhere including awkward locations through a PoE connection. It can be connected to various external devices to provide a variety of security applications triggered on alarm-based events.

High quality video streaming

The camera employs a quality CMOS sensor with low lux sensitivity to deliver a truly superior image quality. A built-in Infrared Cut Removable (ICR) filter can be manually applied via the web GUI, or set to automatically adjust according to lighting conditions. This feature enables the camera to capture crisp colour images during the daytime, and grayscale images in low-light.

A versatile solution

The DCS-3411 includes built-in support for 802.3af Power Over Ethernet (PoE). This allows the camera to be powered directly from a PoE Ethernet switch, providing users the freedom to place the camera anywhere they want, including high walls and covert locations.

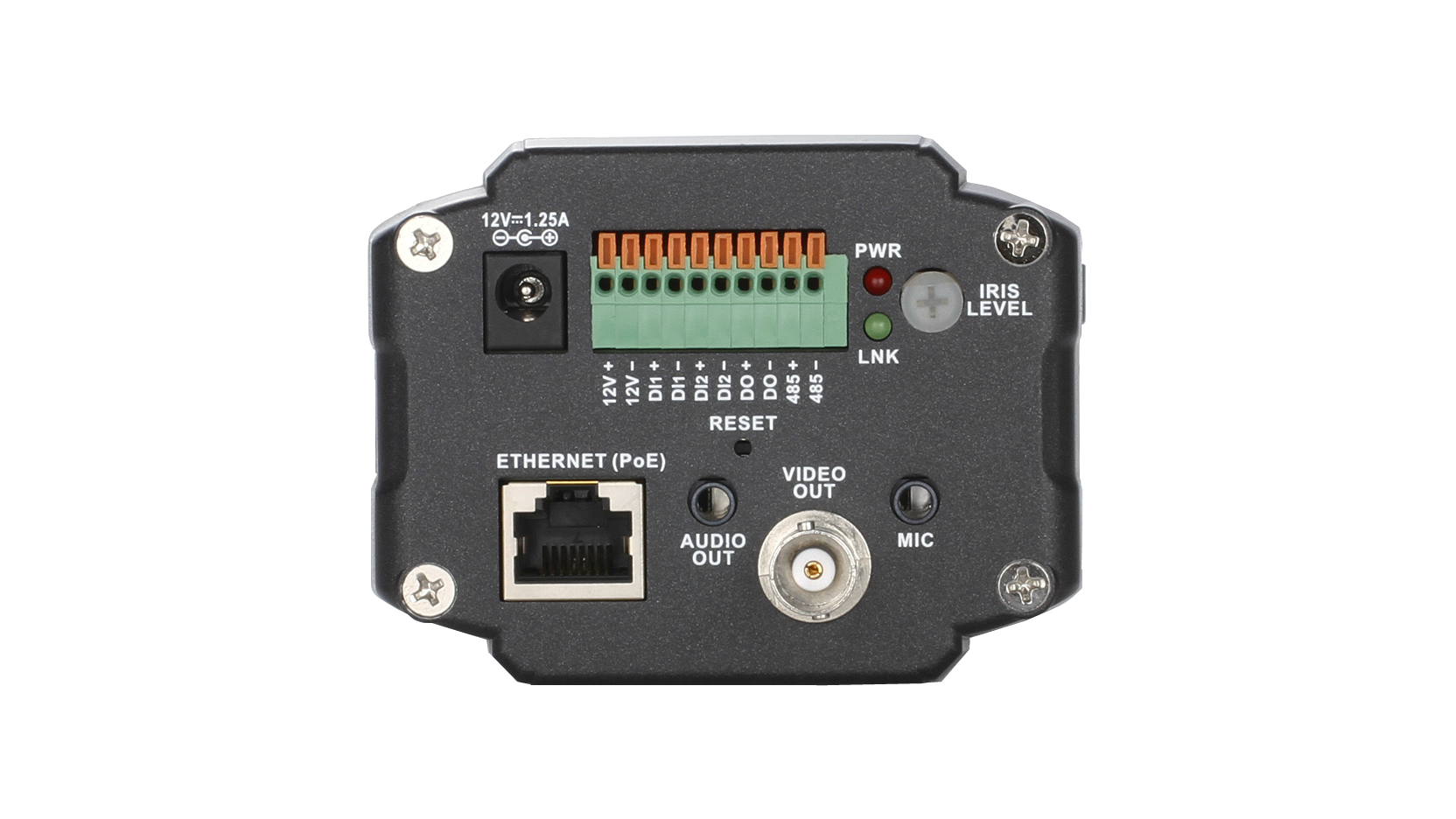

In addition, the camera is equipped with 2 digital input ports for sensors or alarms, 1 digital output port for an alarm, 1 power output port for an LED illuminator and a BNC connector which provides both analogue and digital interface video transmissions. An RS-485 port is also included for connection to external pan/tilt devices. Moreover, the 12V interface provides power for an optional LED illuminator. Additional items such as an auto iris lens, IR LED lens or a night vision illuminator can be added to the DCS-3411.

Recording & storage

The DCS-3411 supports 4 separate profiles simultaneously and is capable of recording in MJPEG, MPEG-4 and H.264 compression with a choice of resolutions for a smooth performance. You can save snapshots and automatically start recording video and audio when motion is detected. With the built-in Samba client, software is not required to record the action directly on a network storage device. An SD-card slot is also included for local storage.

Remote monitoring

With the D-ViewCam software included, up to 32 cameras may be monitored on a single computer screen at one central location. The DCS-3411 also features 3G mobile video support, enabling you to view a live video feed from the camera on a compatible 3G mobile phone or PDA anywhere in your 3G coverage area.

Actual product appearance may differ from the image displayed on this page

Sugerowane urządzenia

Gigabitowy Router Dual-Band HD Wi-Fi 900 Mb/s
DIR-857
Dowiedz się więcej
Router Wi-Fi N600
DIR-645
Dowiedz się więcej
ShareCenter Pro 4-Bay 1U Rackmount Unified Storage
DNS-1550-04
Dowiedz się więcej
Wireless N Unified Services Router
DSR-500N
Dowiedz się więcej
UTM Firewall
DFL-2560
Dowiedz się więcej

Technical Specifications

Camera
  • ¼” CMOS sensor
  • Minimum illumination: 0.5 Lux (F1.8)
  • CS mount lens: 6mm, F1.8
  • Removable IR-cut filter
  • Field of view: 51° diagonal, 31°vertical, 41° horizontal
  • 16x digital zoom
  • Built-in SD card slot for local recording*
  • RS-485 interface for connection to an external Pan/Tilt device
  • BNC connector to integrate the network camera into a CCTV network
  • Digital I/O support for sensors and alarms

Network
  • 1 10/100Base-TX Ethernet port
  • 802.3af Power over Ethernet (PoE) compliant
  • Dynamic DNS support
  • UPnP™support
  • Web-based configuration

Video
  • Motion JPEG / MPEG-4 / H.264 multi-profile compression
  • Up to 4 simultaneous video profiles
  • JPEG for still image
  • Adjustable image size and quality

Audio
  • Built-in microphone
  • External microphone input, external speaker output

Monitoring and recording
  • Live video streams from a 3G mobile phone or PDA
  • Remote management/control of up to 32 cameras via D-ViewCam software
  • Direct recording to a NAS device (no software required)
  • Event notification and snapshots/video clips upload via HTTP, SMTP, or FTP

*card not included
