Wireless N PoE Outdoor Access Point with PoE Pass-Through

DAP-3310

  • Status produktu: wycofany ze sprzedaży

The DAP-3310 is a low cost outdoor Single Band Wireless Access Point with PoE Pass-Through. Ideal for expanding the coverage and signal strength of any wireless network. Built to withstand harsh environments, the DAP-3310 also excels in connecting separate networks that cannot be joined physically using traditional medium.

Wireless N mbps Range Single band outdoor


Pobierz kartę produktu.

Lista sklepów

The DAP-3310 is a Wireless N Outdoor Access Point with PoE Pass-Through ideal for expanding wireless coverage or increasing signal strength of any wireless network. Built to withstand harsh environments, the DAP-3310 excels in connecting separate networks that are not joined by a physical cable.

Simplified outdoor connectivity

Low cost Outdoor Access Point, with high power radio design the DAP-3310 is ideal for providing wireless connectivity between two locations.

Broadcast on 8 SSIDs Simultaneously

Supports up to 8 SSIDs per Band that can logically divide the access point into several virtual access points all within a single hardware platform.


Attractive Design

Featuring a clean unobtrusive design, the DAP-3310 can be mounted easily onto any wall or pole. Designed with a PoE pass-through port, the DAP-3310 can also be used to provide power to other devices such as an external camera for added security.

Wireless N mbps Range Single band outdoor


Product Highlights

Durable
Built to withstand harsh outdoor environments and be waterproof to the IPX6 standard

Flexible
PoE powered with PoE pass-through to allow for flexible installation, as well as supply additional power and network connectivity to another PoE powered device, such as a network camera

Adaptable
With 7 operational modes including access points, WDS, WDS with AP, wireless client, wireless repeater, WISP client router or WISP repeater, the DAP-3310 meets the needs of any situation.

Secure
Secure wireless connectivity using WPA/WPA2 data encryption and MAC address filtering wireless access can be controlled

2.4Ghz Single-Band Wireless

With a high power radio design and built-in high gain sector antenna,
the DAP-3310 supports up to 300Mbps throughput for the 2.4Ghz band

Sugerowane urządzenia

Wireless N 5GHz PoE Outdoor Access Point with PoE Pass-Through
DAP-3410
Dowiedz się więcej
Full HD WDR PoE Day/Night Fixed Network Camera
DCS-3716
Dowiedz się więcej
Full HD PoE Day/Night Fixed Dome Network Camera
DCS-6113
Dowiedz się więcej
Outdoor Full HD PoE Day/Night Fixed Bullet Network Camera
DCS-7110
Dowiedz się więcej

Technical Specifications

For Business-Class Environment

  • 2.4 GHz 802.11n Connectivity for Increased Network Capacity
  • High Power Radio Design1
  • Built-in High Gain Sector Antenna
  • Waterproof IPX6 Standard2

High Performance Connectivity

  • Wireless 802.11n/g/b, compatible with 802.11b and 802.11g devices
  • Up to 300 Mbps3
  • Two 10/100 Ethernet ports

Trusted Security Features

  • WPA/WPA2-Personal/Enterprise
  • 64/128 bit WEP Encryption
  • 802.1x
  • MAC Address Filter
  • Client Isolation
  • User Limit

Convenient Installation

  • Proprietary PoE Design
  • PoE Pass-through4
  • Wall/Pole Mount Included

General

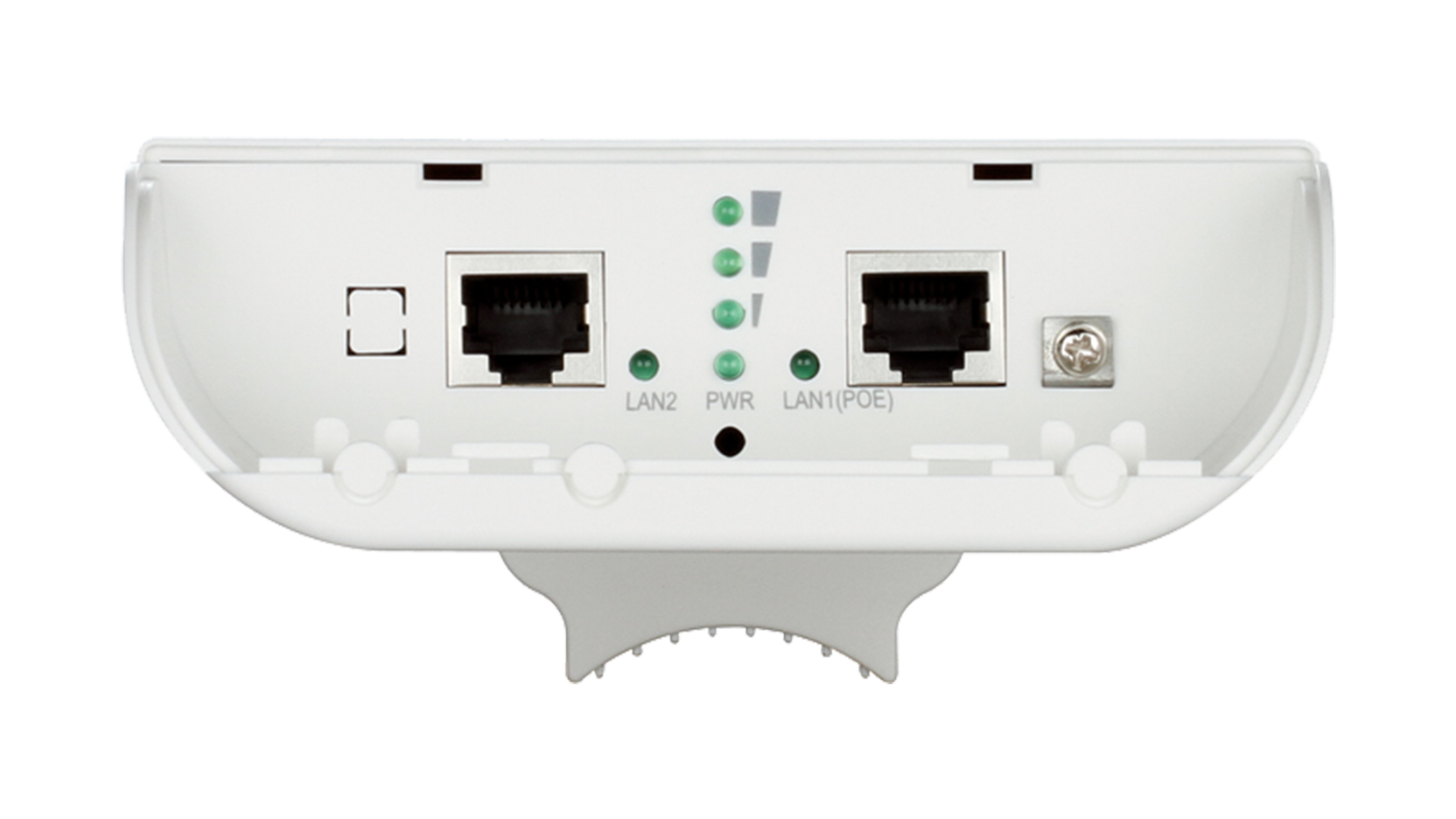

Device Interfaces

  • 802.11n/g/b wireless
  • Reset button
  • Two 10/100 Ethernet port (one supports PoE)
  • Grounding wire connector6

LED

  • Power
  • LAN
  • Wireless Signal Strength7

Antenna

  • 10 dBi Sector Antenna

Wireless Frequency

  • 2.4 GHz

Standards

  • IEEE 802.11 b/g/n
  • IEEE 802.3u
  • IEEE 802.3

Functionality

Operation Mode

  • AP
  • WDS5
  • WDS with AP5
  • Wireless Client
  • Repeater
  • WISP Repeater
  • WISP Client Router

Network Management

  • Web Browser Interface
  • HTTP – Secure HTTP (HTTPS)
  • SNMP v1, v2c and v3

Security

  • WPA2-Personal/Enterprise
  • WPA-Personal/Enterprise
  • WEP 64/128 bit Encryption
  • 802.1X

SSID/VLAN

  • Support for up to 8 SSIDs/VLANs

Physical

Dimensions

  • 48 x 96 x 165 mm (1.88 x 3.77 x 6.49 inches)

Weight

  • 350 grams (0.77 lbs)

Power

  • Input: 48 V 0.5 A

Temperature

  • Operating: -20 to 60 °C (-4 to 140 °F)
  • Storage: -20 to 85 °C (-4 to 185 °F)

Humidity

  • Operating: 0% to 90% non-condensing
  • Storage: 5% to 95% non-condensing

ESD Protection

  • 15 kV

Certifications

  • CE
  • FCC

1 Maximum power setting will vary according to individual country regulations.
2 IPX6 standard means the device is protected from low pressure jets of water from all directions - limited ingress permitted. It is recommended to place this device under a roof, shelter or in weather-proof box when in severe weather environment.
3 Maximum wireless signal rate derived from IEEE Standard 802.11g, and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
4 Provides a secondary Ethernet port with POE output for IP camera (up to 7 watt) The supported cameras include D-Link DCS-3716, DCS-6113, and DCS-7110.
5 WDS mode only works with other DAP-3310 access points
6 Grounding wire is not includes in package content and we suggest using 16 -18 AWG grounding wire for normal lightening and electricity current.
7 LED Signal Strength Indication is only supported in Wireless Client, Repeater, WDS and WISP modes.
8 Although compatible with  DD-WRT, please be advised that if DD-WRT is used this will void your warranty and D-Link will not accept responsibility or support any products that may  adversely be affected as a result of using  DD-WRT.
