Smart Copper Gigabit Switch

DGS-1224T

  • Product Status: Phased Out
D-Link's DGS-1224T Web Smart™ Gigabit Switch blends Plug-&-Play simplicity with exceptional performance and reliability to create a cost-effective solution for a small to medium office.

Features
  • D-Link Green Technology
  • 48Gbps Switching Capacity
  • 8K MAC Address Table
  • True Plug & Play
  • Fiber Media Support Via SFPs

D-Link’s latest generation of Web Smart Gigabit Switches blend plug-and-play simplicity with exceptional performance and reliability to create a cost-effective solution for bandwidth-starved work groups and departments. Enhanced features of the DGS-1224T include Gigabit uplink combo ports, QoS, and versatile management functions.

The DGS-1224T is housed in a new style 19” rackmount case with an easy-to-view front panel and diagnostic LEDs and feature an innovative fanless design to ensure quiet operation compared to standard switches. User-friendly, web-based management is supported for easy configuration and flexibility for different network requirements.

D-Link Green™ Technology

D-Link is striving to take the lead in developing innovative and power-saving technology without sacrificing operational performance or functionality. The DGS-1224T implements D-Link Green technology, resulting in reduced power consumption and heat dissipation. The switch has adopted the latest silicon technology, which helps lower your power consumption usage. If a port does not have a cable link or the connected device is powered down, the port goes to “sleep mode”, reducing power consumption and saving energy. In a standard work day scenario in which PCs are used 10 hours a day and powered down for 14 hours, the DGS-1224T can provide power savings of up to 23% when compared to a D-Link conventional switch.

Protecting the Environment for a Better Tomorrow

The incorporation of D-Link Green technology into DGS-1224T switch re-emphasizes D-Link’s strong commitment to protecting the environment and leading the development of eco-friendly products. DGS-1224T complies with RoHS (Restriction of Hazardous Substances) and WEEE (Waste Electrical and Electronic Equipment) directives. RoHS directives restrict the use of specific hazardous materials during the manufacture of electrical and electronic goods, while WEEE directives apply standards for proper disposal and recyclable packaging to help reduce wastage.

Secure Your Network

The DGS-1224T provides a robust set of security features normally found only in fully managed switching solutions. They are equipped with the D-Link Safeguard Engine™ to protect the CPU from malicious attacks. When frames enter the switch, the D-Link Safeguard Engine detects and blocks broadcast, multicast, and unicast flooding, which can overload a CPU and bring network traffic to a halt. In addition, the switches provide support for secure encrypted 802.1X Port-based Authentication, Broadcast Storm Control, and up to 256 static MAC address entries.

You can also manage the switches from a remote station using the Trusted Host function. Management can be from up to three designated management stations through a web browser or telnet session.

IEEE 802.1Q VLAN Tagging

VLANs allow your network to be segmented into Departmental, Hierarchical, and Security groups and place a “tag” in a frame to identify which VLAN it belongs to. This allows 802.1Q-compliant devices to work seamlessly together to manage VLAN traffic.

Asymmetric VLANs

Asymmetric VLANs are also supported by the DGS-1224T. With this feature enabled, VLAN groups can send information to each other without the traffic going through a router or a Layer 3 switch. This eliminates expense and maximizes efficiency while maintaining security.

802.1p Priority Tagging or DSCP-based QoS

The DGS-1224T allows users to prioritize traffic based on 802.1p or DSCP-based (Differentiated Services Case Point) QoS. Port-based QoS prioritizes all port traffic with one value, while 802.1p classifies frames according to their VLAN tag. DSCP-based QoS prioritizes traffic according to its IP header. DSCP-based QoS and 802.1p priority tagging prioritizes traffic such as VoIP as it enters the switch, ensuring that your data is always clear and jitter-free.

Link Aggregation

The DGS-1224T supports Static Link Aggregation, which “trunks” multiple ports together to function as a single, high-bandwidth channel. When a high-bandwidth channel is needed to uplink to another switch, Link Aggregation makes this process simple and hassle-free.

Jumbo Frame Support

Jumbo Frame support is designed to improve network throughput and significantly reduce the CPU utilization of large file transfers (such as multimedia files or large data files). This is accomplished by enabling larger, more efficient payloads per packet. The DGS-1224T supports Jumbo Frames up to 10KB in size.

IGMP Snooping

IGMP Snooping allows for the forwarding of multicast packets, such as streaming audio and video, without increasing network congestion. By snooping IGMP registration information within a frame, a list of workstations in the multicast group is created. The switch uses this list to intelligently forward packets to the appropriate workstations.

Cable Diagnostics

Because your connection is just as important as the switch itself, the DGS-1224T is designed with a cable diagnostic feature that detects transmission errors and the condition of cables attached to the switch’s Gigabit copper ports. Cable Diagnostics make it easier to troubleshoot cabling issues through a web-based interface and keep all connections up.

Advanced Management Features

The DGS-1224T supports SNMP v1, a useful tool in managing and controlling SNMP-supported network devices. SNMP enables the switches to provide valuable information about the switch’s status and send traps on abnormal events. This sharing of vital management information saves time and money.

The DGS-1224T also supports 802.1D Spanning Tree, which provides protection from universal cabling loops forming within a network infrastructure. Spanning tree detects and breaks these loops, ensuring network uptime.

Management Utility

In addition to the Web-based Management Interface, the DGS-1224T also ships with the D-Link SmartConsole Utility. This utility provides a valuable tool in managing, planning, and troubleshooting network configurations. Managing a Web Smart switch takes only minutes. With full color graphics, diagrams, and easy-to-understand navigation menus, using the SmartConsole Utility is as easy as surfing the web. The SmartConsole Utility also includes:
  • Discovery List – Automatically detects and displays up to 254 D-Link Web Smart Switches on your network along with their MAC addresses.
  • Monitor List – Monitors switch status and any trap messages sent to a designated station.
  • Trap View – Notifies the administrator whenever an abnormal event occurs on the switch.
  • Device Setting – Allows the administrator to set up the switch’s IP Address, Subnet Mask, Gateway, Send Trap to Address, System Name, Password, and Location.

With its green sensibility and easy-to-use, robust feature set, the DGS-1224T makes a great solution for any growing business.

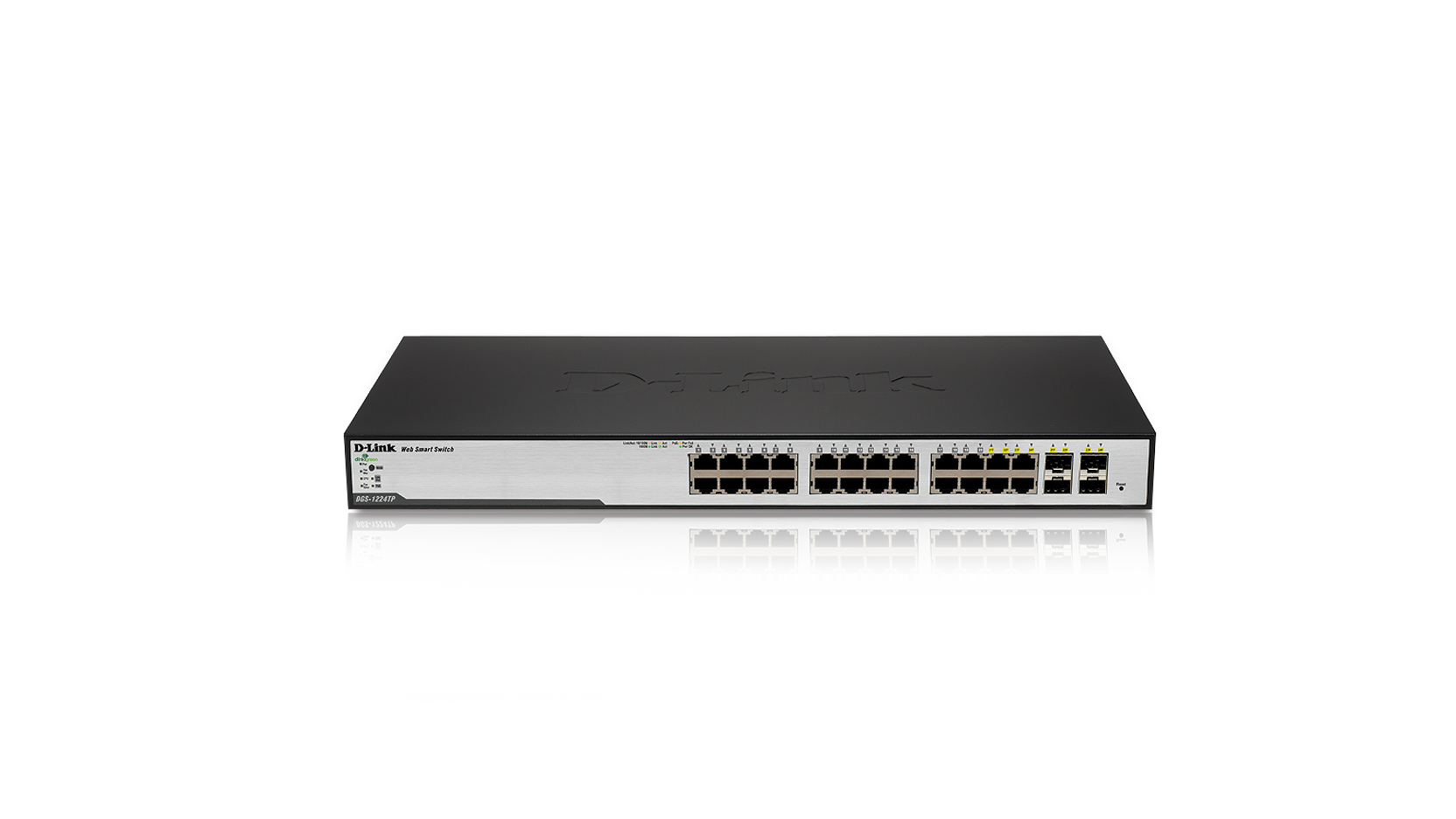

Actual product appearance may differ from the image displayed on this page

Technical Specifications

Interface

Ports
  • 24 10/100/1000BASE-T Auto-negotiating, Auto-MDI/MDI-X ports with 802.3x Flow Control

Combo Ports
  • 2 (SFP)

Optional SFP Modules
  • DEM-310GT: 1000BASE-LX SFP Module, up to 10Km
  • DEM-311GT: 1000BASE-SX SFP Module, up to 550m

LED Indicators
  • Per device: Power/CPU
  • Per 10/100/1000BASE-T port: Link/Act, 100/1000Mbps
  • Per SFP slot: Link/Act, 1000Mbps

Performance

Switch Capacity
  • 48Gbps

Packet Fowarding Rate
  • 35.7Mpps

MAC Address Table Size
  • 8K

MAC Address Update
  • Up to 256 static MAC entries
  • Enable/disable auto-learning of MAC addresses

Packet Buffer
  • 512KB

Jumbo Frame
  • 10,240 Bytes

Physical & Environmental

Power Consumption
  • 31.2W

Power Input
  • 101 to 240 VAC 50/60Hz internal universal power supply

Heat Dissipation
  • 106.45BTU/hr

Acoustic Value
  • 0 dB

Temperature
  • Operating: 32° to 104°F (0° to 40°C)
  • Storage: 14° to 158° F (-10° to 70° C)

Humidity
  • Operating: 10% to 90% Non-condensing
  • Storage: 5% to 90% Non-condensing

Dimensions (W x D x H)
  • 17.3in x 8.2in x 1.7in (440mm x 210mm x 44mm)

Size
  • 19-inch standard rackmounting width, 1U height

Weight
  • 6.2 lbs (2.80 kg)

EMI
  • FCC Class A, CE Class A, VCCI Class A

RoHS-compliant
  • Yes

MTFB
  • 215,976hrs

Safety
  • cUL, LVD

Software Specifications
  • IEEE 802.3 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • IEEE 802.3z Gigabit Ethernet (fiber) ANSI/IEEE 802.3
  • IEEE 802.3x Flow Control
  • Nway Auto-Negotiation
  • 802.3af Power over Ethernet

L2 Features
  • IGMP v1/2 Snooping: supports 64 multicast groups
  • 802.1D Spanning Tree
  • Static Port Trunk (Link Aggregation): up to 6 groups per device, up to 8 ports per group

Green Ethernet
  • Power Saving Mode (as compared with previous models)
  • Full Load/Max. Power Consumption: 11%
  • Link Down Power Consumption: 23%

VLAN
  • 802.1Q VLAN (VLAN Tagging)
  • Up to 256 static VLAN groups
  • Management VLAN
  • Asymmetric VLAN

Quality of Service (QoS)
  • 802.1p Priority Queues
  • Up to 4 queues per port
  • DSCP-based QoS
  • Supports WRR or Strict Mode in Queue Handling

Security
  • 802.1X Port-based Access Control
  • Broadcast Storm Control
  • D-Link® Safeguard Engine™
  • Trusted Host
  • Cable Diagnostics function

Management
  • Web-based GUI
  • SNMP v1 support
  • DHCP Client
  • Trap setting for destination IP, system events, fiber port events, twisted-pair port events
  • Port Access Control
  • Web-based: Configuration backup/restoration
  • Web-based: Firmware backup/upload
  • Firmware upgrade using SmartConsole Utility
  • System Reboot using web-based interface
  • SmartConsole Utility

MIB
  • RFC 1213 MIB-II
  • D-Link Enterprise Private MIB

All references to speed are for comparison purposes only. Product specifications, size and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
