PowerLine Homeplug AV Mini Starter Kit

DHP-311AV

  • Product Status: Phased Out
The D-Link PowerLine AV Mini Adapter Starter Kit includes two adapters that use the electrical wiring already in your house and turn it into a high-speed network. With its compact design, the PowerLine AV Mini Adapter only takes up one plug in an outlet so you can plug in other devices too.

Download the datasheet.

List Retailers

Turn any electrical outlet into a home network connection.

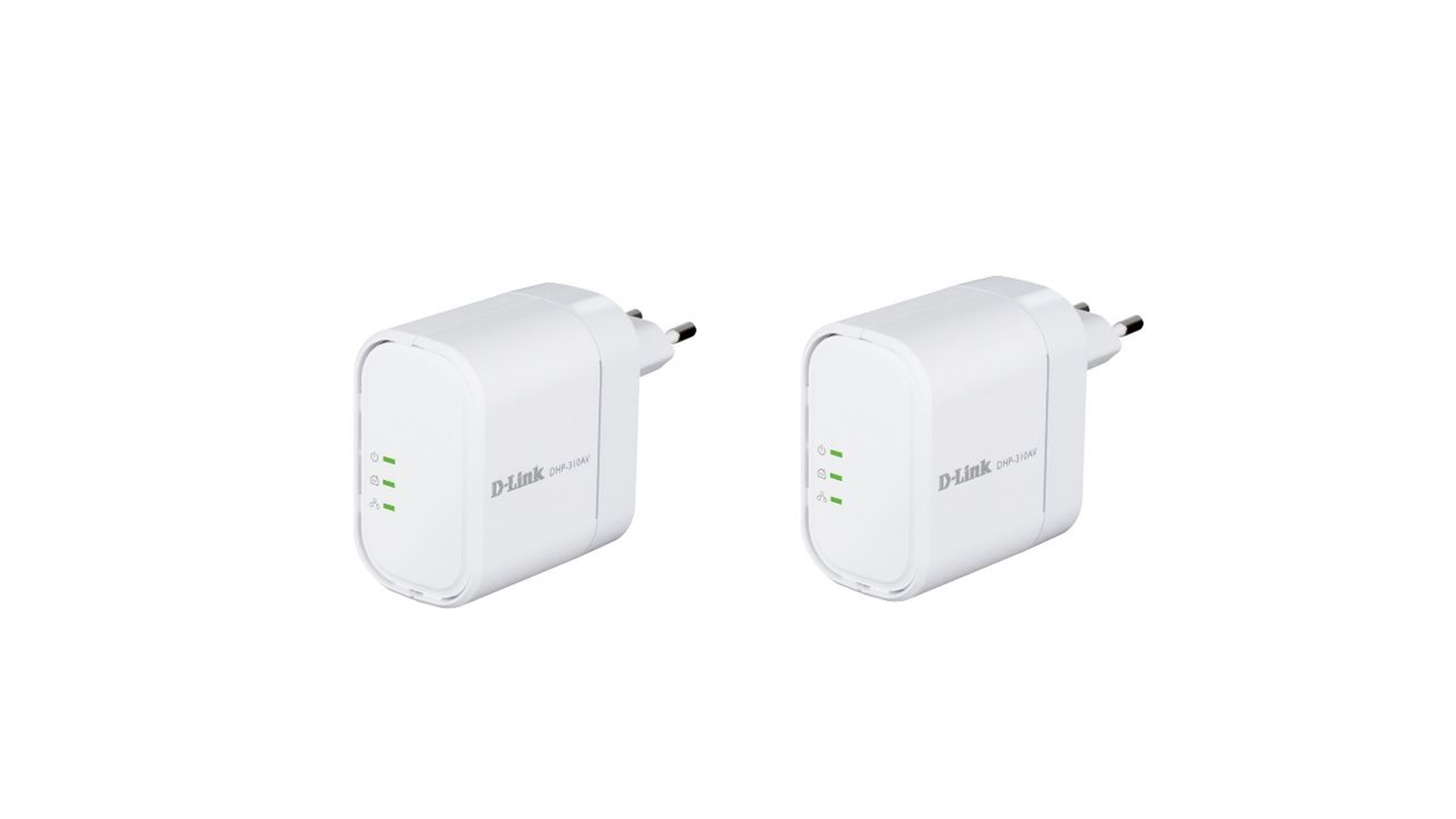

ThePowerLine Homeplug AV Mini Starter Kit (DHP-311AV) includes 2 PowerLine AV Mini Adapters (DHP-310AV). It uses electrical wiring that’s already in your house to provide fast, reliable speed of up to 200Mbps1 to any room in the house.

Simply connect the PowerLine AV Mini Adapter into an existing electrical outlet, connect it to your existing home network router, and plug the other PowerLine AV Mini Adapter into any other outlet in your house to get instant shared network connections. With its compact size, you can plug it into a single plug and get connectivity.

Fast Connection

The DHP-310AV provides fast reliable speed up to 200Mbps1 to any room in the house. This lets you stream video, game online, or surf the web from anywhere.

Compact Design

With its compact size, you can plug it into any electrical outlet with an existing PowerLine network to get a connection anywhere in your home. The compact size only takes up one plug in an outlet, enabling you to plug in more devices.

Maximum throughput based on theoretical transmission PHY rate. Actual data throughput will vary. Network conditions and environmental factors, including volume of traffic and network overhead, may lower actual data throughput rate. Interference from devices that emit electrical noise, such as vacuum cleaners and hair dryers, may adversely affect the performance of this product. This product may interfere with devices such as lighting systems that have a dimmer switch, short wave radios, or other powerline devices that do not follow the HomePlug Powerline Alliance standard.

PowerLine Homeplug AV Mini Adapter
Find out more
PowerLine AV Network Adapter
Find out more
PowerLine AV Network Starter Kit
Find out more
Powerline AV Wireless N Extender
Find out more
PowerLine AV Wireless N Starter Kit
Find out more

Technical Specifications

Standards
  • IEEE 802.3
  • IEEE 802.3u
  • HomePlug AV

PowerLine interface
  • Power plug (country-dependent)

Ethernet interface
  • 10/100BASE-TX Ethernet port with Auto MDI/MDIX
  • RJ-45 connector

Input Power
  • 100V ~ 240V, 50/60 Hz, 0.1A
  • 4 W maximum

PowerLine modulation scheme
  • OFDM symbol modulation

PowerLine frequency band
  • 2 MHz to 30 MHz

Data rates
  • PowerLine: up to 200 Mbps (PHY rate)
  • Ethernet: 10/100 Mbps (autonegotiation)

Security
  • 128-bit AES link encryption

Minimum system requirements (For PC Utility Software)
  • Windows 7/Vista/XP SP3
  • Ethernet interface (100 Mbps)

LEDs
  • Power
  • PowerLine
  • LAN

Dimensions (L x W x H)
  • 61 x 42.4 x 68 mm (each adapter)

Weight
  • 125.6 g (each adapter)

Operating temperature
  • 0 to 40 ºC

Operating humidity
  • 10% to 90% non-condensing

Certifications
  • FCC
  • CE EMC Class B
  • UL
  • CE LVD
