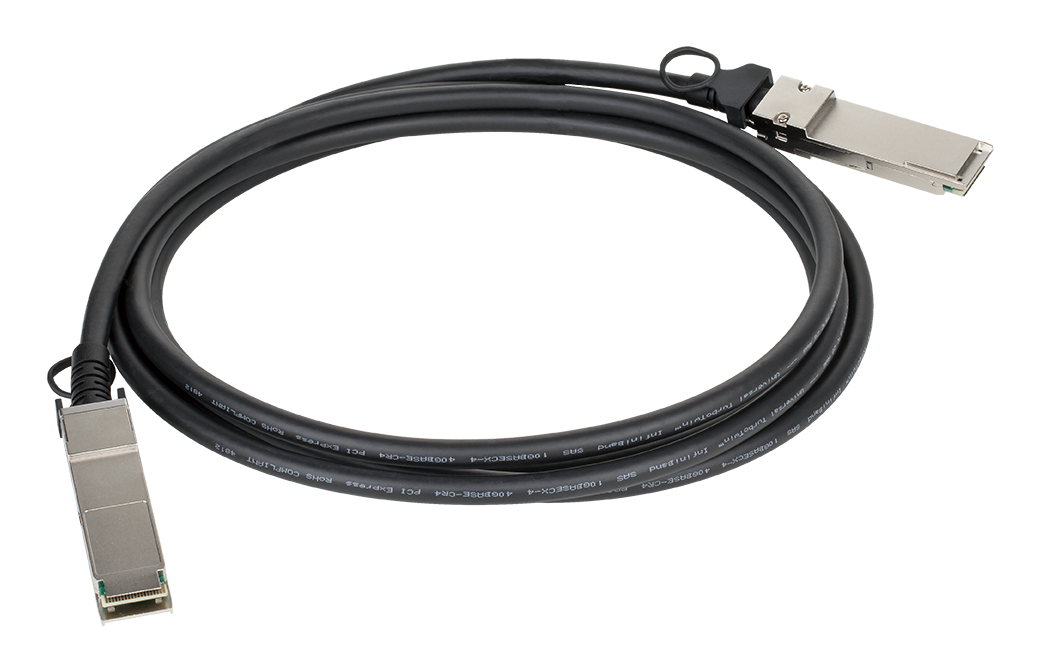

40G QSFP+ to SFP+ 3 m Direct Attach Stacking Cable

DEM-CB300QXS

  • Product Status: End of Sale

The 40G Passive QSFP+ Direct Attach Cable is a high performance, high bandwidth and cost-effective connection solution that supports 40G Gigabit Ethernet. The 40G Passive QSFP+ Direct Attach Cable is designed to support high-density connections for switches with 40G interface, much faster than SFP+.

The DEM-CB300QXS-4XS QSFP+ to 4X SFP+ three-meter cable features a QSFP+ connector on one end, and four SFP+ connectors on the other end, allowing it to connect to up to four 10G servers. The 40G Passive QSFP+ Direct Attach Cable is certified to be compatible with D-Link products to provide you best performance and reliability.

Ideal for High-Bandwidth Operations

The 40G Passive QSFP+ Direct Attach Cable supports speeds of up to 40 Gbps, while having lower crosstalk and power consumption than other cables. This makes it an optimal solution for handling high bandwidth transmission within short distances such as within a rack or between racks inside energy-efficient data centers.

Quad Small Form-factor Pluggable Plus Format

The D-Link 40G Passive QSFP+ Direct Attach Cable uses Quad Small Form-factor Pluggable Plus format (QSFP+) connectors, which integrate four transmitting and four receiving channels. The QSFP+ cable assemblies can replace four standard SFP+ cable assemblies, resulting in higher port density, cost efficiency, and a reduction in power savings compared to standard SFP+.

Save on Costs

The D-Link 40G Passive QSFP+ Direct Attach Cable features QSFP+ connectors on both ends, thus eliminating the need for expensive QSFP+ transceivers. This makes it more cost-effective than fiber cables which must use QSFP+ transceivers.

Related Products

40G QSFP+ to QSFP+ 1 m Direct Attach Stacking Cable
DEM-CB100QXS
Find out more
40GBase-SR4 QSFP+ Multi-mode Transceiver, 100 m / 150 m
DEM-QX01Q-SR4
Find out more
40GBASE-LR4 QSFP+ Single-Mode Transceiver, 10 km
DEM-QX10Q-LR4
Find out more
Compatibility
DXS-3600 Series
Connector Type
QSFP+
Length of cable
300 cm
Product Description
3m 40G Direct Attach Copper Cable for DXS-3600-EM-4QXS
This product was phased out on: 05/02/2022
This product's last date of support is on: 05/02/2027
Version Description Date
Reach 1.01 RevD1 - 24/8/2021 Download
