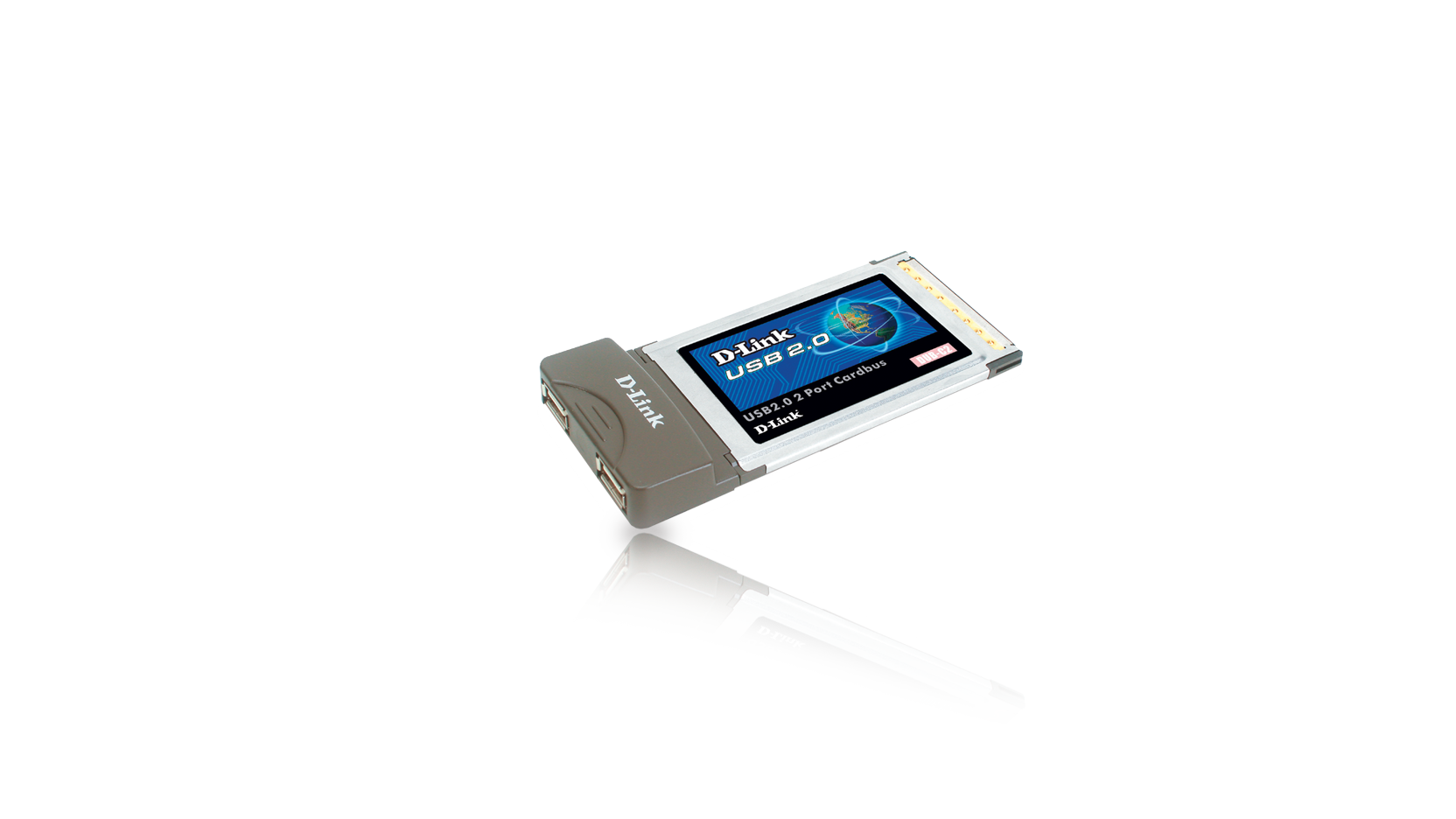

High Speed USB 2.0 2-Port Notebook Adapter

DUB-C2

  • Product Status: Phased Out
The DUB-C2 USB adapter is designed to upgrade notebook PC and Mac to USB 2.0. Many notebook computers are currently not yet equipped with USB 2.0 ports, while the number of USB 2.0 supported devices available in the market is increasing. This adapter easily adds USB 2.0 ports to your computer so you can access these peripherals and digital devices through the fast USB interface.

Download the datasheet.

List Retailers

The DUB-C2 USB adapter is designed to upgrade notebook PC and Mac to USB 2.0. Many notebook computers are currently not yet equipped with USB 2.0 ports, while the number of USB 2.0 supported devices available in the market is increasing. This adapter easily adds USB 2.0 ports to your computer so you can access these peripherals and digital devices through the fast USB interface. The card simply plugs to a PCMCIA slot on your computer to give you two USB 2.0 ports. Each of these ports gives you transmission of up to 480Mbps. That's about 40 times faster than USB 1.1, the earlier USB specification.

480Mbps Transmission

Many USB 2.0 products are now beginning to be out in the market, so you'll need this card to get fast connection. The two ports provided let you plug to USB-supported devices and USB hubs.

The adapter supports low-speed 1.5Mbps devices, full-speed 12Mbps devices and high-speed 480Mbps. Each port creates a bridge between the attached USB peripheral or USB hub and the host computer.

Backward Compatible

Each of the two ports transfers data at up to 480 Mbps. Both ports are backwards compatible with USB 1.1, so you can use all of your older USB devices as well as the new USB 2.0 products.

Plug-and-Play Installation & Hot Swap Capability

As a standard USB host controller, the adapter directly interfaces between the USB bus and the operating system. It is automatically configured by the O.S. It is also hot swappable, so you can plug in or remove the card anytime without having to turn off the power of your computer

Technical Specifications

USB Standards

  • USB 1.1, 2.0
  • OHCI
  • UHCI
  • EHCI

Host Interface
  • 32-bit CardBus Type II PC Card
Bus-power Supplied (per port)
  • Up to 500mA
Number of Ports
  • 2 downstream USB Type A
Operating Voltage
  • 5V +/- 10%
Dimensions
  • 115 (L) x 55 (W) x 13 (H) mm
Weight
  • 45 grams
Operating Temperature
  • 0 - 55 C (32 - 131 F)
Storage Temperature
  • -20 - 75 C (-4 - 167 F)
Non-Operating Humidity
  • 5% - 95% non-condensing
Operating Humidity
  • 10% - 90% non-condensing
Emission (EMI)
  • - FCC Class B
  • - CE Class B
