Key Features

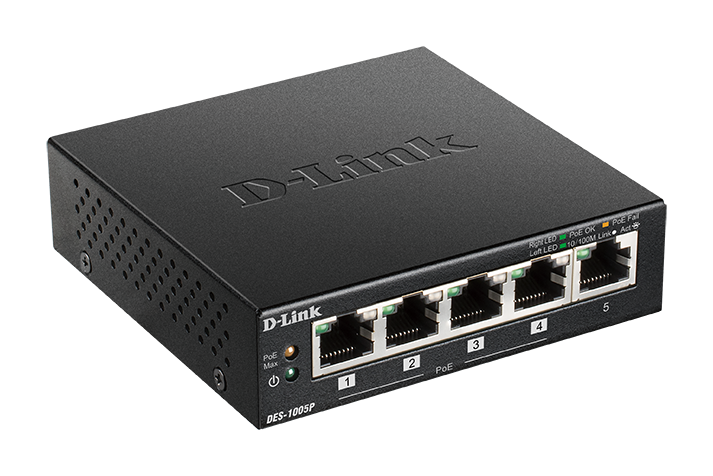

  • ƒƒFive 10/100 Mbps Fast Ethernet ports with one PoE enabled port
  • ƒƒAuto MDI/MDIX Crossover for all ports
  • ƒƒStore-and-forward Switching Scheme
  • ƒƒFull/half-duplex for Ethernet/Fast
  • Ethernet Speeds
  • ƒƒIEEE 802.3x Flow Control
  • ƒƒPlug-and-play Installation
  • ƒƒBuilt-in D-Link Green Technology
  • ƒƒRoHS Compliant
  • ƒƒIEEE 802.1p QoS (4 Queues, Strict Mode)



Switching Capacity

  • ƒƒ1 Gbps



Standards

  • ƒƒIEEE 802.3 10BASE-T Ethernet
  • ƒƒIEEE 802.3u 100BASE-TX Fast Ethernet
  • ƒƒANSI/IEEE 802.3 NWay Auto-negotiation
  • ƒƒIEEE 802.3x Flow Control
  • ƒƒIEEE 802.1p QoS



PoE Features

  • ƒƒSupports IEEE 802.3af
  • ƒƒSupplies power to PD: up to 15.4 watts
  • ƒƒTotal PoE budget: 15.4 watts
  • ƒƒPoE port count/Average PoE watts



Data Transfer Rates

  • ƒƒEthernet:
    • ƒƒ10 Mbps (half duplex)
    • ƒƒ20 Mbps (full duplex)
  • ƒƒFast Ethernet:
    • ƒƒ100 Mbps (half duplex)
    • ƒƒ200 Mbps (full duplex)



Topology

  • ƒƒStar



Media Interface Exchange

  • ƒƒAuto MDI/MDIX adjustment for all ports



Network Cables

  • ƒƒ10BASE-T
    • ƒƒUTP CAT 3/4/5/5e (100 m max.)
    • ƒƒEIA/TIA-586 100-ohm STP (100 m max.)
  • ƒƒ100BASE-TX
    • ƒƒUTP CAT 5/5e (100 m max.)
    • ƒƒEIA/TIA-568 100-ohm STP (100 m max.)



LED Indicators

  • ƒƒPer port: Link/Activity/Speed/PoE Status
  • ƒƒPer device: Power/PoE Max



Transmission Method

  • ƒƒStore-and-forward



MAC Address Table

  • ƒƒ2K Entries per device



MAC Address Learning

  • ƒƒAutomatic update



Packet Filtering/Forwarding Rates

  • ƒƒEthernet: 14,880 pps per port
  • ƒƒFast Ethernet: 148,800 pps per port



RAM Buffer

  • ƒƒ64 KBytes per device



Power Consumption

  • ƒƒPower On (Standby):
    • ƒƒDC input: 0.9 watts
    • ƒAC input: 1.8 wattsƒƒ
  • Maximum (PoE Off)
    • ƒƒDC input: 2.05 watts
    • ƒƒAC input: 2.7 watts
  • ƒƒMaximum (PoE On)
    • ƒƒDC input: 17.29 watts
    • ƒƒAC input: 20.2 watts

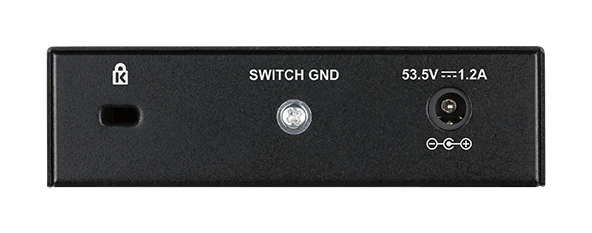

Power Adapter

  • ƒƒSwitching 48 V/0.5 A Level V power adapter



MTBF

  • ƒƒ324,616 hours



Operating Temperature

  • ƒƒ0 to 40 ˚C (32 to 104 ˚F)



Storage Temperature

  • ƒƒ-40 to 70 ˚C (104 to 158 ˚F)



Operating Humidity

  • ƒƒ0% to 95% RH non-condensing



Storage Humidity

  • ƒƒ0% to 95% RH non-condensing



Device Dimensions (W x D x H)

  • ƒƒ140 x 85 x 28 mm (5.5 x 3.3 x 1.1 inches)



Certifications

  • ƒƒFCC Class B
  • ƒƒICES-003 Class B
  • ƒƒcUL
