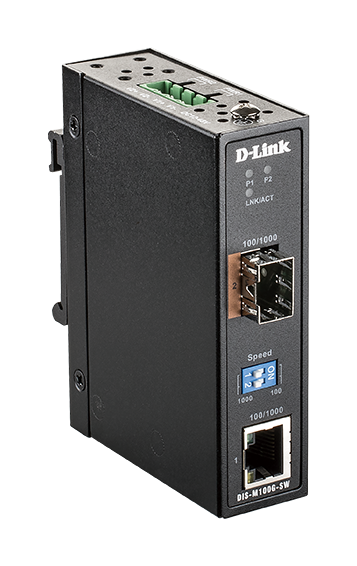

Industrial 10/100/1000Base-T to SFP Media Converter

DIS-M100G-SW

  • Produkt Status (Revision A1): Live
  • 1x 100/1000BASE-T port
  • 1x SFP port
  • -40 ~ 70 °C operating temp
  • Certified: shock, freefall, vibration
  • IP30 rugged housing
  • DIN rail/wall mount

Datenblatt downloaden.

Bezugsquellen

Convert Ethernet into fibre.

The Industrial 10/100/1000Base-T to SFP Media Converter turns an Ethernet connection into fibre, enabling ultra-fast long-distance connections. The DIS-M100G-SW media converter is housed in a highly-resistant IP30-rated metal casing to protect the media converter from harsh environmental conditions. Meanwhile, the fanless design extends the lifespan of the DIS-M100G-SW while also being able to operate in a wide industrial temperature range from -40°C up to 70 °C. For increased flexibility, the DIS-M100G-SW can be mounted on a DIN rail or conveniently mounted on a solid surface wall. In addition, the DIS-M100G-SW supports dual power input for a redundant power supply configuration to make sure the media converter continues to operate in the event of a primary power supply failure.


Extend Your Network.

Fibre optic speeds are critical to success, but twisted-pair cabling can only go so far. Using D-Link’s converters you can change a twisted-pair Ethernet connection into a single-mode or multi-mode fibre connection that can go much further. Converters for distances of anywhere from 550 m to 80 km allow you to optimise your selection.
