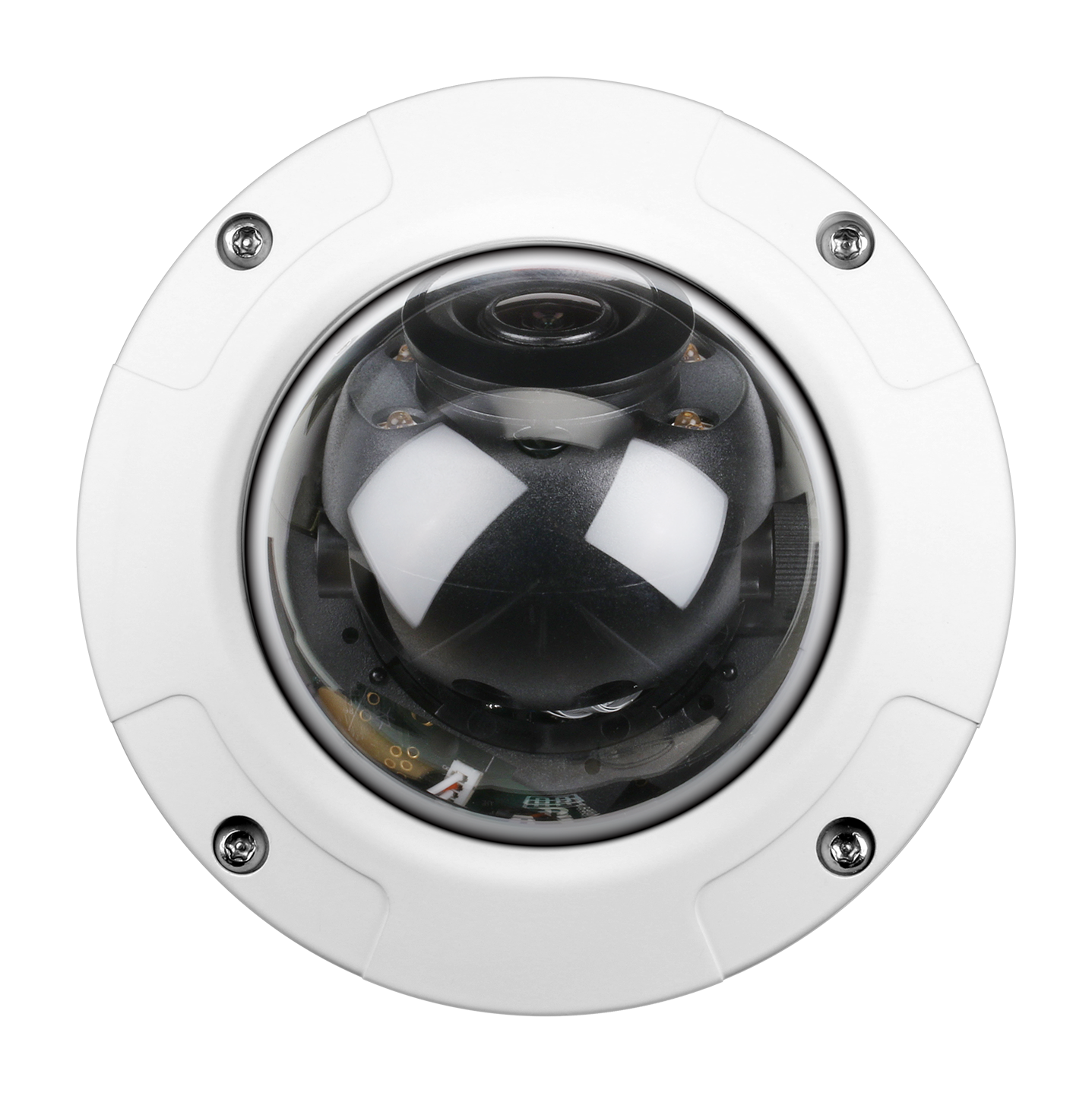

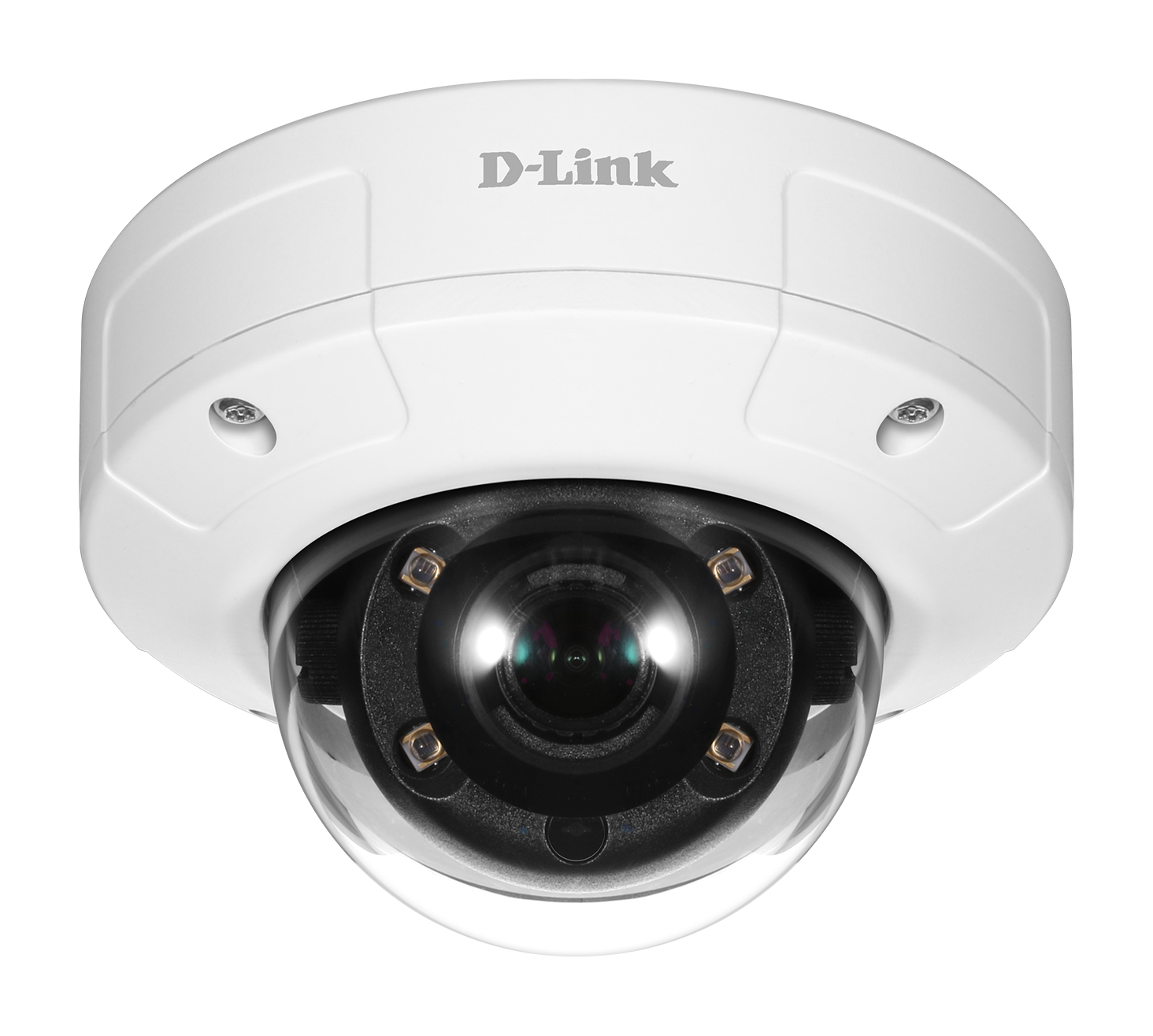

Full HD Outdoor Vandal Proof PoE Dome Camera

DCS-4602EV

  • Product Status: Live
The Vigilance Full HD Outdoor Vandal-Proof PoE Dome Camera is a professional, full featured HD camera designed for use in harsh environments with industry-certified IK10 (vandal-proof) dome and IP66 (weather-proof) housing, as well as WDR, 3DNR and 20m night vision support.

Download de datasheet.

Alle Verkooppunten
DCS-4021



Full HD Outdoor Vandal Proof PoE Dome Camera



The Vigilance Full HD Outdoor Vandal-Proof PoE Dome Camera is a professional, full featured HD camera is easy to install and highly affordable. Designed for use in harsh environments, it has a toughened metal body, industry-certified IK10 (vandal-proof) dome and IP66 (weather-proof) housing. Incorporating IR LED illuminator, WDR and 3DNR support, you get up to 20 metres night vision and clear detailed images in contrasting and low light environments.

Vigilance range



The Vigilance Range offers professional, full featured high definition video surveillance that is easy to install and highly affordable. The range consists of cameras designed specifically to meet different surveillance and environmental requirements. From standalone surveillance solutions that allow you to record video without additional software or equipment, to weather/vandal-proof cameras for harsh environments.

Security Installer Focused



Specifically designed for any security installer looking to offer digital video surveillance, this versatile range of cameras is designed for easy selection and simple installation. You'll be able to guide your customers to the right choice for their needs and they will be delighted with the quality, reliability and straightforward ease-of-use that Vigilance delivers.



Compatible Accessories for the Vigilance Cameras

  DCS-37-1

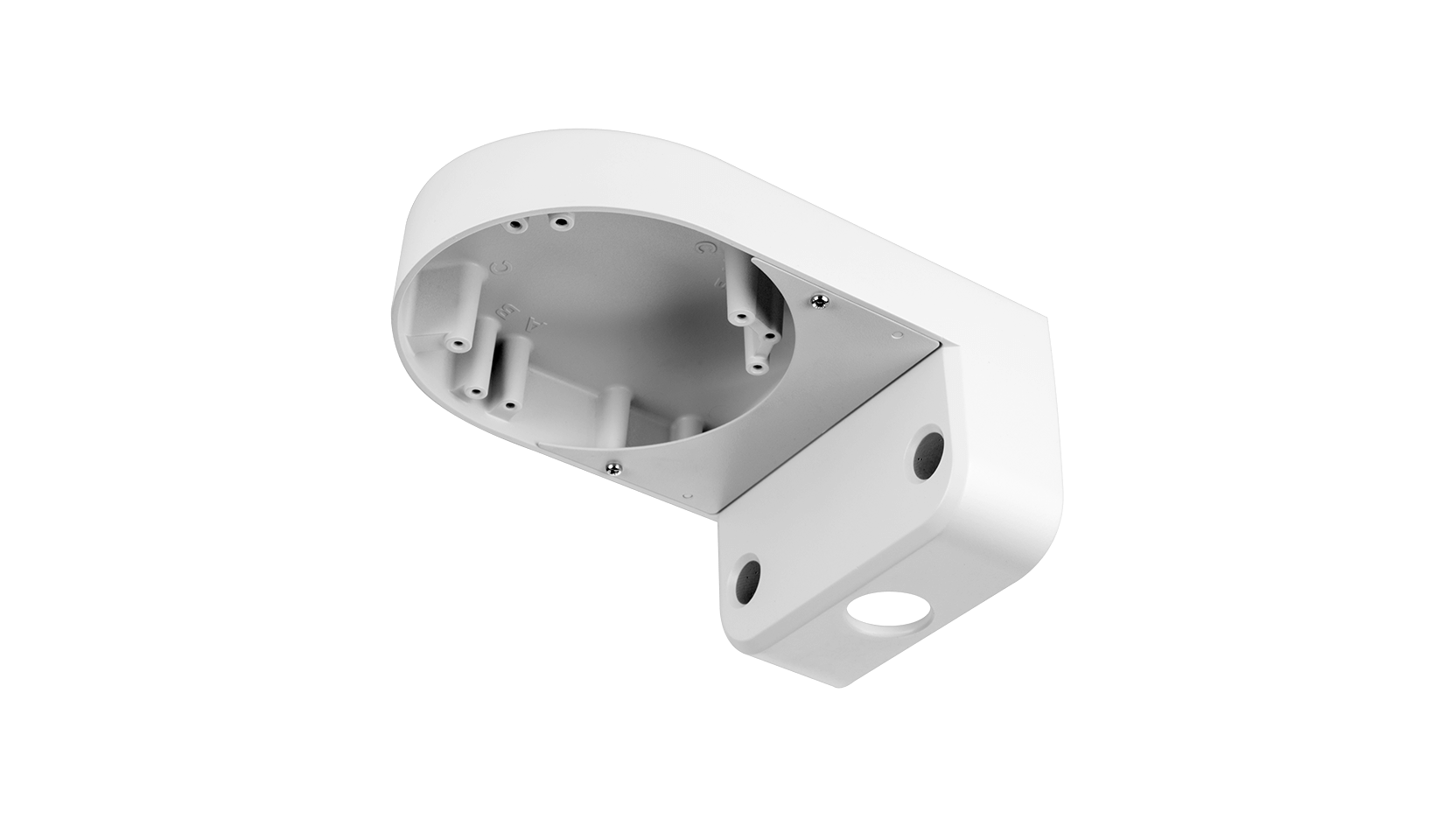

Fixed Dome Wall Mount Bracket
DCS-37-2

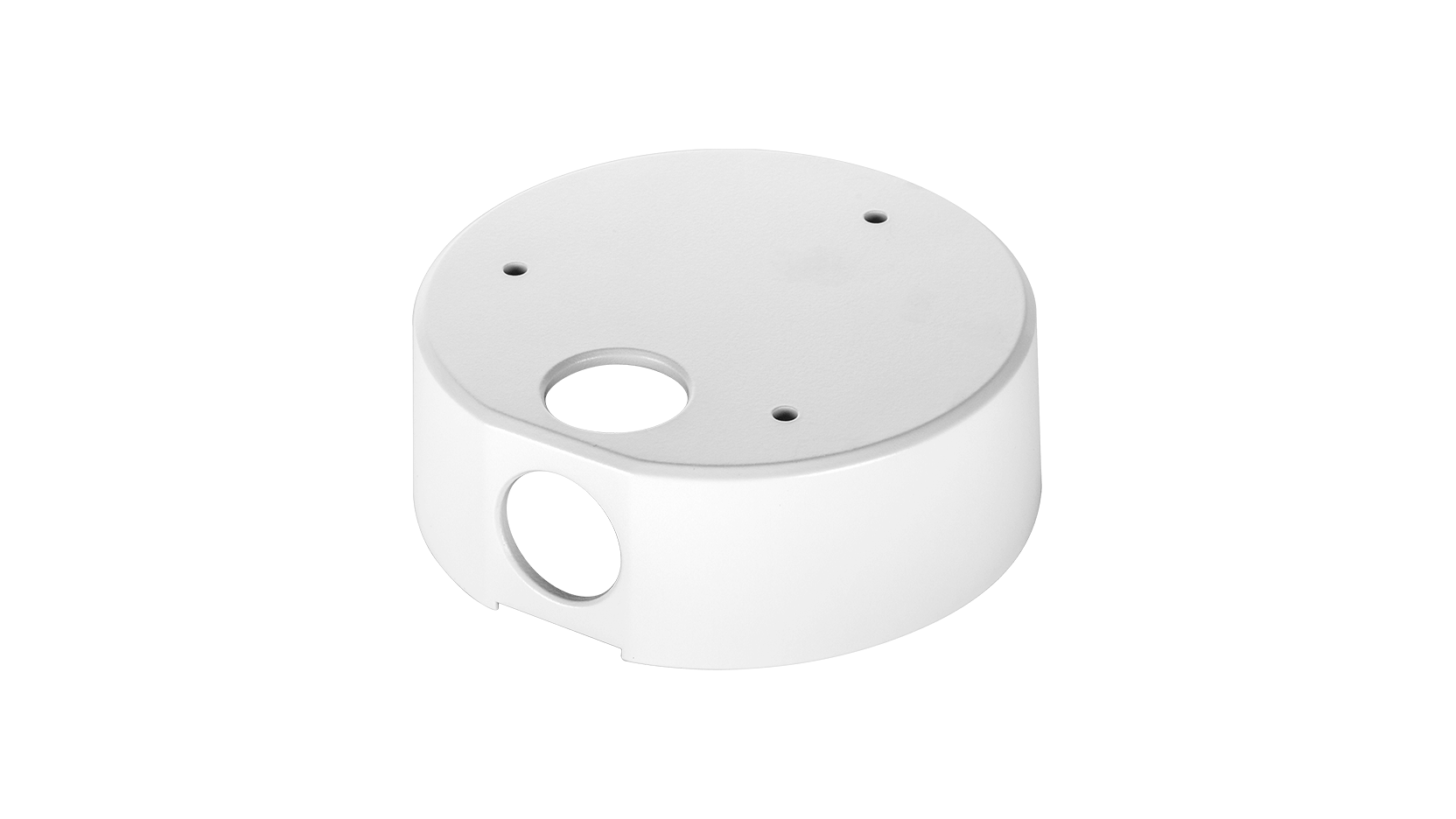

Fixed Dome Junction Box
DCS-4201
DCS-4602EV
DCS-4603
DCS-4701E

DCS-4802E
D-ViewCam Plus
Find out more
HD Wireless Camera
Find out more
Full HD PoE Dome Camera
Find out more
HD Outdoor Mini Bullet Camera
Find out more
Full HD Outdoor Mini Dome Camera
Find out more

Technical Specifications

Functions & Features

Features

  • Full HD 1080p, 30 fps
  • Day and night with ICR filter and IR LED
  • 20m night vision
  • Wide Dynamic Range
  • 3D Noise Reduction
  • Supports Power over Ethernet
  • IP66 outdoor certified
  • IK-10 vandal-resistance rating



Technical Specifications

Hardware Features

Indoor/Outdoor

  • Indoor and outdoor IP66

Vandal-Proof

  • Yes (IK10)

Image Sensor

  • 1/3” 2-Megapixel progressive scan CMOS

Maximum Video Resolution (Ratio)

  • 1920 x 1080 (16:9)
  • 1400 x 1080 (other)

Maximum Frame Rate

  • Up to 30 fps

Lens

  • Fixed 2.8 mm, F1.8

Minimum Illumination (Lux)

  • 1.0 lux/F2.0  (colour)
  • 0.5 lux/F2.0  (B/W)
  • 0 Lux (B&W, IR-LED on)

Infrared-Cut Removable Filter

  • Yes

IR Built-in

  • 20 m

Wide Dynamic Range (WDR)

  • Yes

3D Noise Reduction

  • Yes

Angle Of View (H/V/D)

  • 96° / 54° / 108°

Gimbal

  • 2-Axis
  • Vertical: 60° / Horizontal 350°

Privacy Masks

  • 3 zones

Wired Connection

  • Fast Ethernet (10BASE-T, 100BASE-TX)
  • Power over Ethernet (802.3af PoE)

Software Features

Video Format

  • H.264
  • MJPEG

Multi-Stream

  • Yes

ONVIF

  • Yes

Digital Zoom

  • 10x

Motion Detection

  • Yes

Event Recording

  • Yes

E-Mail Notification

  • Yes

Recording to NAS

  • Yes

IPv6 Support

  • Yes

Others

Dimensions

  • Φ110 × 78mm

Operating Temperature

  • -30 ~ 50°C

Operating Humidity

  • 20 ~ 80% RH (non-condensing)

Optional Power Input

  • DC power adapter (Input: 100-240VAC, 50/60Hz; Output: 12VDC, 1.5A)

Safety

  • CE (Class A)
  • CE LVD
  • FCC (Class A)
  • C-Tick

Optional Mounting Brackets

  • DCS-37-1 - Wall type mount bracket
  • DCS-37-2 - Ceiling type mount bracket
  • DCS-37-3 - Wall/ceiling tilt mount bracket with 27° tilt



Versie Datum Type Bestandsgrootte
Vigilance Range Datasheet - PDF 1.52mb Download
Versie Beschrijving Datum Type Bestandsgrootte
DCS-4602EV manual

DCS-4602EV manual

- PDF 5.84mb Download
Dit D-Link product bevat software code welke ontwikkeld is door derden, waaronder software code die valt onder de GNU General Public License ("GPL") of GNU Lesser General Public License ("LGPL"). Indien van toepassing: de voorwaarden van de GPL en LGPL en informatie over het verkrijgen van toegang tot de GPL-code en LGPL-code die in dit product zijn gebruikt, zijn hier voor u beschikbaar:

http://tsd.dlink.com.tw/GPL.asp

De GPL-code en LGPL-code die gebruikt is in dit product wordt gedistribueerd ZONDER ENIGE GARANTIE en is onderworpen aan de auteursrechten van een of meer auteurs. Voor meer informatie, zie de GPL-code en de LGPL-code voor dit product en de voorwaarden van de GPL en LGPL.
Versie Beschrijving Datum
1.05.00 Release notes included 1/03/2017 Download
1.04.02 Release notes included 2/03/2016 Download
1.02.02 Release notes included 21/10/2015 Download
1.03.00 Release notes included 21/10/2015 Download
Versie Beschrijving Datum
Windows Setup Wizard 1.05

Windows Setup Wizard

2/07/2015 Download
Versie Beschrijving Datum
DNR_2020_04P_Cam_Support_list DNR-2020-04P Camera Support List 22/09/2016 Download
