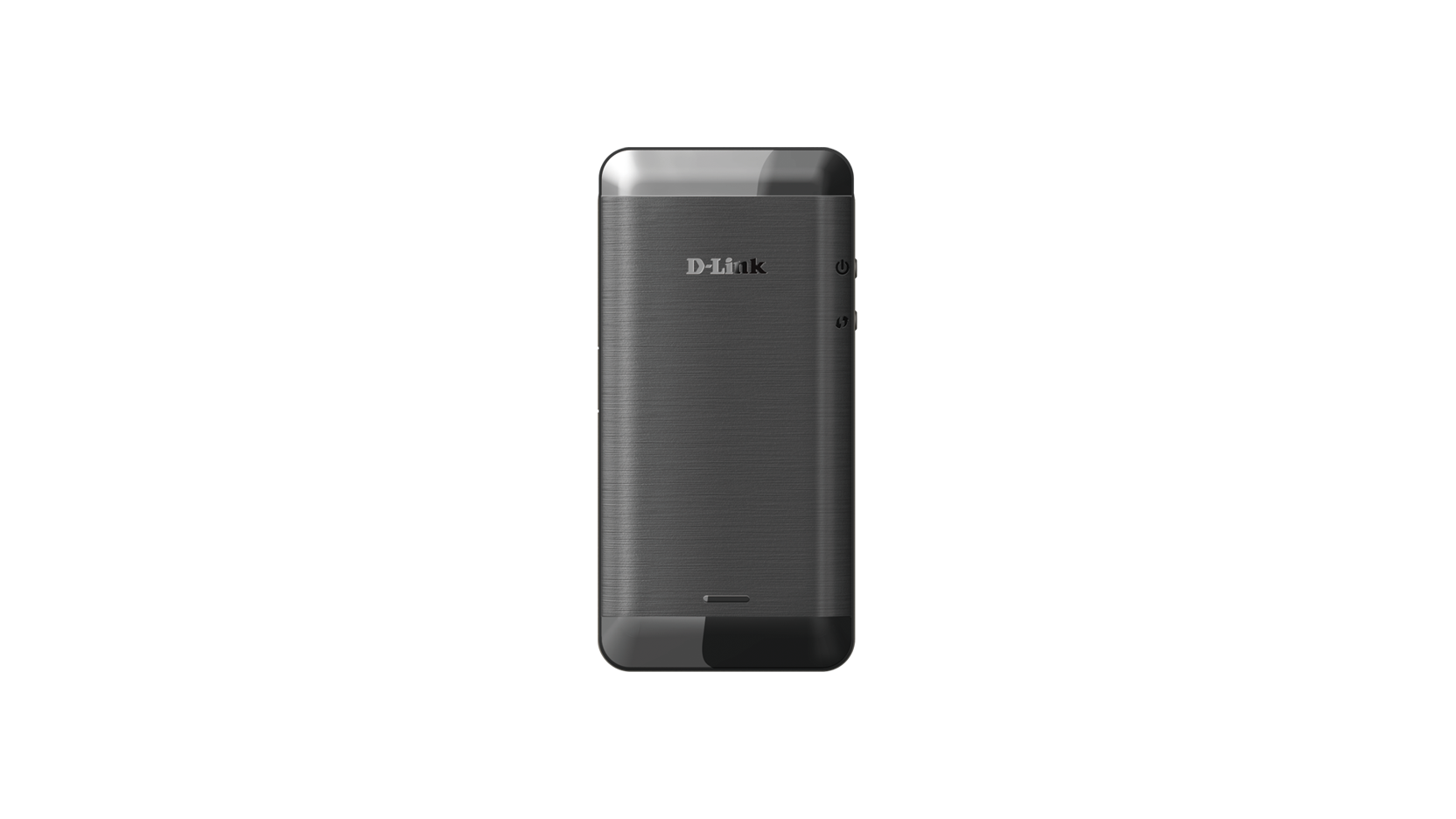

Mobile Wi-Fi Hotspot 21 Mbps

DWR-720

  • Product Status: Live
  • Integrated SIM card slot
  • HSPA+ with up to 21.6 Mbps download
  • Up to 5 hours battery life
  • microSD card for storage expansion
  • Wireless N150 (150 Mbps on 2.4 GHz)

Download the datasheet.

List Retailers

D-Link’s DWR-720 Mobile Wi-Fi Hotspot 21 Mbps1 uses your mobile 3G Internet connection to give you a simple and fast Wi-Fi network anywhere you need one. Instead of being confined to one Internet-connected device through a USB dongle, the DWR-720 allows you to create and share Wi-Fi hotspots anywhere you have a 3G signal.
The compact size means you can conveniently take it with you and share your connection anywhere; use it in a cafe to send e-mails while your friend reads the news, or have your laptop, phone, and tablet all connected to the Internet at the same time using just one mobile Internet service.

Connect and Share Your 3G Connection

Simply insert your data-enabled SIM card and the DWR-720 will allow you to share your 3G mobile Internet wirelessly. Get all your mobile devices connected to the Internet or share a 3G Internet connection with family, friends or colleagues when you are out and about. The DWR-720 also allows you to access files on your microSD card with the built in microSD card slot3. Share holiday pictures with your family and friends, or documents and presentations with your colleagues on a business trip by simply connecting the DWR-730 to a computer through a USB. The Mobile Wi-Fi Hotspot 21 Mbps lets you connect with others and share what’s important to you while you’re on the go.


Portable and Secure

This router is small enough to fit in your pocket whilst the built-in rechargeable battery means that you can take it anywhere with you and surf the Internet. If you need to recharge it, you can easily with any USB wall or car charger.
The Mobile Wi-Fi Hotspot may be small but it can keep your wireless connection as secure as if you were connected through your home network. Its built-in firewall prevents potential attacks and hacking attempts from the Internet, and with WPA2 encryption, you can be sure that you are sharing your 3G connection only with the users you want to.


1 Data rates are theoretical. Data transfer rate depends on network capacity and signal strength.
2 SD card not included.
4G LTE Mobile Wi Fi Hotspot 150 Mbps
Find out more
Mobile Wi-Fi Hotspot 42 Mbps
Find out more
Mobile Wi-Fi Hotspot 21 Mbps
Find out more
Wireless AC750 Dual-Band Multi-WAN Router
Find out more

Technical Specifications

Technical Specifications

General

GSM/GPRS/EDGE band

  • Quad-Band : 850/900/1800/1900 MHz
  • Power Class 4 (+33 dBm, 850/900 MHz)
  • Power Class 1 (+30 dBm, 1800/1900 MHz)

UMTS/HSDPA/HSUPA1 band

  • 900/2100 MHz
  • Power Class 3 (+23 dBm)

Data Throughput2

  • Downlink up to 21.6 Mbps in HSPA+ mode
  • Uplink up to 5.76 Mbps in HSPA+ mode

Security

  • WEP 64-bit/128-bit
  • WPA-PSK Auto(TKIP/AES)
  • WAP2-PSK Auto (TKIP/AES)
  • WPS Push-Button Connection

Advanced Functions

  • Built-in firewall
  • Built-in NAT
  • UPnP

Physical/Interfaces

Interfaces

  • 802.11b/g wireless LAN, compatible with 802.11n devices
  • 6-pin USIM card interface
  • microSD card interface

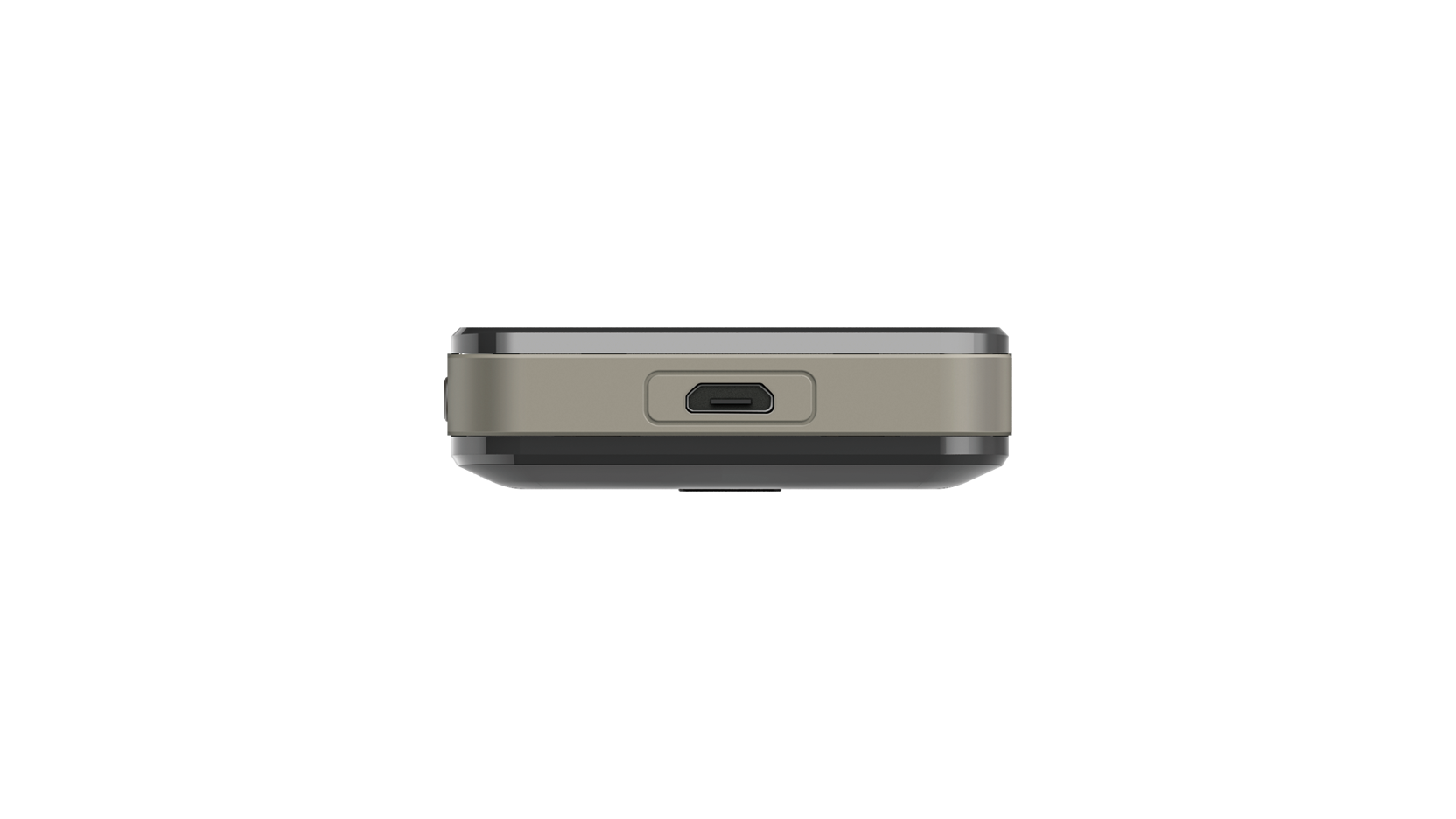

  • Micro-USB port

Antenna

  • 1 x internal 3G main antenna
  • 1 x internal Wi-Fi antenna
  • 1 x internal 3G auxiliary antenna (on band 900/2100 or 850/1900/2100)

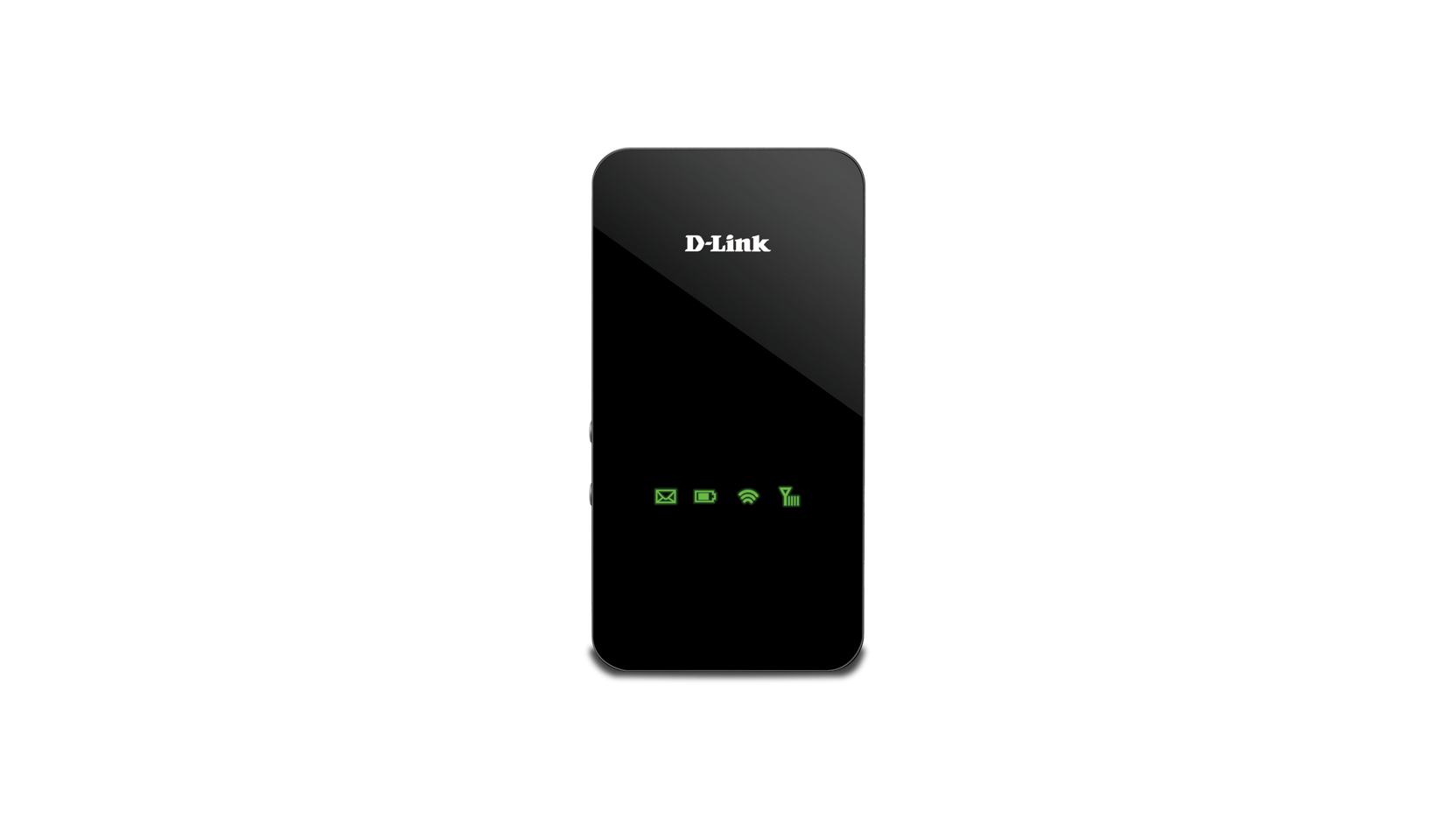

Display

  • Network type
  • Battery status
  • Wi-Fi status

Power

  • DC 5 V/1 A +/- 5%

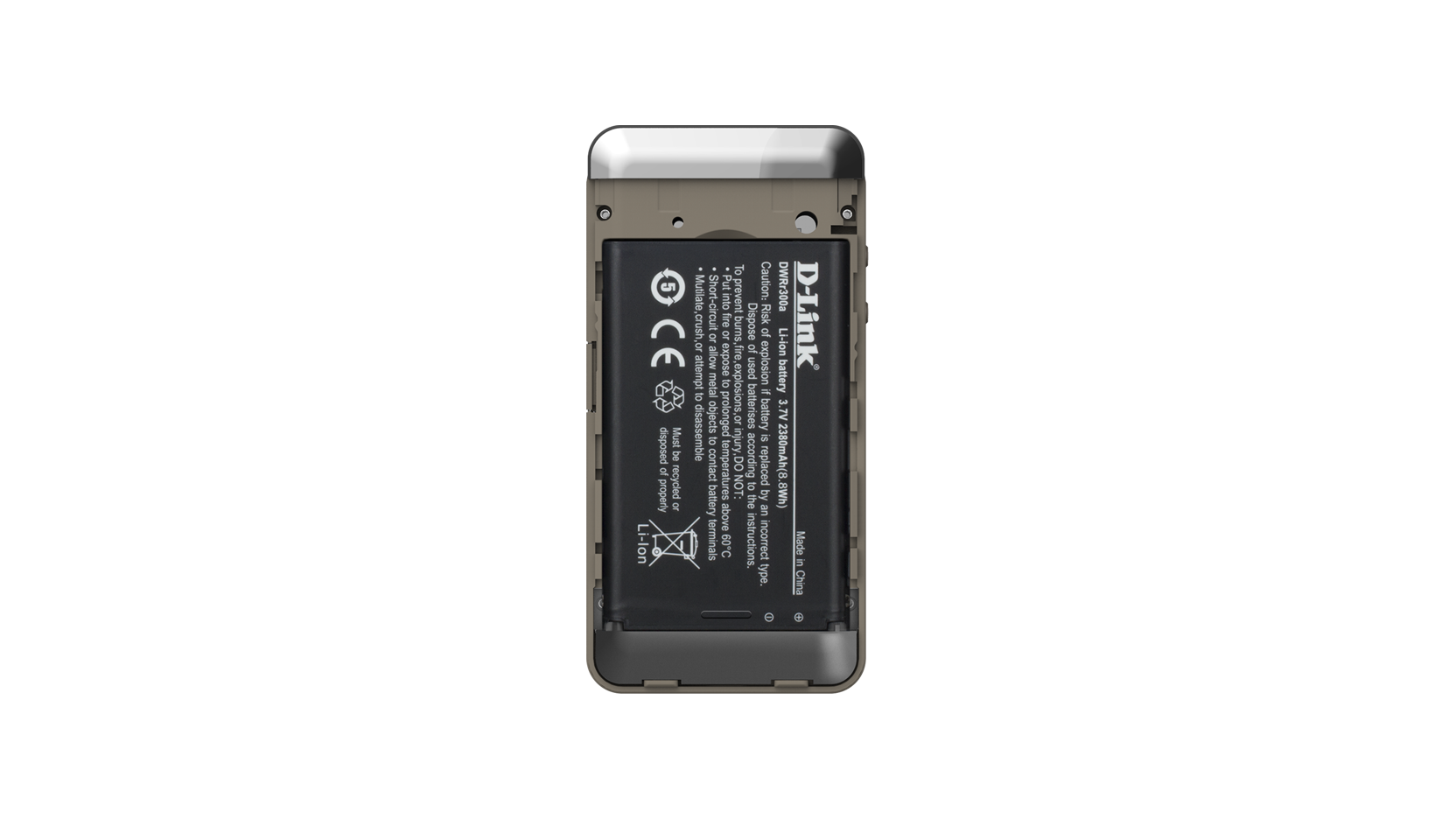

  • 2000 mAh Li-ion battery

Dimensions

  • 100.3 x 49.35 x 14.13 mm

Weight

  • 43.67 g

Operating Temperature

  • -10 to 55 ˚C (23 to 131 ˚F)

Operating Humidity

  • 10% to 90% (non-condensing)

Certifications

  • CE
  • Wi-Fi Certification

1 Supported frequency band is dependent upon regional hardware version.

2 Data rates are theoretical. Data transfer rate depends on network capacity and signal strength.

3 SD card not included.
