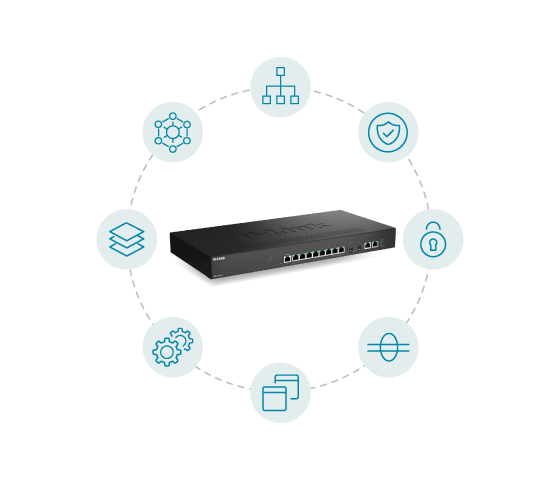

12-Port 2.5G Smart Managed Switch
DMS-1250-12
- Product Status (A1 v1.06): Live
- 8 Ports 2.5GE for downlink
- 2 x 10G SFP+ Ports and 2 x 10GE Ports for uplink
- 6kV surge protection on all 2.5G ethernet ports
- Support LACP 802.3ad Link Aggregation
- Support Static Routing
- Support Loopback Detection
- Support Spanning Tree Protocol(STP/RSTP/MSTP)
- AAA support for RADIUS/TACACS+
- Support D-Link Safeguard Engine
- Manage through the Nuclias Network Controller
Where to buy
User Benefits
Conectividade flexível
Suporta uma vasta gama de interfaces físicas para ligações de rede abrangentes.
Fácil de operar
A Web UI fácil de usar que permite um controlo de rede eficiente e personalizado
Segurança melhorada
Suporta funções versáteis para aumentar a segurança da rede
Relação custo-benefício
Oferece funcionalidades avançadas e alimentação de rede a um preço acessível.
2.5G Speeds: Built for Wi-Fi 6 and Beyond
6 kV Surge Protection for All Ethernet Ports
The DMS-1250 Series switches offer enhanced 6kV surge protection on all 2.5-Gigabit Ethernet access ports, ensuring that your network remains resilient and that your devices stay safe from electrical surges.
Support L2+ Features
The DMS-1250 Series switches offer a comprehensive set of Layer 2+ capabilities, including:
- GVRP
- ISM VLAN
- VLAN Translation
- Double VLAN (Q-in-Q)
- Spanning Tree Protocol (STP/MSTP/RSTP)
- Link Aggregation Control Protocol (LACP)
- IGMP and MLD Snooping
Nuclias Network Controller
Related Products

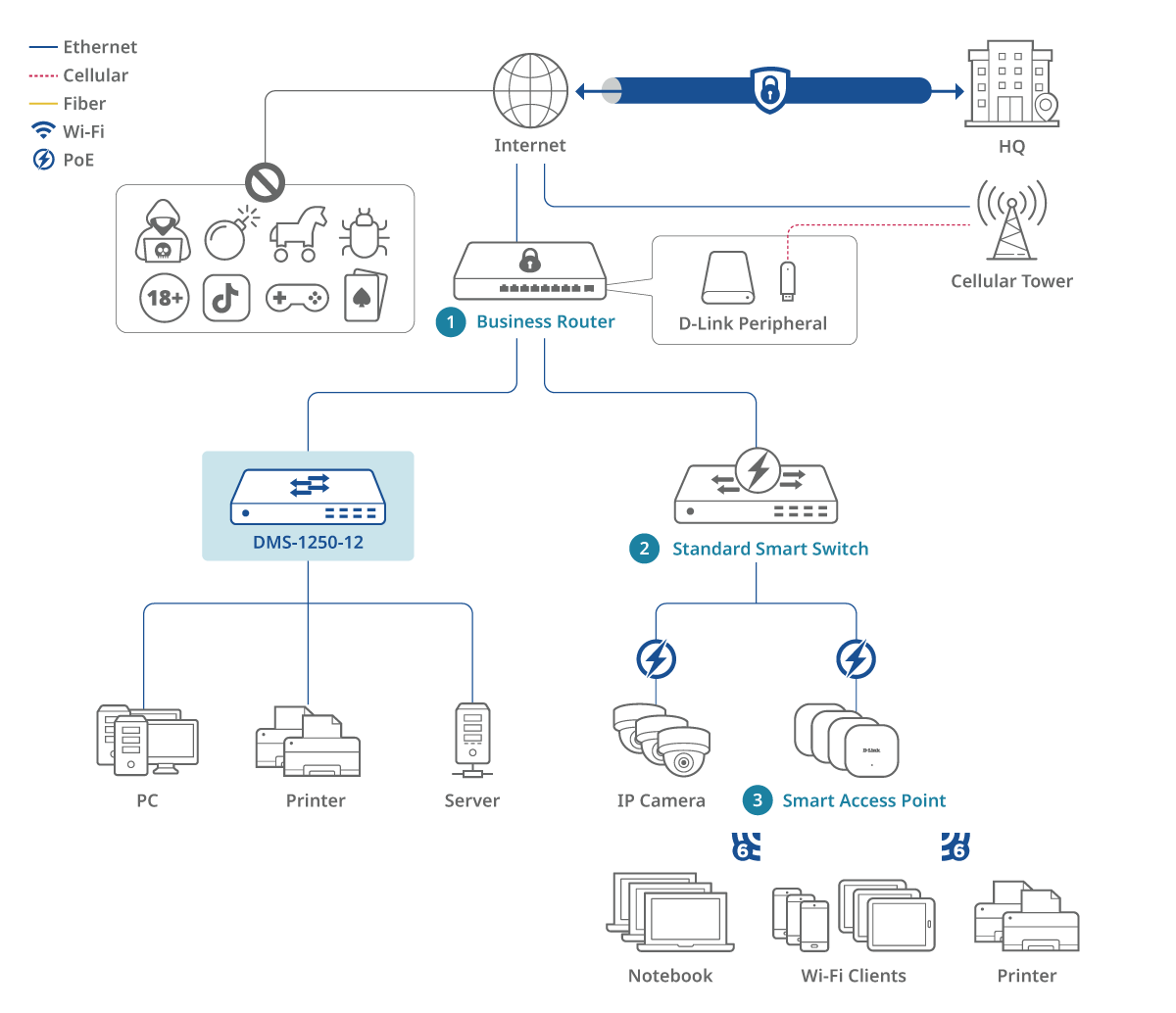

Startup Office (Enterprise)
User benefits :
- Simplify network deployment and management
- Enhances performance for Wi-Fi AP backhaul
- Enables future-proof network upgrades
- Compact and fanless design for quiet operation
Learn more :
- Business Router : DBR-700
- Standard Smart Switch : DMS-1250 Series
- Smart Access Point : DBR-X3000-AP

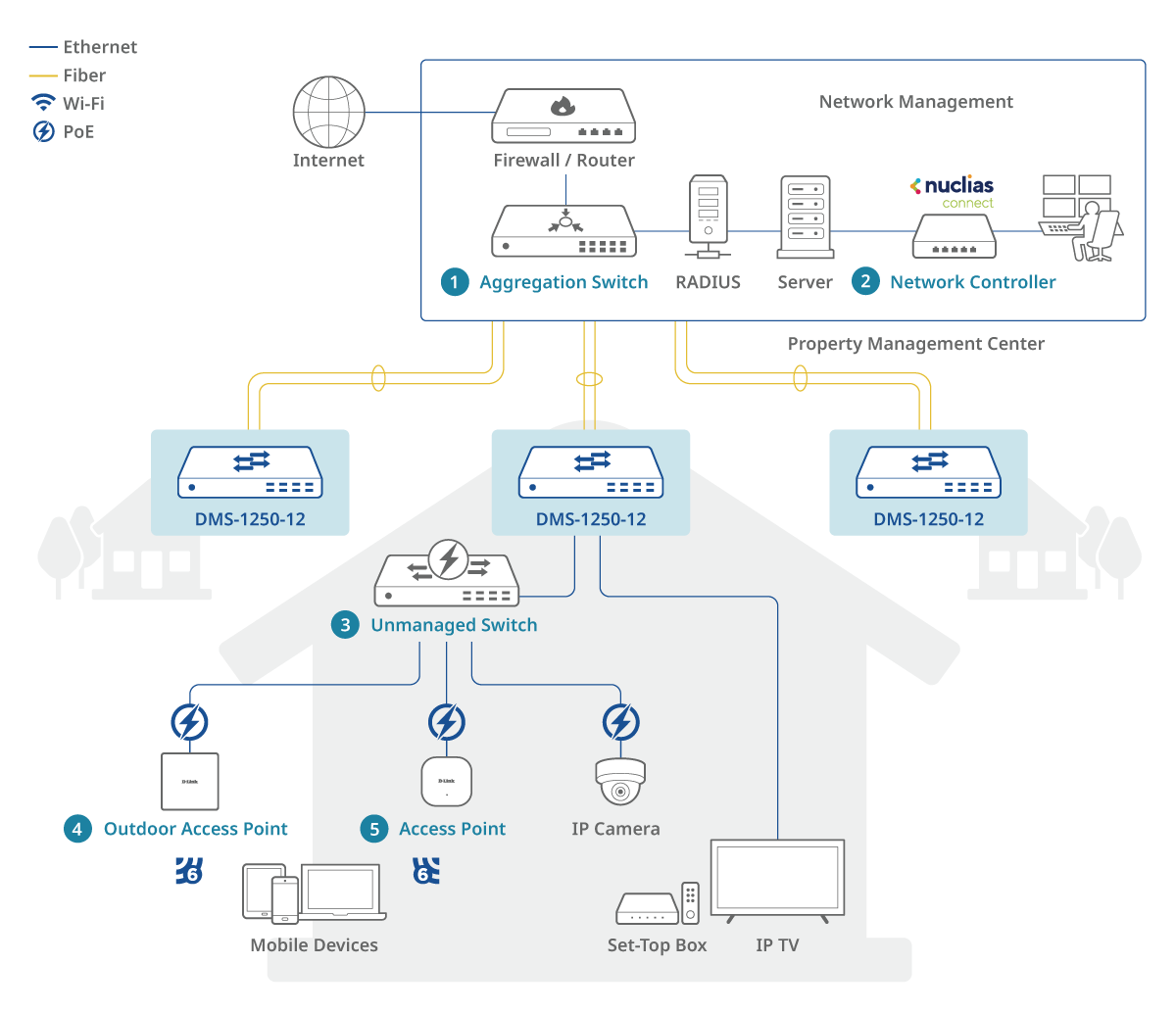

Dormitory (Building)
- Smooth 4K streaming and online gaming
- Handles high device density with ease
- Prevents network disruption with loopback detection
- Simplify network management with intuitive tools
Learn more :
- Aggregation Swtich : DXS-3130-32S ( Coming Soon )
- Network Controller : DNH-1000
- Unmanaged Switch : DMS-108P
Outdoor Access Point : DAP-X3060OU
Access Point : DAP-X3060
Transnational University (Education)
User benefits :
- Secure network access with 802.1X authentication
- Enhances network stability with STP and secure access via AAA
- Simplify network expansion with 10G uplinks
- Centralized management for efficient control
Learn more :
- Network Controller : DNH-3000
- Core Switch : DXS-3610-54S
- Aggregation Switch : DXS-3130-32S ( Coming Soon )
Standard Smart Switch : DMS-1250 Series
Outdoor Access Point : DAP-X3060OU
Access Point : DAP-X3060
Specs
|
Interfaces
|
8 x 2.5GE 2 x 10GE 2 x 10G SFP+ |
|---|---|
|
Switching Capacity
|
120Gbps |
|
Max. Packet Forwarding Rate
|
89.29 Mpps |
|
Max Power Consumption
|
23.023W |
|
Dimensions
|
440 x 210 x 44 mm |
|
Weight
|
2.58 kg (5.68 lbs) |
|
Surge Protection
|
IEEE61000-4-5 surge protection compliance 6kV surge protection on all 2.5-Gigabit Ethernet ports |
|
FAN
|
2 Internal Fans |
|
Operating Temperature
|
-5 to 50°C (23 to 122°F) |
|
Storage Temperature
|
-20˚C to 70˚C (-4˚F to 158˚F) |
|
Operating Humidity
|
0% to 95% relative humidity |
|
Storage Humidity
|
0% to 95% relative humidity |
|
Console Port
|
Supported
|
|
Power Supply Type
|
Internal |
|
O desempenho real pode variar devido a configurações, cablagem, temperatura, configuração de rede, interface, compatibilidade de dispositivos, condições ambientais e locais e outros fatores semelhantes. As referências à capacidade de energia, velocidade de sinal ou processamento, alcance ou distância do sinal, encriptação de dados, capacidade de armazenamento, propriedades de exibição ou outras métricas de desempenho são baseadas em condições ideais derivadas de padrões da indústria e fornecidas apenas para fins informativos. As especificações estão sujeitas a alterações sem aviso prévio. |
|
