Switch PoE industrial de 4 portas 1G PoE+ + 2 portas 1G SFP sem gestão
DIS-100G-06P
- Product Status (A1): Live
- 4 x portas Gigabit PoE para transmissão rápida de dados
- 2 portas 1G SFP para uma fácil expansão da rede
- IEEE 802.3af/at com 120W PoE power budget
- Entradas de alimentação duplas proporcionam redundância de alimentação
- Ampla tensão compatível com várias fontes de alimentação
- Funcionamento entre -40 °C e 75 °C para ambientes exigentes
- Proteção contra sobretensão de 6 kV em portas Gigabit Ethernet
- Instalação simplificada em calha DIN e plug-and-play
- O design sem ventoinha e com classificação IP40 melhora a fiabilidade
- Suporte para 802.3az Energy Efficient Ethernet (EEE)
Where to buy
Fiber Interface
Offer high speed, low latency and long-distance transmission
Dual Power Input
Dual power supply redundancy minimizes downtime and boosts system reliability
6kV Surge Protection
6kV Surge Protection keeps all Ethernet ports unharmed from the surge
Industrial-Grade Durability
Corrosion-resistant steel casing and hardened components ensure reliable operation in harsh environments
Fanless
Fanless design reduces the risk of component failure impacting MTBF, reducing maintenance and downtime costs
Green Ethernet
Energy Efficient Ethernet (EEE) reduces power consumption, helps save cost, especially in always-on environments
High Power with PoE+
The DIS-100G-06P features four built-in PoE ports that comply with IEEE 802.3af/at standards, delivering both data and power over a single Ethernet cable. With a total power budget of up to 120W, each port can supply up to 30W, making it a great fit for powering devices such as surveillance cameras, IP phones, wireless access points, and IoT sensors. This simplifies installation, enables flexible device placement, and reduces the need for additional electrical infrastructure.
Connect Far, Transmit Fast
The DIS-100G-06P features two SFP ports that enable flexible, long-distance fiber connections, perfect for extending your network across remote sites or between buildings. Fiber optic cabling goes beyond the distance limitations of traditional Ethernet, offering high bandwidth and strong resistance to interference. This ensures stable, high-performance transmission in industrial environments where reliability is essential.

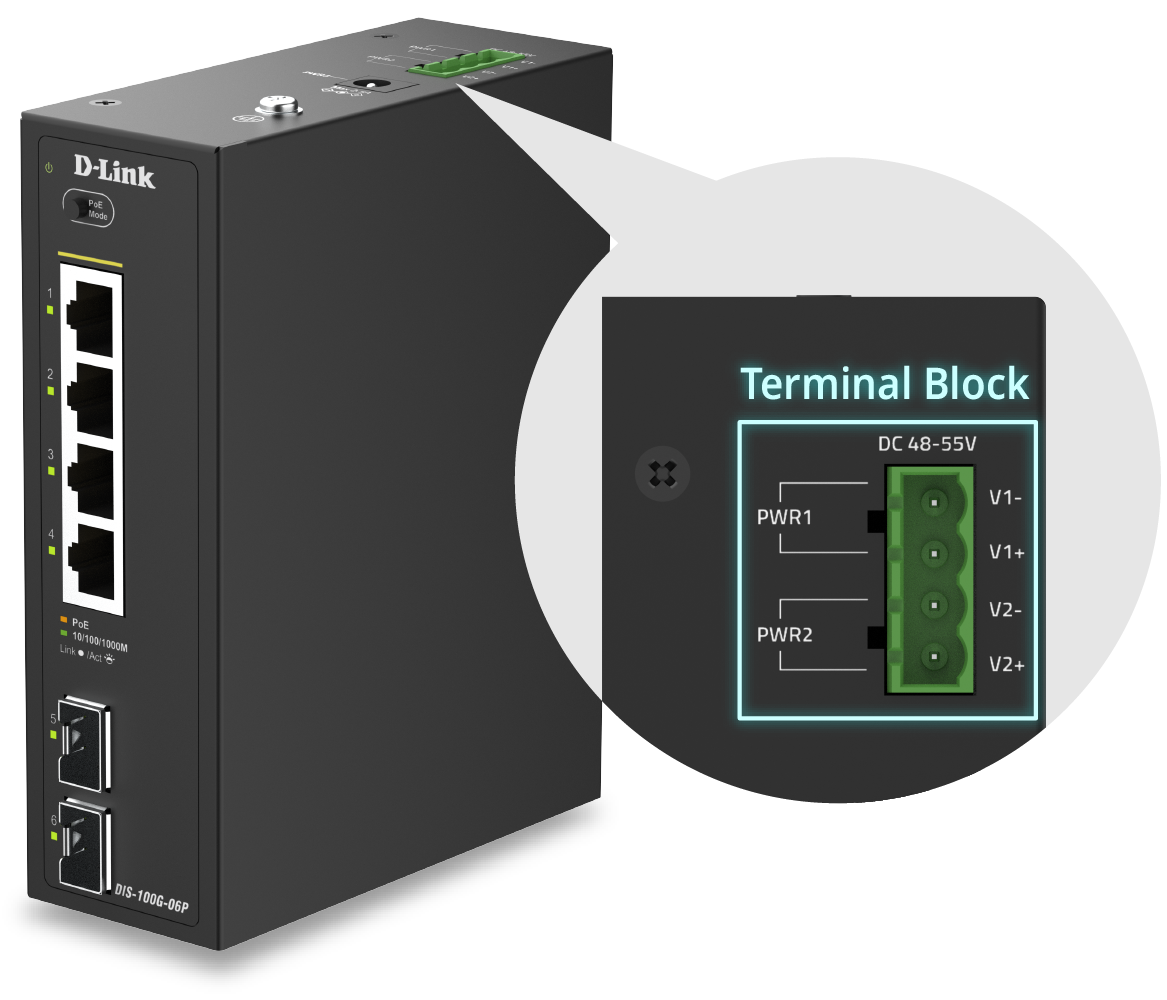

Uninterrupted Power Redundancy
The DIS-100G-06P is equipped with dual power supply options. Each is capable of independently powering the device. This built-in redundancy ensures continuous operation even if one power source fails, minimizing shutdown risk and maintaining network performance. As industrial environments are common with unstable power conditions, its wide voltage range of 48 - 55V DC supports diverse power sources while protecting against surges and low voltage, delivering a stable and dependable power supply.
Wide
Voltage
Redundancy Power Supply
Overcurrent Protection
Anti-Reverse Protection
Firm
Connection
Built Tough for Demanding Conditions
The DIS-100G-06P is built with a rugged, durable design ideal for harsh environments such as outdoor installations, unconditioned factory floors, and remote sites. With a wide operating temperature range of -40°C to 75°C, it ensures stable, and reliable performance even in extreme conditions. Its industrial-grade IP40-rated enclosure protects against dust and solid particles larger than 1mm, while the fanless design and 6kV surge protection on all Ethernet ports help reduce the risk of downtime and enhance long-term reliability.
Related Products
Connection Diagram
The DIS-100G-06P is an industrial unmanaged switch equipped with four 1G PoE ports and two SFP ports, providing plug-and-play simplicity deployment. The SFP ports support long-range data transmission, removing the distance limitations of traditional Ethernet cabling. With reliable, high-performance operation, it's well-suited for edge deployments in applications like HD surveillance, wireless access points and more.
Business
Router
4G/5G M2M Router
Aggregation Switch
Industrial
Switch
Access
Point
Specs
|
Category
|
Unmanaged Industrial Switches |
|---|---|
|
Number of PoE Ports
|
4 |
|
PoE Power Budget
|
120W |
|
PoE Ports
|
802.3at |
|
Fanless
|
Supported
|
|
Installation
|
DIN-Rail |
|
Operating Temperature
|
-40°-75°C |
|
Surge Protection
|
6kV |
|
802.3az EEE
|
Supported
|
|
Jumbo Frame
|
9K |
|
Power Supply Type
|
DC:48~55V Dual input |
|
O desempenho real pode variar devido a configurações, cablagem, temperatura, configuração de rede, interface, compatibilidade de dispositivos, condições ambientais e locais e outros fatores semelhantes. As referências à capacidade de energia, velocidade de sinal ou processamento, alcance ou distância do sinal, encriptação de dados, capacidade de armazenamento, propriedades de exibição ou outras métricas de desempenho são baseadas em condições ideais derivadas de padrões da indústria e fornecidas apenas para fins informativos. As especificações estão sujeitas a alterações sem aviso prévio. |
|
