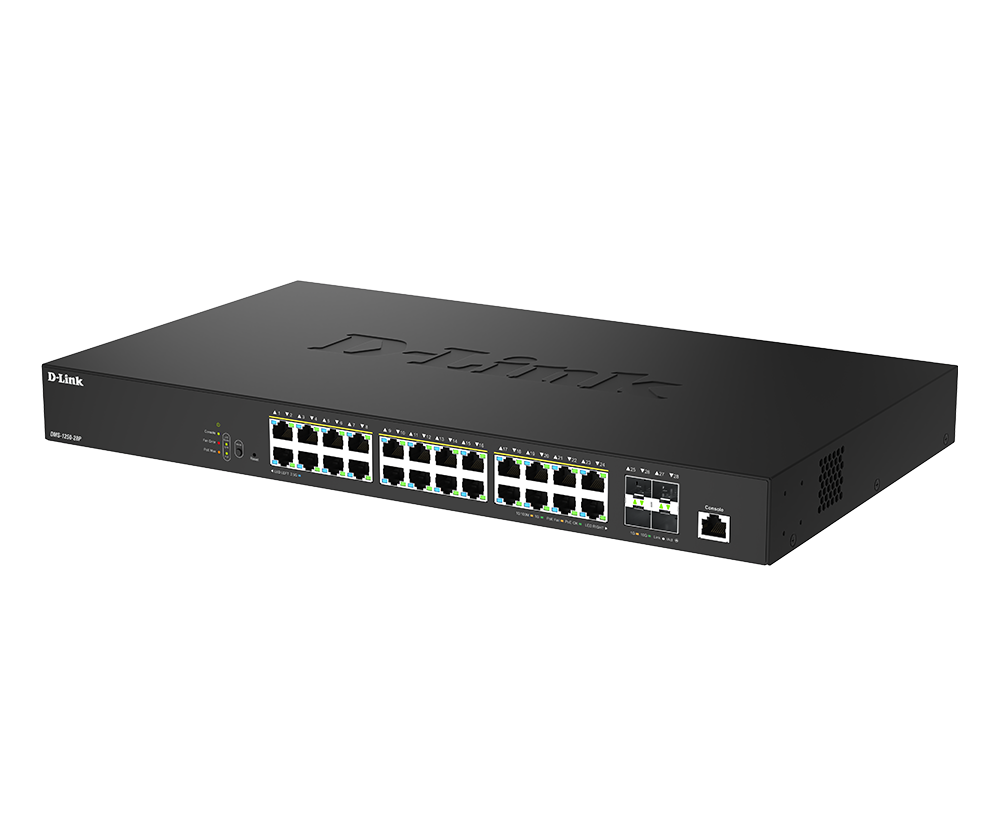

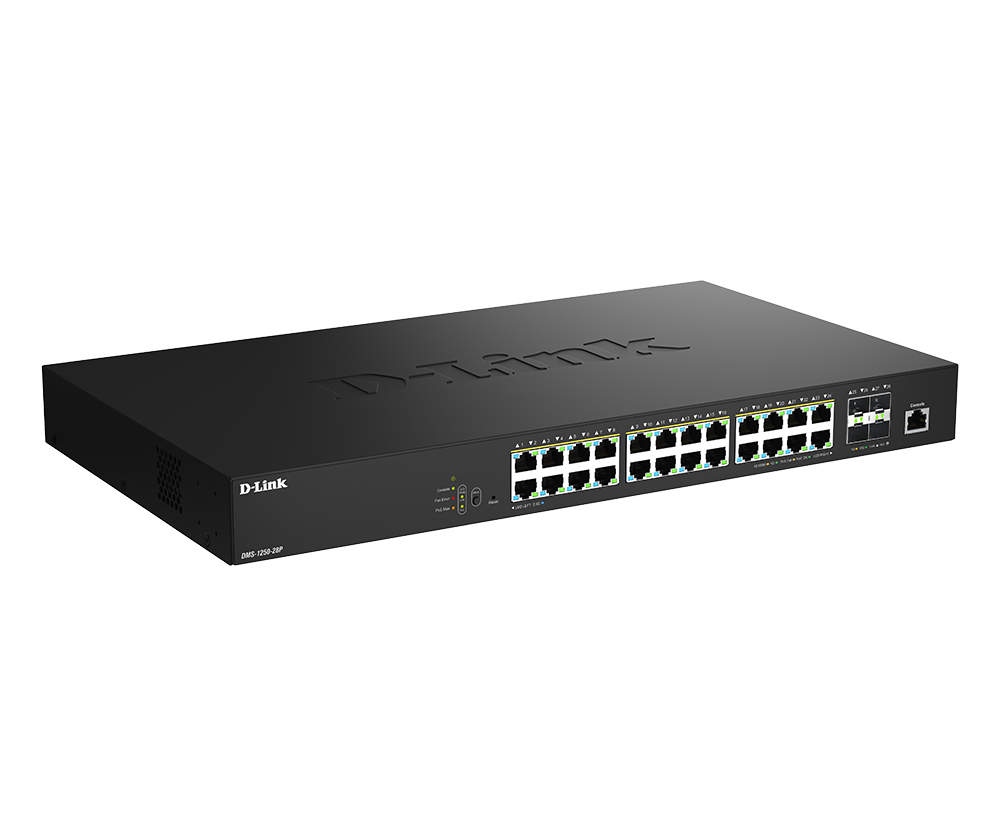

28-Port 2.5G Layer 2 Standard Smart PoE Switch
DMS-1250-28P
- Status produktu (A1 v1.06): W sprzedaży
- 24 Ports 2.5GE PoE for downlink
- 4 Ports 10G SFP+ for uplink
- PoE IEEE802.3af/at/bt options, power budget 475W
- 6kV surge protection on all 2.5G ethernet ports
- Support LACP 802.3ad Link Aggregation
- Support Static Routing & Loopback Detection
- Support Spanning Tree Protocol(STP/RSTP/MSTP)
- AAA support for RADIUS/TACACS+
- Support D-Link Safeguard Engine
- Manage through the Nuclias Network Controller
Lista sklepów
User Benefits
Elastyczna łączność
Obsługuje szeroki zakres interfejsów fizycznych, zapewniając bogate możliwości połączeń sieciowych.
Łatwe zarządzanie
Przyjazny dla użytkownika interfejs Web UI umożliwia efektywne i dostosowane do potrzeb zarządzanie siecią.
Zwiększone bezpieczeństwo
Obsługuje wszechstronne funkcje zwiększające poziom bezpieczeństwa sieci.
Opłacalne rozwiązanie
Oferuje zaawansowane funkcje i wysoką wydajność sieci w przystępnej cenie.
2.5G Speeds: Built for Wi-Fi 6 and Beyond
The DMS-1250 Series switches elevate your network with 2.5 Gbps ports, optimized for Wi-Fi 6 access points to maximize throughput and speed. Multi-Gigabit Ethernet eliminates bottlenecks, fully utilizing Wi-Fi 6’s high performance.
6 kV Surge Protection for All Ethernet Ports
The DMS-1250 Series switches offer enhanced 6kV surge protection on all 2.5-Gigabit Ethernet access ports, ensuring that your network remains resilient and that your devices stay safe from electrical surges.
Support L2+ Features
The DMS-1250 Series switches offer a comprehensive set of Layer 2+ capabilities, including:
- GVRP
- ISM VLAN
- VLAN Translation
- Double VLAN (Q-in-Q)
- Spanning Tree Protocol (STP/MSTP/RSTP)
- Link Aggregation Control Protocol (LACP)
- IGMP and MLD Snooping

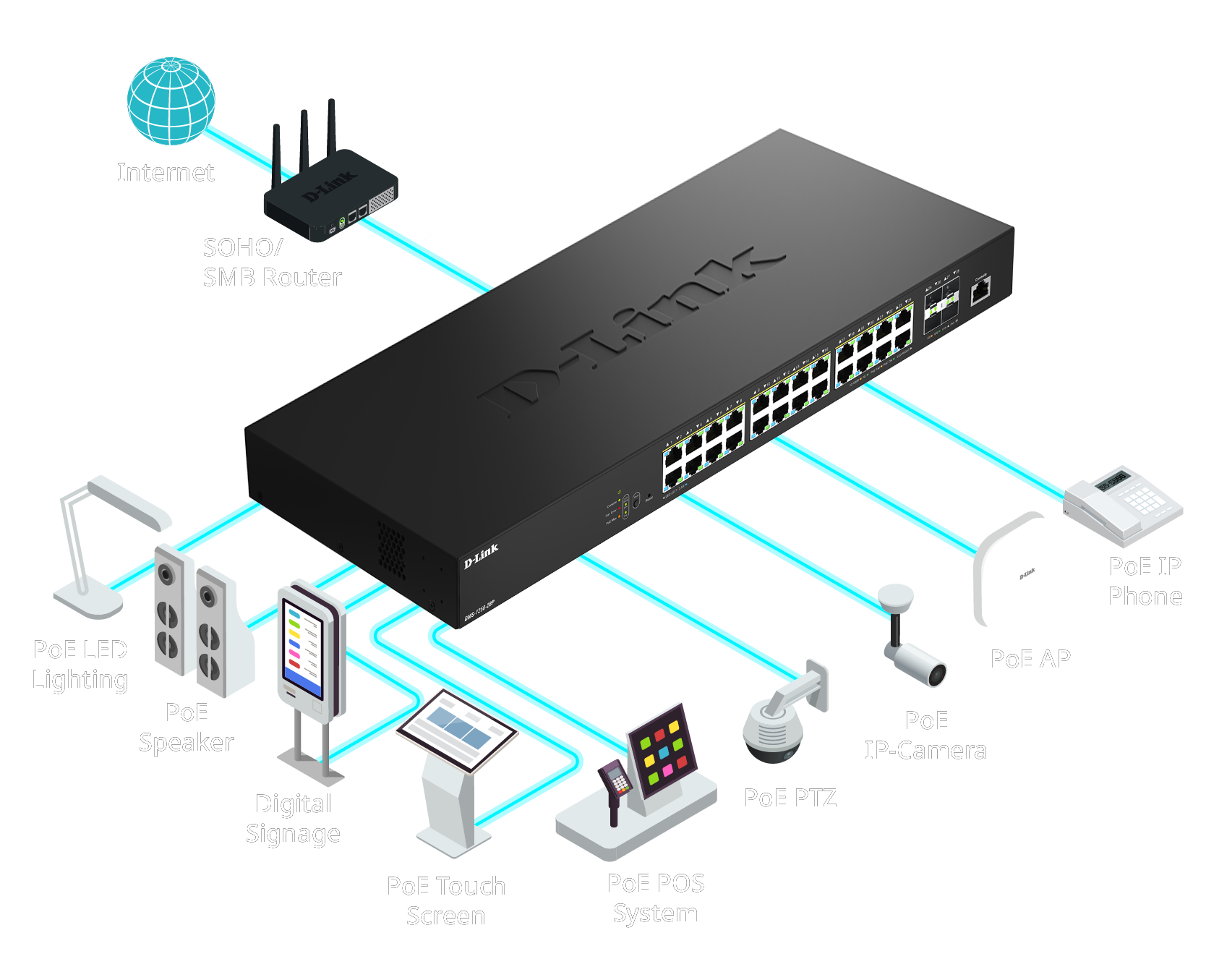

Power and Data over One Cable
2.5G PoE ports deliver high-speed data and power through a single cable. Ideal for Wi-Fi 6/6E access points, IP cameras, and IoT devices. They eliminate network bottlenecks, support up to 475W of total PoE power for demanding devices, and streamline deployment while ensuring scalability for future growth.
Nuclias Network Controller
The DMS-1250 Series switches support the Nuclias Network Controller for centralized management, simplifying device configuration and enhancing network efficiency. Features like device discovery, real-time monitoring, and updates ensure robust control and optimized operations.
Sugerowane urządzenia
8-portowy przełącznik zarządzalny Smart Multi-Gigabit
DMS-1250-10SP
12-Port 2.5G Layer 2 Standard Smart PoE Switch
DMS-1250-12TP
18-Port 2.5G Layer 2 Standard Smart PoE Switch
DMS-1250-18P

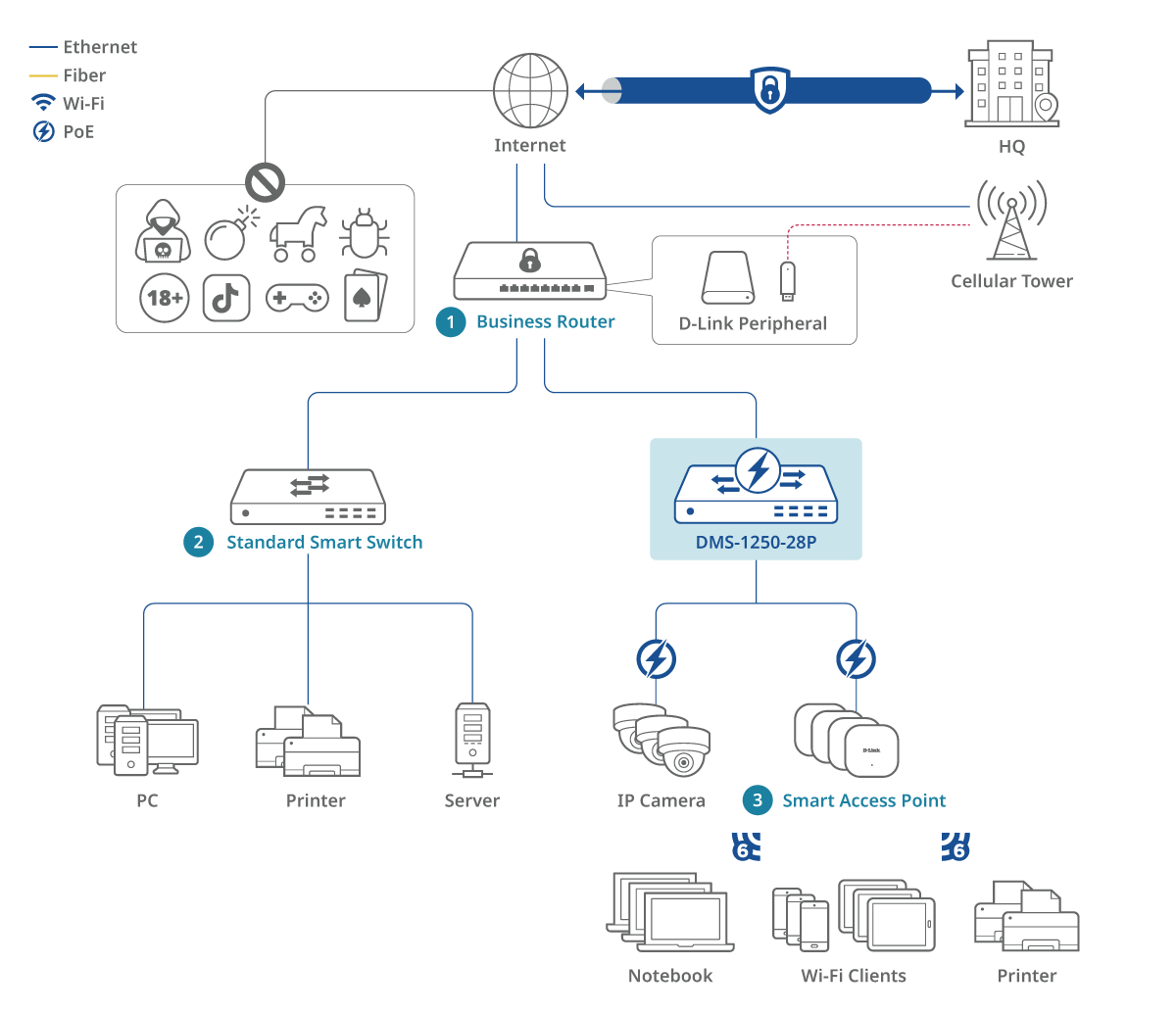

Startup Office (Enterprise)
User benefits :
- Simplify network deployment and management
- Power devices with PoE++ for flexible deployment
- Enables future-proof network upgrades
- Increases bandwidth and redundancy with link aggregation
Learn more :
- Business Router : DBR-700
- Standard Smart Switch : DMS-1250 Series
- Smart Access Point : DBR-X3000-AP

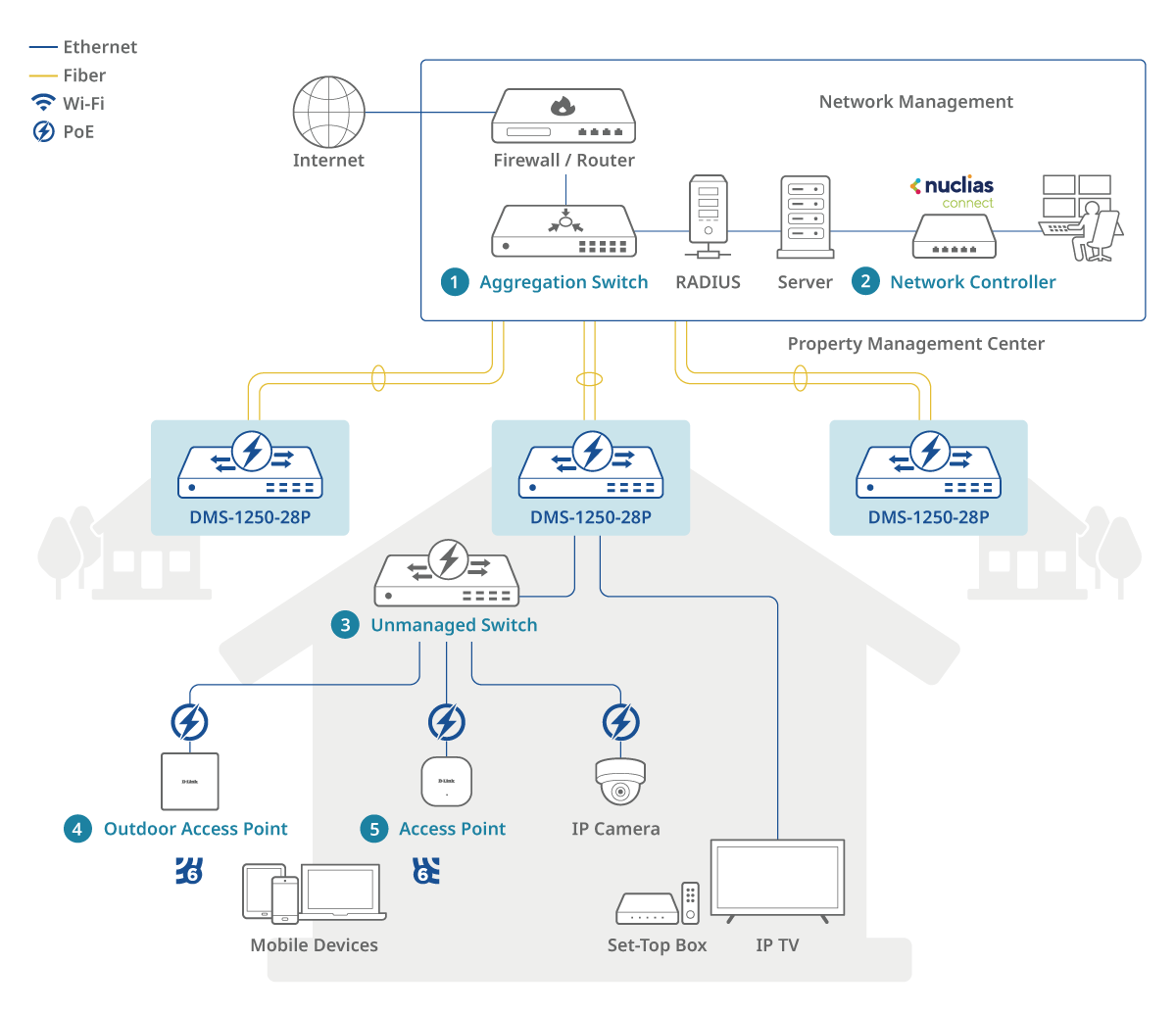

Dormitory (Building)
User benefits :
- Power devices with PoE++ for flexible deployment
- Smooth 4K streaming and online gaming
- Prevents network disruption with loopback detection
- Simplify network management with intuitive tools
Learn more :
- Aggregation Swtich : DXS-3130-32S ( Coming Soon )
- Network Controller : DNH-1000
- Unmanaged Switch : DMS-108P
Outdoor Access Point : DAP-X3060OU
Access Point : DAP-X3060

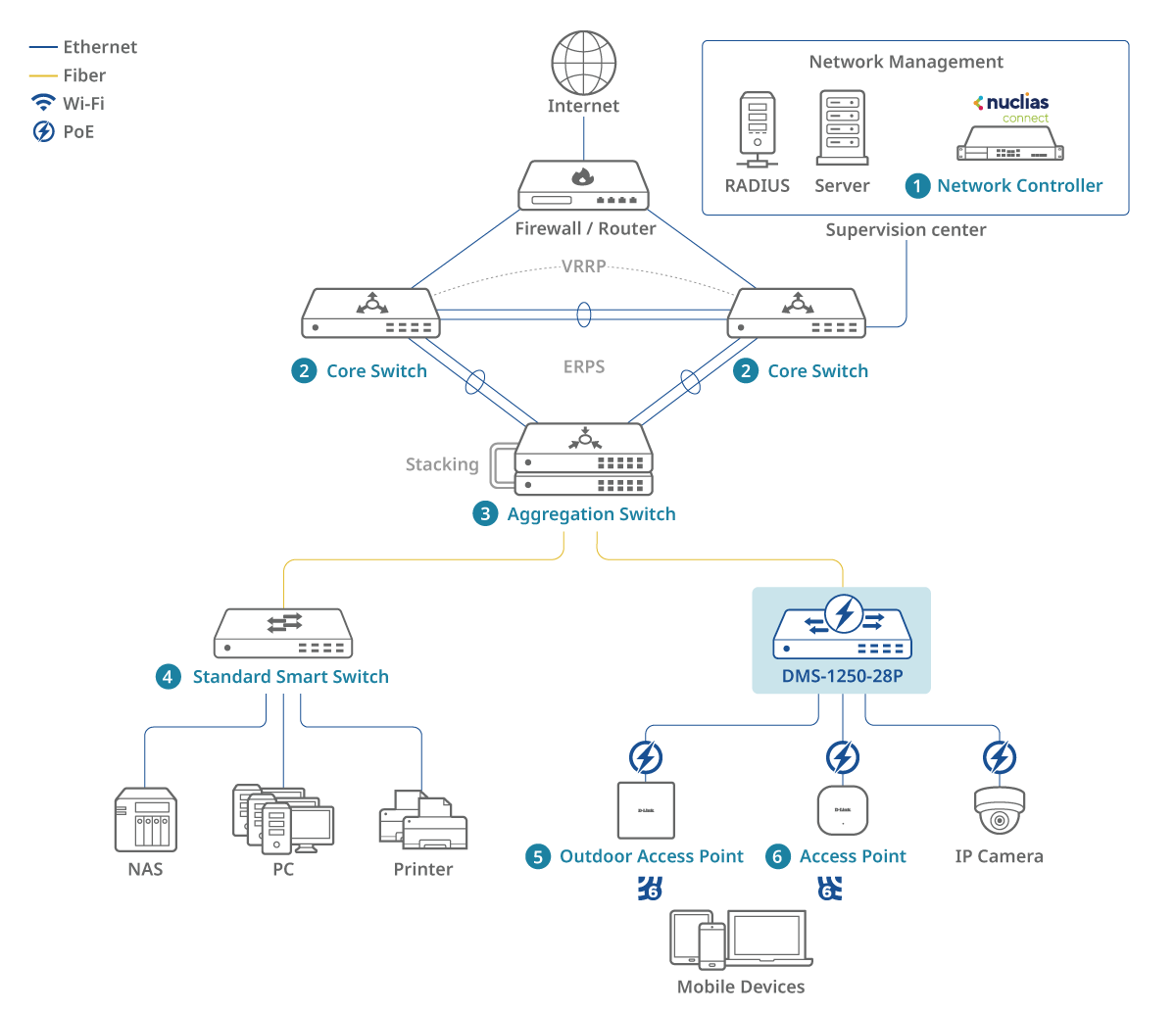

Transnational University (Education)
User benefits :
- Enhances network stability with STP and secure access via AAA
- Power all classroom devices efficiently with PoE++
- Simplify network expansion with 10G uplinks
- Centralized management for efficient control
Learn more :
- Network Controller : DNH-3000
- Core Switch : DXS-3610-54S
- Aggregation Switch : DXS-3130-32S ( Coming Soon )
Standard Smart Switch : DMS-1250 Series
Outdoor Access Point : DAP-X3060OU
Access Point : DAP-X3060
Dane techniczne
|
Interfejsy:
|
24 x 2.5GE PoE 4 x 10G SFP+ |
|---|---|
|
Przepustowość przełącznika:
|
200 Gbps |
|
Maksymalna wydajność przekazywania pakietów:
|
148.91Mbps |
|
Budżet mocy PoE:
|
475 W |
|
Maksymalne zużycie energii:
|
592.19 W (PoE on) |
|
Wymiary:
|
440 x 250 x 44 mm |
|
Waga
|
4.165 kg |
|
Surge Protection
|
IEEE61000-4-5 surge protection compliance 6kV surge protection on all 2.5-Gigabit Ethernet ports |
|
Chłodzenie:
|
4 Internal Fans |
|
Temperatura pracy:
|
-5 to 50°C (23 to 122°F) |
|
Temperatura przechowywania:
|
-20˚C -70˚C (-4˚F -158˚F) |
|
Wilgotność przechowywania:
|
0% to 95% relative humidity |
|
Port konsoli
|
Tak |
|
Power Supply Type
|
Internal |
