Comprehensive edge connectivity
Dual power supply redundancy minimises downtime and boosts system reliability
6kV surge protection keeps all Ethernet ports unharmed from the surge
Corrosion-resistant steel casing and hardened components ensure reliable operation in harsh environments
Fanless design reduces the risk of component failure impacting MTBF, reducing maintenance and downtime costs
Energy Efficient Ethernet (EEE) reduces power consumption, helps save cost, especially in always-on environments
The DIS-110G-05 is designed to fulfil the edge connectivity with scalable flexibility across remote sites. This ensures stable, high-performance transmission in industrial environments where reliability is essential.

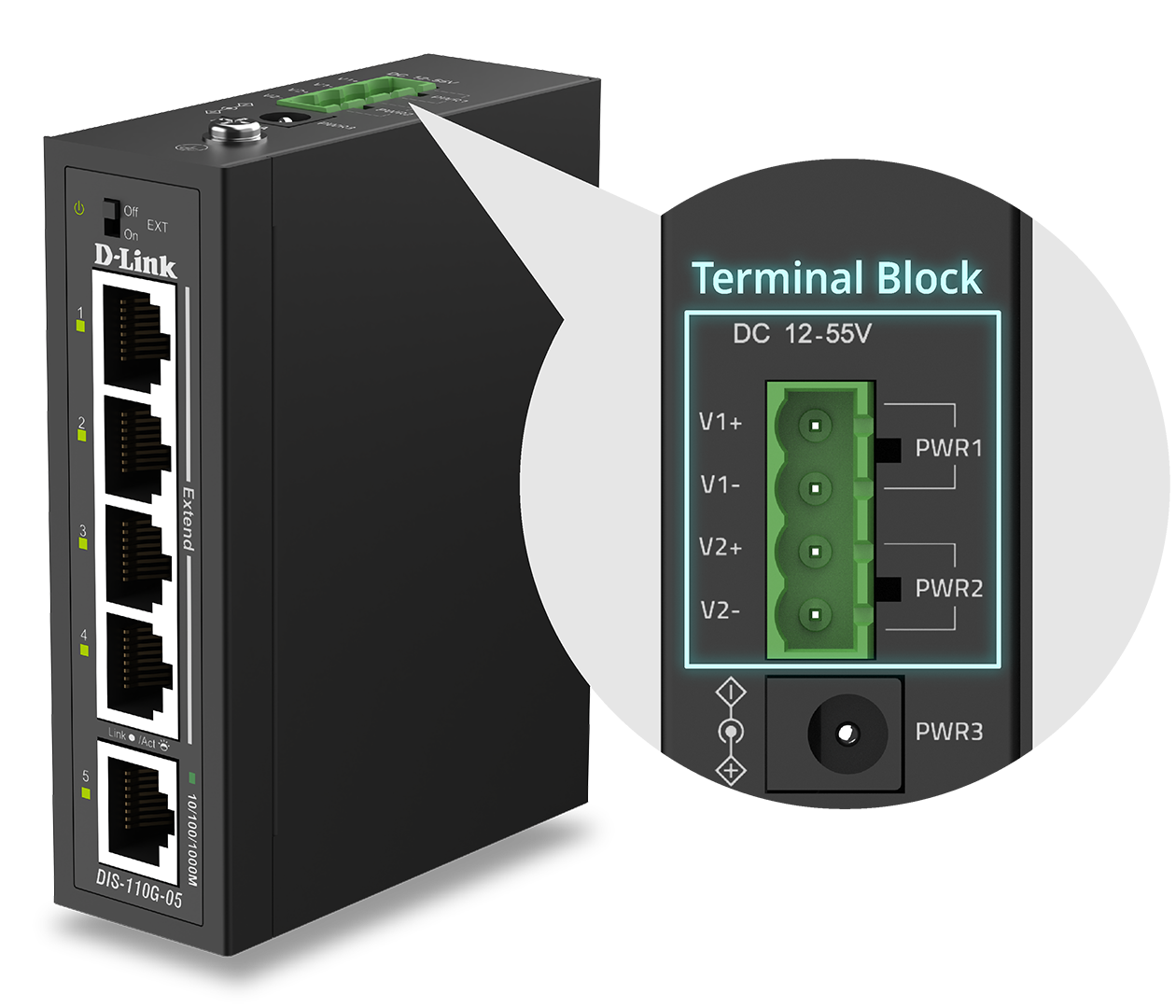

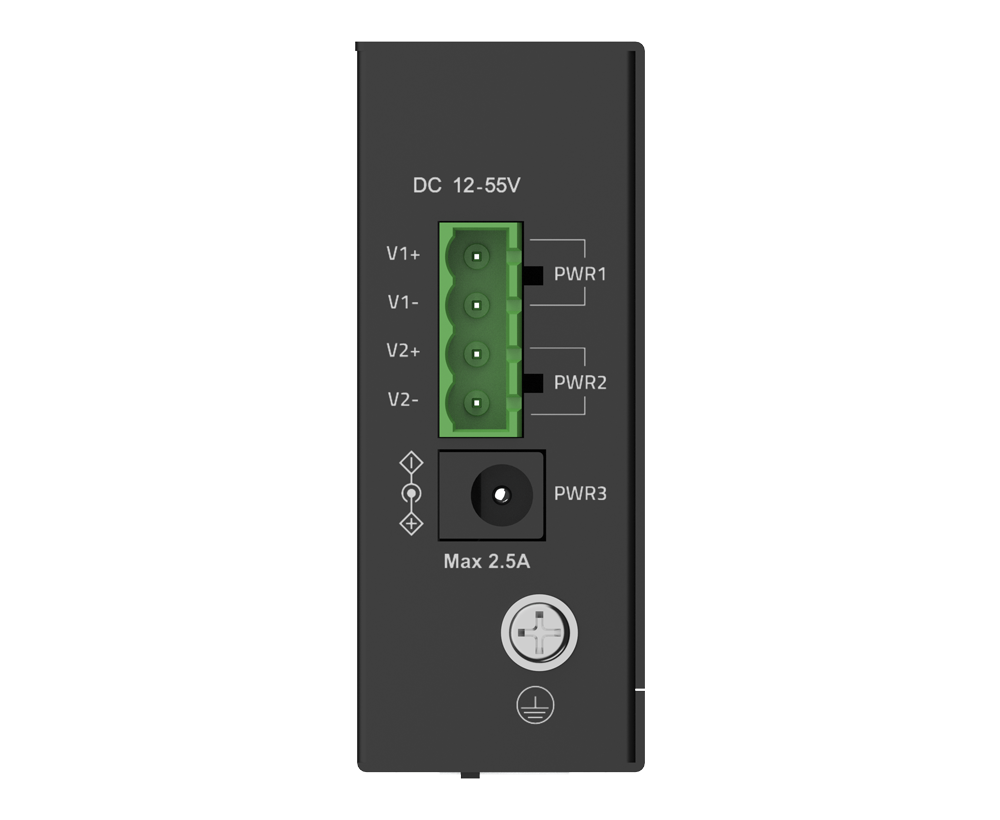

The DIS-110G-05 is equipped with dual power supply options. Each is capable of independently powering the device. This built-in redundancy ensures continuous operation even if one power source fails, minimising shutdown risk and maintaining network performance. As industrial environments are common with unstable power conditions, its wide voltage range of 12 – 55V DC supports diverse power sources while protecting against surges and low voltage, delivering a stable and dependable power supply.
Wide
Voltage
Redundancy Power Supply
Overcurrent Protection
Anti-Reverse Protection
Firm
Connection

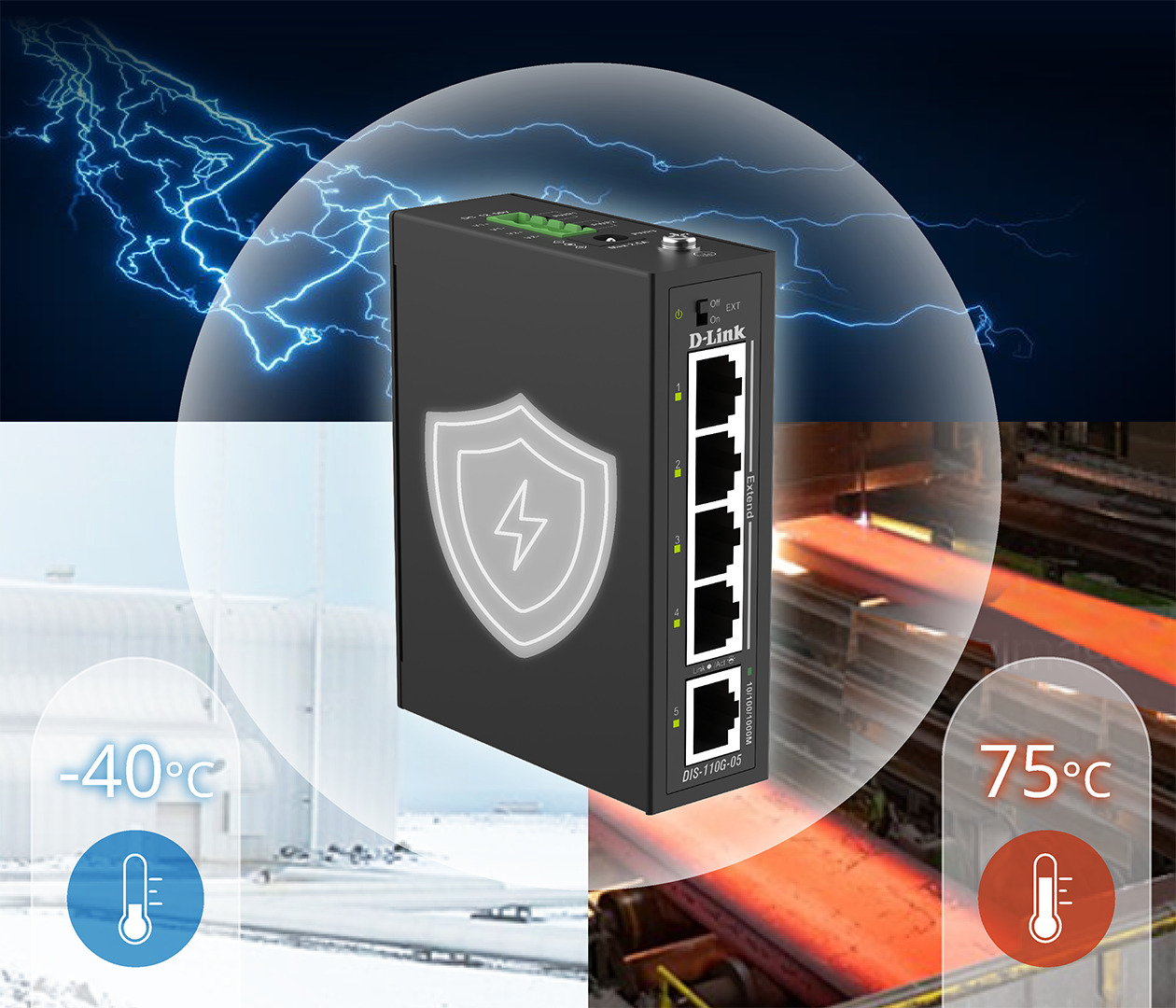

The DIS-110G-05 is built with a rugged, durable design ideal for harsh environments such as outdoor installations, unconditioned factory floors, and remote sites. With a wide operating temperature range of -40°C to 75°C, it ensures stable, and reliable performance even in extreme conditions. Its industrial-grade IP40-rated enclosure protects against dust and solid particles larger than 1mm, while the fanless design and 6kV surge protection on all Ethernet ports help reduce the risk of downtime and enhance long-term reliability.

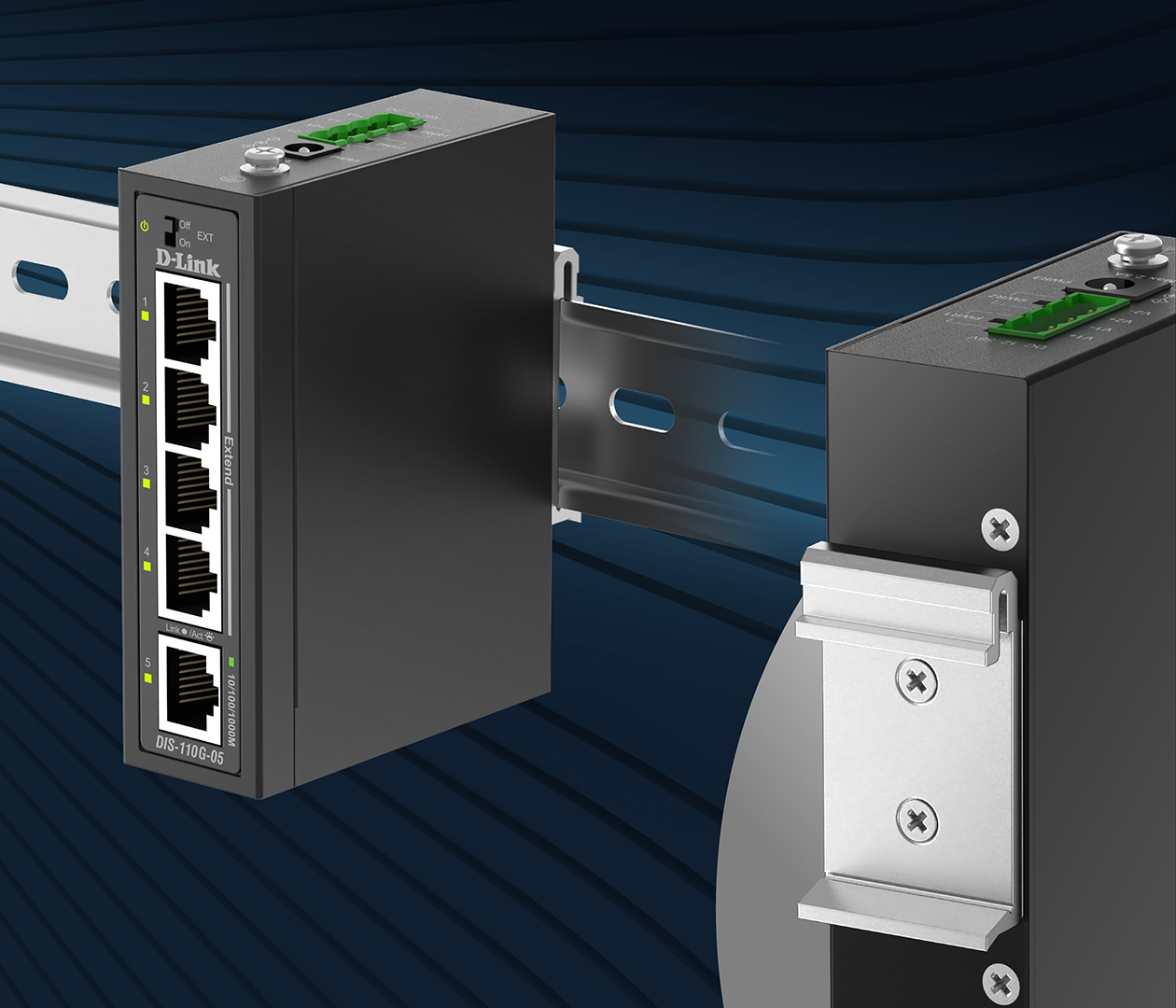

The DIS-110G-05 offers true plug-and-play simplicity, just connect the cables and power it up, with no configuration required. It’s an effortless way to quickly and efficiently set up a network, making it ideal for a wide range of field applications. Its compact size and supports DIN-rail mounting, saving space and allowing for easy, organised installation within industrial control cabinets, fit seamlessly into any industrial equipment infrastructure.

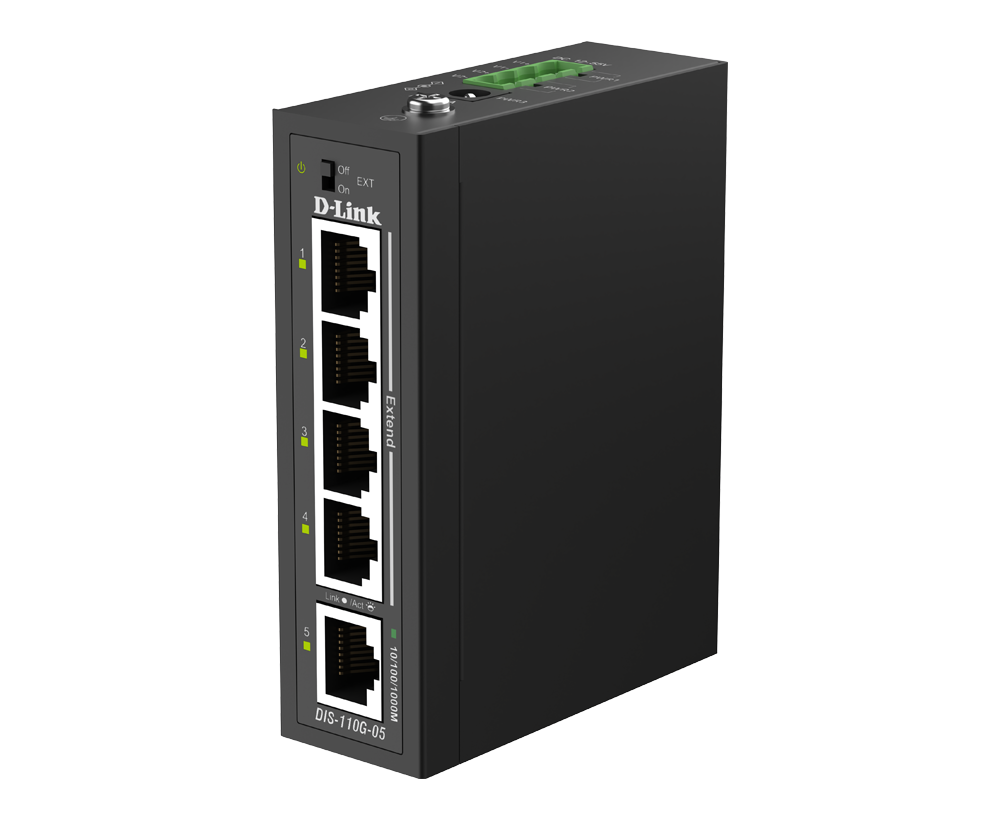

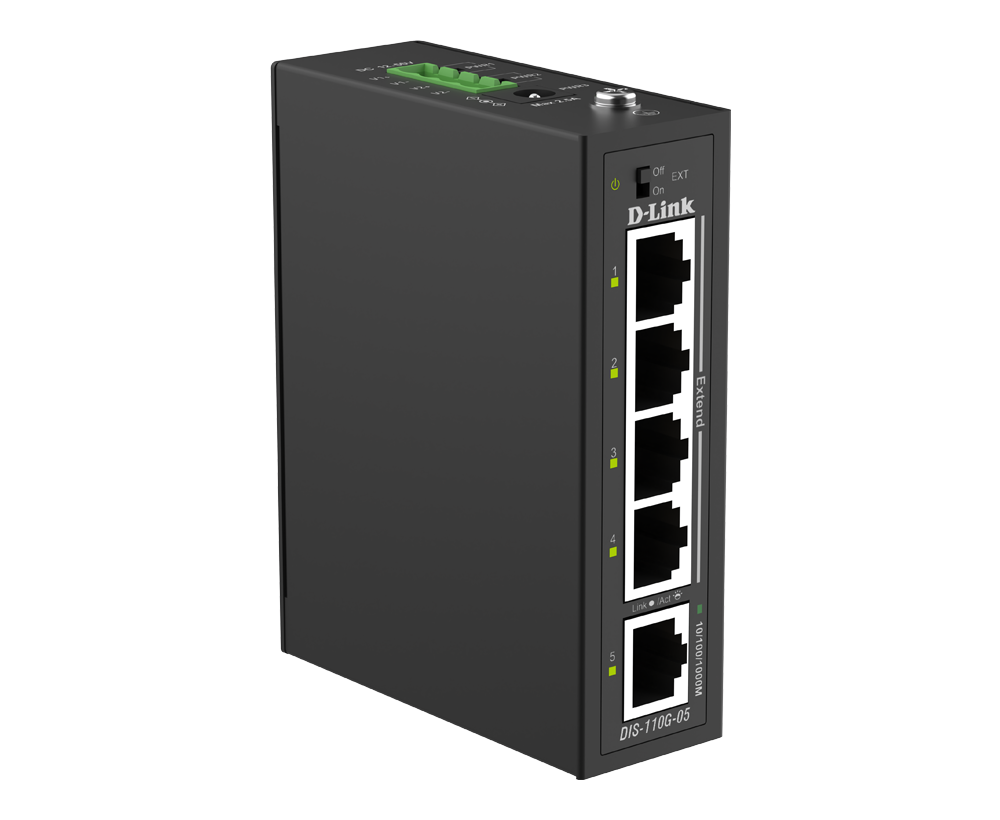

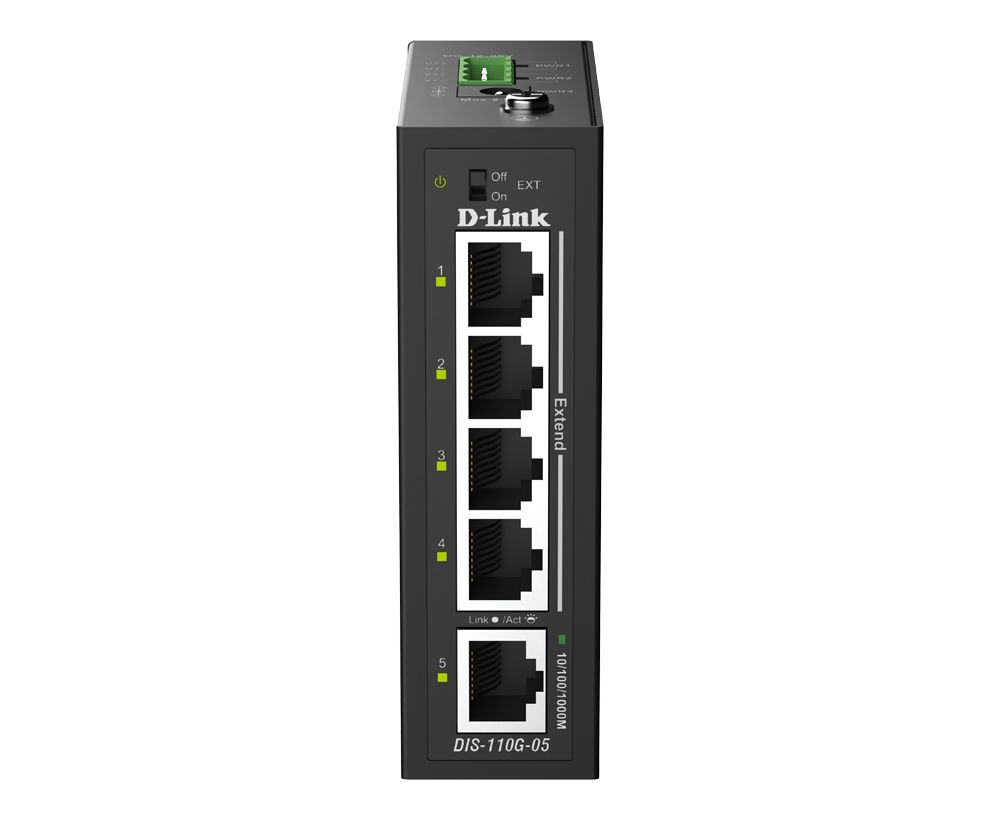

The DIS-110G-05 is an industrial unmanaged switch equipped with five Gigabit Ethernet ports,providing plug-and-play simplicity deployment. With reliable, high-performance operation, it ensures real-time data transfer and seamless connectivity for applications such as Kiosk, digital signage, LED displays, and more.
Business
Router
4G/5G M2M Router
Aggregation Switch
Industrial
Switch
Access
Point
City Surveillance
Building Automation
|
Category
|
Unmanaged Industrial Switches |
|---|---|
|
Konstrukcja bezwentylatorowa
|
Supported
|
|
Installation
|
DIN-Rail |
|
Temperatura pracy:
|
-40°-75°C |
|
Ochrona Przepięciowa
|
6kV |
|
802.3az EEE
|
Supported
|
|
Jumbo Frame
|
15K |
|
Zasilanie
|
DC:12~55V, Podwójne wejście |
|
Type of Uplink Ports
|
1G RJ-45 |
|
Main type of ports
|
1000BASE-T Gigabit Ethernet |
|
Rzeczywista wydajność może się różnić w zależności od ustawień, okablowania, temperatury, konfiguracji sieci, interfejsu, kompatybilności urządzeń, warunków środowiskowych i lokalnych oraz innych podobnych czynników. Odniesienia do mocy, szybkości sygnału lub przetwarzania, zasięgu lub odległości sygnału, szyfrowania danych, pojemności pamięci, właściwości wyświetlacza lub innych wskaźników wydajności oparte są na optymalnych warunkach wynikających z norm branżowych i mają charakter wyłącznie informacyjny. Specyfikacje mogą ulec zmianie bez uprzedniego powiadomienia. |
|
