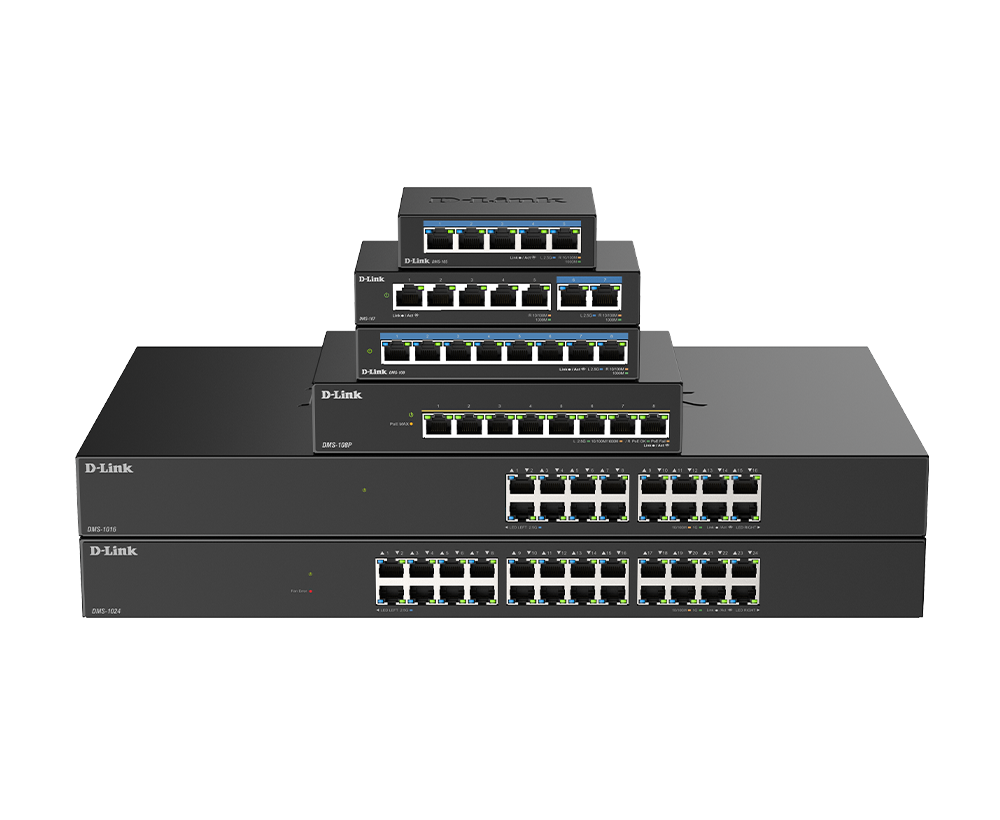

2.5G Multi-Gigabit Unmanaged Switches

DMS-1000 Series

Estado del producto: Activo

2.5 Gigabit ports enables significantly faster data transfer rates
IEEE 802.3af/at/bt PoE ports for up to 90W/port (DMS-108P only)
Eco-friendly IEEE 802.3az feature saves power and operating costs
IEEE 802.3x flow control feature prevents packet loss during congestion
802.1p QoS prioritizes transmission of important data and services
IGMP Snooping optimizes multicast traffic and ensures smooth data delivery
Auto MDI/MDIX adjustment eliminates need for different cables
Compact metal housing enhances product durability
Fanless and smart fan designs enhance cooling and quiet operation

Lista de puntos de venta

Why You Need It

Plug & Play

Sin gestión, para una conectividad rápida y sencilla en el extremo de red.

Puertos 2.5 Gigabit

Puertos multi-Gigabit para una transmisión de datos de alta velocidad

Optimización Multicast

IGMP Snooping acelera el tráfico IPTV en entornos IP Multicast para AV over IP

Diseño duradero

La carcasa metálica compacta mejora la durabilidad del dispositivo

High Output

Up to 90W/port and 230W total budget (DMS-108P)

Data Prioritization

QoS optimizes traffic, enhancing user experience

DMS-1000 Series Comparison

Products	DMS-105	DMS-107	DMS-108	DMS-108P	DMS-1016	DMS-1024
Products
Interface	5 x 2.5GE	2 x 2.5GE 5 x GE	8 x 2.5GE	8 x 2.5GE PoE	16 x 2.5GE	24 x 2.5GE
PoE	-	-	-	PoE++ 90W/Port 230W Power Budget	-	-
	Learn More	Learn More	Learn More	Learn More	Learn More	Learn More

Otros usuarios también vieron

Switches Gigabit Smart Managed

DGS-1100-05V2, DGS-1100-05PDV2, DGS-1100-08V2, DGS-1100-08PV2, DGS-1100-10MPV2 (Max PoE), DGS-1100-16V2, DGS-1100-18PV2, DGS-1100-24V2, DGS-1100-24PV2, DGS-1100-26MPV2 (Max PoE)

Más información

Connection Diagram

The cost-effective DMS-1000 Series not only delivers plug-and-play 2.5G connectivity for edge devices, but also offers a range of port options and performance optimization to help eliminate bottlenecks for applications such as Wi-Fi-6, HD surveillance, 4k/8k streaming, and much more.

Business Router

Access Point

Learn More

DMS-1000 Series Specification

Products	DMS-105	DMS-107	DMS-108	DMS-108P	DMS-1016	DMS-1024
Products
Interface	5 x 2.5GE	2 x 2.5GE 5 x GE	8 x 2.5GE	8 x 2.5GE PoE	16 x 2.5GE	24 x 2.5GE
Performance
Switch Capacity	25 Gbps	20 Gbps	40 Gbps	40 Gbps	80 Gbps	120 Gbps
Max. Packet Forwarding Rate	18.60 Mpps	14.88 Mpps	29.76 Gbps	29.76 Gbps	59.52 Gbps	89.28 Gbps
PoE
PoE Standard	-	-	-	IEEE802.3af/at/bt	-	-
PoE Ports	-	-	-	Port 1 ~ 8	-	-
PoE Budget	-	-	-	230W	-	-
Technical Specification
Fan	Fanless	Fanless	Fanless	Fanless	Fanless	Smart Fan
Power Supply Type	External	External	External	External	Internal	Internal
