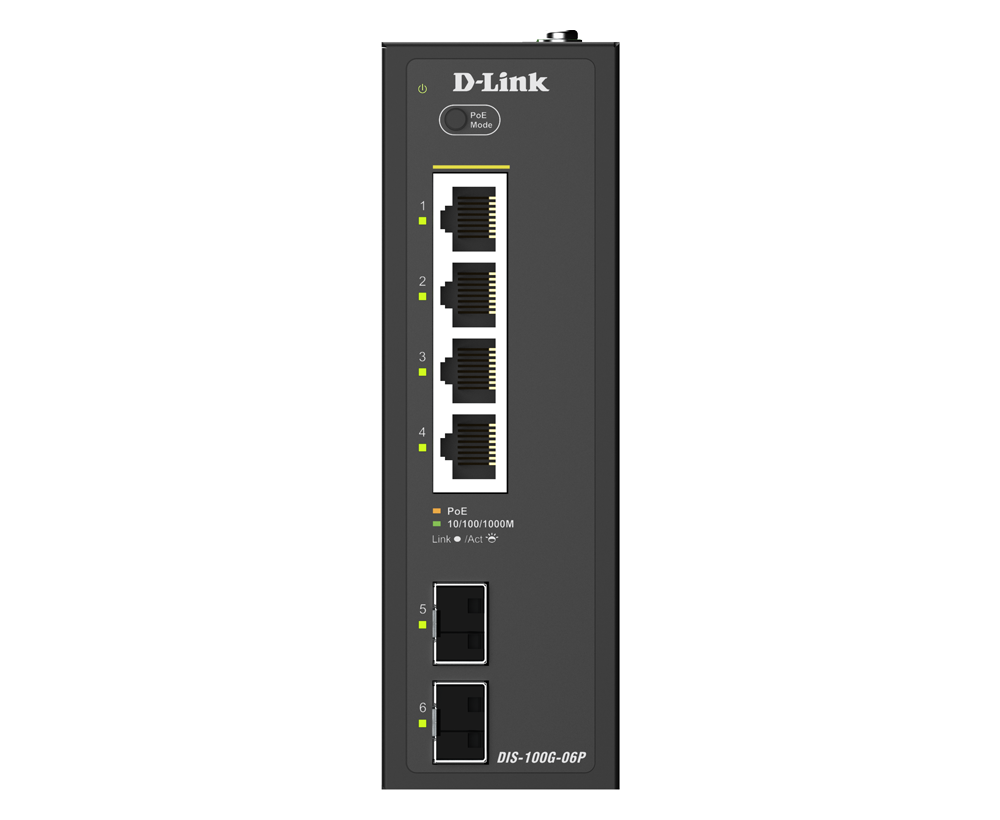

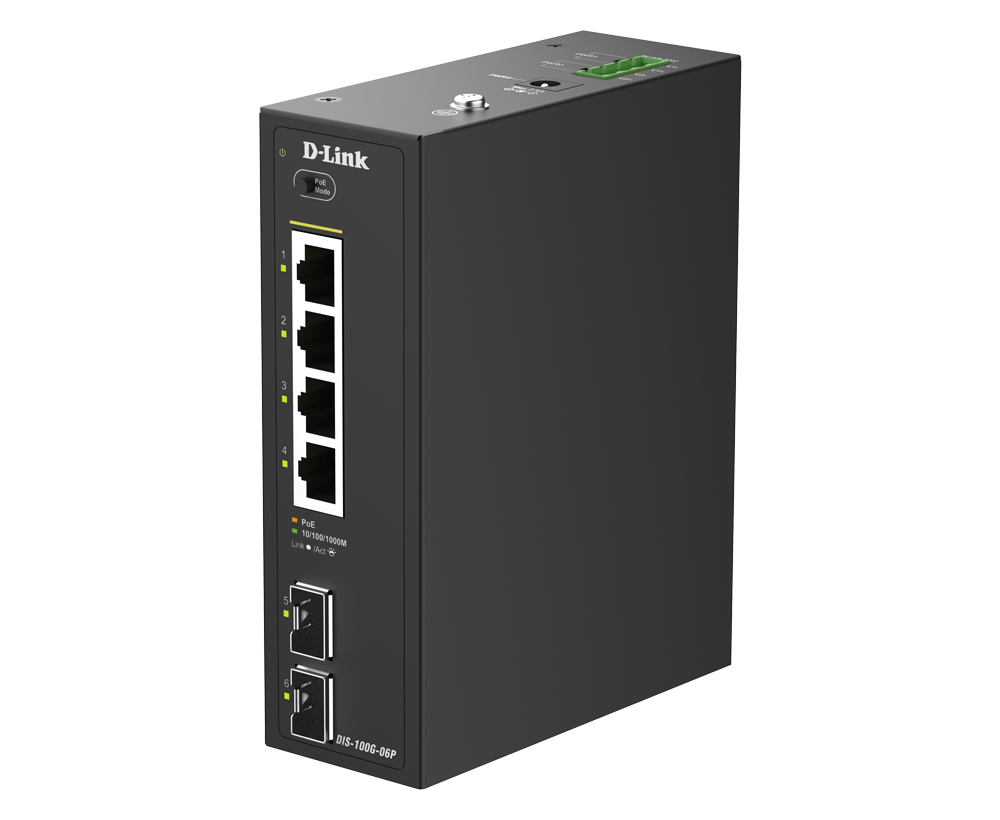

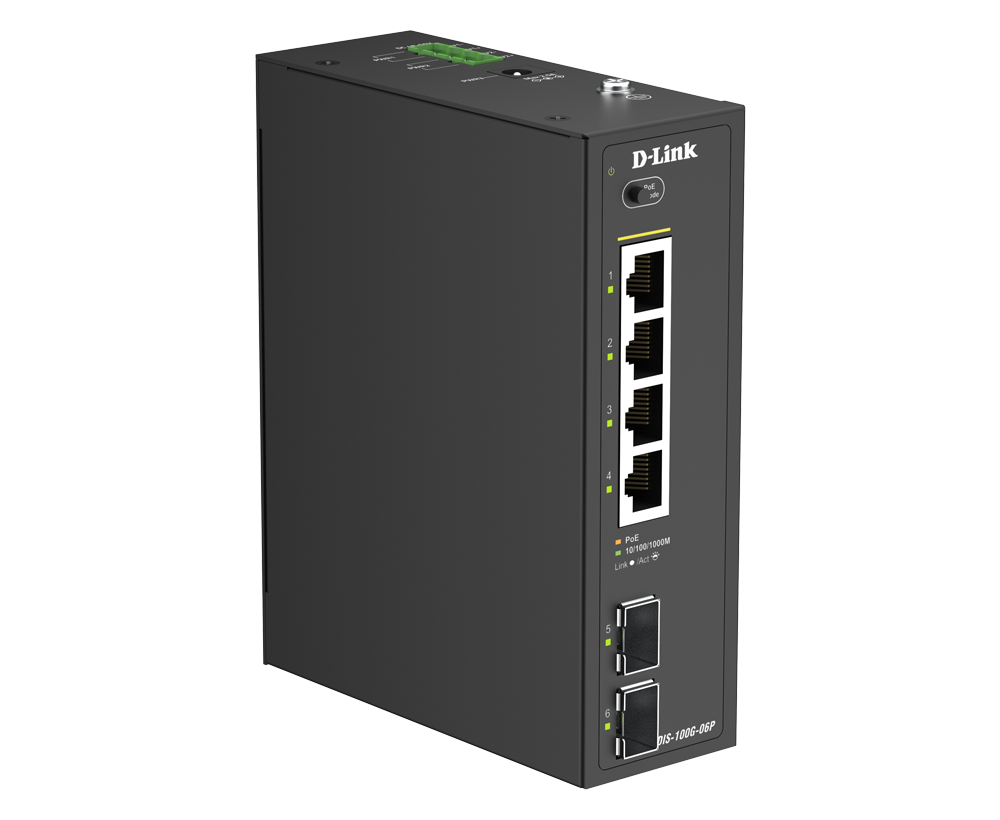

Switch PoE+ industrial de 4 puertos 1G + switch PoE no gestionado de 2 puertos 1G SFP
DIS-100G-6P
- Estado del producto (A1): Activo
- 4 puertos Gigabit PoE para una rápida transmisión de datos
- 2 puertos 1G SFP para una fácil expansión de la red
- PoE+ con hasta 370W PoE Budget y 740W con fuente RPS opcional
- Las entradas de alimentación dobles proporcionan redundancia de alimentación
- Amplio voltaje compatible con diversas fuentes de alimentación
- Funcionamiento de -40 °C a 75 °C para entornos adversos
- Protección contra sobretensiones de 6kV para puertos Gigabit Ethernet
- Instalación en carril DIN y plug-and-play simplificada
- El diseño sin ventilador y con clasificación IP40 mejora la fiabilidad
- Compatible con IEEE 802.3az Ethernet de bajo consumo (EEE)
Lista de puntos de venta
Fiber Interface
Offer high speed, low latency and long-distance transmission
Dual Power Input
Dual power supply redundancy minimizes downtime and boosts system reliability
6kV Surge Protection
6kV Surge Protection keeps all Ethernet ports unharmed from the surge
Industrial-Grade Durability
Corrosion-resistant steel casing and hardened components ensure reliable operation in harsh environments
Fanless
Fanless design reduces the risk of component failure impacting MTBF, reducing maintenance and downtime costs
Green Ethernet
Energy Efficient Ethernet (EEE) reduces power consumption, helps save cost, especially in always-on environments
High Power with PoE+
The DIS-100G-06P features four built-in PoE ports that comply with IEEE 802.3af/at standards, delivering both data and power over a single Ethernet cable. With a total power budget of up to 120W, each port can supply up to 30W, making it a great fit for powering devices such as surveillance cameras, IP phones, wireless access points, and IoT sensors. This simplifies installation, enables flexible device placement, and reduces the need for additional electrical infrastructure.
Connect Far, Transmit Fast
The DIS-100G-06P features two SFP ports that enable flexible, long-distance fiber connections, perfect for extending your network across remote sites or between buildings. Fiber optic cabling goes beyond the distance limitations of traditional Ethernet, offering high bandwidth and strong resistance to interference. This ensures stable, high-performance transmission in industrial environments where reliability is essential.

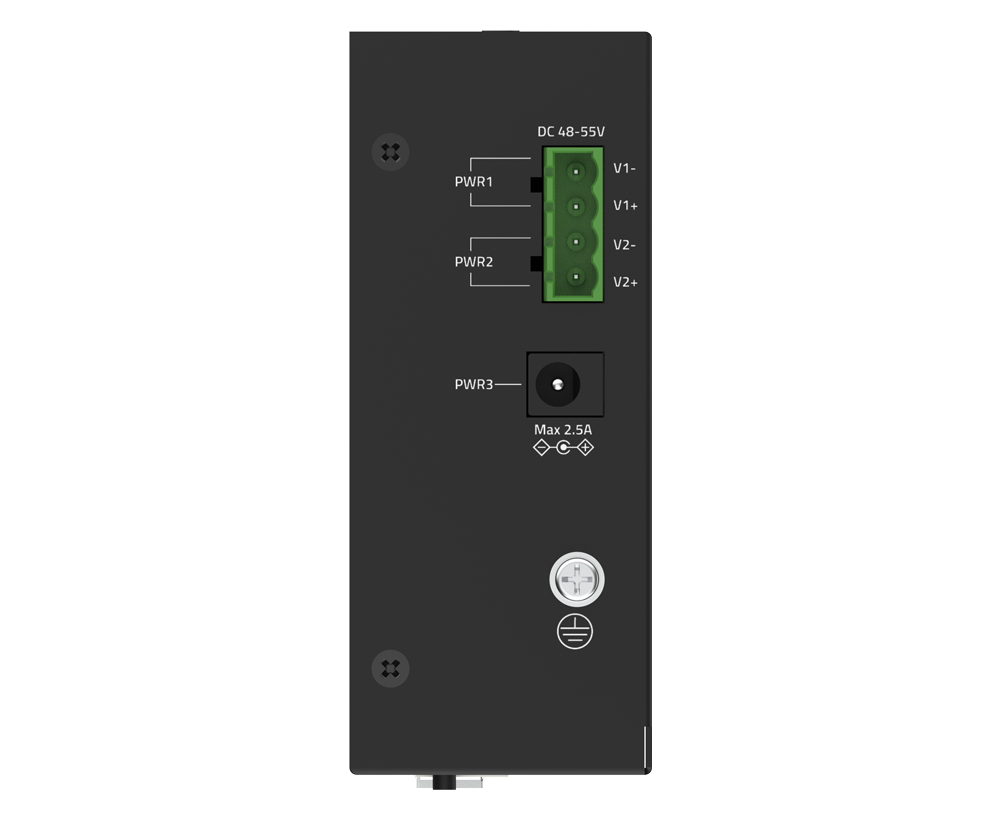

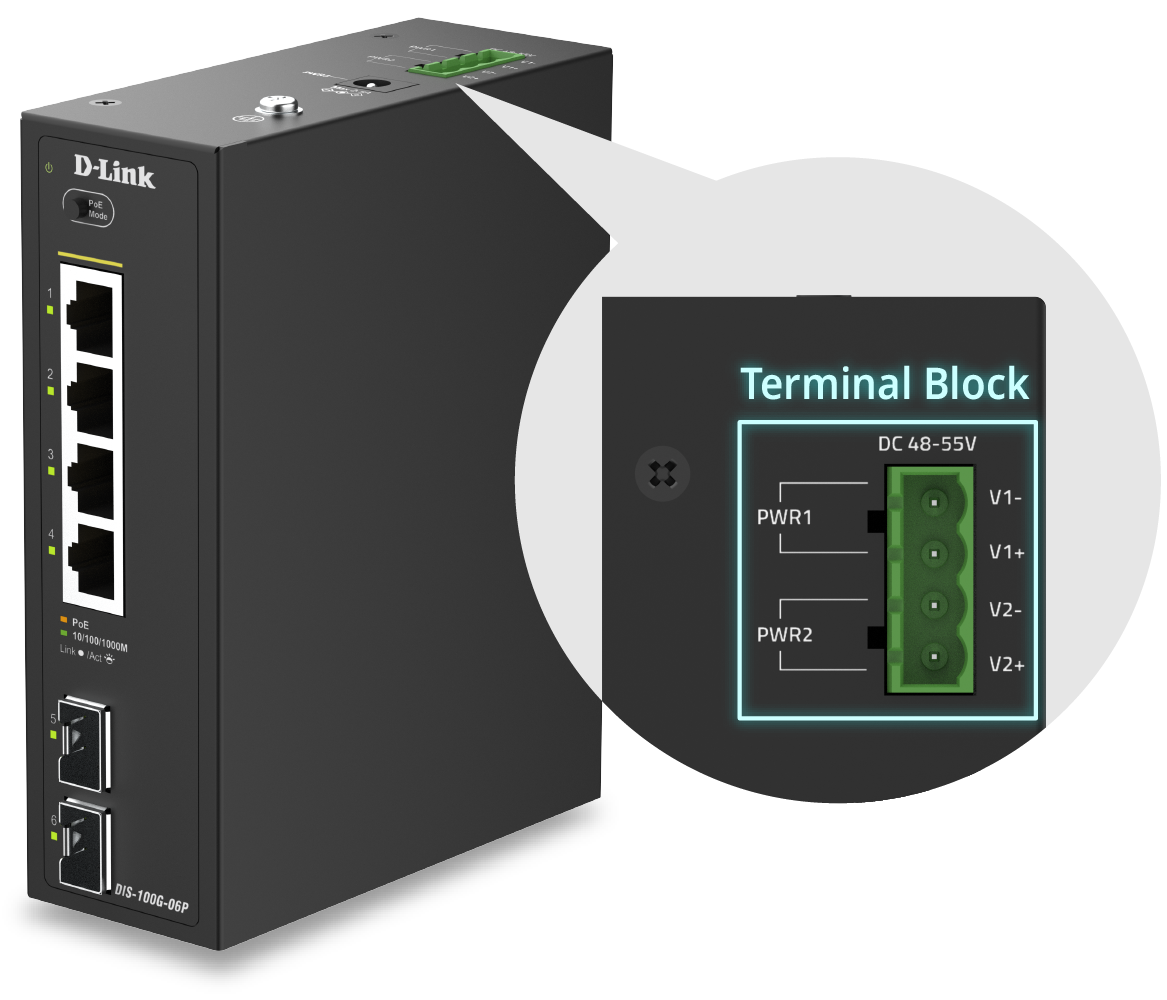

Uninterrupted Power Redundancy
The DIS-100G-06P is equipped with dual power supply options. Each is capable of independently powering the device. This built-in redundancy ensures continuous operation even if one power source fails, minimizing shutdown risk and maintaining network performance. As industrial environments are common with unstable power conditions, its wide voltage range of 48 - 55V DC supports diverse power sources while protecting against surges and low voltage, delivering a stable and dependable power supply.
Wide
Voltage
Redundancy Power Supply
Overcurrent Protection
Anti-Reverse Protection
Firm
Connection
Built Tough for Demanding Conditions
The DIS-100G-06P is built with a rugged, durable design ideal for harsh environments such as outdoor installations, unconditioned factory floors, and remote sites. With a wide operating temperature range of -40°C to 75°C, it ensures stable, and reliable performance even in extreme conditions. Its industrial-grade IP40-rated enclosure protects against dust and solid particles larger than 1mm, while the fanless design and 6kV surge protection on all Ethernet ports help reduce the risk of downtime and enhance long-term reliability.
Otros usuarios también vieron
Connection Diagram
The DIS-100G-06P is an industrial unmanaged switch equipped with four 1G PoE ports and two SFP ports, providing plug-and-play simplicity deployment. The SFP ports support long-range data transmission, removing the distance limitations of traditional Ethernet cabling. With reliable, high-performance operation, it's well-suited for edge deployments in applications like HD surveillance, wireless access points and more.
Business
Router
4G/5G M2M Router
Aggregation Switch
Industrial
Switch
Access
Point
Specs
|
Category
|
Unmanaged Industrial Switches |
|---|---|
|
Number of PoE Ports
|
4 |
|
PoE Power Budget
|
120W |
|
PoE Ports
|
802.3at |
|
Fanless
|
Supported
|
|
Installation
|
DIN-Rail |
|
Operating Temperature
|
-40°-75°C |
|
Surge Protection
|
6kV |
|
802.3az EEE
|
Supported
|
|
Jumbo Frame
|
9K |
|
Power Supply Type
|
DC:48~55V Dual input |
|
El rendimiento real puede variar en función de la configuración, el cableado, la temperatura, la configuración de la red, la interfaz, los dispositivos conectados, las condiciones ambientales y del lugar de instalación, y otros factores similares. Las referencias a la potencia, la velocidad de señal o de procesamiento, el alcance o la distancia de la señal, el cifrado de datos, la capacidad de almacenamiento, las propiedades de la pantalla u otras métricas de rendimiento se basan en condiciones óptimas derivadas de los estándares del sector y se proporcionan únicamente con fines informativos. Las especificaciones pueden estar sujetas a cambios sin previo aviso. |
|
