12-Port 2.5G Smart Managed Switch
DMS-1250-12
- Stato del prodotto (A1 v1.06): Live
- 8 Ports 2.5GE for downlink
- 2 x 10G SFP+ Ports and 2 x 10GE Ports for uplink
- 6kV surge protection on all 2.5G ethernet ports
- Support LACP 802.3ad Link Aggregation
- Support Static Routing
- Support Loopback Detection
- Support Spanning Tree Protocol(STP/RSTP/MSTP)
- AAA support for RADIUS/TACACS+
- Support D-Link Safeguard Engine
- Manage through the Nuclias Network Controller
Elenco negozi
User Benefits
Connettività flessibile
Supporta un'ampia gamma di interfacce fisiche per connessioni di rete complete.
Controllo senza interruzioni
L'interfaccia web intuitiva consente un controllo di rete efficiente e personalizzato
Maggiore sicurezza
Supporta funzioni versatili per aumentare la sicurezza della rete
Soluzione conveniente
Offre funzionalità avanzate e potenza di rete a un prezzo accessibile.
2.5G Speeds: Built for Wi-Fi 6 and Beyond

6 kV Surge Protection for All Ethernet Ports
The DMS-1250 Series switches offer enhanced 6kV surge protection on all 2.5-Gigabit Ethernet access ports, ensuring that your network remains resilient and that your devices stay safe from electrical surges.

Support L2+ Features
The DMS-1250 Series switches offer a comprehensive set of Layer 2+ capabilities, including:
- GVRP
- ISM VLAN
- VLAN Translation
- Double VLAN (Q-in-Q)
- Spanning Tree Protocol (STP/MSTP/RSTP)
- Link Aggregation Control Protocol (LACP)
- IGMP and MLD Snooping

Nuclias Network Controller
Prodotti correlati

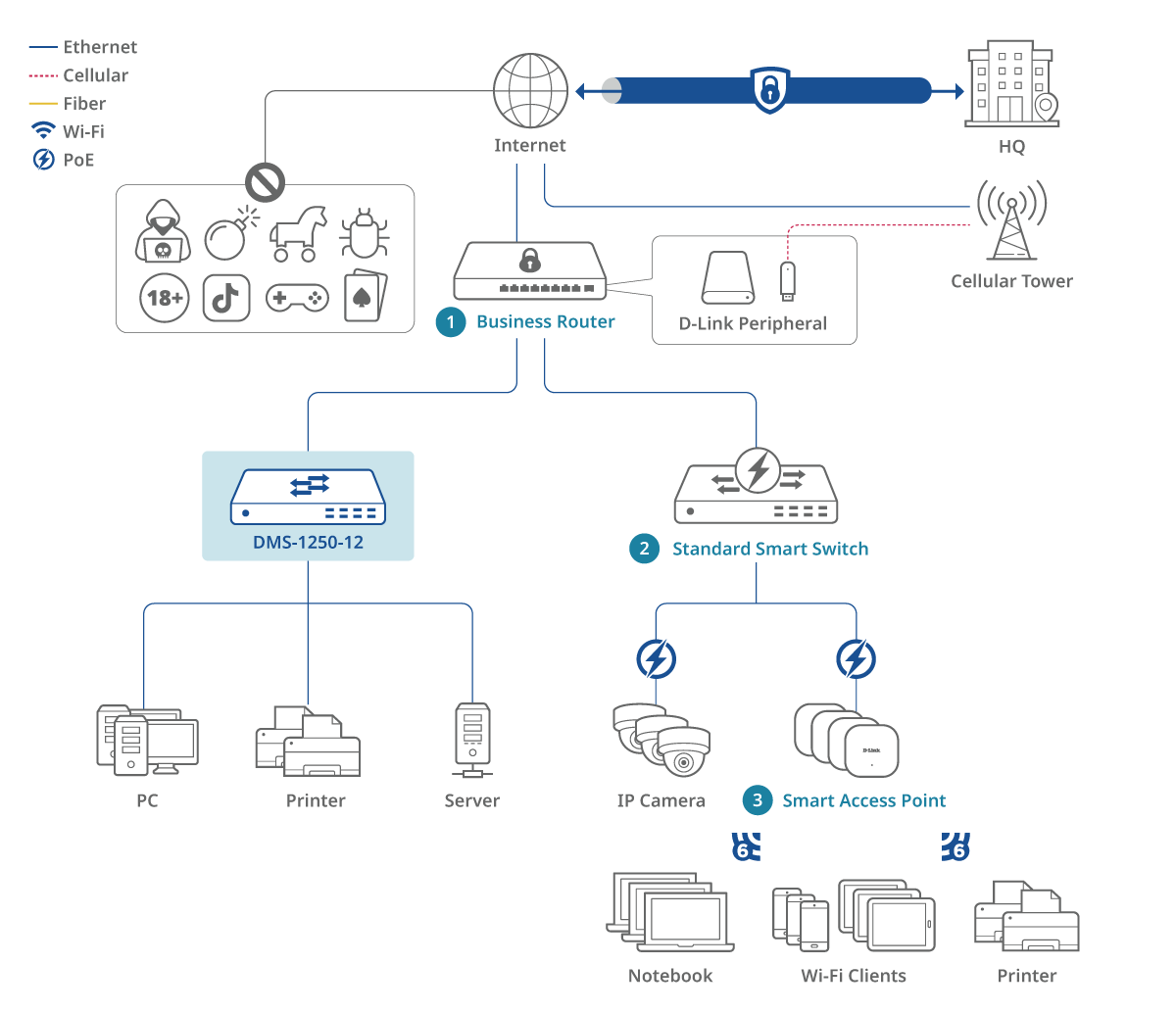

Startup Office (Enterprise)
User benefits :
- Simplify network deployment and management
- Enhances performance for Wi-Fi AP backhaul
- Enables future-proof network upgrades
- Compact and fanless design for quiet operation
Learn more :
- Business Router : DBR-700
- Standard Smart Switch : DMS-1250 Series
- Smart Access Point : DBR-X3000-AP

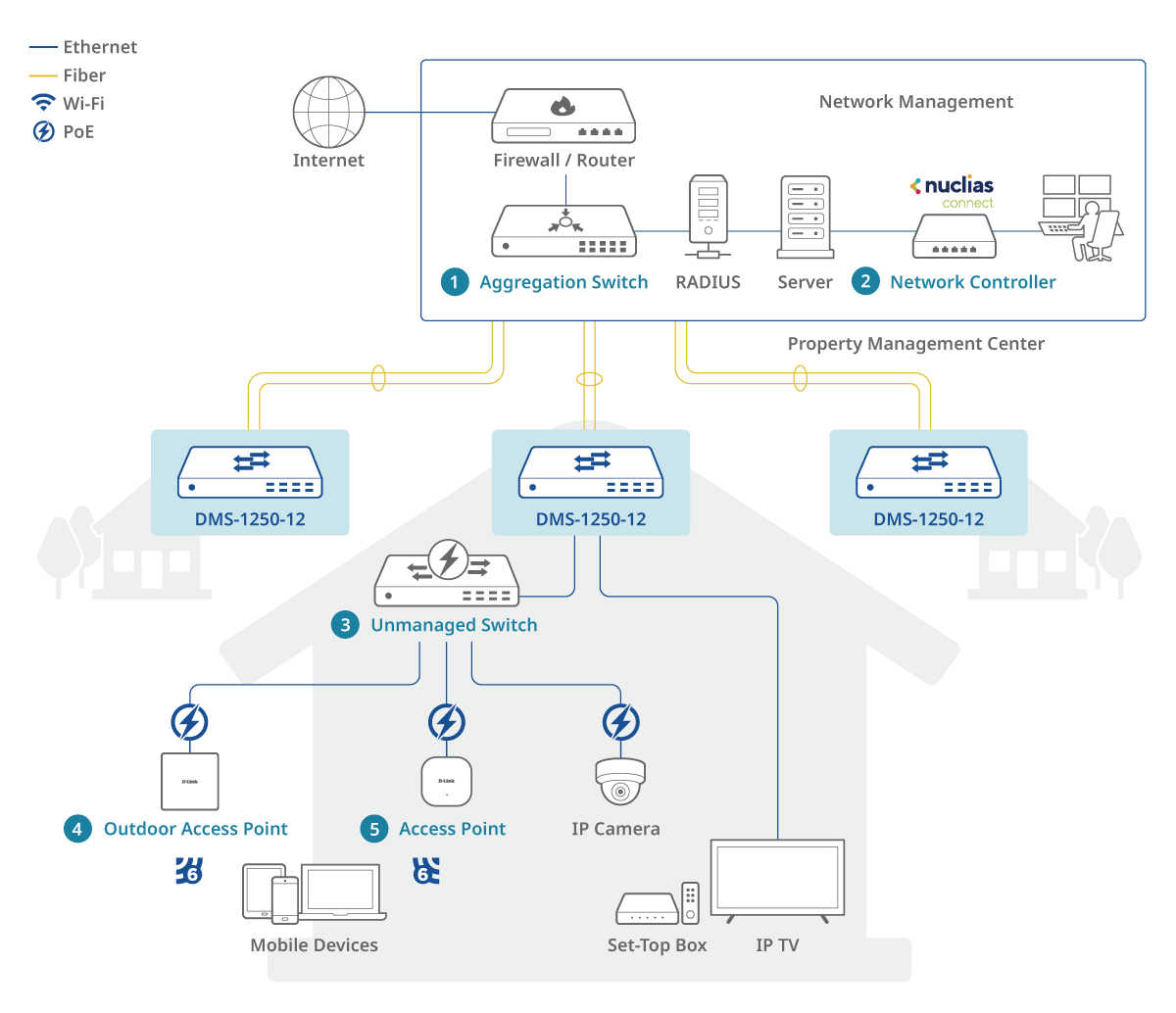

Dormitory (Building)
- Smooth 4K streaming and online gaming
- Handles high device density with ease
- Prevents network disruption with loopback detection
- Simplify network management with intuitive tools
Learn more :
- Aggregation Swtich : DXS-3130-32S ( Coming Soon )
- Network Controller : DNH-1000
- Unmanaged Switch : DMS-108P
Outdoor Access Point : DAP-X3060OU
Access Point : DAP-X3060

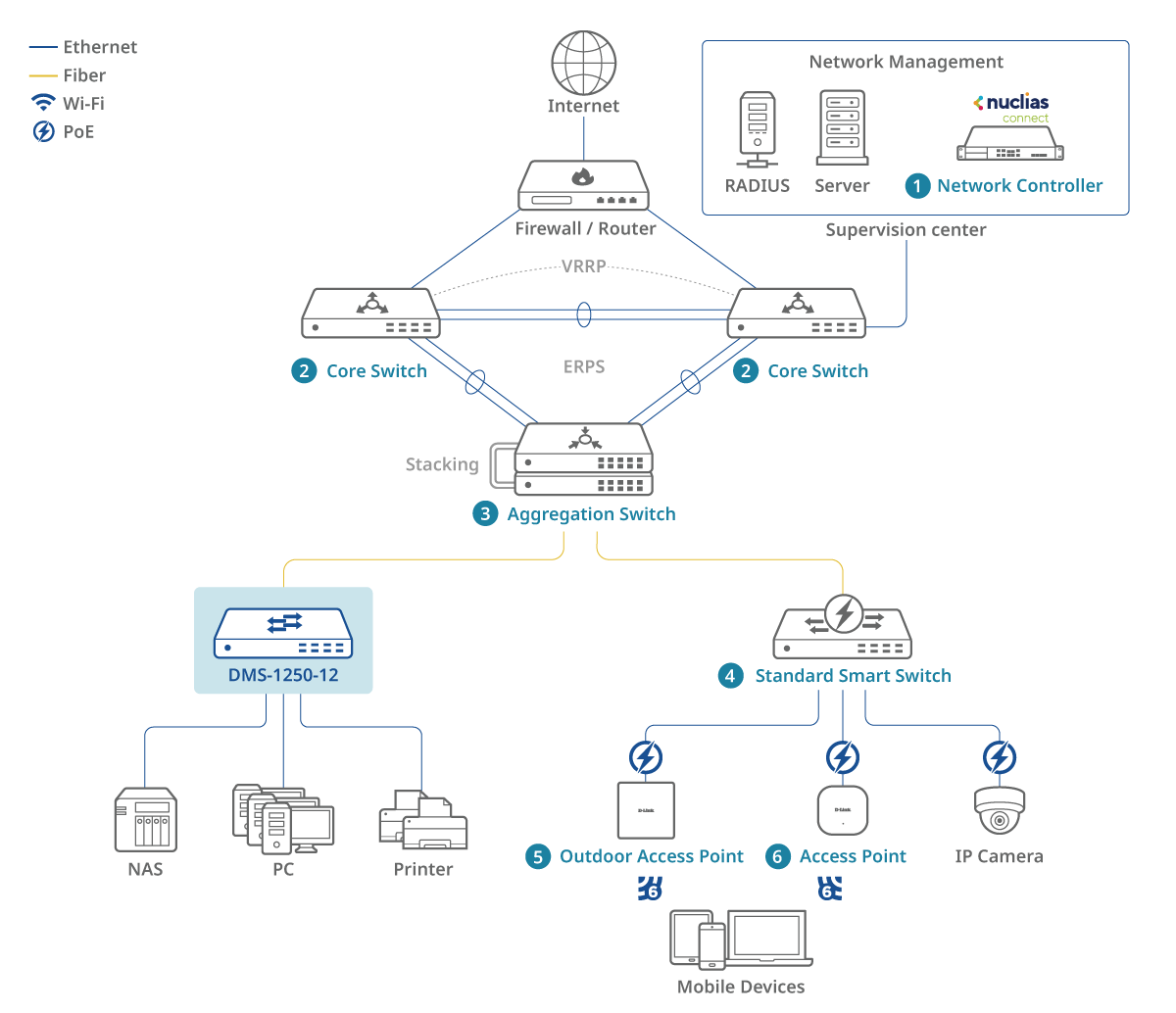

Transnational University (Education)
User benefits :
- Secure network access with 802.1X authentication
- Enhances network stability with STP and secure access via AAA
- Simplify network expansion with 10G uplinks
- Centralized management for efficient control
Learn more :
- Network Controller : DNH-3000
- Core Switch : DXS-3610-54S
- Aggregation Switch : DXS-3130-32S ( Coming Soon )
Standard Smart Switch : DMS-1250 Series
Outdoor Access Point : DAP-X3060OU
Access Point : DAP-X3060

Specifiche tecniche
|
Interfaces
|
8 x 2.5GE 2 x 10GE 2 x 10G SFP+ |
|---|---|
|
Switching Capacity
|
120Gbps |
|
Max. Packet Forwarding Rate
|
89.29 Mpps |
|
Max Power Consumption
|
23.023W |
|
Dimensions
|
440 x 210 x 44 mm |
|
Weight
|
2.58 kg (5.68 lbs) |
|
Surge Protection
|
IEEE61000-4-5 surge protection compliance 6kV surge protection on all 2.5-Gigabit Ethernet ports |
|
FAN
|
2 Internal Fans |
|
Operating Temperature
|
-5 to 50°C (23 to 122°F) |
|
Storage Temperature
|
-20˚C to 70˚C (-4˚F to 158˚F) |
|
Operating Humidity
|
0% to 95% relative humidity |
|
Storage Humidity
|
0% to 95% relative humidity |
|
Console Port
|
Supported
|
|
Power Supply Type
|
Internal |
|
Le prestazioni effettive possono variare in base alle impostazioni, al cablaggio, alla temperatura, alla configurazione della rete, all’interfaccia, alla compatibilità dei dispositivi, alle condizioni ambientali e operative in loco e ad altri fattori simili. I riferimenti alla capacità di alimentazione, alla velocità del segnale o di elaborazione, alla portata o distanza del segnale, alla cifratura dei dati, alla capacità di archiviazione, alle proprietà del display o ad altri parametri prestazionali si basano su condizioni ottimali derivate da standard del settore e sono forniti esclusivamente a scopo informativo. Le specifiche possono essere soggette a modifiche senza preavviso. |
|
