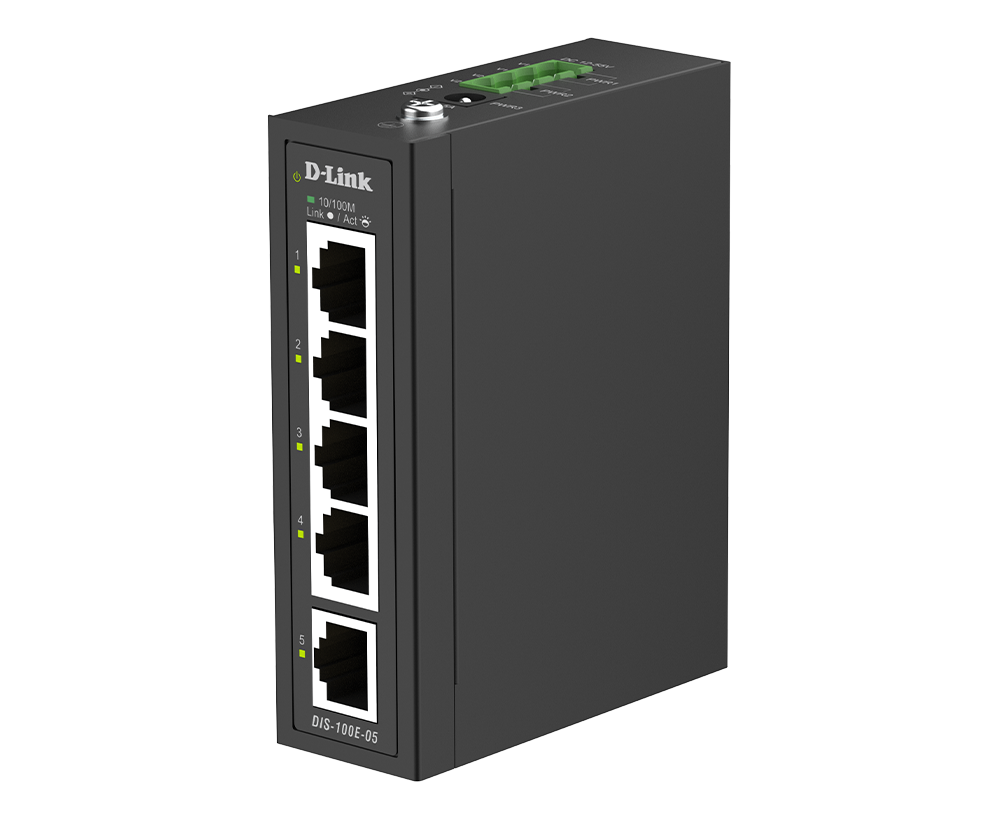

Switch industriale non gestito 5 porte Fast Ethernet
DIS-100E-05
- Stato del prodotto (A1): Live
- 5 porte Fast Ethernet per prestazioni efficienti
- Doppi ingressi di alimentazione per garantire la ridondanza
- Ampio intervallo di tensione compatibile con diverse fonti di alimentazione
- Funzionamento da -40 °C a 75 °C per ambienti difficili
- Protezione da sovratensioni da 6 kV sulle porte Fast Ethernet
- Montaggio su guida DIN per un’installazione efficiente e flessibile
- Il design senza ventola riduce le necessità di manutenzione
- L'involucro IP40 protegge da piccoli oggetti
- Plug-and-play senza necessità di configurazione
- Supporta lo standard IEEE 802.3az Energy-Efficient Ethernet (EEE)
Elenco negozi
Plug and Play
Simply plug in and go with no configuration required, making setup effortless
Dual Power Input
Dual power supply redundancy minimises downtime and boosts system reliability
6kV Surge Protection
6kV Surge Protection keeps all Ethernet ports unharmed from the surge
Industrial-Grade Durability
Corrosion-resistant steel casing and hardened components ensure reliable operation in harsh environments
Fanless
Fanless design reduces the risk of component failure impacting MTBF, reducing maintenance and downtime costs
Green Ethernet
Energy Efficient Ethernet (EEE) reduces power consumption, helps save cost, especially in always-on environments
Uninterrupted Power Redundancy
The DIS-100E-05 is equipped with dual power supply options. Each is capable of independently powering the device. This built-in redundancy ensures continuous operation even if one power source fails, minimizing shutdown risk and maintaining network performance. As industrial environments are common with unstable power conditions, its wide voltage range of 12 – 55V DC supports diverse power sources while protecting against surges and low voltage, delivering a stable and dependable power supply.
Built Tough for Demanding Conditions
The DIS-100E-05 is built with a rugged, durable design ideal for harsh environments such as outdoor installations, unconditioned factory floors, and remote sites. With a wide operating temperature range of -40°C to 75°C, it ensures stable and reliable performance even in extreme conditions. Its industrial-grade IP40-rated enclosure protects against dust and solid particles larger than 1mm, while the 6kV surge protection on all Ethernet ports helps reduce the risk of downtime and enhances long-term reliability.
Wide
Voltage
Redundancy Power Supply
Overcurrent Protection
Anti-Reverse Protection
Firm
Connection
Save Power, Stay Reliable
Engineered for energy efficiency, the DIS-100E-05 features a fanless design and supports Energy-Efficient Ethernet (EEE), enhancing overall reliability. The fanless design ensures silent operation, reduces potential points of failure to cuts down on maintenance. EEE further lowers power consumption during periods of low network activity, helping reduce long-term energy costs. Together, these features make the DIS-100E-05 a dependable, low-maintenance solution for continuous industrial use.
Efficient and Flexible Deployment
The DIS-100E-05 offers true plug-and-play simplicity, just connect the cables and power it up, with no configuration required. It’s an effortless way to quickly and efficiently set up a network, making it ideal for a wide range of field applications. Its compact size and supports DIN-rail mounting, saving space and allowing for easy, organized installation within industrial control cabinets, fit seamlessly into any industrial equipment infrastructure.
Prodotti correlati
Connection Diagram
The DIS-100E-05 is an industrial unmanaged switch equipped with five Fast Ethernet ports, providing cost-effective plug-and-play connectivity. With reliable, high-performance operation, it ensures real-time data transfer and seamless connectivity for applications such as Kiosk, digital signage, LED displays, and more.
Business
Router
4G/5G M2M Router
Aggregation Switch
Industrial
Switch
Access
Point
Specifiche tecniche
|
Category
|
Unmanaged Industrial Switches |
|---|---|
|
Fanless
|
Supported
|
|
Installation
|
DIN-Rail |
|
Operating Temperature
|
-40°-75°C |
|
Surge Protection
|
6kV |
|
802.3az EEE
|
Supported
|
|
Jumbo Frame
|
1.5K |
|
Power Supply Type
|
DC:12~55V Dual input |
|
Le prestazioni effettive possono variare in base alle impostazioni, al cablaggio, alla temperatura, alla configurazione della rete, all’interfaccia, alla compatibilità dei dispositivi, alle condizioni ambientali e operative in loco e ad altri fattori simili. I riferimenti alla capacità di alimentazione, alla velocità del segnale o di elaborazione, alla portata o distanza del segnale, alla cifratura dei dati, alla capacità di archiviazione, alle proprietà del display o ad altri parametri prestazionali si basano su condizioni ottimali derivate da standard del settore e sono forniti esclusivamente a scopo informativo. Le specifiche possono essere soggette a modifiche senza preavviso. |
|
