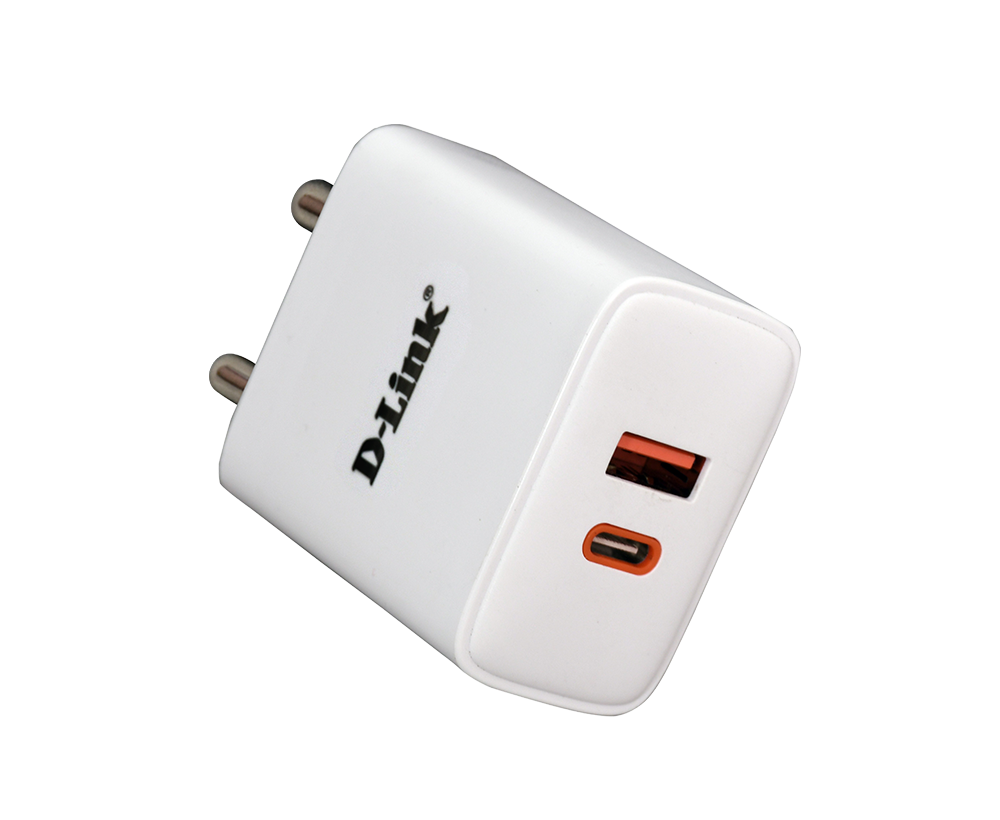

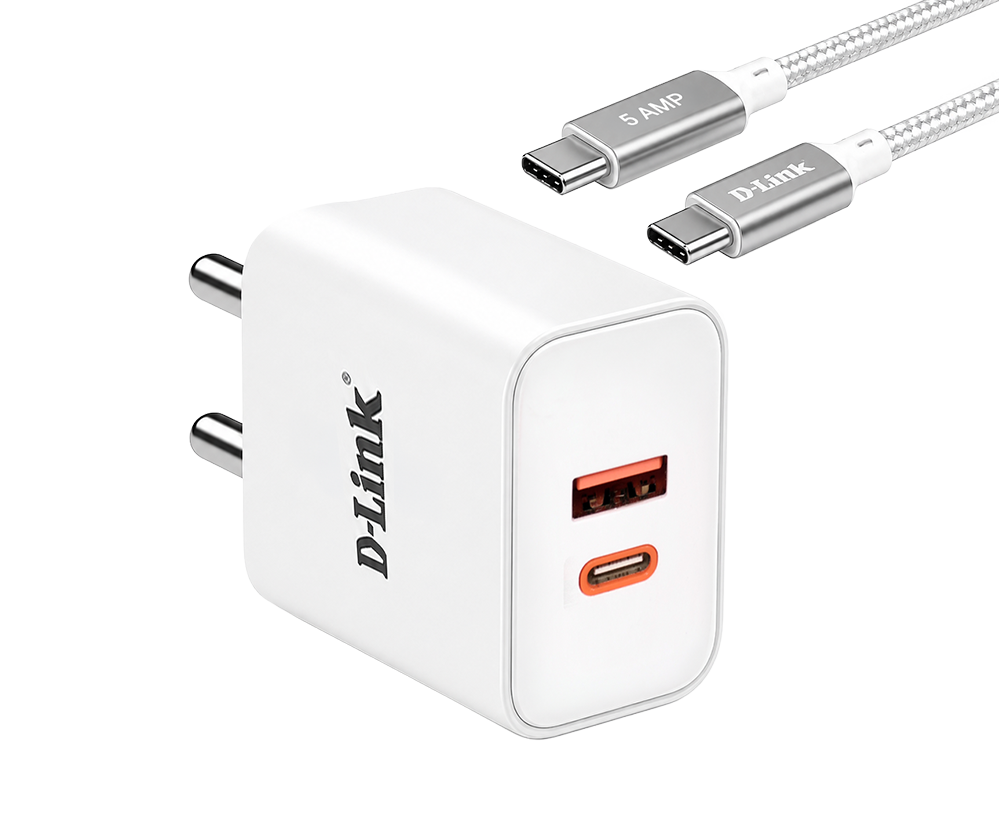

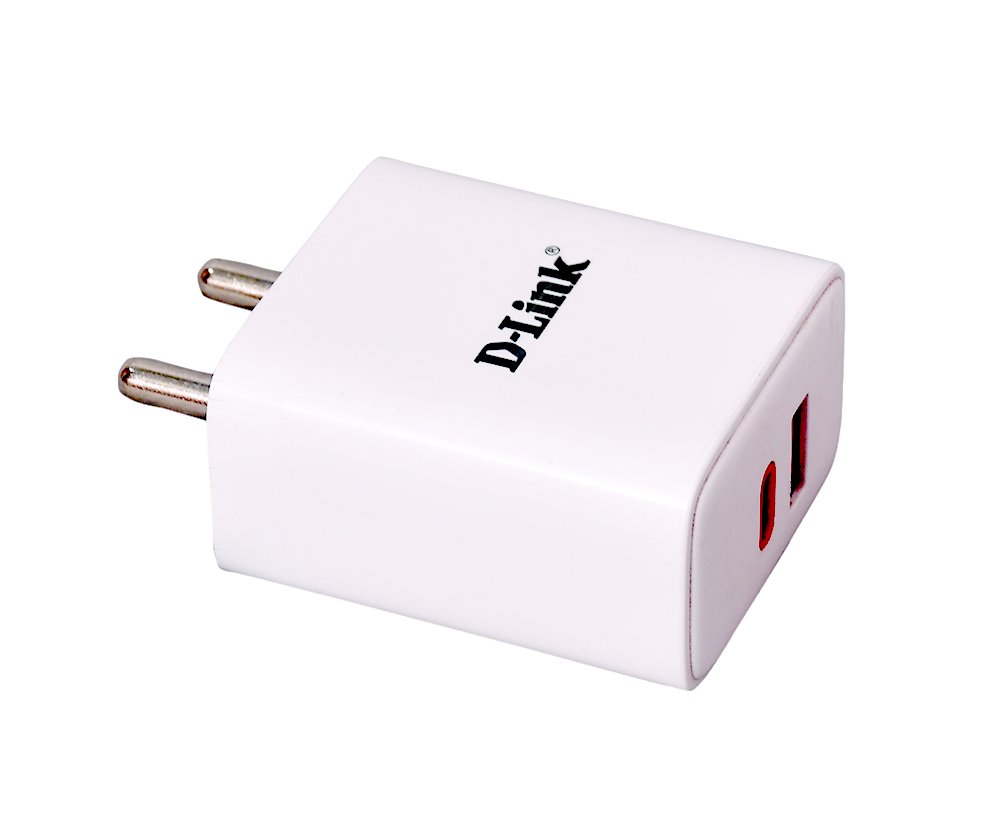

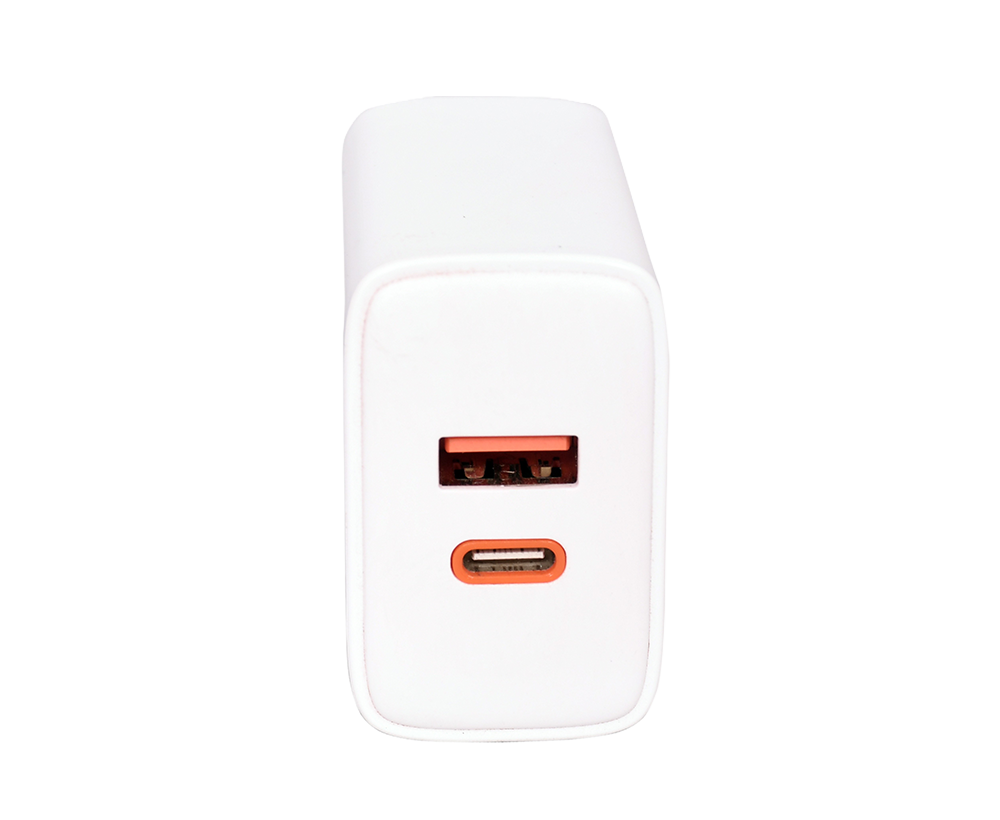

DPA-F6511 is a Power Delivery and Quick Charge Fast charging adapter. This device has one USB C port and one USB-A port for charging. It can provide up to 65W output for charging Laptop and mobile devices. Fast charging is compatible with PD and QC compatible devices.
This is an extremely useful adapter with very compact size & easy to carry.
| Model No | DPA-F6511 |
|---|---|
| Connector Type | Type C + Type A |
| Input Voltage | 100-265V (AC) 50-60Hz |
| Type C Output | DC5V/3A, 9V/3A,12V/3A, 15V/3A, 20V/3.25A |
| Type A Output | DC5V/3A, 9V/2A,12V/3A |
| Protection | Over Current Protection, Short Circuit Protection, Over Temperature Protection, Output Over Voltage Protection |
| Storage Temperature | -10% to 60°C |
| Supported Charging Protocols | USB-A Port Apple2.4A, Samsung-5V-2A QC3.0-3.6V-15.8V DCP-1.5A QC2.0-9V-12V-20V Samsung-AFC-9V Huawei-FCP-9V-12V-24.0W USB-C Port Apple2.4A, Samsung-5V-2A QC3.0-3.6V-15.6V DCP-1.5A QC2.0-9V-12V-20V QC4+ Samsung-AFC-9V Huawei -FCP-9V-12V-24.0W PD3.0 PPS 45W |
| Max. Wattage | 65Watts (Max) |
| Operating Temperature | -18°C to 45°C |
| Weight | 85 grams |
| Compliance of Standards | BIS |
| Dimension | 54.50 X 46.80X 28.80 mm |
