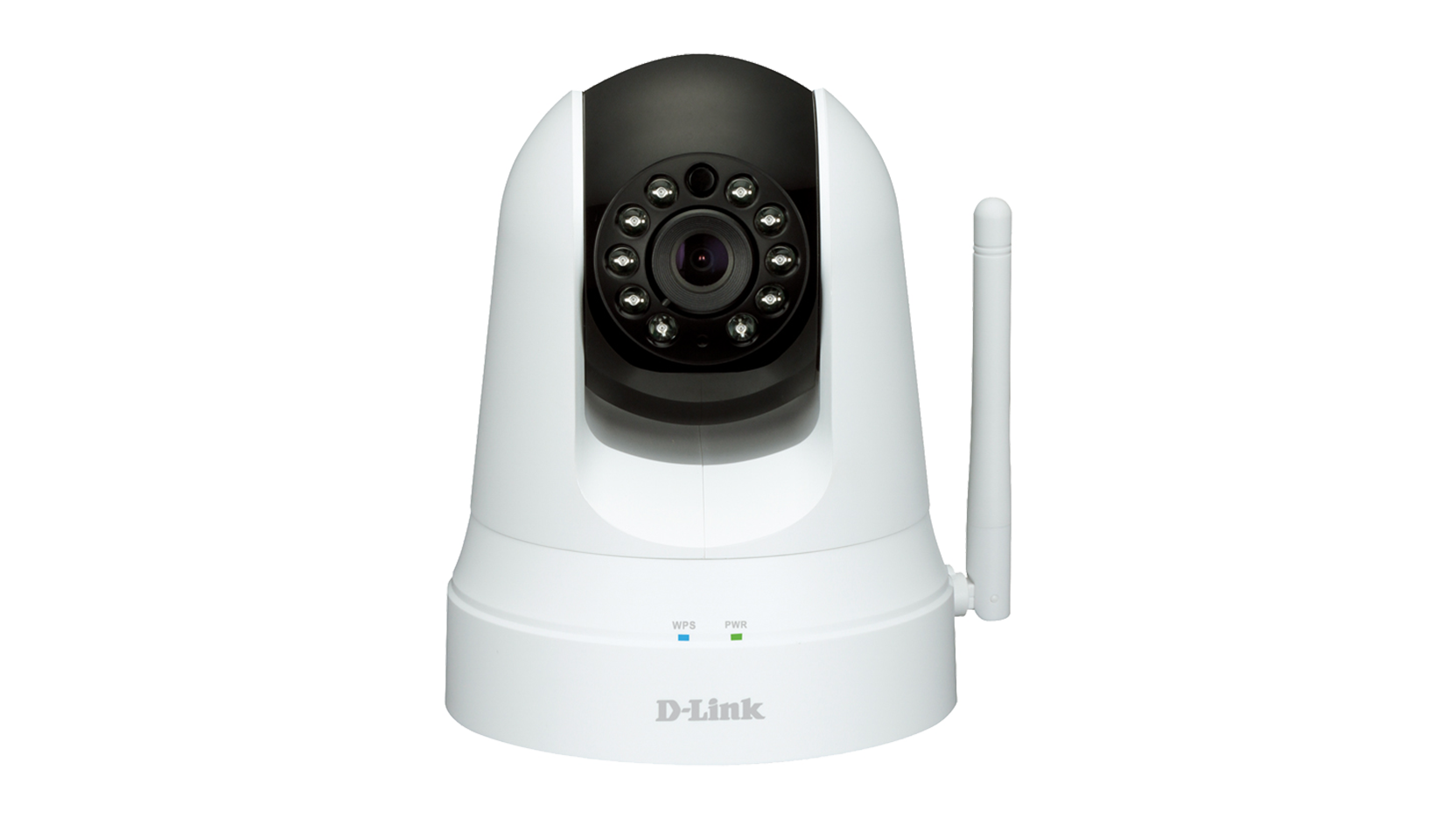

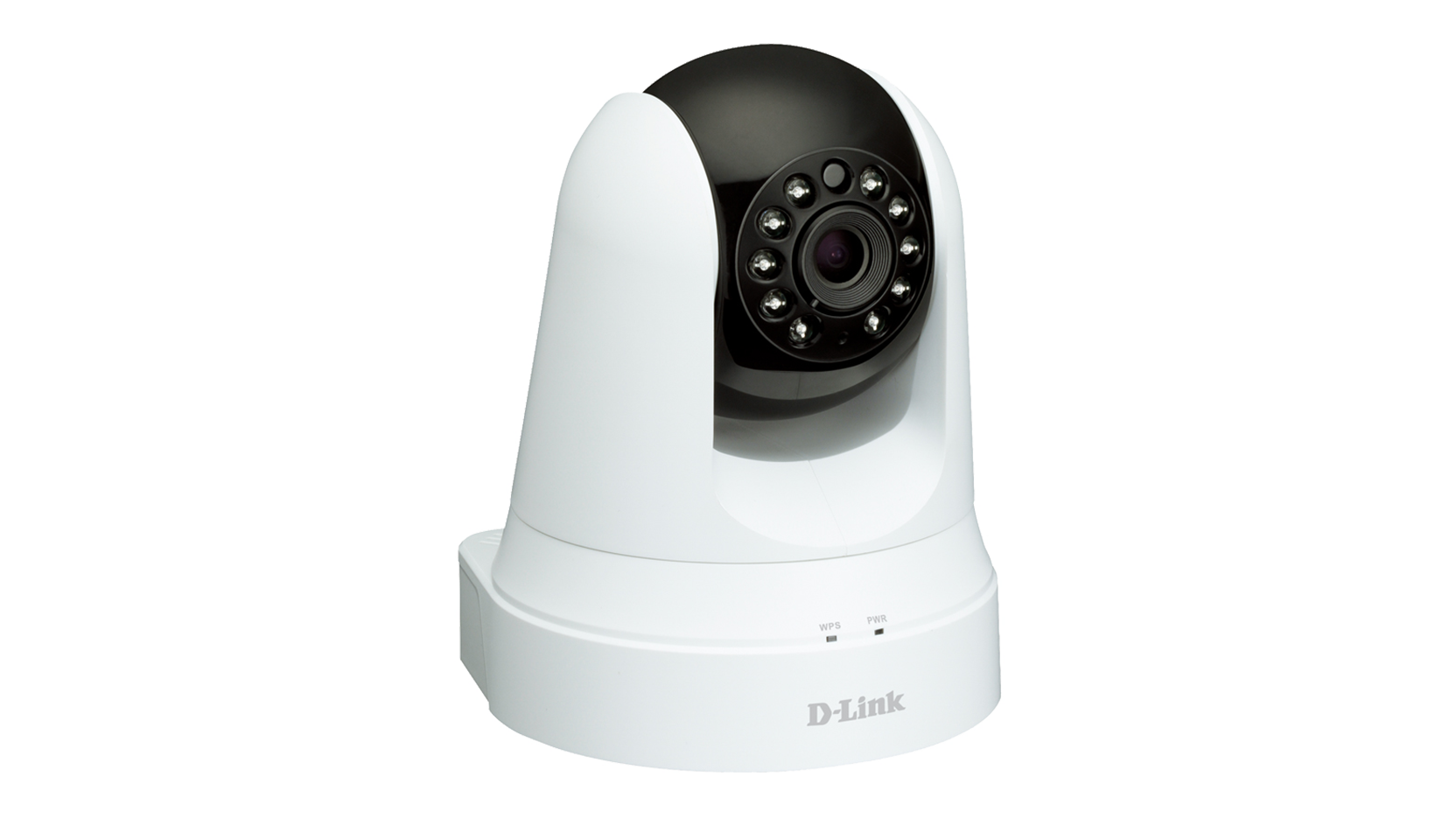

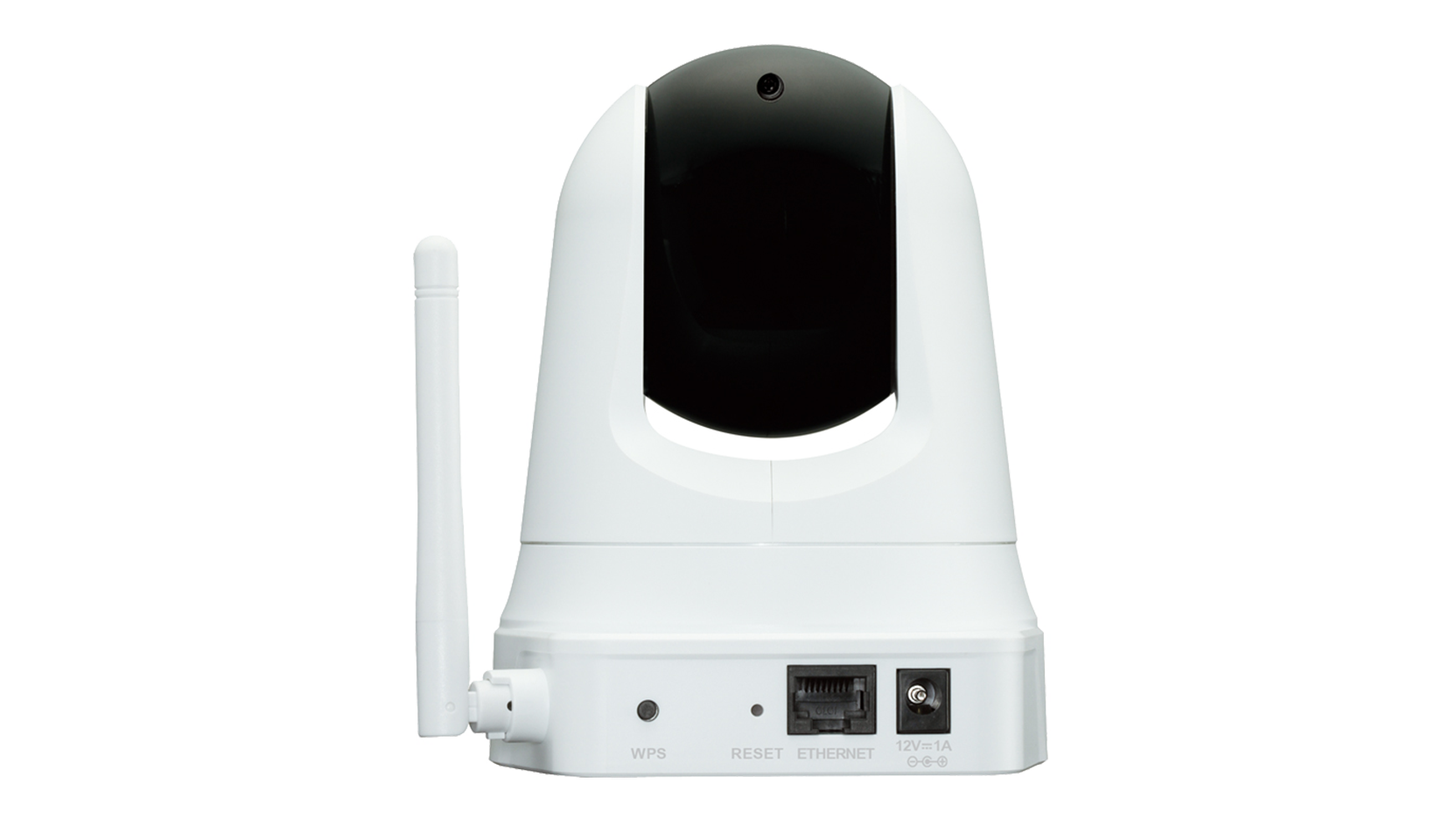

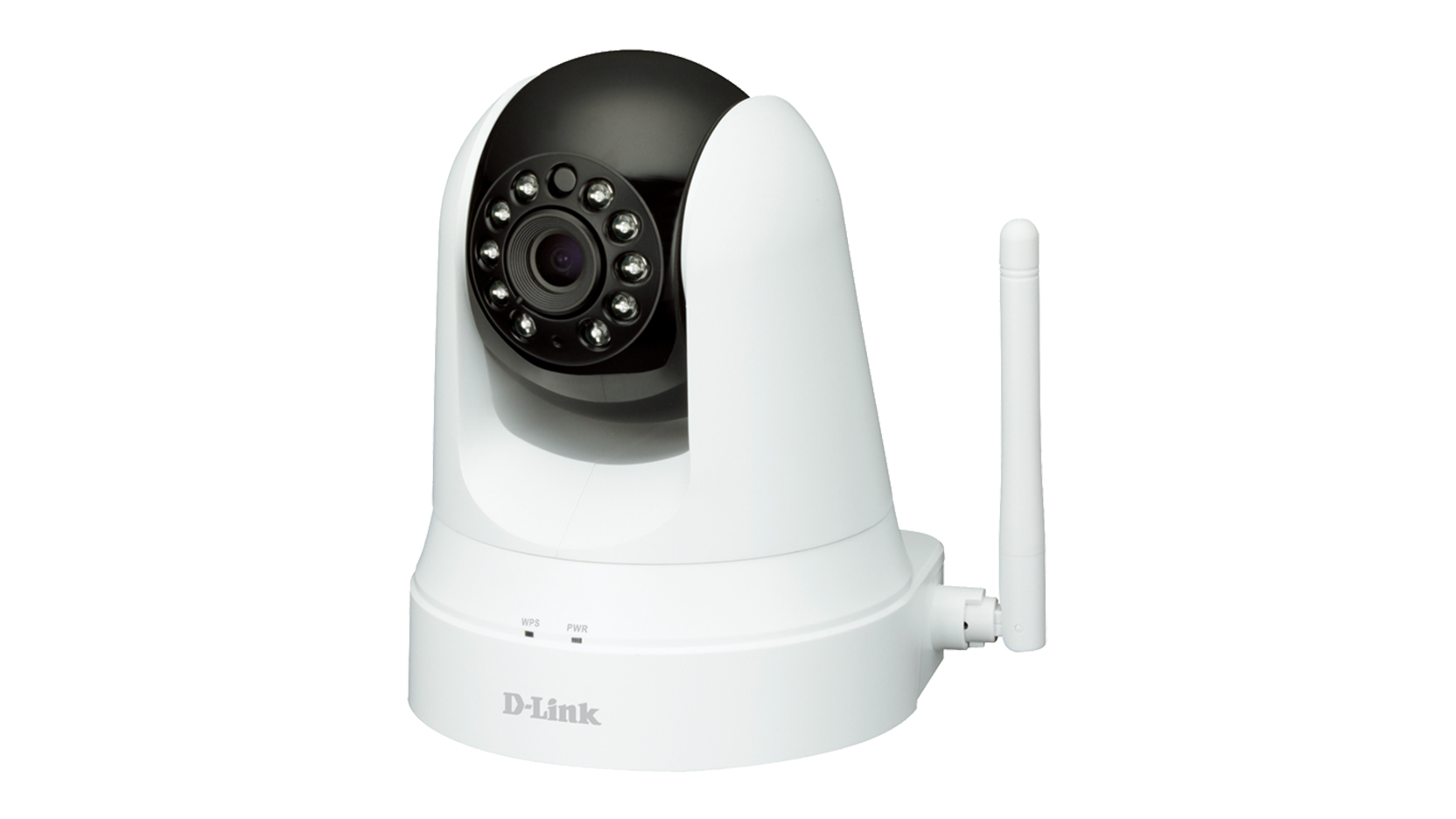

Wireless N Day & Night Pan/Tilt Cloud Camera

DCS-5020L

  • Termék Státusz: End of Life

The perfect angle, at your fingertips.

The DCS-5020L Wireless N Day & Night Pan/Tilt Cloud Camera easily connects to your existing home network for remote viewing on a range of mobile devices. It features pan, tilt and digital zoom function to allow you to see a wider area with a single camera.

Wireless N Connectivity And Extender

Not only can the DCS-5020L connect to your wireless via your WPS-enabled router with a single press of a button, the extender mode can extend the range of your existing wireless network. This eliminates wireless dead spots to give you a more complete wireless coverage.

Built-in Wi-Fi extender to effortlessly expand your wireless coverage, night vision up to 8 metres, sound and motion detection for the ultimate in peace of mind, and H.264 video compression for a high-quality image. And with its wireless connectivity, you can place your camera almost anywhere in your home to keep an eye on the things you love most.

24/7 Day And Night Monitoring

The DCS-5020L is a standalone surveillance camera that can run without the need of a computer and requires no special hardware or software. When connected to the Internet, the DCS-5020L can send e-mail notifications with snapshots or video clips whenever motion or sound is detected. You can choose areas of interest for motion detection or set the sound volume level for when you want to be alerted. Night time monitoring is possible with the built-in infrared LEDs which allow for night time viewing of up to 8 metres, enabling round-the-clock monitoring, even in complete darkness.

Sharp Image Monitoring from Different Angles

By providing you with sharp, responsive pan/tilt movement and digital zoom, the Wireless N Day & Night Pan/Tilt Cloud Camera gives you full control. You can quickly scan a wide area from a variety of angles, and 4x digital zoom lets you zoom in on specific areas for more detail. The DCS-5020L can also be set to move to specific preset positions, allowing the camera to focus on particular areas of interest within the surveillance area.

Indoor/outdoor
Indoor
Connectivity
Wired
Wireless
Resolution
VGA 0.3 megapixel
Image sensor
1.5" VGA progressive scan CMOS
Maximum Video Resolution
640 x 480 (other)
Lens
2.2 mm
F2.0
Infrared-Cut Removable Filter
Supported
Night vision
Supported
Night vision range
8 m
Motorised Pan/Tilt
Supported
Built-in Microphone
Supported
Built-in Wireless extender
Supported
App Support
mydlink
Video Format
H.264
MJPEG
Multi-Stream
Supported
Mobile Stream
Supported
Digital Zoom
4x
Motion Detection
Supported
Sound Detection
Supported
E-mail Notification
Supported
This product was phased out on: 07/11/2018
This product's last date of support is on: 06/11/2020
