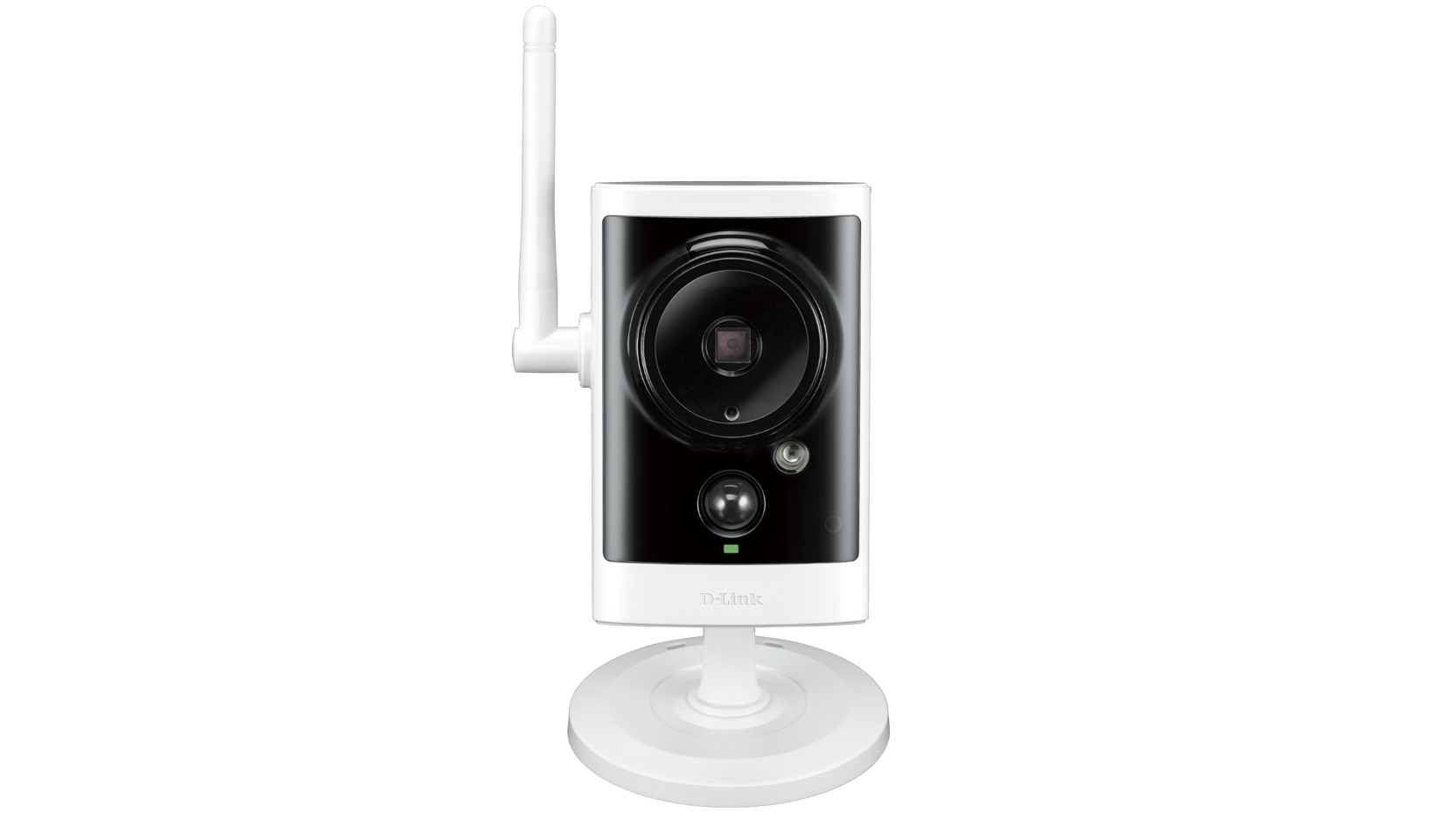

The DCS-2330L HD Wireless N Day/Night Outdoor Cloud Camera is the perfect solution for monitoring an outdoor area 24 hours a day from anywhere. This mydlink™-enabled network camera is built to last with rugged metal housing, while the megapixel image sensor and infrared night vision give you high-quality resolutions up to 720p HD - even in complete darkness.
24/7 HD Surveillance
The DCS-2330L is built with a megapixel image sensor to give you high-quality snapshots and video with resolutions up to 720p HD1. This gives you sharp, high-resolution snapshots and videos with rich detail, so you can capture important details often missed by lower resolution cameras. Get a closer look with ePTZ, which lets you zoom in, zoom out, and pan across your camera’s video so you can survey a large area easily.
An infrared cut removable (ICR) filter is also built into the DCS-2330L, which blocks infrared light during the day for improved image quality. At night, it moves out of the way to use all available light for low-light surveillance, and paired with the IR LED illuminator, this camera can monitor an area even in complete darkness.
mydlink™: the easiest way to setup up your camera and monitor your home
Connecting a camera on your network and accessing it has traditionally required complex configuration. mydlink™ makes it easy to access your camera from wherever you are, whenever it’s convenient for you. Using the free mydlink™ Lite app for iOS and Android smartphones and tablets, you can connect and setup your mydlink™ camera without turning on a computer. A step-by-step guide has your camera up and running in a matter of minutes. Through the mydlink™ Lite app, you can set up a free mydlink™ account which allows you to view and manage your camera from any Internet connected device. If you have more than one camera, you can add it to your existing mydlink™ account and watch all your cameras from a single location.
Accessing your cameras on the go is easy too. Just download the free mydlink™ Lite app for your iPhone or Android device and you can quickly and easily view your camera feed from anywhere with a wireless or 3G/4G LTE connection. You can even access videos recorded onto the included SD card. Thanks to this app, you can monitor on-the-go even if you don’t have access to a computer.
If you have a mydlink™-enabled Cloud Router, setting up and configuring your DCS-2330L is easy, thanks to Zero Configuration. Simply connect your camera to its power adapter and then connect your camera to your Cloud Router with an Ethernet cable - the camera will automatically be added to your account.
Click here to find out more about mydlink™
Built for the Outdoors
Built for outdoor use, the DCS-2330L has an IP65 weatherproof housing that protects it from the elements. Wireless N connectivity means you can put it anywhere within range of your wireless network, giving you the freedom to install it right where you need camera coverage. A passive infrared (PIR) motion sensor provides enhanced motion detection to minimise false alarms.
A Complete, Expandable Surveillance Solution
This mydlink™ camera includes a MicroSD card slot and a pre-installed 16Gb MicroSD card to record audio and video directly onto the camera, without the need of a computer. You can setup the camera to record only when motion is detected for up to 7 days2 via the camera’s intuitive web interface. Once the MicroSD card is at full capacity, older footage will be recorded over. The camera can also send e-mail alerts whenever motion is detected. All these features can be easily configured via the web-based configuration, which makes this camera a truly comprehensive home monitoring system.
If you want to expand your surveillance options, D-Viewcam3 management software is also included, giving you the ability to manage up to 32 cameras with a robust set of features, including multi-camera views and automated e-mail alerts to keep you informed of suspicious or unusual activities.
1 Frame rates when streaming video may vary depending on network conditions and method used.
2 Based on 5 hours of motion detection per day at a constant bitrate of 1 Mbps.
3 D-ViewCam software included is not Mac-compatible.
Specs
Indoor/outdoor
|
Outdoor |
---|---|
Type
|
Box |
Connectivity
|
Wired Wireless |
Resolution
|
HD 1 megapixel |
Image sensor
|
1/4" 1 megapixel progressive scan CMOS |
Maximum Video Resolution
|
1280 x 720 (16:9) 960 x 720 (other) |
Lens
|
3.45 mm F2.0 |
Infrared-Cut Removable Filter
|
Supported
|
Night vision
|
Supported
|
Night vision range
|
5 m |
PIR(Passive Infrared)sensor
|
Supported
|
Privacy Masks
|
3 zones |
Built-in Microphone
|
Supported
|
External Card Slot
|
MicroSD SDHC (max 32 GB, 16 GB included) |
App Support
|
mydlink |
Features
|
ONVIF |
Video Format
|
H.264 MJPEG |
Multi-Stream
|
Supported
|
Mobile Stream
|
Supported
|
Digital Zoom
|
10x |
Motion Detection
|
Supported
|
Event Recording
|
Supported
|
E-mail Notification
|
Supported
|
Recording to NAS
|
Supported
|
Version | Date | Type | File Size | |
---|---|---|---|---|
Datasheet | - | - | - | Download |
Version | Description | Date | Type | File Size | |
---|---|---|---|---|---|
Product manual | Product manual |
4.8.2014. | 4.44mb | Download |
Version | Description | Date | Type | File Size | |
---|---|---|---|---|---|
1.00 | Quick installation guide |
4.8.2014. | - | - | Download |
http://tsd.dlink.com.tw/GPL.asp
The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version | Description | Date | Type | |
---|---|---|---|---|
1.14.03 | Release notes included | 14.9.2016. | - | Download |
1.12.00 | Firmware | 16.10.2015. | - | Download |
Firmware Release notes included 1.10.07 | Firmware |
24.7.2015. | - | Download |
Firmware Release notes included 1.02.05 | Firmware |
9.1.2015. | - | Download |
Version | Description | Date | |
---|---|---|---|
Setup Wizard | Find the latest Setup Wizard on our Mydlink site. Make sure to select the correct model and version. |
13.1.2016. | Download |
Version | Description | Date | |
---|---|---|---|
1.10 Revision A2 | CE document | 30.8.2017. | Download |
DNR_2020_04P_Cam_Support_list | DNR-2020-04P Camera Support List | 22.9.2016. | Download |
DEU_Quick_Guide_on_mydlink_Cameras_Rev | Quick Guide on mydlink Cameras | 3.12.2014. | Download |
CE declaration | CE declaration | 14.10.2014. | Download |
DEU_IP_Surveillance_Cheat_Sheet | - | 6.6.2014. | Download |
