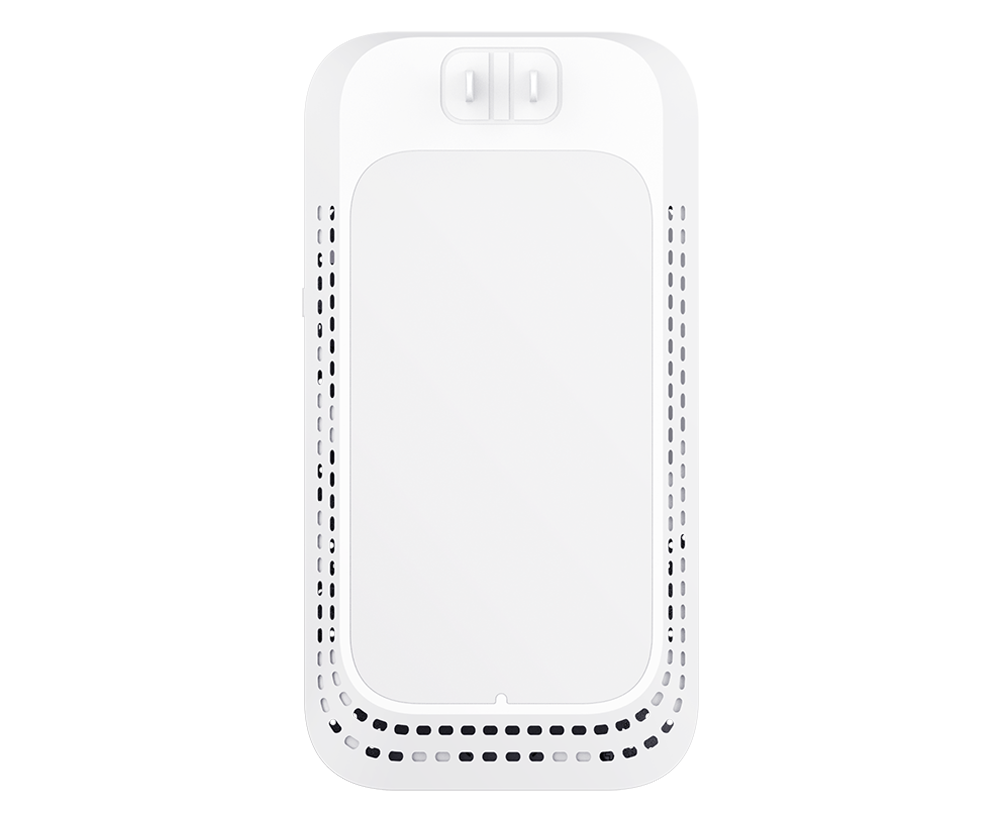

*The plug type may vary by region

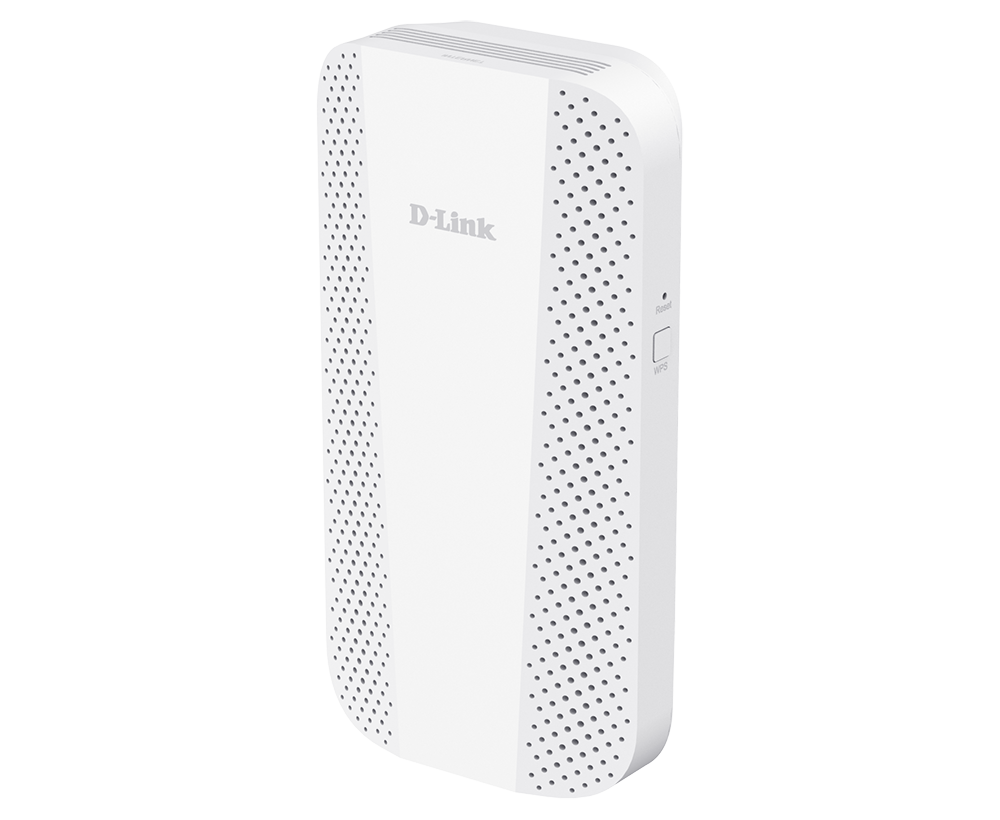

The S Series | Wi-Fi Routers & Extenders
Simple Internet Access, Secured by Default.

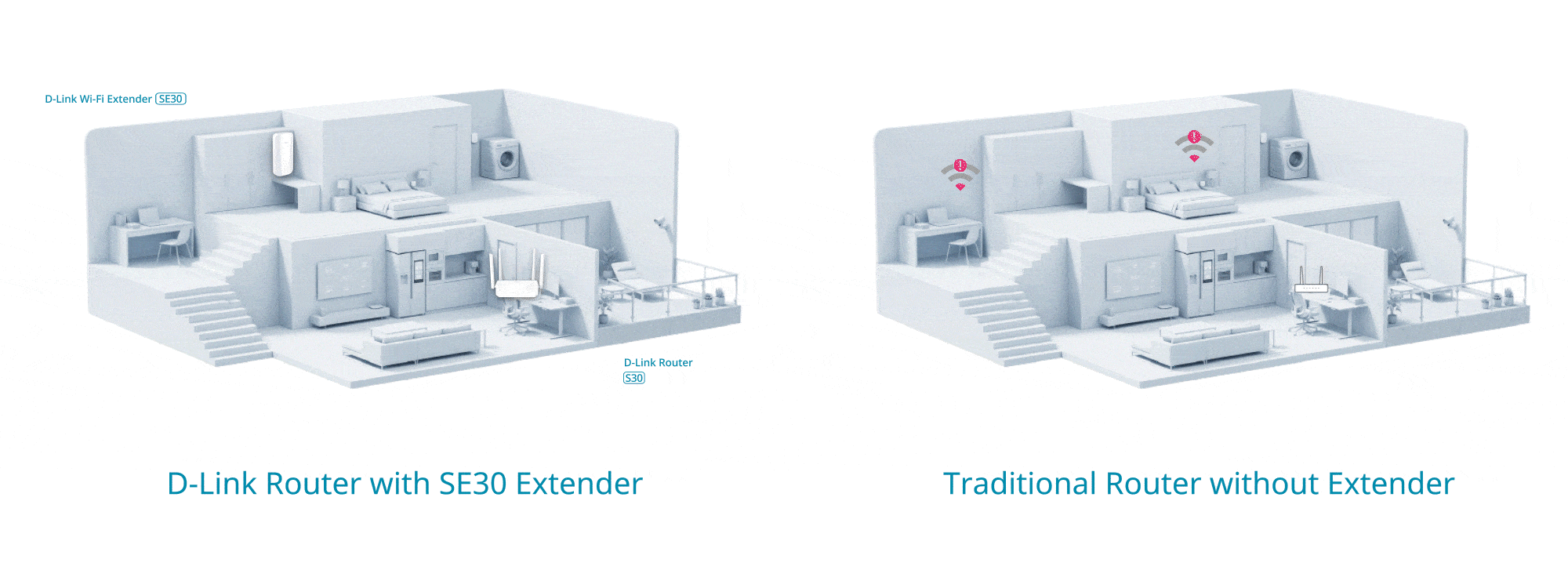

Expand Wi-Fi coverage to every corner of your home and eliminate dead zones with ease.



Set up and manage your network in minutes with the D-Link SetupGo app⁴,
while automatic Firmware Over-The-Air (FOTA) updates keep your router
secure and up to date.
*Google, Android, Google Play and Google Home are trademarks of Google LLC.

1.Maximum wireless signal rate derived from IEEE 802.11ax specifications. Actual data throughput may vary depending on the specific network environment and conditions. An 802.11ax client device is required to achieve maximum speeds and performance.
|
Antenna
|
2 x 2.4/5 GHz dual-band internal antennas |
|---|---|
|
Certifications
|
CE |
|
Device Management
|
D-Link SetupGo app (Local Access and Basic Control) |
|
Dimensions
|
150 x 78 x 48 mm (5.91 x 3.07 x 1.89 in) |
|
Wi-Fi Data Rate
|
2.4 GHz up to 574 Mbps 5 GHz Up to 2402 Mbps |
|
Wireless Standard
|
2.4 GHz: IEEE 802.11 ax/n/g/b 5 GHz: IEEE 802.11 ax/ac/n/a Ethernet: IEEE 802.3 u/ab Wi-Fi Management: IEEE 802.11 k/v/h |
|
Interfaces
|

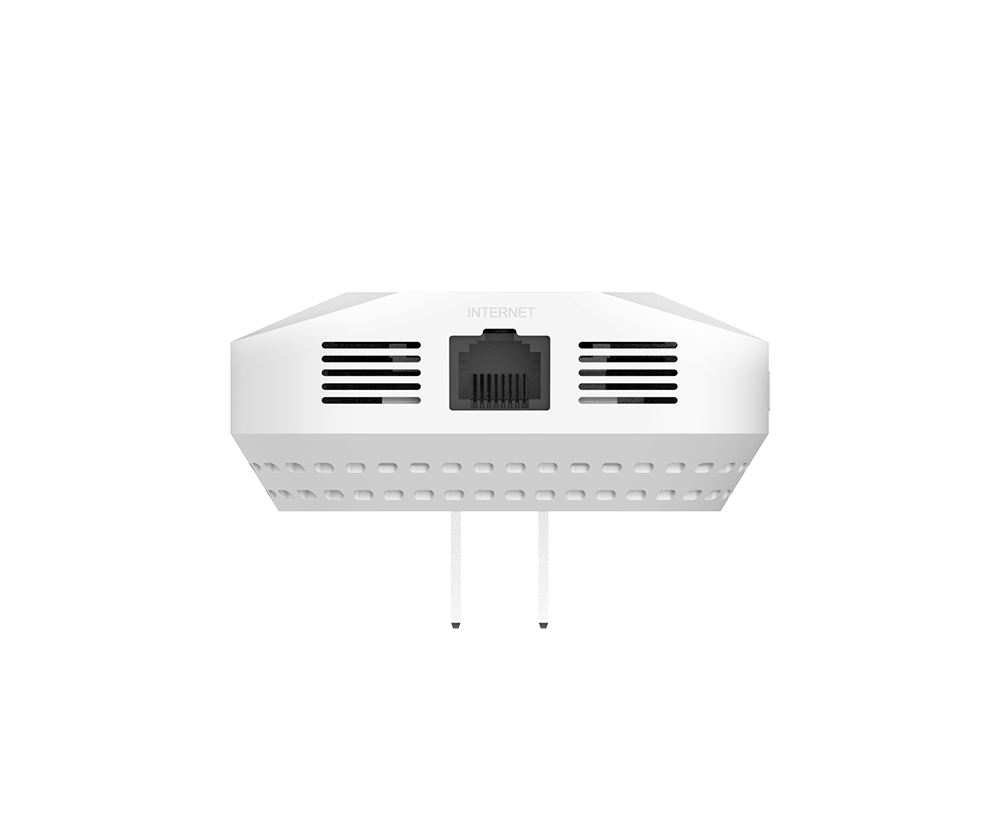

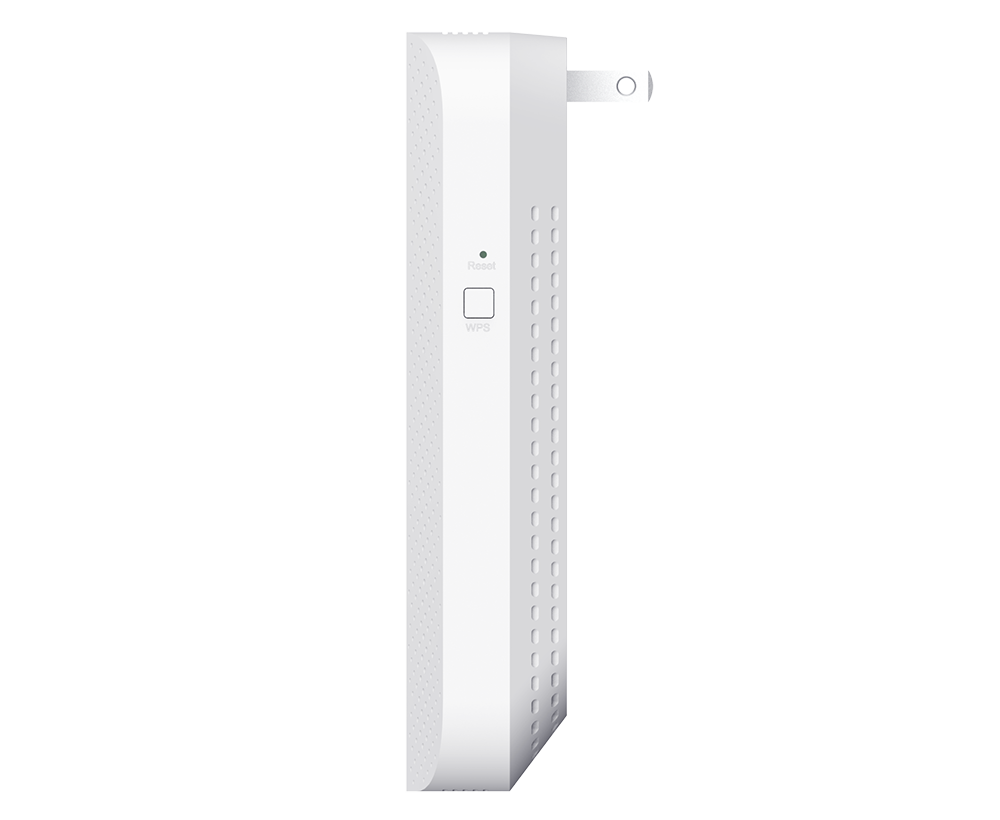

1 x Gigabit Ethernet LAN port 1 x reset button 1 x WPS button |
|
LED Status Indicators
|

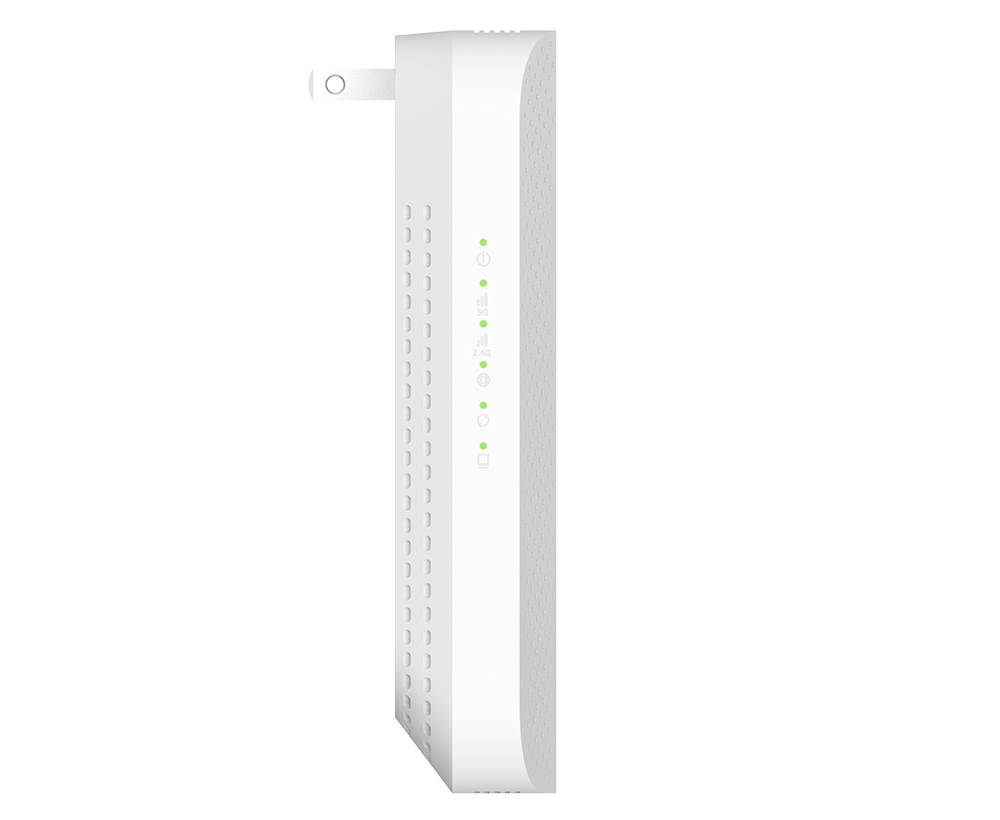

Power, Wi-Fi 2.4 GHz signal, Wi-Fi 5 GHz signal, Internet, WPS, LAN |
|
Maximum Power Consumption
|
24 W |
|
Operating Humidity
|
10% to 90% non-condensing |
|
Operating Temperature
|
0 to 40 °C (32 to 104 °F) |
|
Power Input
|
100 to 240 VAC, 50/60 Hz |
|
Security Protocol
|
WPA - Personal WPA2 - Personal WPA3 - Personal Wi-Fi Protected Setup (WPS) |
|
Weight
|
239.4 g (8.44 oz) |
|
El rendimiento real puede variar en función de la configuración, el cableado, la temperatura, la configuración de la red, la interfaz, los dispositivos conectados, las condiciones ambientales y del lugar de instalación, y otros factores similares. Las referencias a la potencia, la velocidad de señal o de procesamiento, el alcance o la distancia de la señal, el cifrado de datos, la capacidad de almacenamiento, las propiedades de la pantalla u otras métricas de rendimiento se basan en condiciones óptimas derivadas de los estándares del sector y se proporcionan únicamente con fines informativos. Las especificaciones pueden estar sujetas a cambios sin previo aviso. |
|
