Hohe Übertragungsraten mit 10/25 Gbit/s über 10-Gigabit-Kupfer- und Glasfaserports und erweiterte Reichweite mit 10-Gigabit-Glasfaser- und 25-Gigabit-Uplink-Ports.
Bis zu 9 Einheiten pro Stack für max. bis zu 252 10-Gigabit-Ports. Bietet 200 Gbit/s physische Stacking-Bandbreite. Stacking über große Entfernungen mittels Glasfaser.
Unter anderem Flow Control, Link Aggregation, Ethernet Ring Protection Switching (ERPS), Spanning Tree Protocols, Loopback Detection, Flow Mirroring, IGMP/MLD Snooping.
Mit bis zu 256 IP-Schnittstellen, VRRP, statischem Routing, RIPng, OSPF, IGMP und PIM-SM.
Routing von Layer-3-Traffic zwischen Switches, auch wenn diese in VLANs segmentiert sind.
Risikofreie Firmware- und Konfigurationstests.
Utilize stacking technology for seamless network expansion. Scale your network with a simple stacking cable without additional modules. Enhance redundancy, simplify management, and control the entire stack with a single IP address.
The feature of advanced L2 and L3 functionalities like port security, Storm Control, Link Aggregation, and Spanning Tree Protocols. They include management options such as 802.3ah OAM, 802.1ag CFM, and industry-standard CLI support. With support for multiple images and configurations, the switches provide flexibility.
The switches come equipped with x4 25G SFP28 uplink ports, supporting physical stacking for redundancy. They incorporate G.8032 Ethernet Ring Protection Switching (ERPS) to minimize recovery times to 50 ms. The addition of a USB 2.0 interface allows for storing config files, boot images, and syslog.
For enhanced reliability, the switches support an optional external redundant power supply on all models, ensuring maximum uptime in critical environments.
Incorporating the latest security features such as Multi-layer and Packet Content Access Control Lists (ACL) and Storm Control, our switches provide robust protection. The exclusive D-Link Safeguard Engine is designed to prevent traffic flooding from malicious attacks, ensuring the uptime of your business network.
Enhance user access control with IP-MAC-Port Binding, allowing you to bind a source IP address with its associated MAC and define the port number. Additionally, DHCP Snooping enables the switch to learn IP/MAC pairs by snooping DHCP packets and saving them to the IMPB whitelist, giving you extra control.
They feature multiple authentication mechanisms such as 802.1X, Web-based Access Control (WAC), and MAC-based Access Control (MAC) for strict access control and an easy deployment. After authentication, individual policies such as VLAN membership, Quality of Service (QoS) policies, and ACL rules can be assigned to each host.
Unlock the full potential of your network infrastructure. Utilize the high switching capacity of up to 760Gbps to eliminate bottlenecks and maintain optimal network efficiency even during peak times, enabling you to effortlessly handle demanding network environments.

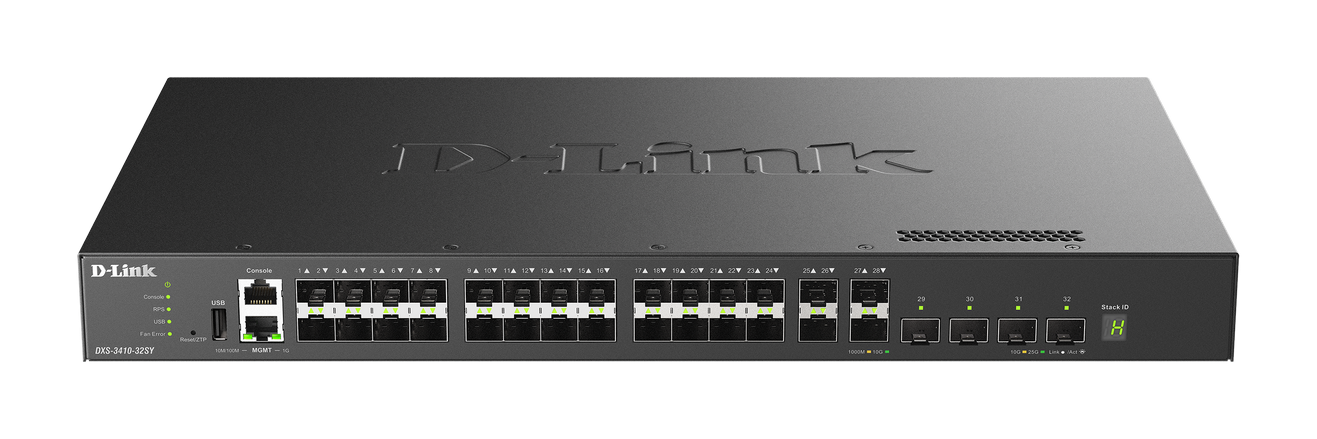

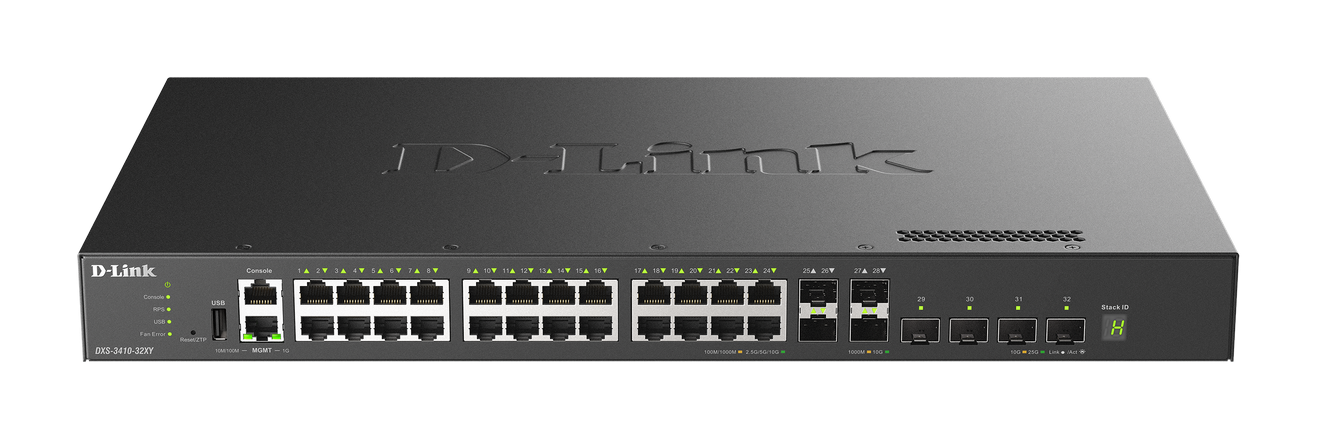

 DXS-3410-32XY |  DXS-3410-32SY | |
| Interface |
|
|
| Switch Capacity | 760G | 760G |
| Max. Packet Forwarding Rate | 565.44 Mpps | 565.44 Mpps |
| Optional Redundant Power Supply | DPS-500A DPS-500DC | DPS-500A DPS-500DC |
| Max. Power Consumption | 109W | 104W |
| Fan | 3 internal smart fan | 3 internal smart fan |
| Console Port | Yes | Yes |
| Power Supply Type | 100-240VAC, 50/60Hz | 100-240VAC, 50/60Hz |
| USB | 1x USB 2.0 Type A | 1x USB 2.0 Type A |
| Physical Stacking | 9 | 9 |
| Virtual Stacking | 32 | 32 |
