26-Port Gigabit Unmanaged PoE Switch
DGS-1026P
- Produkt Status (B1 v1.00): Live
- 24 GE PoE ports enable faster data rates
- 2 1G SFP ports transmit data beyond 100 m
- IEEE 802.3af/at (up to 30 W/port, 240 W budget)
- Convenient DIP switch for onsite configuration
- IEEE 802.3x flow control prevents packet loss
- Port isolation/storm control enhance security
- Extend mode extends PoE/data up to 250 m
- PD-alive reboots unresponsive powered devices
- Real-time PoE usage and status monitoring
- QoS prioritizes important network services
Bezugsquellen
User Benefits
Plug-and-Play
Einfache Installation ohne Konfigurationsaufwand
IEEE 802.3af/atPoE
Bis zu 30 W/Port und 240 W Gesamtleistungsbudget
Optimierte Leistung
QoS priorisiert den Datenverkehr und verbessert das Nutzererlebnis
DIP-Switches
DIP-Switche ermöglichen eine schnelle und einfache Konfiguration vor Ort
SFP-Ports
SFP-Uplink-Ports erweitern die Übertragung über 100 m hinaus
Smart Fan Design
5-stufiger Lüfter passt sich automatisch der Gerätetemperatur an
Advanced DIP Switch Convenience
The DGS-1026P allows the toggling of advanced features at the flick of a DIP switch to adapt to network changes and application requirements. Make immediate onsite adjustments to flow control, port isolation and storm control, PD-alive, and extend mode settings without having to access complicated web UI settings, eliminating the need for costly technicians and messy configurations.

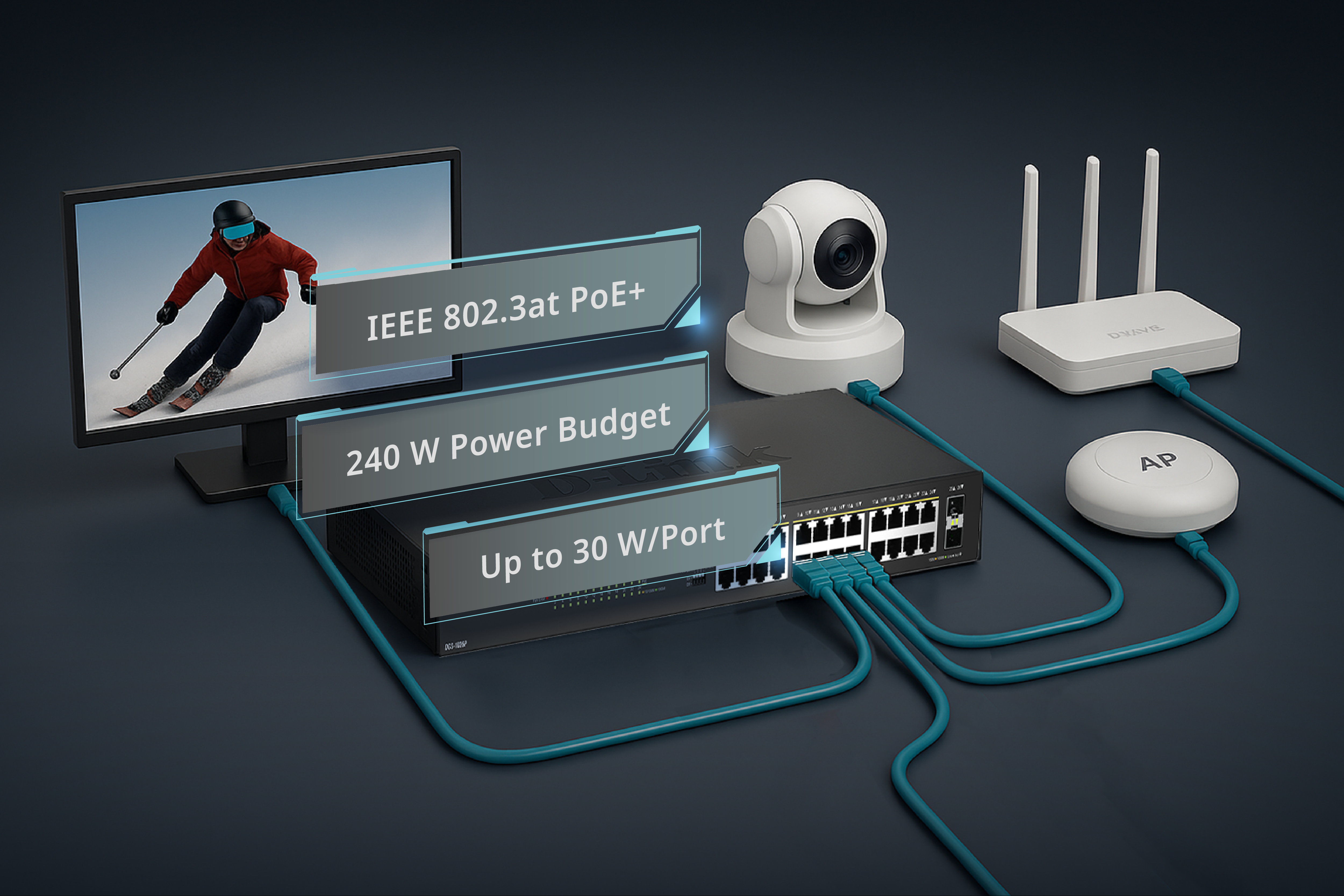

Faster Setups and Lower Costs
The plug-and-play DGS-1026P with Gigabit PoE+ (IEEE 802.3at) ports delivers up to 30 W per port with a 240 W total power budget, connecting PoE-enabled devices without additional power supplies. Ideal for access points, cameras, displays, and much more. The DGS-1026P simplifies installation, reduces cabling costs, and features a 5-speed smart fan to enhance energy efficiency.

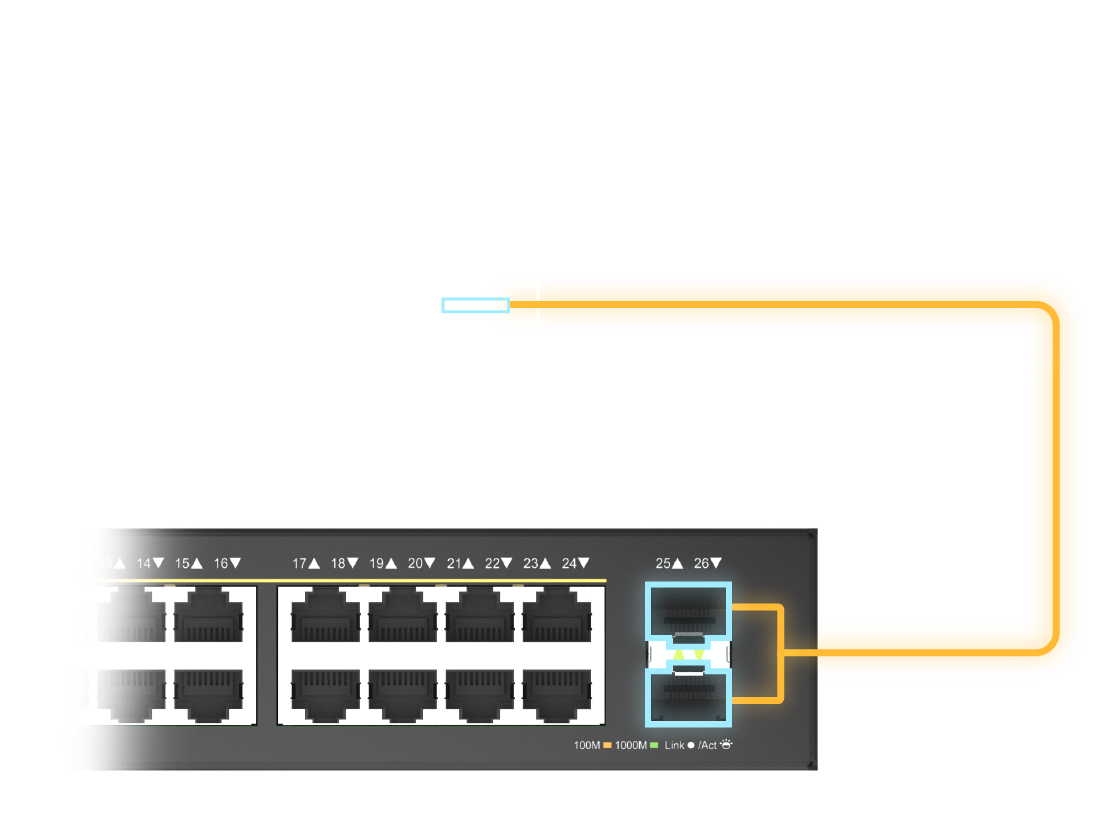

Extend Uplink Beyond 100 m via SFP Ports
The DGS-1026P features 2 SFP uplink ports capable of extending Gigabit transmission beyond the 100-meter copper Ethernet limitation to aggregation/core layers, offering both network flexibility and scalability to meet various needs of network application requirements.

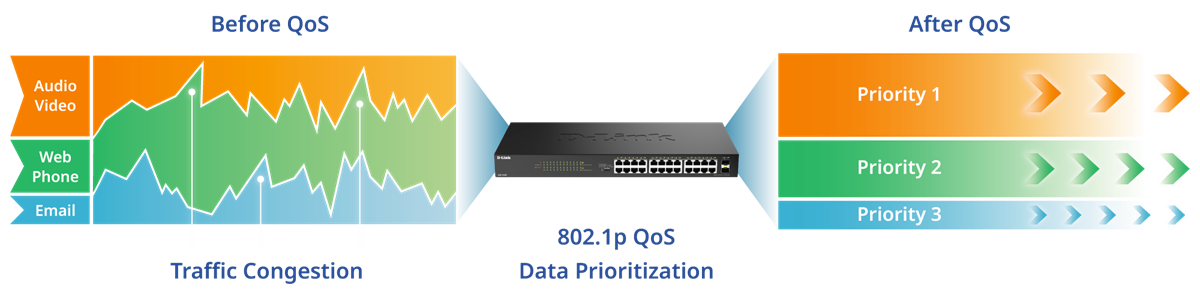

Prioritize Traffic for Optimized Performance
With the DGS-1026P, you can effortlessly manage your network traffic with the 802.1p Quality of Service (QoS) feature. The switch automatically organizes and prioritizes time-sensitive and critical data for efficient delivery, enabling buffer-free video streaming as well as jitter-free video and voice calls.
Weitere Produkte
Specs
|
Number of Gigabit ports
|
24 |
|---|---|
|
Number of SFP ports
|
2 |
|
Switching Capacity
|
52 Gbps |
|
Maximum Forwarding Rate
|
38.69 Mpps |
|
PoE Standards
|
802.3af/at |
|
PoE Power Budget
|
240 W |
|
PoE Capable Ports
|
Ports 1 to 24 (up to 30 W/port) |
|
FAN
|
5-speed smart fan |
|
D-Link Green
|
Supported
|
|
802.3az EEE
|
Supported
|
|
802.1p QoS
|
Supported
|
|
Actual performances may vary due to settings, cabling, temperature, network configuration, interface, device compatibility, environmental and on-site conditions, and other similar factors. References to power capability, signal or processing speed, signal range or distance, data encryption, storage capacity, display properties, or other performance metrics are based on optimal conditions derived from industry standards and provided for informational purposes only. Specifications may be subject to change without prior notice. |
|
