Industrial Gigabit Smart Managed PoE Switch
DIS-200G-12PS
- Product Status: Live
- 8 x 10/100/1000Base-T PoE+ ports, 2x 10/100/1000Base-T ports, 2 x SFP ports
- RJ-45 Console port
- Easy-to-control management interfaces and security
- Withstands severe temperatures
- Compliant with vibration, shock, free-fall testing
Where to buy
Features
![](/us/en/-/media/product-pages/dis/common/managedcustomization.png?mh=300&h=120&w=120&la=en-US&hash=47B60D4D65E0678F312D4A73BEB3B91A)
Featuring management interfaces, including an industry-standard CLI, and Web-based UI, the DIS-200G Serie is easy to manage and provides the controls to help protect and shape your network.
![](/us/en/-/media/product-pages/dis/common/gigabitconnectivity.png?mh=300&h=120&w=120&la=en-US&hash=DE195C7A4230F3740CE74C44431F8CE4)
Designed with 8 x 10/100/1000Base-T PoE ports, 2 x 10/100/1000Base-T ports, and 2 x SFP ports to suit a range of devices and network layouts.
![](/us/en/-/media/product-pages/dis/common/officiallycertified.png?mh=300&h=120&w=120&la=en-US&hash=7C76A33FD017E87C666551F762182D08)
Certifications for vibration, shock, free-fall, electromagnetic, and high-capacity 6 kV surge protection on all copper ports to maximise network uptime in harsh deployment environments.
![](/us/en/-/media/product-pages/dis/common/temperatures.png?mh=300&h=120&w=120&la=en-US&hash=89D0A042CC1E50850115C53BE400241A)
Operates effortlessly in a range of industrial and harsh environments in temperatures from -40°C to +65°C.
![](/us/en/-/media/product-pages/dis/common/poe.png?mh=300&h=120&w=120&la=en-US&hash=057A331BF944A47B0066BC4B4FF77458)
With its 240 W PoE+ power budget1, it’s been designed to supply data and PoE power to compliant devices, which removes the need for unnecessary plugs and cables and reduces deployment time and effort.
![](/us/en/-/media/product-pages/dis/common/highavailability.png?mh=300&h=120&w=120&la=en-US&hash=5FBEAF207237C789658A201C4B3803BA)
ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings.
![](/us/en/-/media/product-pages/dis/common/strong.png?mh=300&h=120&w=120&la=en-US&hash=D1D01FDBC25FA3FCB7DE3A4F90FEAA1A)
The tough housing has been created to keep your network protected and reliably rugged. That’s why every DIS-switch comes with a 5-year D-Link warranty.
![](/us/en/-/media/product-pages/dis/common/easy_management.png?mh=300&h=120&w=120&la=en-US&hash=6AEC8B5D2122F1C748A9F110CD99AF80)
Supports Auto-Surveillance VLAN (ASV), automatically detecting surveillance devices and putting them into a dedicated surveillance VLAN, increasing security of surveillance data, and giving the traffic a higher priority.
![](/us/en/-/media/product-pages/dis/common/fanlessdesign.png?mh=300&h=120&w=120&la=en-US&hash=8D6BCE1569D22F7D79A2A2E6B008F94D)
With no moving parts inside to reduce downtime and maintenance call outs, the rugged housing has been optimised for the transfer of heat.
![](/us/en/-/media/product-pages/dis/common/fastdeployment.png?mh=300&h=120&w=120&la=en-US&hash=88C2F5565B42C8F0DC87309EC322D3ED)

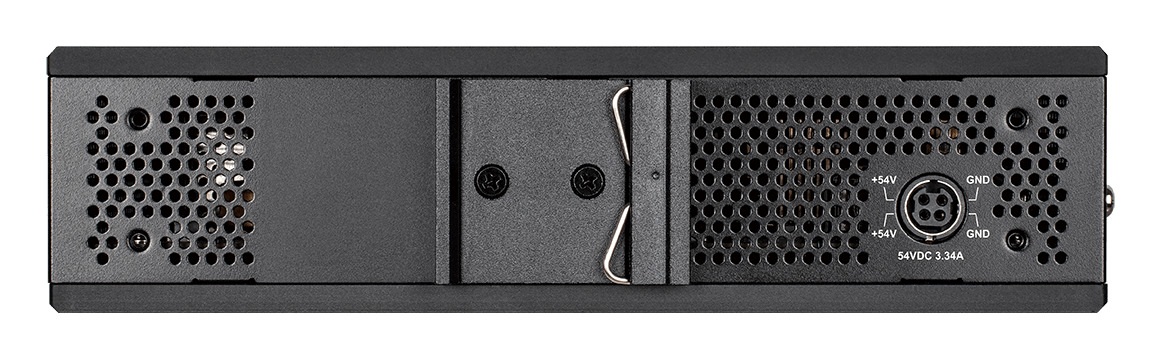

For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.
![](/us/en/-/media/product-pages/dis/common/discreetsize.png?mh=300&h=120&w=120&la=en-US&hash=D8120FF9BC1F5D959B9908028354DAE9)
Small but mighty. To make the most of cabinet space, it measures: 48 x 210 x 171.2 mm.
Specs
Type
|
Industrial Smart managed |
---|---|
Number of ports
|
5 to 14 ports |
Layer
|
Layer 2 |
Main type of ports
|
1000BASE-T Gigabit Ethernet |
Type of uplink ports
|
SFP |
Switching capacity
|
24 Gbps |
PoE options
|
802.3af 802.3at |
Number of PoE ports
|
8 |
PoE power budget
|
See datasheet |
Fanless
|
Supported
|
802.3az Energy-Efficient Ethernet support
|
Supported
|
Form Factor
|
DIN rail |
Housing
|
Metal |
Jumbo frame
|
Supported
|
Cable diagnostics
|
Supported
|
Environmental
|
Free Fall: IEC60068-2-32 Shock: IEC60068-2-27 Vibration: IEC60068-2-6 |
MAC address
|
8K |
Spanning Tree Protocol
|
802.1D STP 802.1s MSTP 802.1w RSTP |
Ethernet ring protection switching (ERPS)
|
Supported
|
Link aggregation
|
802.3ad |
VLAN group (max static)
|
1024 128 |
VLAN type
|
GVRP Port-based |
Advanced VLAN
|
Asymmetric VLAN Auto Surveillance VLAN Voice VLAN |
Number of QoS queues per port
|
4 8 |
Encryption protocol supported
|
SSH |
802.1X access control
|
Supported
|
RADIUS/TACACS+ authentication
|
Supported
|
SNMP (v1/v2c/v3)
|
Supported
|
LLDP
|
Supported
|
