2-Port Keyboard-Video-Mouse Switch with Built-in Cables

DKVM-2K

  • Product Status: Live
The DKVM-2K 2-port mini KVM switch kit is a cost effective kit for home and office users. This kit allows you to easily control 2 different PCs from a single set of keyboard , mouse , and VGA monitor. It includes a 2-port KVM (Keyboard, Video and Mouse) switch and 2 sets of built-in cables for ready connection to 2 PCs. The switch provides many easy to use features and is perfect for home and small businesses.

Download the datasheet.

List Retailers

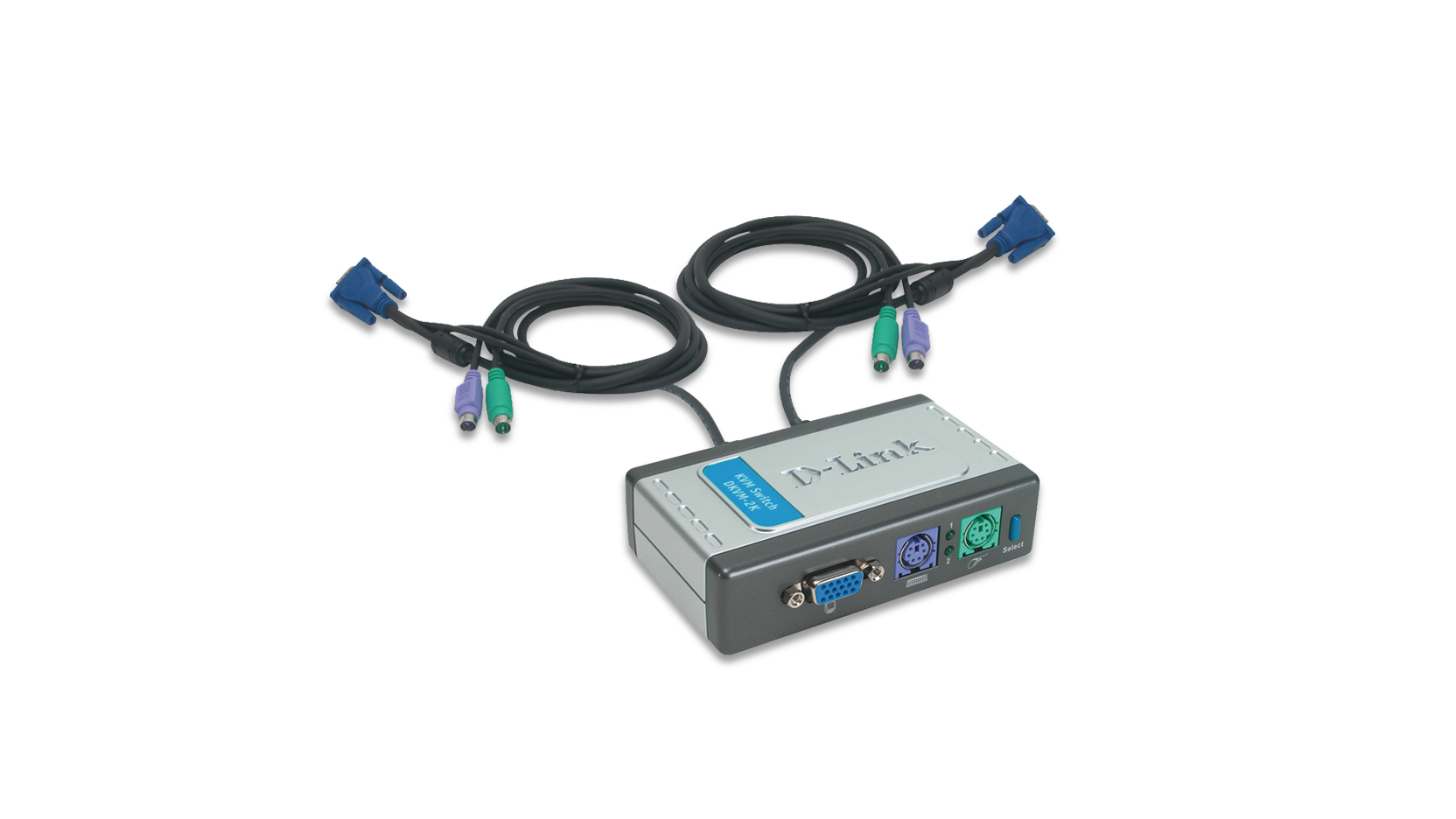

Includes KVM Switch and 2 Sets of Built-in Cables

The DKVM-2K 2-port mini KVM switch kit is a cost effective kit for home and office users. This kit allows you to easily control 2 different PCs from a single set of keyboard , mouse , and VGA monitor. It includes a 2-port KVM (Keyboard, Video and Mouse) switch and 2 sets of built-in cables for ready connection to 2 PCs. The switch provides many easy to use features and is perfect for home and small businesses.

Cost-effective for PC Users

If you have 2 PCs and need to use them at the same time, the DKVM-2K saves you the money and space by allowing you to control your 2 computers from a set of keyboard, monitor and mouse. Or, you may have a better, bigger monitor and want to connect both PCs to it, the DKVM-2K allows you to do this. 2 sets of cables are attached to the KVM switch ready for use, dispensing you of the need to prepare separate cables and connect them to the switch.

Versatile Functions

The DKVM-2K utilizes advanced microprocessor emulation to intelligently manage each KVM port. This allows simultaneous boot-up of all attached PCs. Autoscan, audible feedback, and keyboard "Hot Keys" make the DKVM-2K simple to use and manage. There is also a control button located on the front panel that allows you to switch between the PCs.

Status Save and High Resolution Support

The DKVM-2K supports VGA, SVGA, and MultiSync monitors at up to 2048 x 1536 resolution at 72Hz refresh rate. Support for Microsoft IntelliMouse is provided.

Product Awards

Technical Specifications

Console Connectors
(connect to keyboard, mouse, monitor)

  • Keyboard connector: mini DIN-6 PIN female
  • Mouse connector: mini DIN-6 PIN female
  • Monitor connector: HD 15 PIN female

KVM Cables With Connectors
(connect to computers)

  • 2 cables each 1.8 meter (6 feet) long attached to KVM switch
  • 2 keyboard connectors: mini DIN-6 PIN male
  • 2 mouse connectors: mini DIN-6 PIN male
  • 2 monitor connectors: HD 15 PIN male

Diagnostic LEDs
  • 2 port LEDs for 2 connected PCs
  • A lit (green) status indicates the port is active

PC Selection
(Manually switching back and forth between 2 PCs)

  • Through Push buttons
  • Through Hot Key
  • Switching confirmation: buzzer sound

Power Voltage
  • 5V 1A

Power Input
  • From PC's PS2 port, no power adapter required

Power Consumption

  • 5V 70mA

Dimensions
  • 104 x 62 x 28 mm (KVM switch only)

Weight
  • 420 grams (KVM switch & 2 sets of KVM cables)

Operating Temperature
  • 0o to 40oC

Storage Temperature
  • -20o to 60o C

Operating Humidity
  • 0% to 80%

Storage Humidity
  • 0% to 80%

Emission (EMI)
  • FCC Class B
  • CE Class B
  • C-Tick

Box Includes
  • DKVM-2K 2-port KVM switch with 2 built-in sets of 1.8 m (6 ft)
  • KVM cables
  • Quick Installation Guide

FAQ

  • What is the max refresh rate for DKVM-2K? Read Answer
  • What are the hotkeys for my DKVM series KVM switch? Read Answer
