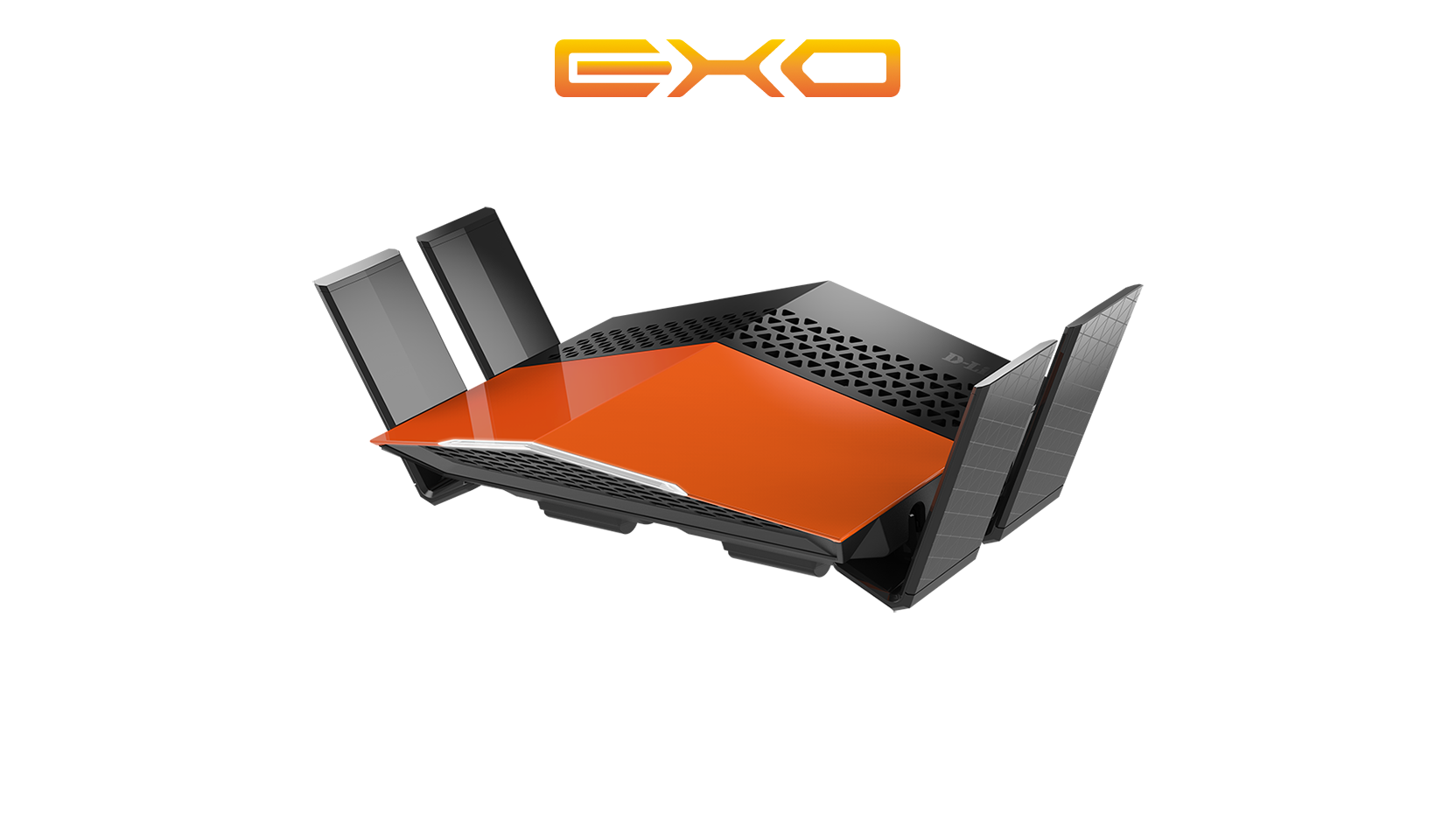

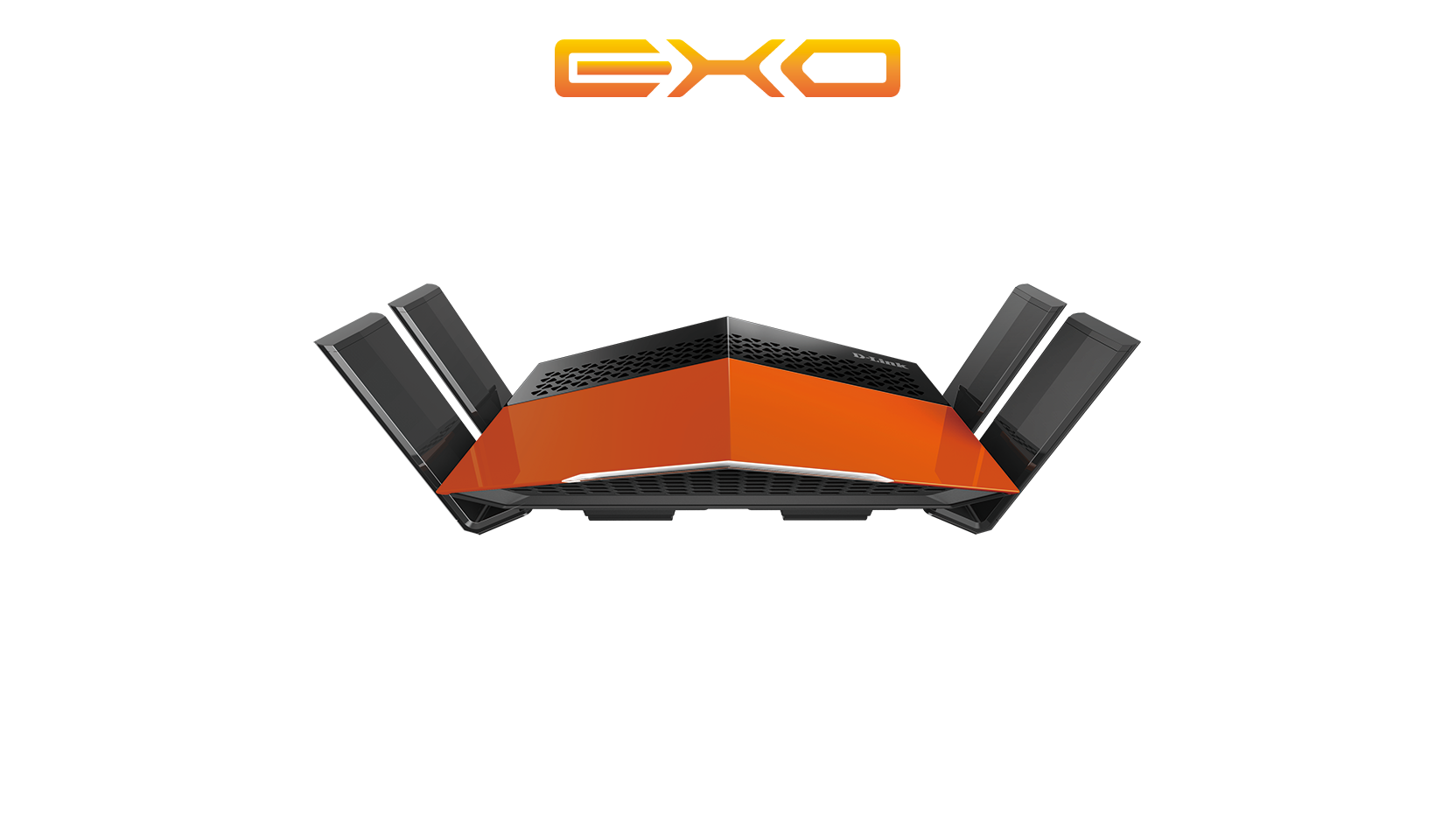

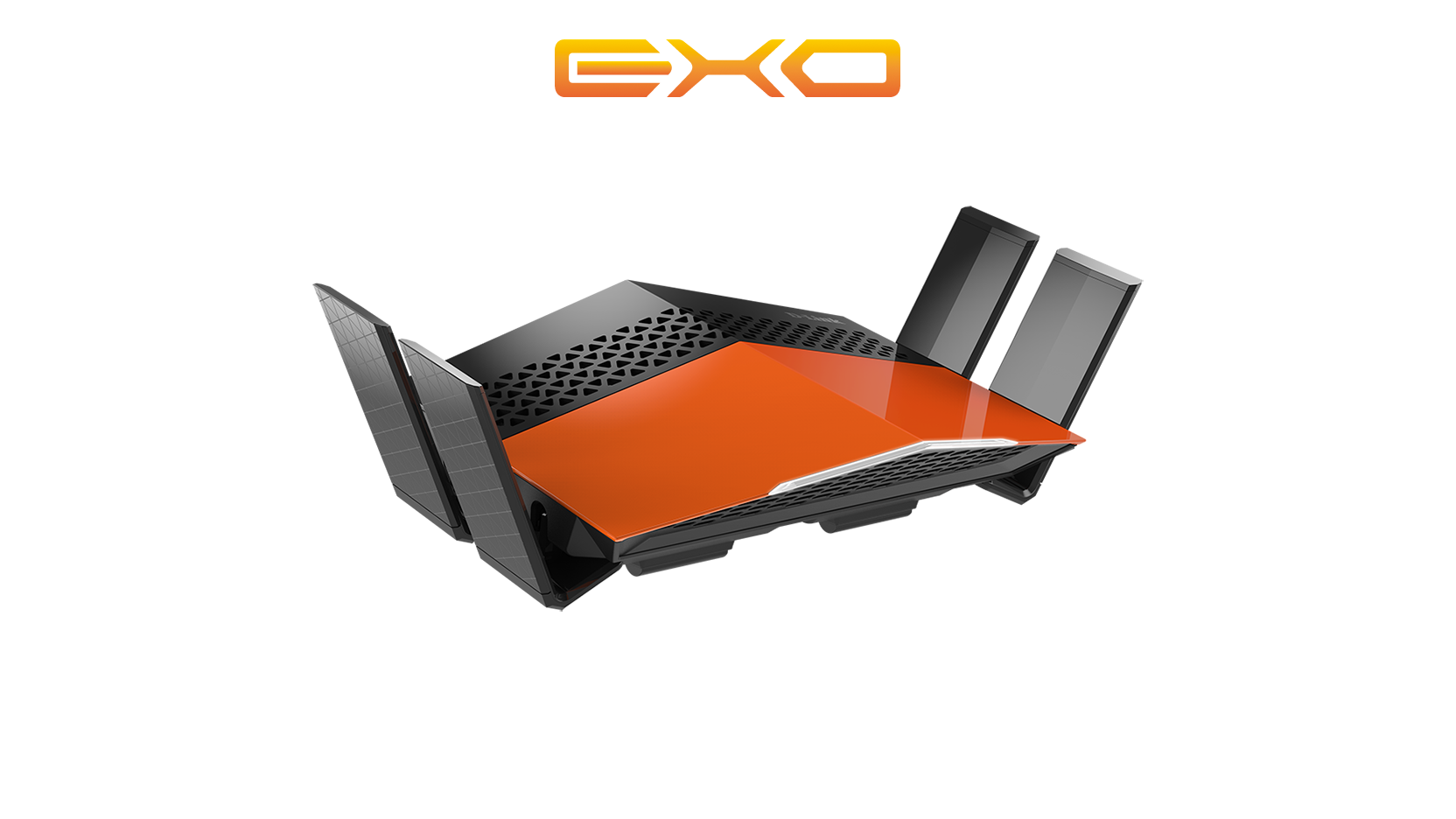

EXO AC1750 Wi Fi Router

DIR-869

  • Product Status: Live
  • Dual-band Wireless AC1750 (1,300 Mbps on 5 GHz + 450 Mbps on 2.4 GHz)
  • 802.11ac with MIMO
  • Gigabit WAN and 4 x Gigabit LAN
  • Optional Wi-Fi extender mode

Download the datasheet.

List Retailers
D-link

Extreme Wi-Fi
coverage to all
of your devices

Why you want it

D-link Dual-Band

2.4GHz and 5GHz bands for maximum possible speed for
each device.

D-link Latest Antenna Technology

Wider coverage throughout
your home.

D-link Gigabit Ethernet

Four fast gigabit ports give you high-speed wired connectivity.

D-link Dual-Core

Faster network speed for a more powerful router.

Extreme Wi-Fi coverage

Antennas with signal amplifiers will send multiple Wi-Fi streams for a reliable connection, unparalleled performance and extreme coverage throughout your home.

D-link

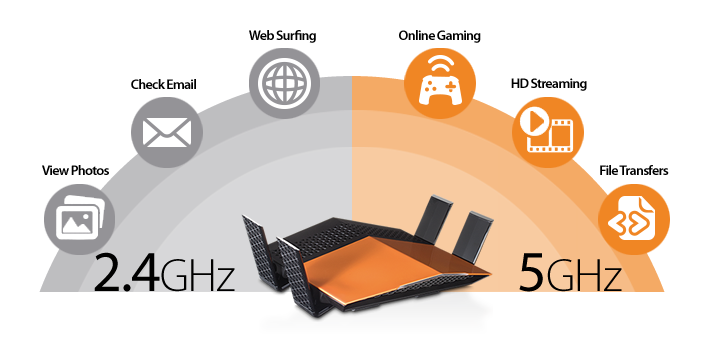

Do more with Dual-Band technology

Use the 2.4 GHz band for everyday tasks, while leaving the high-speed 5 GHz AC band free for HD video streaming, online gaming and large file transfers.

With fewer devices using the high-speed 5 GHz band, there’s less interference and congestion, giving you better performance and a lag-free wireless experience.

D-link

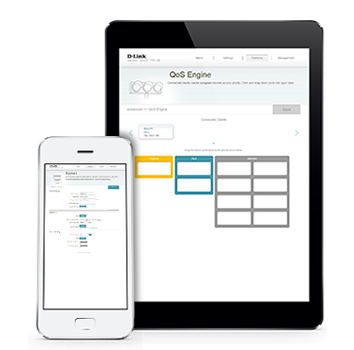

Intelligent QoS

Intelligent QoS tracks the type of network traffic (media streaming, web surfing, online gaming) and decide which application deserves higher priority.

D-link

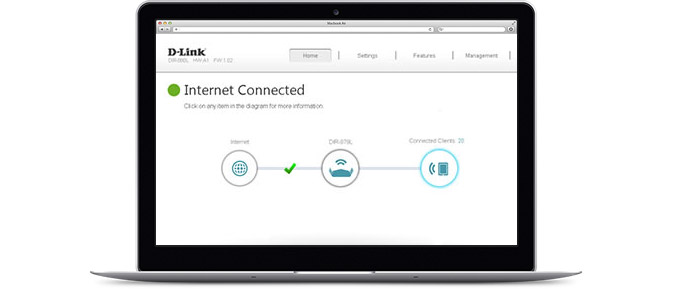

New user interface

Controlling your network by enabling parental controls, blocking unwanted devices, monitoring internet activity and creating Wi-Fi guest networks is easier than ever with our new interface.

Additional features

DIR 830L-AC1200 Wi-Fi Router

Speed

11AC Wi-Fi - Up to 450Mbps (2.4GHz) + 1300Mbps (5GHz).

Gigabit Ethernet Ports - Ensures the best wired online experience for HD streaming and gaming.

DIR 830L-AC1200 Wi-Fi Router

Range

Whole-Home Coverage - 11AC technology extends wireless range further than with Wireless N.

Latest Antenna Technology - 4 external antennas sending multiple Wi-Fi streams.

DIR 830L-AC1200 Wi-Fi Router

Performance

Traffic Prioritisation - Advanced QoS engine distributes traffic optimally across both wireless bands to guarantee the best performance.

Dual-Band Technology - Decreases wireless interference and congestion, allowing you to connect more devices.

DIR 830L-AC1200 Wi-Fi Router

Security

Parental Controls - Create online access schedules and block/allow specific websites and/or devices.

Guest Wi-Fi Network - Enable a public or encrypted wireless guest network.

Secure Wi-Fi Encryption - WPA/WPA2 provides highest level of
wireless security.

DIR 830L-AC1200 Wi-Fi Router

Management

Easy To Install - Installation wizard manually walks you through setup
in minutes.

Quick Router Setup (QRS) App - Easy setup app for smartphones & tablets.

WPS Push Button Setup - Quickest method of connecting devices with the push of a button.

1 Maximum wireless signal rate derived from IEEE Standard 802.11ac and IEEE 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range. Wireless range and speed rates are D-Link relative performance measurements based on the wireless range and speed rates of a standard Wireless G product from D-Link. Maximum throughput based on D-Link 802.11n devices. 2 Extender Mode Access Point functionality available at launch, additional functionality available via firmware update in Q2 2016.

Related Products

Wireless AC3200 Tri Band Gigabit Cloud Router
DIR-890L
Find out more
Wireless AC1900 Dual-Band Gigabit Cloud Router
DIR-880L
Find out more
Cloud Gigabit Router AC1750
DIR-865L
Find out more
Wireless AC1750 Dual-Band Gigabit Cloud Router
DIR-868L
Find out more
Wireless AC1200 Dual Band PCI Express Adapter
DWA-582
Find out more

Technical Specifications

General



Connectivity

  • IEEE 802.11 ac/n/g/b/a wireless LAN
  • 10/100/1000 Gigabit Ethernet WAN port
  • Four 10/100/1000 Gigabit Ethernet LAN ports

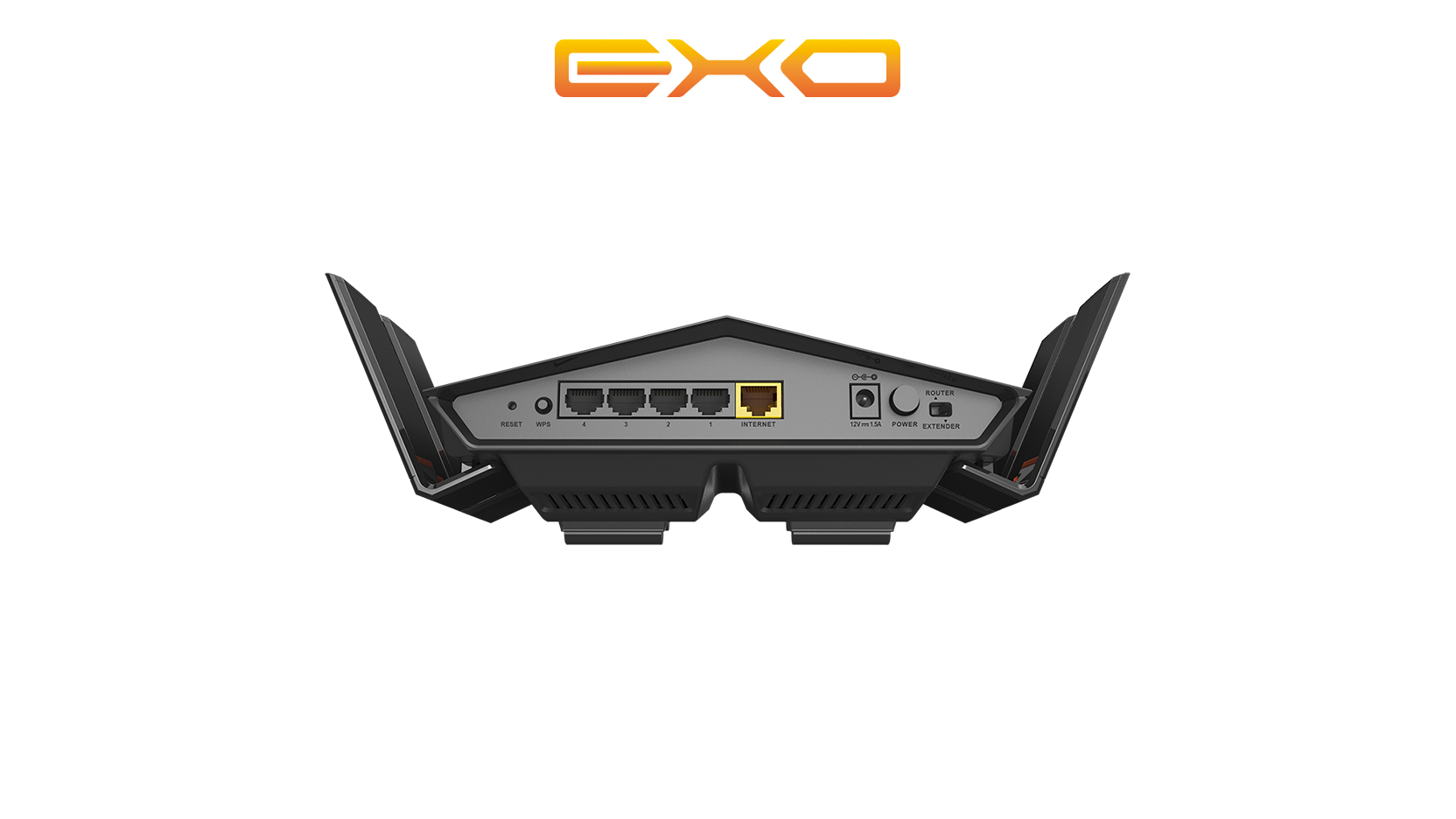

Device Interfaces

  • LED Indicator
  • Mode Switch2 (Router/Extender)
  • Power Button
  • WPS Button
  • Reset Button



Antenna Type

  • Four Adjustable External Antennas
  • 3x3 MIMO Antenna Configuration

Operating Frequencies

  • 2.4 GHz Band: 2400 - 2483.5 MHz
  • 5 GHz Band: 5150 - 5725 MHz



Data Signal Rate

  • 2.4 GHz
    • 450 Mbps1
  • 5 GHz
    • 1300 Mbps1



Standards

  • IEEE 802.11ac
  • IEEE 802.11n
  • IEEE 802.11g
  • IEEE 802.3ab
  • IEEE 802.11b
  • IEEE 802.11a
  • IEEE 802.3u



Minimum Requirements

  • Internet Explorer 11, Firefox 20, Safari 7, or Chrome 25 or higher version with Java installed and enabled
  • Wired or Wireless Network interface card
  • Cable/DSL modem or other Internet Service Provider equipment with Ethernet port

Functionality



Security

  • WPA & WPA2 (Wi-Fi Protected Access)
  • WPS (Wi-Fi Protected Setup)



Advanced Features

  • Web setup wizard
  • QoS (Quality of Service)
  • Firewall - Network Address Translation (NAT)
  • Guest zone
  • DMZ (Demilitarized Zone)



Physical



Dimensions

  • 221.52 x 160.15 x 60.36 mm (8.72 x 6.30 x 2.38 inches)



Weight

  • 432 g (15.24 ounces)



Power Adaptor

  • Input: 100 to 240 V AC, 50/60 Hz
  • Output: 12 V, 1.5 A



Temperature

  • Operating: 0 to 40 °C (32 to 104 °F)
  • Storage: -20 to 65 °C (-4 to 149 °F)



Humidity

  • Operating: 10% to 90% non-condensing
  • Storage: 5% to 95% non-condensing



Certifications

  • FCC
  • CE
  • IC
  • CCC
  • BSMI
  • NCC
  • CSA international
  • WMM-PS
  • WPS
  • Wi-Fi Certified



1 Maximum wireless signal rate derived from IEEE Standard 802.11ac and IEEE 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range. Wireless range and speed rates are D-Link relative performance measurements based on the wireless range and speed rates of a standard Wireless G product from D-Link. Maximum throughput based on D-Link 802.11n devices.

2 Extender Mode Access Point functionality available at launch, additional functionality available via firmware update in Q2 2016.

FAQ

  • How to check system log for router? Read Answer
  • How can I check the firmware version of my router ? Read Answer
  • How many simultaneous users can my Wi-Fi network handle ? Read Answer
  • How do I set up website filter on my router? Read Answer
Version Date Type File Size
Datasheet - PDF 0.33mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date
Firmware 1.02 Firmware 2016-08-01 Download
