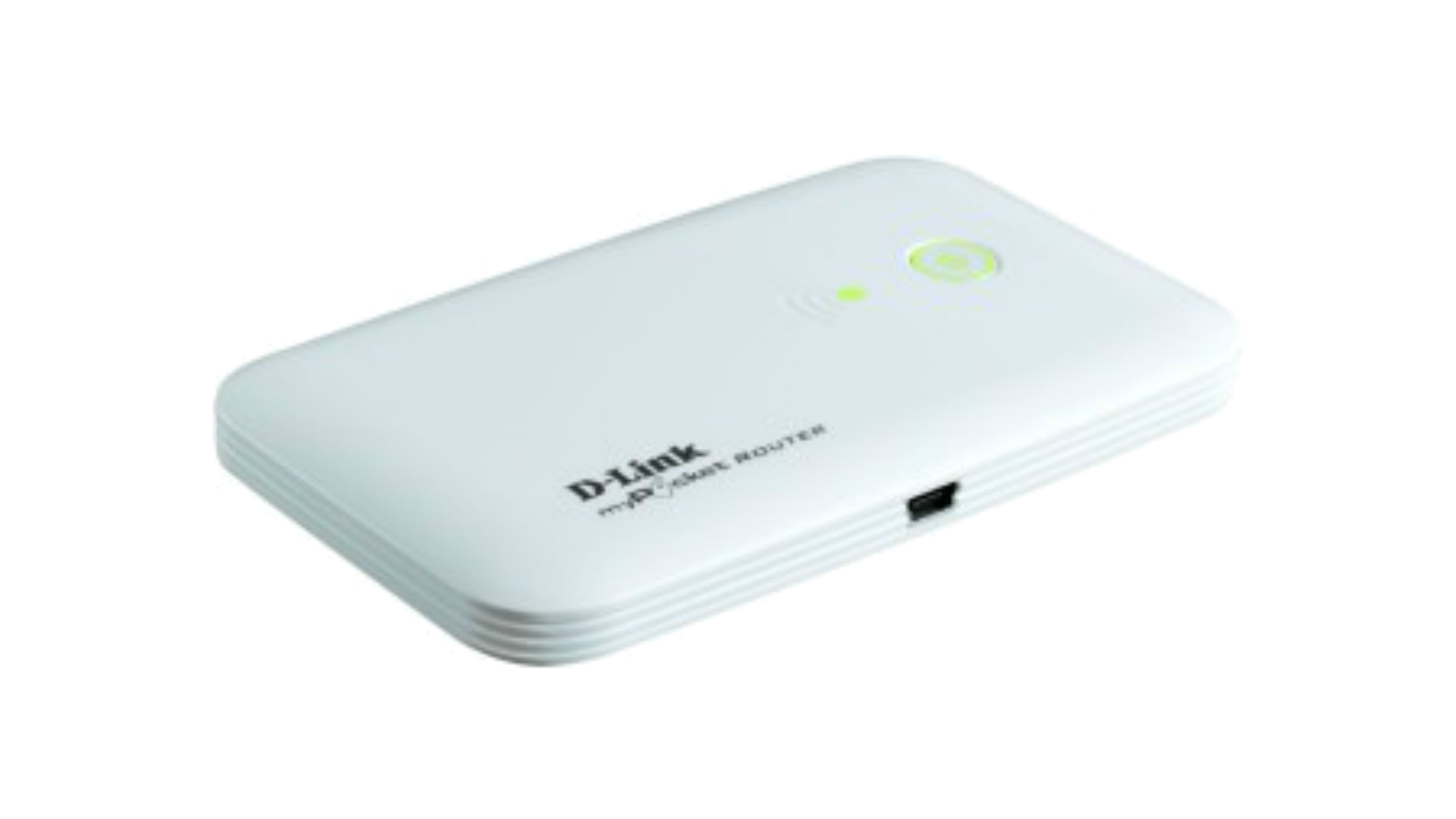

Portable 3G Router

DIR-457

  • Product Status: Phased Out

The DIR-457 Portable 3G Router allows users to access worldwide mobile broadband networks. Once connected, you can enjoy data transmission and media streaming on-the-go. Simply insert your data SIM card, and share your 3G Internet connection through a secure 802.11g wireless network.

Stay in touch wherever you are

The router is small and light enough to fit in your pocket. You don’t have to worry about where to place it, as it functions on a battery that provides up to two hours uninterrupted connectivity when transferring data.
Based on UMTS/HSDPA 3G broadband technology, the router downloads data at speeds of up to 3.6 Mbps (384 kbps upload), ideal for Internet access on the go.

Multi-functionality

The router can be configured to work as a Wi-Fi router or 3G modem at the flip of a switch. As a router, you can share 3G connectivity between up to 16 Wi-Fi devices such as smart phones, notebooks or gaming consoles. Alternatively, you can enjoy personal access to the Internet by connecting the myPocket router directly to your computer via the USB cable provided.

SMS compatibility

The DIR-457 can be used to perform all the text messaging functions that can be done on a mobile phone such as sending, receiving, replying, forwarding and deleting. Similarly, contacts on the SIM card can be displayed through the Contacts Manager; editing, adding, deleting or importing contacts is also possible.

Advanced network security

The DIR-457 utilises a built-in firewall to prevent potential attacks from across the Internet. It includes the best wireless encryption (WPA/WPA2) to prevent eavesdropping.

Simple to install and use

The router can be installed quickly and easily almost anywhere. This router is great for situations where an impromptu wireless network must be set up, or wherever conventional network access is unavailable.

Actual product appearance may differ from the image displayed on this page

Technical Specifications

Hardware
•    One mini-USB port for battery recharging or conection to a single computer
•    Standard 6-pin SIM card slot, accepting UMTS/HSDPA SIM cards from any operator
•    Router/modem switch

Wireless
•    IEEE 802.11g Wireless LAN specification, Wi-Fi certified
•    Compatible with 802.11b/n wireless networks
•    Simple wireless encryption set up with Wireless Protect Setup (WPS), PIN method
•    Wi-Fi Protected Access (WPA-PSK / WPA2-PSK)

Security
•    Stateful Packet Inspection (SPI)
•    Built-in firewall with Denial of Service (DoS) and port scan attack prevention
•    IPSEc/PPTP/L2TP VPN pass-through
•    MAC address filtering

Configuration/Management
•    D-Link Mobile Connection Manager for quick adjustment of both 3G and Wi-Fi settings
•    Web-based configuration and management

FAQ

  • Does the DMF-560TX or DMF-560TXD have distinctive ring support? Read Answer
Version Date Type File Size
Datasheet - PDF 4.53mb Download
Version Description Date Type File Size
Manual (English) Manual (English) - PDF 4.46mb Download
Version Description Date Type File Size
1.01 Quick Installation Guide - PDF 1.43mb Download
This D-Link product includes software code developed by third parties, including software code subject to the GNU General Public License (“GPL”) or GNU Lesser General Public License (“LGPL”). As applicable, the terms of the GPL and LGPL, and information on obtaining access to the GPL code and LGPL code used in this product, are available to you at:

http://tsd.dlink.com.tw/GPL.asp

The GPL code and LGPL code used in this product is distributed WITHOUT ANY WARRANTY and is subject to the copyrights of one or more authors. For details, see the GPL code and the LGPL code for this product and the terms of the GPL and LGPL.
Version Description Date
Firmware 1.03B03 Firmware 2010-10-21 Download
Version Description Date
GPL Software GPL Software - Download
Version Description Date
DEU_AD_CEDoc_B1_RevA CE Declaration 2011-03-03 Download
DEU_AD_CEDoc_A1_RevA CE Declaration 2009-12-28 Download
