Megapixel PoE Fixed Network Camera

DCS-3110

  • Product Status: Phased Out
The D-Link DCS-3110 is a network camera for professional surveillance and security. It features a 1.3 mega-pixel progressive scan CMOS sensor and the motion JPEG stream covers performs more than three times better than an analogue CCTV camera.

Download the datasheet.

List Retailers
The D-Link DCS-3110 is a network camera for professional surveillance and security. It features a 1.3 mega-pixel progressive scan CMOS sensor and the motion JPEG stream covers performs more than three times better than an analogue CCTV camera.

Two video streams with different configurations can be activated simultaneously to address the different requirements for live viewing and recording. Multicast video/audio stream helps to reduce the network transmission load. When multicast-enabled router is used, the network camera can serve multiple clients at the same time.

The camera is designed for both indoor and outdoor (with enclosure) day/night applications and has a built-in removable IR-cut filter. It is also equipped with one digital input and one digital output. An RS-485 port is designed for external pan/tilt/zoom devices. An 802.3af compliant power over Ethernet (PoE) module is also built-in to ease the installation process.

With D-ViewCam, D-Link's channel recording software, bundled free-of-charge, this network camera provides a total solution for high quality live viewing and reliable recording.
  • IR cut Removable(ICR) filter for day/night feature
  • 1.3 mega-pixel progressive scan CMOS module
  • 6mm megapixel lens, F1.6
  • Power over Ethernet (PoE) built-in
  • Switch for audio on/off
  • DI/DO support for external device
  • RS-485 for external PTZ connection
  • Support DC12V output for external device (like IR light)
  • Real-time MPEG-4 and Motion JPEG compression with VGA/QVGA/QQVGA resolution, 30 frames per second
  • Motion JPEG with SXGA(1280x1024) @8fps.
  • Simultaneous dual-stream support
  • Multicast video/audio stream
  • 3GPP mobile surveillance
  • Samba client built-in for NAS
  • Motion detection recording
  • Support CF card for local storage

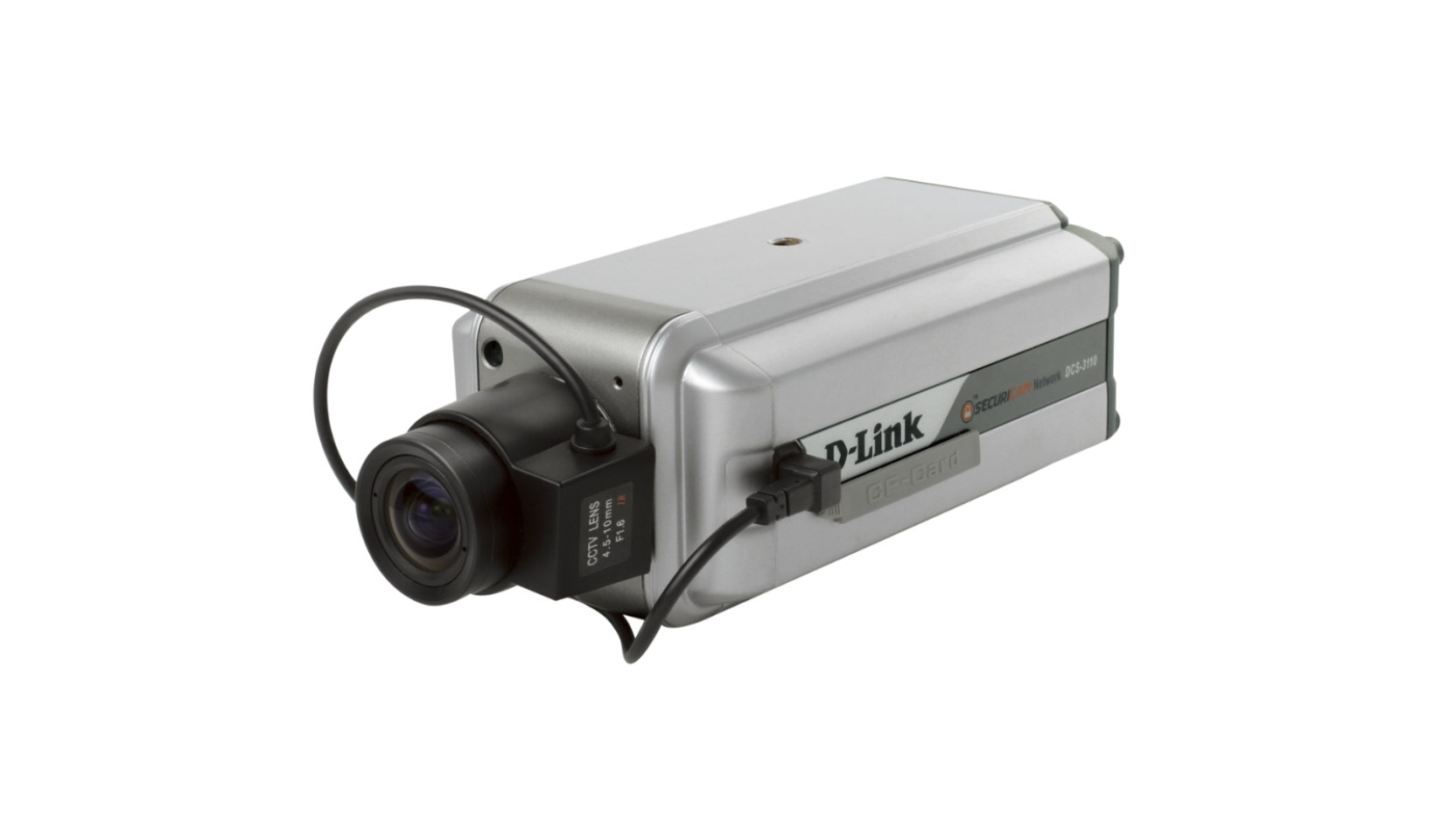

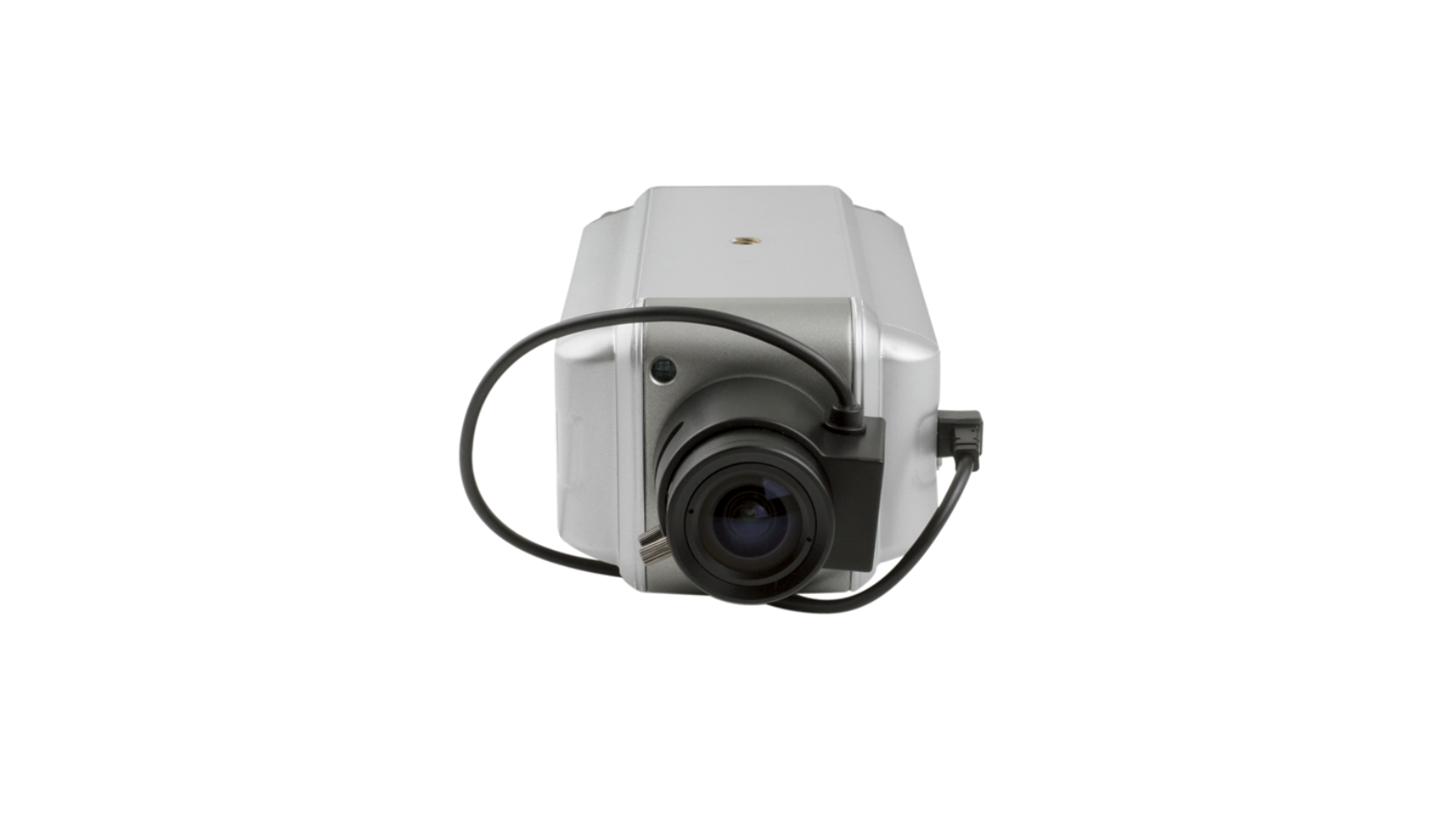

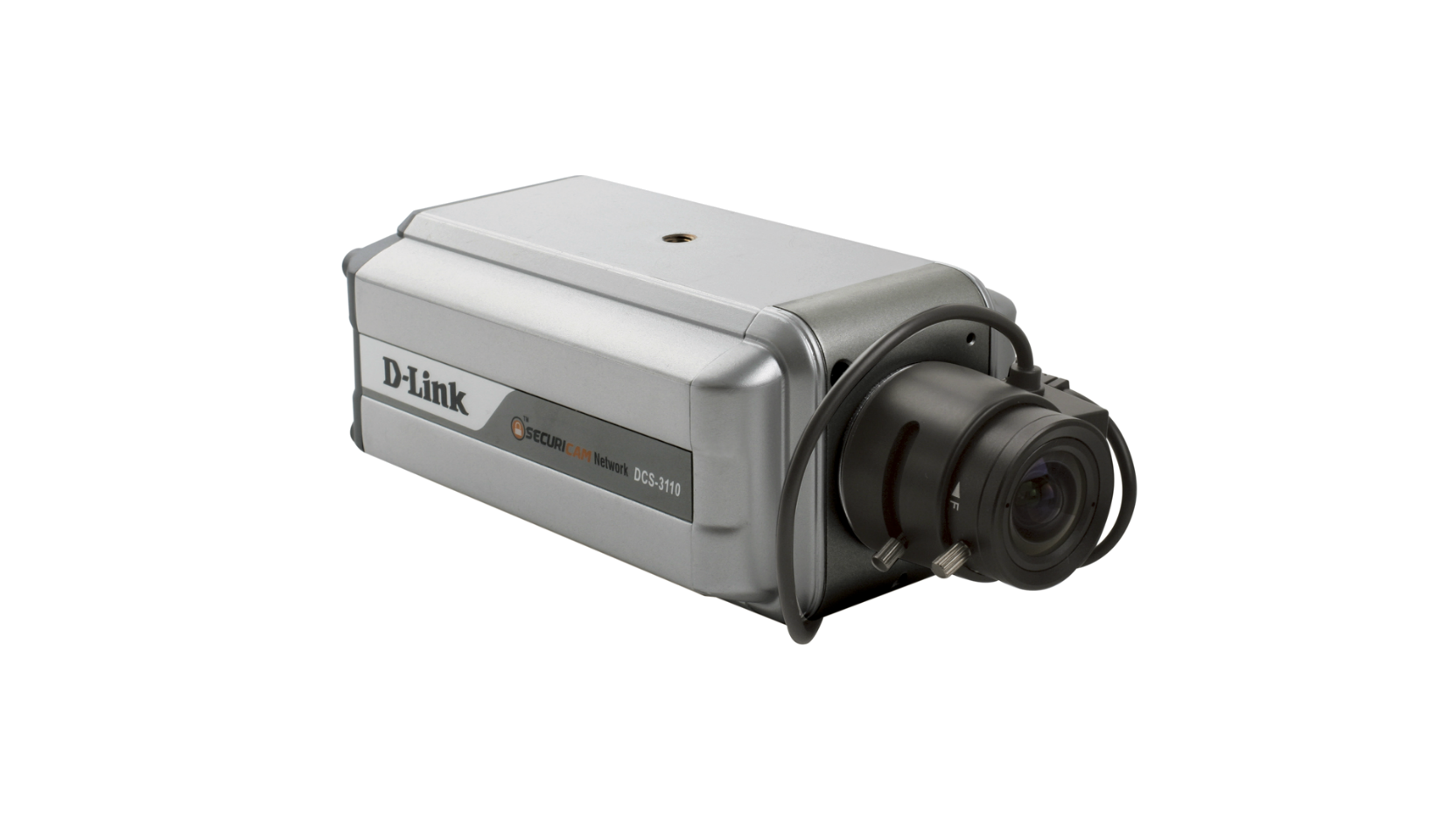

Actual product appearance may differ from the image displayed on this page

Related Products

Dualband HD Media Router
DIR-857
Find out more
Whole Home Router 1000
DIR-645
Find out more
ShareCenter Pro 1250 S-Series Network Storage 4-Bay Desktop
DNS-1250-04
Find out more
ShareCenter Pro 4-Bay 1U Rackmount Unified Storage
DNS-1550-04
Find out more
Wireless N Unified Services Router
DSR-500N
Find out more

Technical Specifications

Network Protocol Support
  • IPv4, TCP/IP, RTSP/ RTP/ RTCP, HTTP,SMTP, FTP, NTP, DNS, DHCP, UPnP, DDNS, PPPoE, IGMP, Samba client, IP Filtering, 3GPP

Network Interface
  • IEEE 802.3/802.3u 10/100BASE-TX Ethernet port
  • Supports half/full-duplex operations
  • Supports 802.3x Flow Control in fullduplex mode
  • Supports IEEE 802.3af PoE

Video Algorithm Support
  • JPEG for still image
  • Compression: MJPEG & MPEG-4
  • Streaming: simultaneous dualstreaming
  • MPEG-4 streaming over UDP, TCP, or HTTP
  • MPEG-4 multicast streaming
  • MJPEG streaming over HTTP

Video Resolution
  • MJPEG video with resolution up to 1280x1024 (1.3 Megapixel)
  • MPEG-4 video with resolution up to 640x480 (VGA)
  • Up to 30fps at 176 x 144
  • Up to 30fps at 320 x 240
  • Up to 30fps at 640 x 480
  • Up to 8 frames at 1280x1024

Video Features
  • Adjustable image size, quality, and bit rate
  • Time stamp and text overlays
  • 3 configurable motion detection windows
  • Flip & mirror
  • Configurable brightness
  • AGC, AWB, AES

Video Bit Rate
  • 20K to 4M

Sensor & Lens Specifications
  • 1/4” 1.3 megapixel progressive color CMOS sensor
  • 6 mm megapixel lens, F1.6
  • Removable IR-cut filter: Auto/Schedule/Manual
  • Minimum illumination: 1.5 Lux, F2.0

Event Management
  • Motion detection weekly schedule
  • Event notification and upload snapshots/video clips via HTTP, SMTP,or FTP
  • Multiple HTTP, SMTP, or FTP server setups
  • Multiple event notification setups for flexible application
  • Multiple recording methods for easier backup

Security
  • Administrator and user group protected
  • Password authentication
  • HTTP and RTSP digest encryption

Surveillance Software Functions
  • Remote management/control of up to 32 cameras
  • Viewing of up to 32 cameras on one screen
  • Supports all management functions provided in web interface
  • Scheduled motion triggered, or manual recording options

Remote Management
  • Configuration accessible via web browser
  • Take snapshots/video clips and save to CF card, local hard drive or NAS via web browser
  • Camera live viewing for up to 10 clients

System Requirements
  • Operating System: Microsoft Windows 2000, XP, Vista
  • Browser: Internet Explorer, Firefox, Netscape, Mozilla, Opera browser

3GPP Mobile Surveillance

  • Handsets with 3GPP player with following software support:
    • Packet Video Player 3.0
    • QuickTime 6.5
    • Real Player 10.5

Audio
  • Compression and bit rate:
    • GSM-AMR speech compression, bit rate: 4.75 kbps ~12.2 kbps
    • MPEG-4 AAC audio encoding, bit rate: 16 kbps ~128 kbps
  • Interface: built-in microphone, external microphone input, external speaker output
  • Supports two-way audio by SIP protocol
  • Supports hardware and software audio mute

External Device Interface
  • One D/I and one D/O for external sensor and alarm
  • RS485 interface for external scanner
  • DC12V output for external accessory

Diagnostic LED
  • 2 color LED

Front-end Storage
  • CF card slot for local recording of MP4 files

Power Input
  • 100 - 240VAC, 50/60Hz, 12VDC, 1.25A

Power Consumption
  • Max 4 W

Dimensions
  • 80 (W) X 143.8 (D) X 62 (H) (mm)

Weight
  • 521 grams

Operation Temperature
  • 0o to 40o C (32o to 104o F)

Storage Temperature
  • -20° to 70° C (-4o to 158o F)

Humidity
  • 20% to 80% non-condensing

Certifications
  • FCC Class B
  • CE
  • C-Tick
  • LVD
