DHP-309AV - US Revision A

Hardware revisions
Downloads can vary across product revisions.
Find my revision

Quick Links

No Downloads
Datasheets
Description Type File Size
Download
US Datasheet
 PDF 0.75mb
Download
Manuals
Description Type File Size
Download

Manual

 PDF 3.64mb
Download
Quick Installation Guides
Version Description Date Type File Size
Download v1.0

Quick Install Guide

 PDF 0.58mb
Download

Providing Networking Solutions and Support


  • Premium Services is a Technical Consultation Service
  • We Offer Support on Most Internet and Networking Issues
  • Each Consultation up to 30 Minutes in Length with Three Subscription Plans to Choose From


Available Plans

Plan A

Plan B

Plan C

One Call

Three Calls

12 Months

$32.95

$64.95

$99.99
* Up to 12 calls


Support Staff:
The Premium Services staff have many years of experience in computer or computer related fields, with degrees, training and certifications in Engineering, A+, C+ CCNA, MCSE, and D-Link Technology.

Our technicians are trained to resolve most networking problems. If it is determined that the technician cannot solve the customers problem within the first few minutes the call may be escalated to a senior technician. In certain circumstances callbacks may be made to ensure customer satisfaction.

  • Premium Services is a Technical Consultation Service
  • We Offer Support on Most Internet and Networking Issues

Consumer:
Each Consultation up to 30 Minutes in Length with Three Subscription Plans to Choose From. Services are available from 6am-10pm PST / 7 days a week.

Disclaimer: Not all issues may be resolved over the phone.


Consumer Premium Services
Leading the Industry in Pay-For-Support Services!
Contact Us: 888-814-2882

Extend your Network

The D-Link® PowerLine AV + Mini Adapter Starter Kit (DHP-309AV) extends your home network by transforming your existing electrical system into a powerful network.  Easily add computers, laptops and entertainment systems to your wired network without turning your home into a wired mess.



Just Plug and Connect

Setup couldn’t be easier – just plug and connect. There’s no need for drilling holes or messy wiring. And if you want to build your network further, just plug and connect additional adapters.  The compact and flat design doesn’t block other plugs in an outlet or protrude from the wall. It’s perfect for conserving space and power outlet capacity.

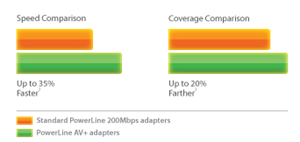

PowerLine AV + Advantage

PowerLine AV + technology maximizes performance to give speeds up to 35% faster than conventional PowerLine AV 200 adapters. Get up to 200Mbps speed delivered to any outlet in your home. This means you can watch videos, surf the Web or catch up on email in spots where you can’t get a good wireless signal. Plus, PowerLine AV+ gives you up to 20% better coverage than conventional PowerLine AV 200 adapters. This means fast speeds throughout your home.


How it Works

FAQ Overview
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • HomePlug AV

Ethernet Interface
  • 10/100Base Ethernet Port with Auto MDI/MDIX
  • RJ-45 Connector

Maximum PHY Rate
  • 200 Mbps1

Security
  • 128-bit AES Data encryption

Input Power
  • 100V ~ 240V, 50/60 Hz

LEDs
  • Power
  • PowerLine
  • Ethernet

Power Saving
  • Power saving mode supported

Power Consumption
  • <5W

Operating Temperature
  • 330º to 104ºF (0º to 40ºC)

Operating Humidity
  • 10% to 90% non-condensing

EMC Certifications
  • FCC Part 15 Class B
  • CE EMC Class B

Safety Certifications
  • UL
  • CE LVD

Dimensions
  • 2.7” x 2.1” x 1.0” (MM)
  • (69 x 53 x 25 mm)

Weight
  • 0.23lbs (104g)

Warranty
  • 1-Year Limited Warranty
