Cloud Camera 6100, 360° HD Network Camera

Keep an Eye on What Matters Most

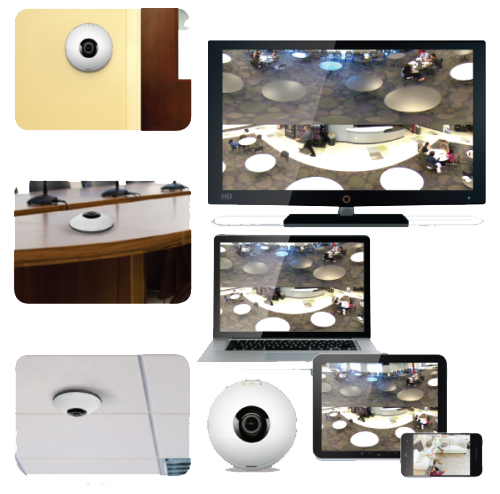

The D-Link Cloud Camera 6100 is equipped with a fisheye lens for both 180° panoramic view and 360° surround view modes, giving you complete vision of your business, home or office. With the latest cutting-edge image processing, images captured from the fisheye camera can be converted into multi-panel rectilinear projection for the ultimate in business and home surveillance. And with ultra-smooth digital pan/tilt and zoom functionality, you can easily keep an eye on what you value most.

HD Video Quality

The Cloud Camera 6100 delivers the confidence of 720P HD video clarity, ensuring rich detail and crisp image quality for your surveillance recordings.  And with integrated night-vision and PIR motion-sensing technology, the Cloud Camera 6100 remains vigilant 24 hours a day, whether you're there or not.

D-ViewCam - Your Personal Surveillance System

With D-Link’s free D-ViewCam software, you can monitor and manage up to 32 network cameras, all from a single computer screen. Quickly and easily turn your network into a full-fledged, personal surveillance system that gives you the ultimate performance in home or small-business monitoring and protection. Plus, with D-ViewCam, you can automatically record and playback video at your own convenience.

• E-mail alerts
• Motion detection
• Scheduled recordings

Zero Configuration

Camera

Hardware Profile

• 1/3.2” 2 megapixel progressive CMOS sensor
• Minimum illumination: 2 lux
• Built-in microphone and speaker
• 10x digital zoom
• Focal length: 1.25 mm
• Aperture: F2.0

• (H) 180°
• (V) 180°
• (D) 180°

• Configurable image size, quality, frame rate, and bit rate
• Fisheye distortion correction
• Time stamp and text overlays
• Configurable brightness, saturation, contrast,and sharpness
• Configurable motion detection windows

• H.264/MPEG-4/MJPEG simultaneous format compression
• H.264/MPEG-4 multicast streaming
• JPEG for still images

• 1600 x 1200, 1200 x 900, 800 x 600, 400 x 300 up to 15 fps recording1

• G.726
• G.711

• 10/100 BASE-TX Fast Ethernet port
• 802.11n wireless
• MicroSD/SDHC card slot

Network

Network Protocols

• IPv6
• IPv4
• TCP/IP
• UDP
• ICMP
• DHCP client
• NTP client (D-Link)
• DNS client
• DDNS client (D-Link)
• SMTP client
• FTP client
• HTTP / HTTPS
• Samba client
• PPPoE
• UPnP port forwarding
• RTP / RTSP/ RTCP
• IP filtering
• QoS
• CoS
• Multicast
• IGMP
• ONVIF compliant

Security

• Administrator and user group protection
• Password authentication
• HTTP and RTSP digest encryption

System Management

System Requirements for Web Interface

• Browser: Internet Explorer, Mozilla Firefox, or Google Chrome

Event Management

• Motion detection
• Event notification and upload snapshots/video clips via email or FTP
• Supports multiple SMTP and FTP servers
• Multiple event notification
• Multiple recording methods for easy backup

Remote Management

• Configuration accessible via web browser
• Take snapshots/video clips and save to local hard drive or NAS via web browser

Mobile Support

• Windows 7®/Vista®/XP® system, Pocket PC, or mobile phone
• mydlink™ mobile app for iOS and Android mobile devices

D-ViewCam™ System Requirements

• Operating System: Microsoft Windows 7/Vista/XP
• Web Browser: Internet Explorer 7 or higher
• Protocol: Standard TCP/IP

D-ViewCam™ Software Functions

• Remote management/control of up to 32 cameras
• Viewing of up to 32 cameras on one screen
• Supports all management functions in web interface
• Scheduled motion triggered or manual recording options

General Specifications

Max. Power Consumption

• 3.9 watts

Operating Temperature

• 32° to 104° F (0° to 40° C)

Storage Temperature

• -4° to 158° F (-20° to 70° C)

Operating Humidity

• 20% to 80% non-condensing

Storage Humidity

• 5% to 95% non-condensing

Certifications

• CE
• CE LVD
• FCC
• C-Tick

Dimensions

• ø 5.28” x 1.96” (ø 134.2mm x 49.8mm)

Weight

• 8.32oz (235 grams)

Warranty

• 1-Year Limited1

_{1Use of audio or video equipment for recording the image of a person without their knowledge and consent is prohibited in certain states or jurisdictions. The end-user assumes all liability for compliance with applicable state, local and federal laws. 2 The inclusion of a specific product or manufacturer does not imply its endorsement of D-Link or the D-Link product. 3 24/7 Basic Installation Support is available only in the USA for the first 30 days from date of original purchase. 4 1-Year Limited Warranty available only in the USA and Canada. 5 Computer must adhere to Microsoft’s recommended System Requirements. 6Zero Configuration requires mydlink-enabled Cloud Router.7Frame rates when streaming video may vary depending on network conditions and method used 8Frame rates when streaming video may vary depending on network conditions and method used. 7 Maximum wireless signal rate derived from IEEE Standard 802.11 specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range. Wireless range and speed rates are D-Link RELATIVE performance measurements based on the wireless range and speed rates of a standard Wireless G product from D-Link. Maximum throughput based on D-Link’s 802.11n devices.
All references to speed and range, including the performance chart, are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted on the package. See inside package for warranty details.}
