Technical Specifications



General

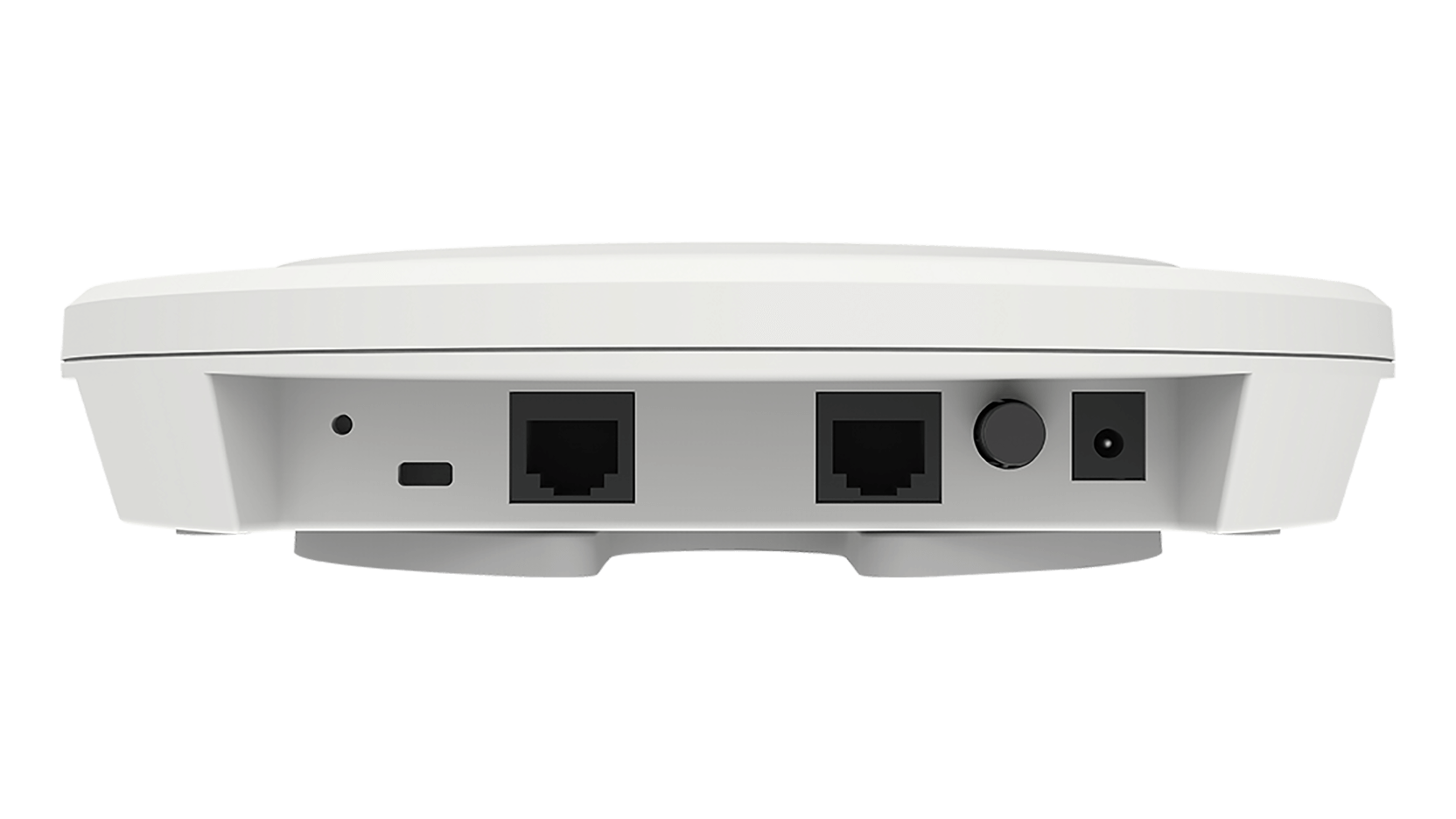

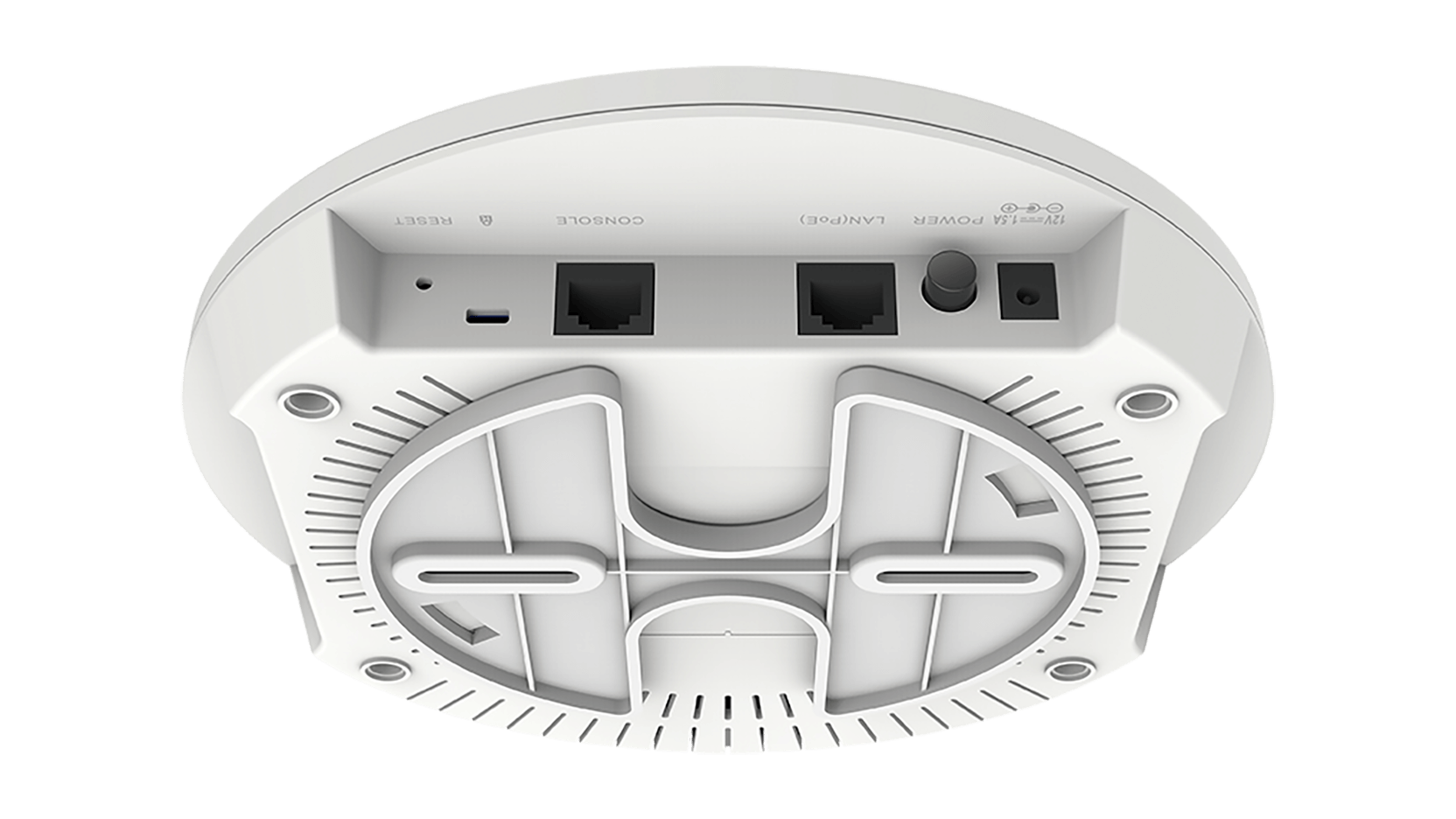

Interfaces

  • 802.11b/g/n 2.4 GHz wireless
  • 802.11ac 5 GHz wireless
  • One 10/100/1000 LAN port
  • RJ45 console port
  • Factory reset button
  • Power switch
  • Power connector

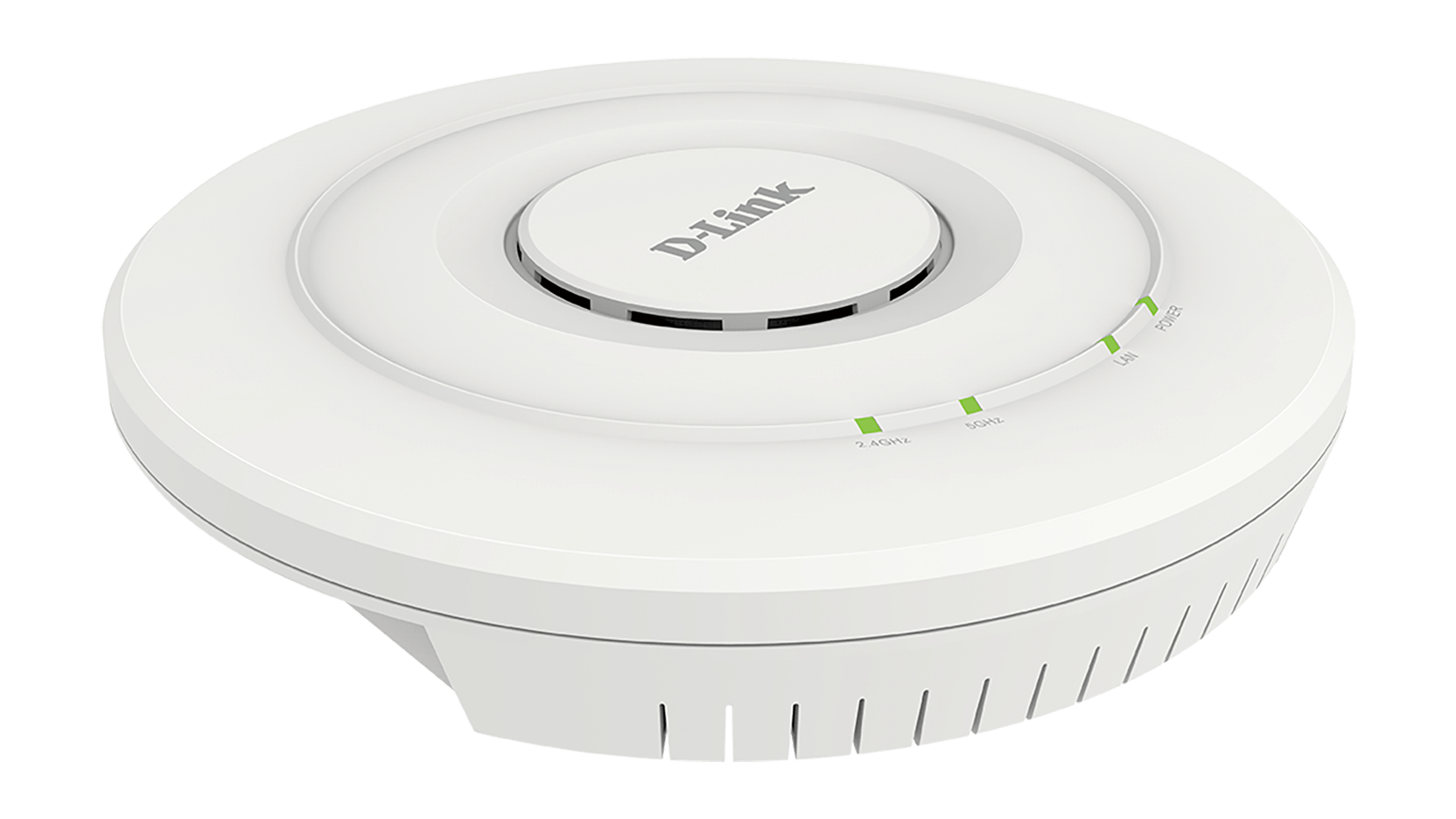

LEDs

  • Power
  • LAN
  • 2.4 GHz
  • 5 GHz



Wireless Frequency

  • 2.4 GHz band: 2.4-2.4835 GHz
  • 5 GHz band: 5.15-5.35 GHz, 5.47-5.825 GHz



Data Transfer Rate

  • 802.11ac: 433 Mbps-867 Mbps
  • 802.11n: 6.5 Mbps-300 Mbps
  • 802.11g: 54, 48, 36, 24, 12, 9, and 6 Mbps
  • 802.11b: 11, 5.5, 2, and 1 Mbps
  • 802.11a: 54, 48, 36, 24, 12, 9, and 6 Mbps



Operation Channel

  • 2.4 GHz
    • 13 channels
  • 5 GHz
    • 19 non-overlapping channels



Antenna

  • Internal omnidirectional antennas
  • 5 dBi for 5 GHz, 3.5 dBi for 2.4 GHz



Security



SSID Security

  • Up to 32 SSIDs, 16 per radio
  • 802.1Q VLAN
  • Station Isolation



Wireless Security

  • WPA Personal/Enterprise
  • AES and TKIP



Detection & Prevention

  • Rogue and Valid AP Classification



Authentication

  • MAC Address Filtering



Network Management



Operational Modes

  • Standalone
  • AP Array
  • Managed (with DWS-4026, DWS-3160-24TC, DWS-3160-24PC, DWC-1000 or DWC-2000)



Web-based User Interface

  • HTTP/HTTPS



Command Line

  • RJ45 Serial Console
  • Telnet/SSH
  • SNMP



Physical



Dimensions

  • 158.79 x 158.79 x 69.39 mm w/o bracket



Weight

  • 500 grams



Power Adapter (not included)

  • 12 V DC, 2 A



Max Power Consumption

  • 16.6 W



Power over Ethernet

  • 802.3at PoE+



Enclosure

  • Bottom cover – plastic
  • Top cover – plastic
  • UL2043 certified chassis



Temperature

  • Operating: 0 to 40 °C
  • Storage: -20 to 65 °C



Humidity

  • Operating: 10% to 90% non-condensing



Certifications

  • CE
  • EN 301 893 V1.7.1 (2012-06) (DFS/TPC)
  • EN 300 328 V1.8.1 (2012-06)
  • FCC
  • IC
  • cUL
  • LVD
  • UL2043
  • C-Tick
  • BSMI
  • NCC

Wi-Fi
