How to create IPSEC VPN Client Server – FW.2.x DSR-Series

The following example illustrates configuring a VPN tunnel between Router DSR IPSEC and IPSEC client, the client will use the Shrew free-ware software that can be downloaded from the following link:

https://www.shrew.net/download

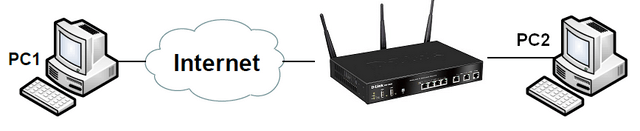

Topology:
D-Link


    PC1: 192.168.0.10                                     DSR: WAN 213.27.250.22                                PC2: 192.168.1.99
                                                                                  LAN 192.168.1.1

Step 1 - Enter the configuration by entering the IP address of the DSR in your browser (the default IP address is the 192.168.10.1)

The default user is admin: admin and the password: admin. In our example the DSR has IP address 192.168.1.1

D-Link

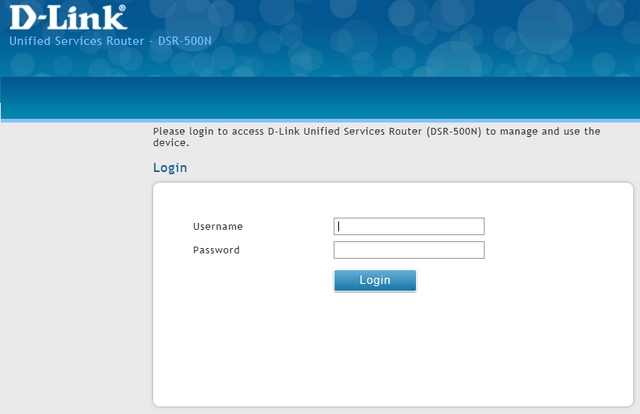

Once you have entered the username and password, click “Login”

Step 2 - To create a new IPSEC tunnel go to IPSec VPN Policies

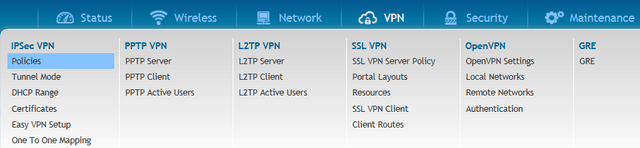

VPN > IPSec VPN> Policies

D-Link

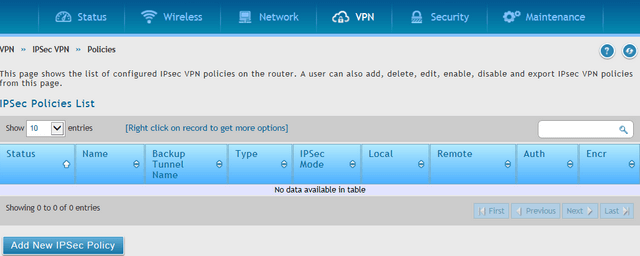

Click “Add New IPSec Policy” to create the new policy setting

D-Link

Step 3 - IPSec VPN configuration on the server end - DSR

D-Link

D-Link

D-Link

D-Link

D-Link

D-Link

D-Link

Click “Save”

Step 4 -

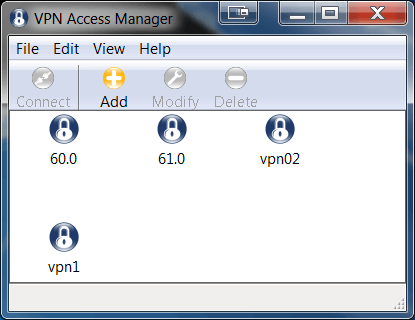

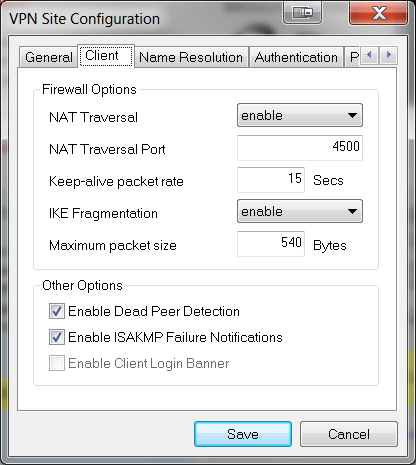

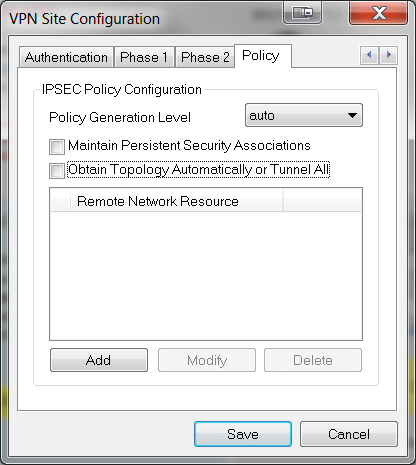

Once Shrew has been installed, run the VPN Access Manager and click “Add” to add a new VPN connection

D-Link

Assign the public address of the router DSR against the IPsec tunnel to be established.

D-Link

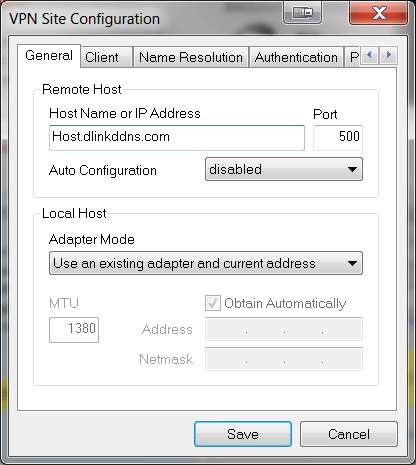

You can also enter the DDNS address of the router DSR against the IPsec tunnel to be established.

D-Link

D-Link

D-Link

D-Link

D-Link

D-Link

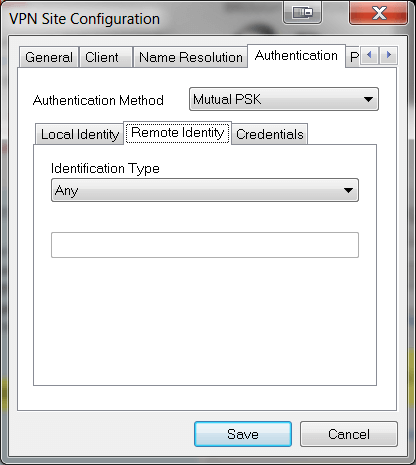

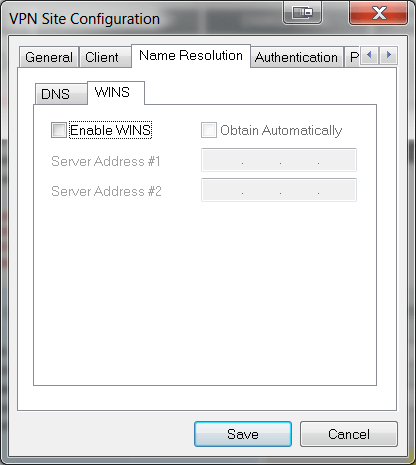

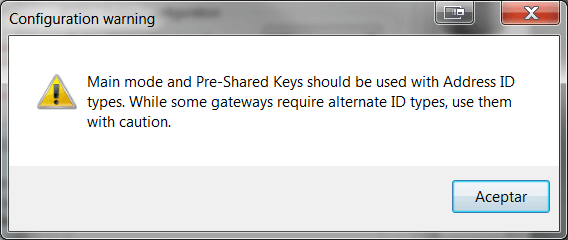

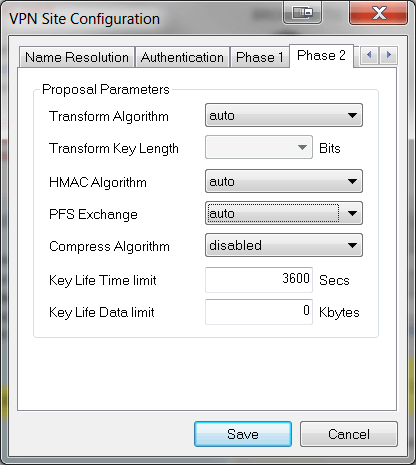

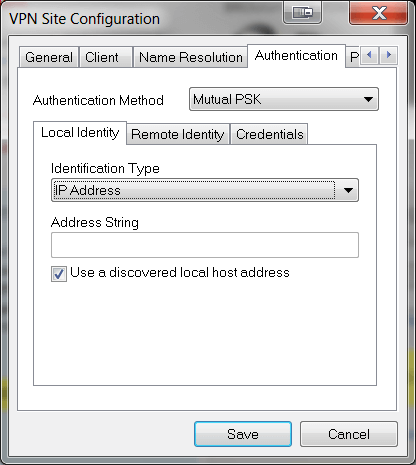

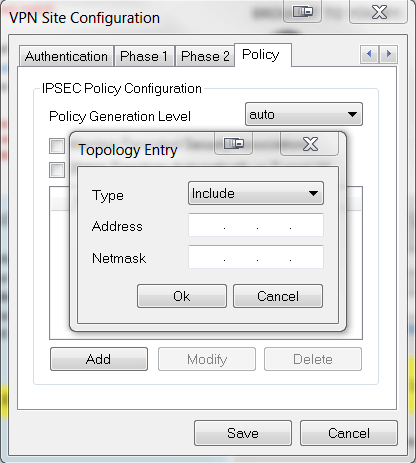

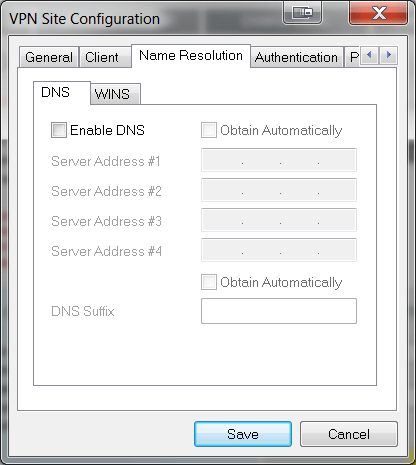

Indicate the shared key configured on the router DSR

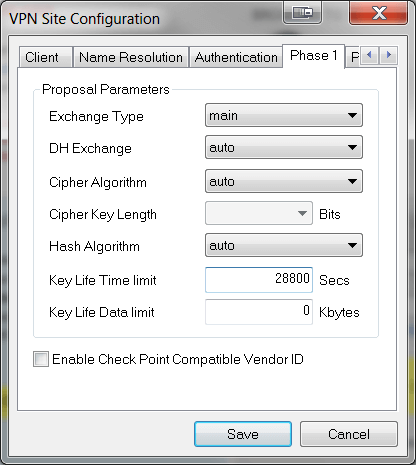

D-Link

D-Link

D-Link

D-Link

D-Link

D-Link

D-Link

D-Link

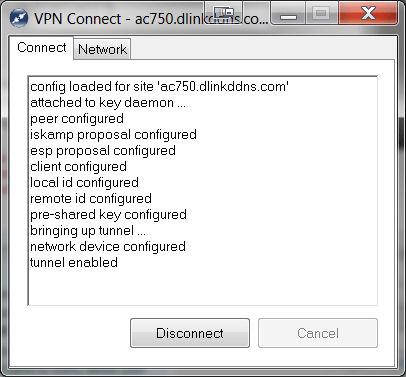

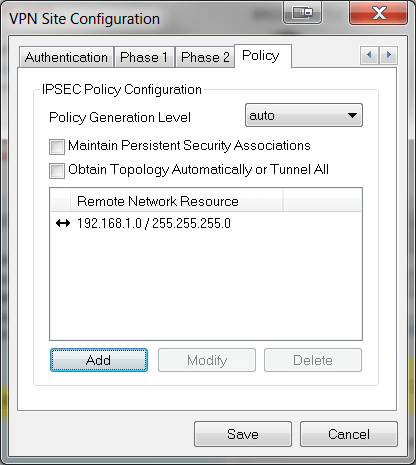

To enable the tunnel, select the newly created connection and click “Connect”.

D-Link

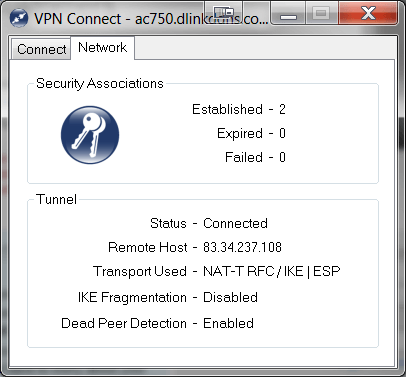

When the tunnel connects the resources on the DSR LAN router interface will be ac-cessible through it.
