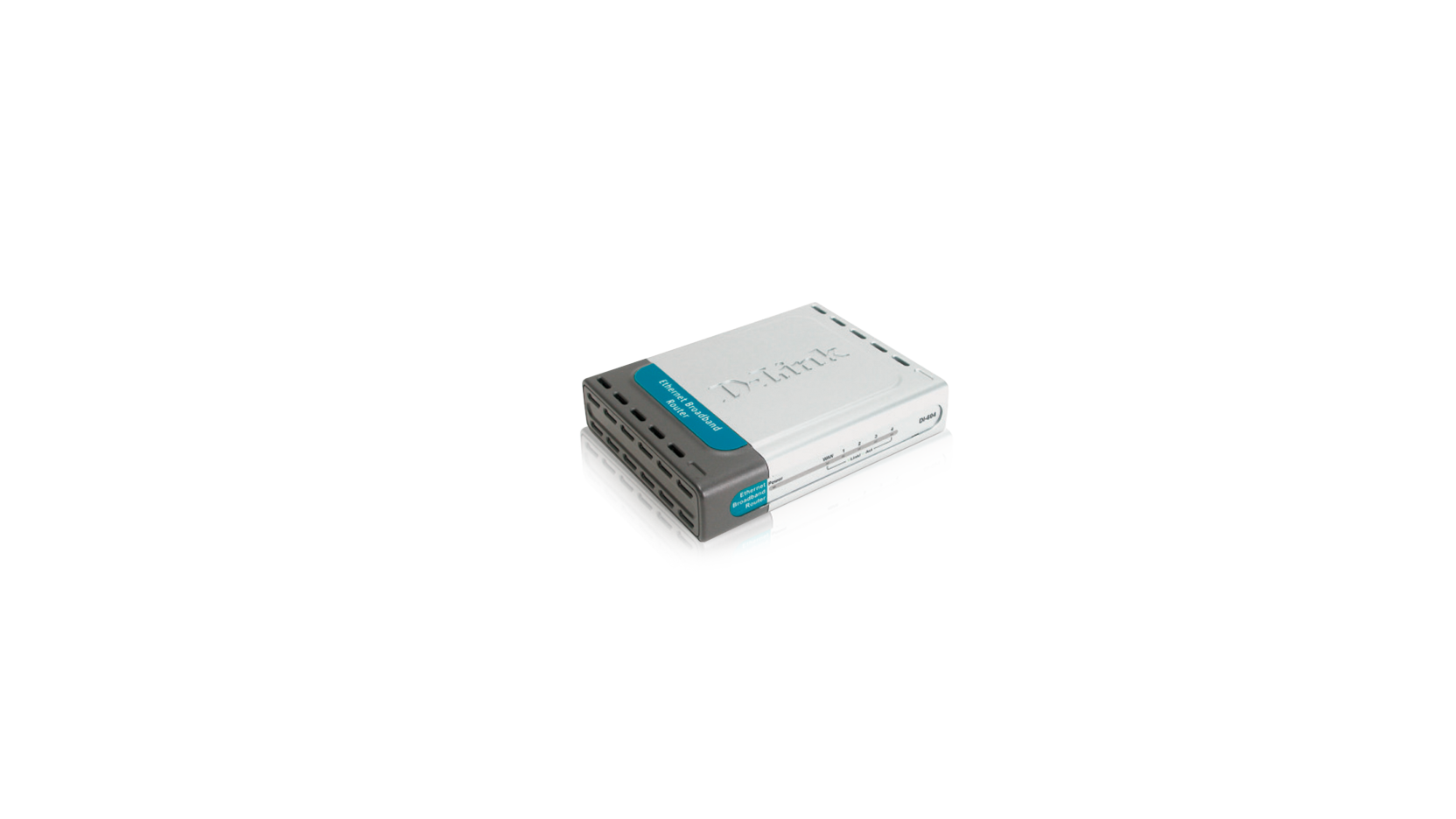

IP Router for DSL/Cable Modems with 4-Port 10/100Mbps Switch

DI-604

  • Product Status: Phased Out

Technical Specifications

CPU
AMIT SOC
WAN Interface
  • RJ-45 10BASE-T/100BASE-TX port
  • Supports DSL and cable modem connection
  • Supports "Always-on" (bridged) and PPPoE for PPP connection on
  • demand
LAN Interface
4 RJ-45 10BASE-T/100BASE-TX ports
Routed Packet Type
IP packets
Routing Protocols & Methods
  • RIP-1, RIP-2
  • Static Routing
  • Dynamic Routing
VPN Support
IPSec pass-through
Internet Gateway Functions
  • Network Address Translation (NAT)
  • DHCP server (for automatic IP assignment)
Number of Virtual Server Mappings

10 entries



RFC Support

  • RFC 0768 User Datagram Protocol
  • RFC 0791 Internet Protocol
  • RFC 0792 Internet Control Message Protocol
  • RFC 0793 Transmission Control Protocol
  • RFC 0821 Simple Mail Transfer Protocol
  • RFC 0826 Ethernet Address Resolution Protocol
  • RFC 1058 Routing Information Protocol
  • RFC 1112 IGMP v1 (for UPNP and IAPP functions)
  • RFC 1157 Simple Network Management Protocol
  • RFC 1213 Management Information Base-II (MIB II)
  • RFC 1332 PPP Internet Control Protocol
  • RFC 1350 TFTP Protocol (Reversion 2)
  • RFC 1514 Dynamic Host Configuration Protocol
  • RFC 1631 IP Network Address Translator
  • RFC 1661 Point-to-Point Protocol (PPP)
  • RFC 1723 RIP-2 Carrying Additional Information
  • RFC 1945 Hypertext Transfer Protocol HTTP/1.1 (subset)
  • RFC 1994 PPP Challenge Handshake Authentication Protocol (CHAP)
  • RFC 2132 DHCP Options and BOOTP vender Extensions
  • RFC 2516 PPP Over Ethernet (PPPoE)

IP Number Self-identification
Through DHCP client
Configuration & Management

  • Web-based configuration
  • SNMP agent with built-in MIB-II*
  • UPnP support

Firmware Upgrade
Through TFTP
Memory

  • SDRAM: 4MBytes
  • Flash: 256KBytes

Security
PPP Authentication PAP, CHAP, MS-CHAP

Firewall Features

  • Access-list control
  • Domain filtering
  • URL filtering
  • Packet filtering
  • Ping of Death
  • IP spoofing
  • Intrusion detection
  • Network access rules
  • Log file of security events

Standards

  • IEEE 802.3 10BASE-T Ethernet
  • IEEE 802.3u 100BASE-TX Fast Ethernet
  • ANSI/IEEE 802.3 NWay auto-negotiation

Supported Functions

  • Full/half duplex (per port)
  • MDI-II/MDI-X auto uplink (per port)
  • Auto correction of twisted-pair Rx reverse polarity (per port)

 Flow Control

  • IEEE 802.3x Flow Control in full-duplex
  • Back pressure in half-duplex

Transmission Method
Store-and-forward

MAC Address Learning
Automatic update

Diagnostic LEDs

  • Power/Status
  • WAN (Link/Activity)
  • 1, 2, 3, 4 LAN ports (Link/Activity)

Power Input

  • DC 5V 2.0A
  • Through external 100 - 240 VAC power adapter

Dimensions
142 x 108 x 31 mm (55.9 x 42.5 x 12.2 inches)
Weight
200 grams (1.44 lb.)
Operating Temperature
0 - 55 C (3 2 - 131 F )
Humidity
95% maximum non-condensing
EMI Certification

  • FCC Class B
  • CE Class B
  • C-Tick

Safety Certification
UL
Available in future release.
