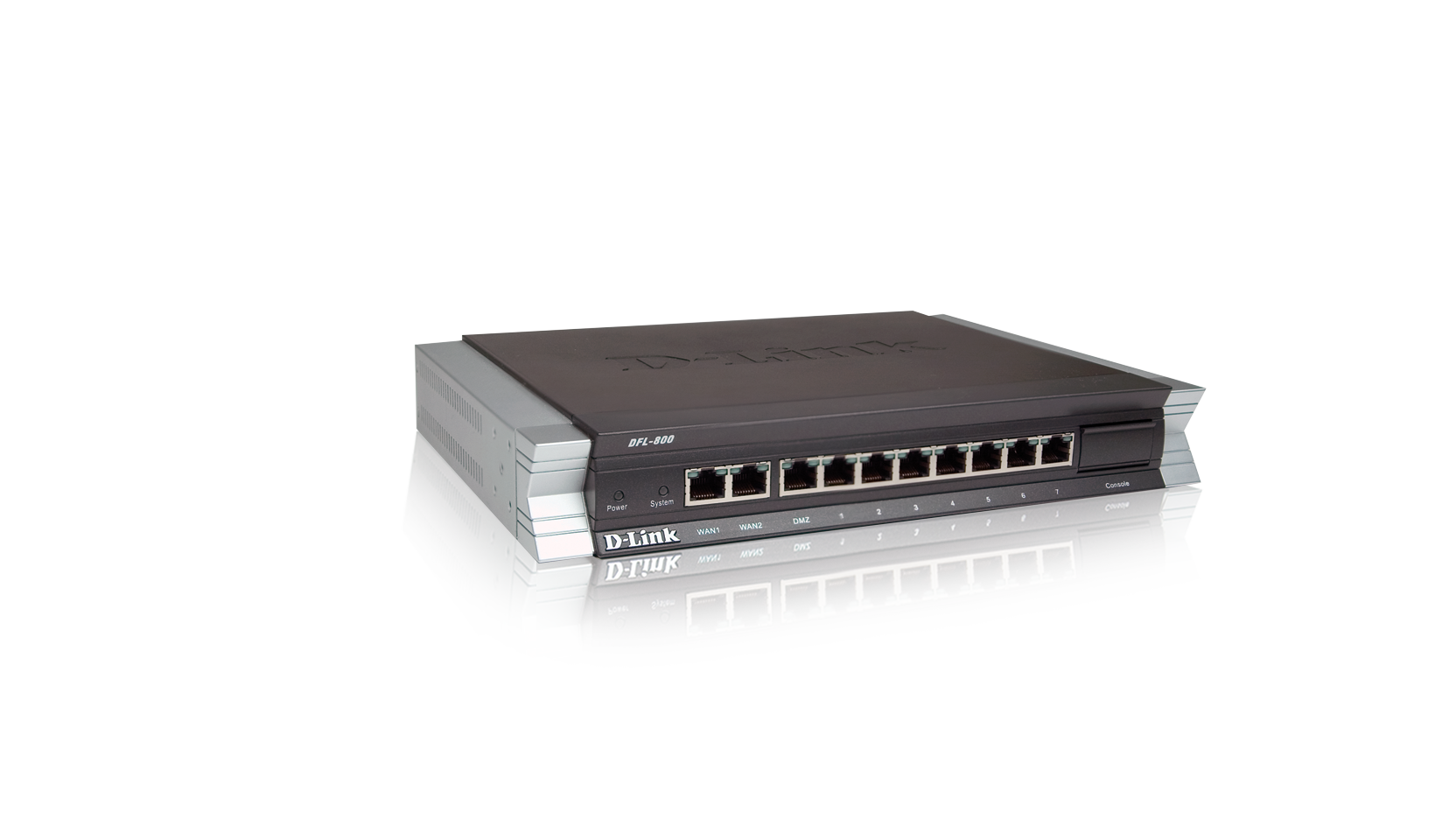

NetDefend VPN Firewall 800

DFL-800

  • Product Status: Phased Out
Description
This easy-to-deploy Desktop VPN Firewall solution is designed for small-to-medium sized businesses and is readily integrated into established networks.

The NetDefend family of Firewall/VPN Security Appliances is D-Link’s answer for hardware-based network security. The new D-Link DFL-800 Network Security Desktop VPN Firewall network security appliance is an easy-to-deploy VPN and firewall solution designed for small-to-medium sized businesses that demand superior performance and security.

Advanced Hardware Features
The DFL-800 is a powerful security solution that provides integrated Network Address Translation (NAT), SPI Firewall, advanced content filtering features, IDS protection, bandwidth management, as well as Virtual Private Network (VPN) support. The DFL-800 hardware includes seven trusted LAN ports, dual-WAN ports for load balancing, and a user-configurable DMZ port to support local servers such as e-mail, Web, and FTP. All of these features conveniently fit into a desktop chassis that can be easily integrated into your network.

Enterprise-class Security
To provide enterprise-class network security, the DFL-800 has several flexible firewall features to manage, monitor, and maintain a healthy and secure network. Network management features include: Remote Management, Bandwidth Control Policies, URL/Keyword Blocking, Access Policies, and SNMP. For network monitoring, the DFL-800 supports e-mail alerts, system log, consistency checks, and real-time statistics. These features along with a firmware backup function provide and maintain maximum network performance and security.

VPN Performance
For optimal VPN configuration, the DFL-800 has both an integrated VPN Client and Server to support almost any required VPN policy. This high-end appliance has a hardware VPN engine to support and manage up to 300 VPN connections. The DFL-800 can support IPSec, PPTP, and L2TP protocols in Client/Server mode and can handle pass-through traffic as well. Advanced VPN configuration options include: DES/3DES/AES/Twofish/Blowfish/CAST-128 encryption, Manual or IKE/ISAKMP key management, Quick/Main/Aggressive Negotiation modes, and VPN authentication support using either an external RADIUS server or the internal 500-user database.

Configurable User Interface
The DFL-800 can be configured via the D-Link Web-based interface and monitored using the Command Line Interface (CLI). These configuration options can be managed through Admin, Read/Write, or Read-Only administrator rights. With these access management levels, any authorized user can easily configure or access the administrative functions of the DFL-800.

With businesses becoming increasingly network-dependent, the need to invest in a reliable security solution is crucial. The D-Link DFL-800 NetDefend Network Security Desktop VPN Firewall offers high return on investment through robust security features, flexible configuration, and maximum network protection.

Technical Specifications


FAQ

  • How do I reset my NetDefend firewall to factory defaults? Read Answer
  • Why can I not get a connection to my VPN server using the NetDefend VPN Client? Read Answer
Version Date Type File Size
Datasheet (English) - PDF 2.11mb Download
Version Description Date Type File Size
User Manual (English) User Manual (English) 11/11/2010 PDF 8.78mb Download
Version Description Date Type File Size
Quick Installation Guide (English) - PDF 3.80mb Download
Version Description Date
Firmware upgrade v2.27.03.25 2.27.03.25 Firmware upgrade v2.27.03.25 09/12/2011 Download
Firmware upgrade v2.26.00.02 2.26.00.02 Firmware upgrade v2.26.00.02 23/09/2009 Download
Firmware upgrade v2.20.02.12 2.20.02.12 Firmware upgrade v2.20.02.12 06/08/2008 Download
Version Description Date
DEU_CLI_Ref_Guide_RevA CLI Reference Guide (English) v2.27.03 10/11/2010 Download
DEU_Log_Ref_Guide_RevA Log Reference Guide (English) V2.27.03 10/11/2010 Download
DEU_CE_A2_A3_EN_FR_RevA Certificate of Declaration A2 & A3 (English and French) 04/12/2009 Download
UK_Example on VPN connection from roaming NetDefend clients DS_601 or DS_605 to the DFL_800_RevA_17 IPSec Server for NetDefend - Download
UK_DFL Series_Users_Manual_v1_08_RevA_21 Firewall User Manual - Download
UK_CLI Reference_Manual_v1_03_RevA_22 CLI Reference Guide - Download
UK_Log Reference Guide_v1_03_RevA_23 Log Reference Guide - Download
UK_CLI ReferenceManual_v2_27_02_RevA_24 CLI Reference Guide - Download
UK_Log Reference Manual_v2_27_02_25_RevA Log Reference Guide - Download
UK_FAQs_Directory_RevA DFL-800 FAQs directory - Download
